Begin by isolating individual circuit segments in your prototyping software. Identify power rails, signal paths, and grounding points–then translate these into abstract symbols. Most tools offer an auto-convert function for basic components like resistors, capacitors, and ICs. For custom or non-standard parts, manually assign schematic symbols from the library and verify pin mappings before proceeding.
Use hierarchical sheets if the design exceeds a single page. Break down complex branches–such as microcontroller subsystems, sensor arrays, or power regulation circuits–into nested blocks. Label each block with clear identifiers (e.g., MCU_CTRL, VDD_5V) and ensure consistent naming across both the layout and the resulting diagram. Check for hidden connections in signal buses or multi-pin headers, which often collapse into single nets during conversion.
Export the file in vector-based formats like SVG or PDF to preserve scalability. If collaborating, use open-source PCB interchange formats (KiCad S-expressions, EDIF) for cross-tool compatibility. Validate the generated schematic by cross-referencing it against a netlist and conducting a design rule check for floating pins or disconnected nodes.
Refine readability by adjusting component placement. Rotate symbols to minimize netline crossings–prioritize left-to-right or top-to-bottom signal flow for digital circuits, and radial symmetry for analog designs like amplifiers or oscillators. Group related components (e.g., decoupling capacitors near ICs) and add descriptive annotations for non-obvious connections, such as pull-up resistors on open-drain outputs.
Converting Breadboard Layouts to Formal Circuit Representations

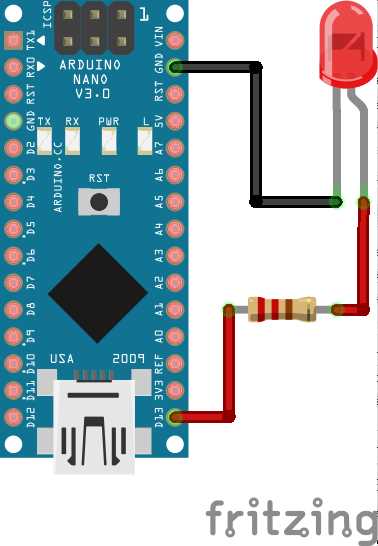

Begin by exporting the visual layout as an SVG or PDF directly from the software’s interface. Open the file in a vector editor like Inkscape or Adobe Illustrator to isolate individual components. Replace breadboard-specific connectors with standardized symbols–resistors, capacitors, and ICs–using libraries from IEEE 315 or IEC 60617. Adjust pin orientations to match schematic conventions: inputs left, outputs right, power rails at the top and bottom.
Trace signal paths methodically. Each wire on the breadboard corresponds to a net in the circuit representation; label them uniquely (e.g., VCC_5V, GND_MAIN, SIG_OUT_1) to avoid ambiguity. Group related nets into buses where applicable, but ensure clarity–avoid overly complex bundling that obscures functionality. Use hierarchical sheets for subsystems if the design exceeds a single page.
Verify component values and connections against the original layout. A single misplaced junction or missing ground can invalidate the entire representation. Cross-reference datasheets for pinouts–breadboard pin arrangements often differ from schematic standards. Replace generic component labels (e.g., “LED1”) with precise identifiers following industry naming schemes, such as R1 for resistors, C3 for capacitors, and U2 for ICs.
Apply consistent orientation rules: transistors should point left-to-right, diodes with the anode on the left, and polarized components with positive terminals upwards. Rotate symbols to minimize wire crossovers, prioritizing a clean flow from source to load. Use net labels instead of drawn wires for distant connections to reduce clutter–ensure labels match exactly, including case sensitivity.
Test the circuit representation by simulating key sections. Tools like KiCad’s integrated simulator or LTspice can validate voltage levels and signal paths without hardware. Flag inconsistencies–missing pull-up resistors, floating gates, or incorrect polarity–before finalizing. Document design decisions in a separate notes layer, including rationale for component choices and net assignments.
Exporting for Collaboration
Generate Gerber files or PDFs in landscape orientation for multi-page designs. Include a bill of materials (BOM) with part numbers, values, and footprints–link components to suppliers if sourcing is critical. Embed metadata like revision history, design rules, and author credits to maintain traceability. Share files in open formats (e.g., KiCad projects, DXF) to ensure compatibility across tools.
Preparing Your Breadboard Layout for Schematic Translation
Ensure every component in your layout matches its real-world counterpart with exact pin configurations. Generic resistors, capacitors, or ICs often cause errors–replace them with models from official libraries or verified third-party sources. Missing or incorrect footprints will break net connectivity during conversion, so cross-check each part’s datasheet before placing it on the board view.
Label all nets explicitly, even ground and power lines. Default names like “Net-(…)2” complicate debugging later; rename them based on function (e.g., “5V_ANALOG”, “GND_DIGITAL”). Use the net inspector to merge duplicate names–identical labels automatically form connections, reducing manual wire cleanup. Avoid overlapping nets; reroute problem areas to single lines with clear junctions.
Arrange components logically, mirroring how signals flow from input to output. Group related parts (e.g., microcontroller ports, sensor clusters) to simplify schematic readability. Rotate elements so pins face expected directions–power inputs upward, signal outputs rightward. Temporary shifts during routing can distort conversion; restore original orientations before exporting.
Remove decorative items–logos, background images, or extraneous text layers–since they clutter output. Preserve only metadata essential to functionality: part values, reference designators, and custom properties. Verify that each component retains its unique reference (R1, C3, U2) to prevent duplication in the translated schematic.
Run the design rule check tool twice–once for electrical errors (shorts, opens) and again for mechanical conflicts (overlaps, illegal traces). Address all warnings, even minor ones; they frequently surface as hidden issues in the final export. Save the file in compressed .fzz format to capture every change; earlier versions may omit recent edits, corrupting the conversion base.
Selecting and Organizing Components for a Clear Circuit Representation
Begin by grouping components by functional blocks–power supply, microcontroller, sensors, actuators, and connectors–then arrange them in a logical flow. For example, place the power source at the top-left corner, followed by voltage regulators or converters directly below, ensuring current paths are visually traceable from input to output. Use net labels for connections that span across the drawing, reserving wires only for critical, short-distance links to reduce clutter.
| Component Type | Recommended Symbol Placement | Spacing Guidelines |
|---|---|---|
| Resistors, Capacitors | Near their associated IC pins or load points | 5–10 mm between adjacent passive components |
| ICs and MCUs | Centered within each functional block | 20 mm clearance on all sides for pin labels |
| Connectors | Right or bottom edge of the block | 15 mm minimum to accommodate cable labels |
| Power Rails | Horizontal lines at top/bottom of block | Separate VCC and GND by 15 mm vertically |

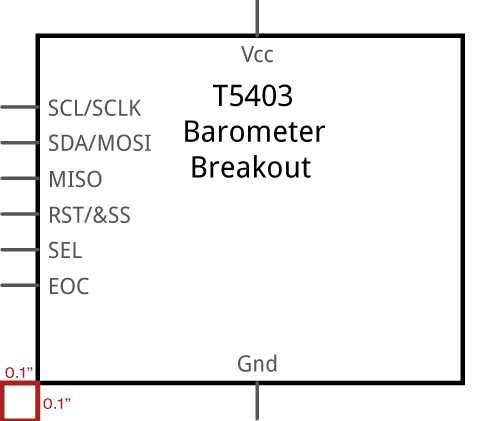

Label every component with a consistent prefix: R for resistors, C for capacitors, U for ICs, JP for connectors. Append sequential numbers (R1, R2) within each block rather than globally to simplify debugging. Hide default pin numbers on IC symbols and display only relevant signals–OE, CS, or PWM–while silencing power and ground pins unless they serve a diagnostic purpose. Rotate symbols to align data buses horizontally or vertically, using orthogonal wires exclusively to eliminate ambiguity. Validate footprint compatibility in parallel: cross-check schematic designators against PCB libraries to avoid mismatched solder pads during layout.
Adjusting Connections and Wiring for Schematic Readability

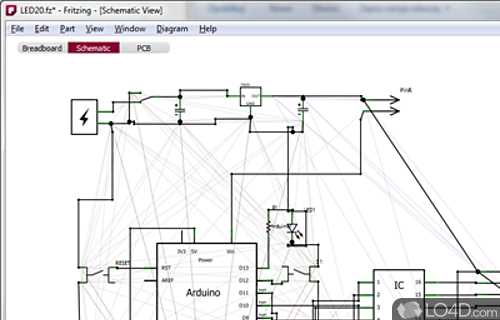

Prioritize orthogonal wiring–only horizontal and vertical traces–with minimal diagonal lines. Deviations create visual clutter, forcing readers to mentally untangle paths. Tools like KiCad’s “cleanup” function automatically enforce this, but manual adjustments may still be needed for densely populated areas, particularly in mixed-signal designs where analog and digital grounds intersect. Label critical nets directly on the wire rather than relying on off-page connectors or lookup tables; this reduces cognitive load by keeping reference points local.
Space parallel wires by a minimum of 1.5x their width to prevent unintended intersections from appearing as shorts. For bus structures, apply consistent spacing and grouping–color-coded thick lines (e.g., red for power, blue for ground) enhance scanability. Avoid wire crossings by rerouting or using vias strategically; if unavoidable, render crossings with a small break in one wire to signal no connection. In hierarchical designs, collapse subcircuits into rectangular blocks with I/O ports aligned to the cardinal directions to maintain logical flow from left-to-right or top-to-bottom.
Use net names sparingly but consistently–place them adjacent to the wire’s midpoint or at terminal points where ambiguity might arise. Replace generic labels like “Net1” with descriptive tags: “I2C_SDA” instead of “Signal7.” For repeated modules (e.g., shift registers), apply identical wiring conventions across instances to leverage pattern recognition. If a trace spans multiple pages, end it with an off-page connector symbol matching the destination’s label exactly–typos here propagate errors during PCB layout.
