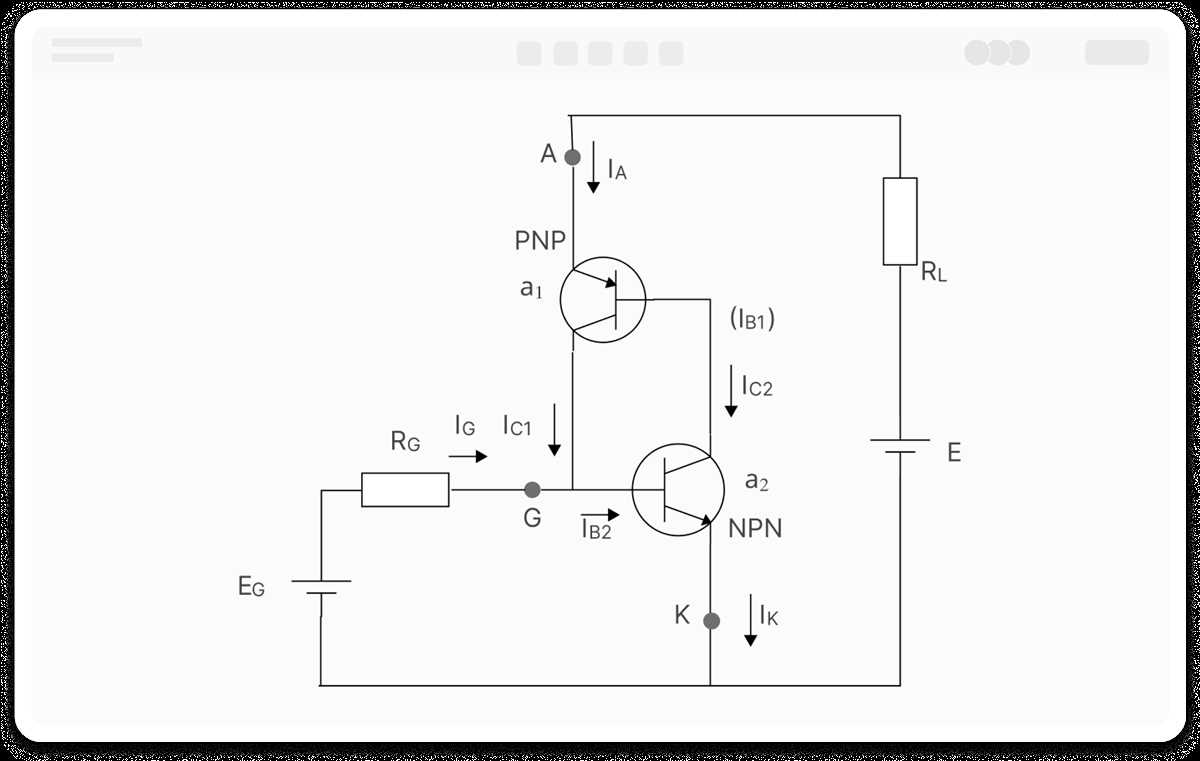

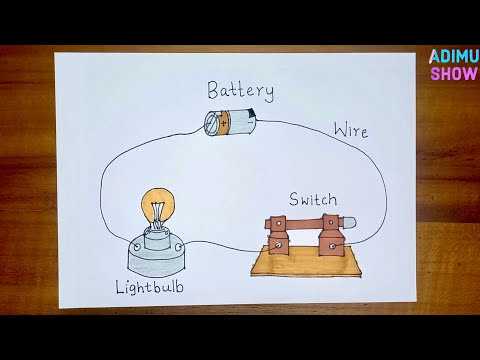

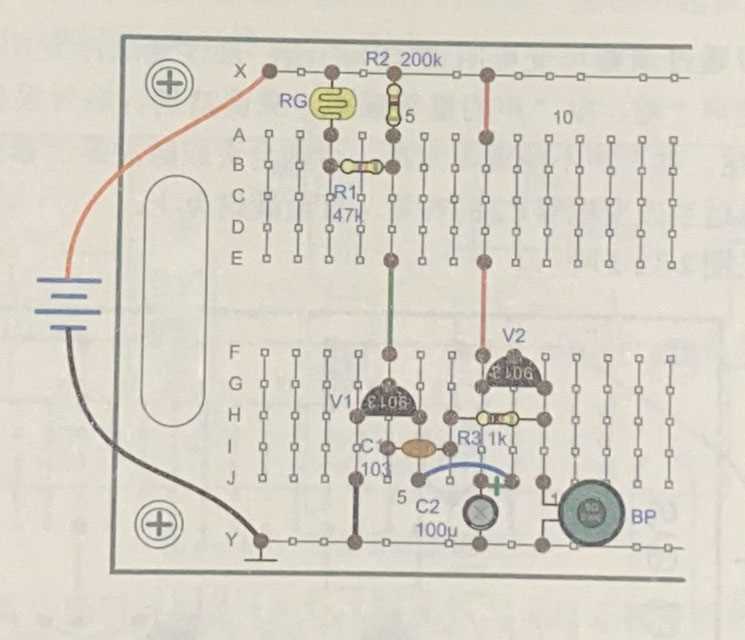

Begin by placing components logically. Resistors, capacitors, and semiconductors should sit along straight lines with minimal crossovers. Each element must align to horizontal or vertical axes–diagonals create confusion rather than clarity. Label every part immediately using consistent nomenclature: R1, R2 for passive parts, Q1, Q2 for transistors, IC1, IC2 for integrated blocks. Avoid mixing notation (e.g., don’t use both “VT” and “Q” for the same type). Use uppercase letters for designators and keep them distinct from values.
Keep signal paths perpendicular. Inputs enter from the left or top; outputs exit to the right or bottom. Ground symbols point downward; power lines ascend upward. Short traces directly connect nearby pins rather than stretching across the entire layout. When components interact, group them visually: decoupling capacitors sit adjacent to power pins, pull-up resistors next to open-drain outputs. Trace width remains uniform unless highlighting a particular route.
Select symbols universally recognized. IEC 60617 or IEEE 315 standards provide unambiguous shapes: zigzag for resistors, parallel bars for capacitors, circle-and-triangle for transistors. Avoid custom icons unless absolutely necessary. Assign unique reference designators; never repeat numbers. Values appear beneath or beside each symbol in clear, legible text (e.g., “10k” or “100nF”). Colors distinguish nets: red for power, black for ground, blue for signals.
Include only necessary detail. Omit internal pin functionality unless explaining internal behavior–focus on connectivity. Place test points explicitly when debugging or measurement access matters. Annotate unusual behaviors: voltage dividers, threshold levels, feedback loops. Add textual notes for non-obvious connections, like “connects to ADC_IN” or “requires 3.3V pull-up.” Review net labels for consistency across multiple sheets.
Validate connections before finalizing. Every pin must terminate; floating nodes indicate errors. Cross-check labels between hierarchical blocks. Use simulation software to visualize signal flow. Export final representations in vector formats (SVG or PDF) for scalability–raster images lose detail when zoomed.
Key Steps for Illustrating Electrical Representations
Begin by selecting symbols that adhere to the IEEE 315 or IEC 60617 standards to ensure consistency across documentation. Place power sources at the top left, arranging components in descending order of voltage–ground references should align vertically at the bottom. Maintain uniform spacing between conductive lines to prevent unintentional overlaps while preserving readability, particularly in dense layouts with microcontrollers or FPGAs.
Label every node with its net identifier (e.g., VCC_5V, GND_A) and include component values directly on the layout–resistors (e.g., R1=1kΩ), capacitors (e.g., C2=10µF), or IC pins. For clarity, use bus lines to group parallel signals (e.g., address/data lines), annotating them with start/end indices. Verify connections with a continuity check before finalizing; transient components like inductors or transformers should show directional flow using arrowheads.
Selecting Optimal Electronic Design Utilities
For beginners, KiCad provides a cost-free, open-source suite with PCB layout, SPICE simulation, and symbol libraries. Version 7.0 supports differential pair routing, net classes, and customizable design rules. The integrated 3D viewer renders STEP models, allowing interference checks before fabrication. Commercial alternatives like Altium Designer offer advanced features such as real-time collaboration and automated documentation generation, but KiCad’s functionality covers 90% of hobbyist and small-scale professional needs without licensing fees.
Eagle remains a viable intermediate option, though its Autodesk acquisition introduced subscription pricing. Users retain access to community-driven component libraries and an extensible ULP scripting interface for automation. For RF or high-speed designs, Cadence OrCAD includes impedance calculators and layer stackup management, critical for signal integrity analysis. Frequent updates to OrCAD’s Capture module streamline hierarchical designs, reducing errors in multi-sheet projects.
Comparison of Core Features
| Tool | License Model | Hierarchical Support | Simulation | Library Management |
|---|---|---|---|---|
| KiCad | Open-source | Yes (sheets) | Ngspice integration | Symbol/footprint editors |
| Altium Designer | Paid (subscription) | Yes (multi-channel) | Mixed-signal | Unified database |
| Eagle | Subscription | Limited | None | Cloud/library import |
| OrCAD | Perpetual/lease | Yes (variants) | PSpice | Centralized |
Power users handling complex FPGA-based systems should evaluate Xilinx Vivado or Intel Quartus. Both include graphical netlist editors and timing-driven placement algorithms tailored for programmable logic. Vivado’s System Generator plugin converts Simulink diagrams directly into synthesizable VHDL, accelerating prototyping. Quartus Prime Pro adds power estimation tools and native support for Intel’s Agilex FPGAs, aligning with high-performance computing requirements.
For embedded firmware integration, STM32CubeMX and MPLAB X embed electrical representation within microcontroller workflows. STM32CubeMX auto-generates HAL code alongside board layouts, reducing manual initialization errors. MPLAB X’s Harmony Configurator syncs with Microchip’s component catalog, ensuring real-time BOM accuracy. When precision matters, LTspice delivers time-domain transient analysis and Monte Carlo simulations, exporting data directly to Excel for further processing.
Cloud-based platforms like EasyEDA eliminate local installation hurdles with browser-accessible editors and instant Gerber file generation. Teams benefit from version-controlled repositories and built-in component sourcing via LCSC’s catalog. For schematic-heavy projects, DipTrace accelerates work with pin swap optimization and auto-routing cleanup tools, while maintaining EMF compatibility for legacy designs. Benchmarking tools via Keysight ADS or ANSYS HFSS validates RF behavior before hardware commits, preventing costly iterations.
Properly Marking Critical Elements in Electrical Blueprints
Assign each resistor, capacitor, or transistor a unique alphanumeric tag following industry conventions: resistors use R1, R2, capacitors C1, C2, and semiconductor devices Q1, Q2. Sequential numbering prevents confusion–avoid skipping numbers or reusing tags across different segments.
Label power sources distinctly: VCC for positive rails, GND for ground, and Vbat if multiple voltages exist. Specify voltage values directly on the line–+5V, -12V–to eliminate ambiguity during assembly or troubleshooting.
Use clarity-driven symbols: IEC 60617 for EU standards, IEEE/ANSI for US-based projects. Ensure consistent scaling–smaller elements like diodes (D1) should retain readability without crowding adjacent labels.
Group related components logically: place decoupling capacitors near ICs they stabilize, mark series resistors with their resistance values (R3 10k), and include tolerance if critical (C5 100nF ±10%). Avoid vague descriptors like “input” or “output”–replace with functional identifiers (Sensor_In, PWM_Out).
Annotate non-standard parts explicitly: potentiometers require pin labels (Wiper, CCW, CW), integrated circuits need pin numbers (U4 Pin 8), and connectors demand terminal designations (J1-1, J1-2). Utilize dashed boxes for modular sections (e.g., power regulation block) with a legend.
Validate all markings against the bill of materials before finalizing. Cross-check reference designators against datasheets–discrepancies between IC3 and IC2 in documentation waste debugging hours. Export labels as a separate layer for future revisions, ensuring visibility even when symbols shift.
Arranging Elements for Clear Logic Paths and Visual Clarity
Position primary signal sources–such as clocks, oscillators, or control lines–at the top-left or extreme left of the layout. This aligns with natural reading habits and establishes an implicit hierarchy where downstream components receive signals in a predictable sequence. Secondary derivatives, like amplified stages or derived clocks, should branch downward or to the right, maintaining a single-direction flow to prevent optical crossings.
- Clock nets: Route vertically with minimal bends to highlight their global role.
- Data buses: Group horizontally, labeling the least significant bit (LSB) on the left to match bit-order conventions.
- Reset/preset lines: Place along the top edge and trace them downward only where needed, avoiding intersections with unrelated logic.
Cluster related functions into modular blocks with consistent internal spacing. A 1.5–2× vertical gap between modules separates them visually without wasting space, while 0.5× spacing within a block ensures cohesion. Use identical symbols–such as matching resistor sizes and gate orientations–for repetitive elements to lower cognitive load. Reserve dotted or dashed outlines for hidden or optional blocks, distinguishing them from solid-line active paths.

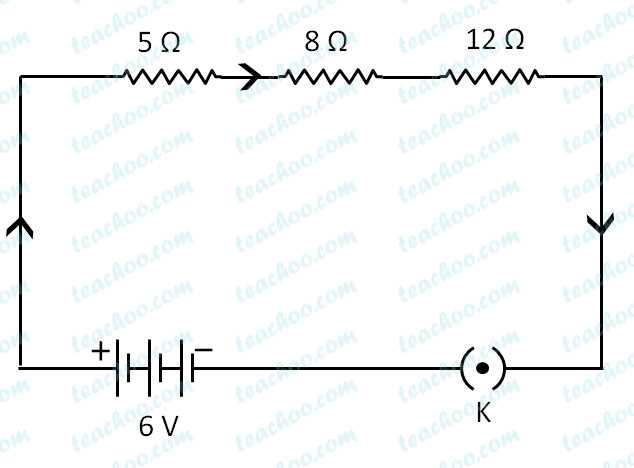

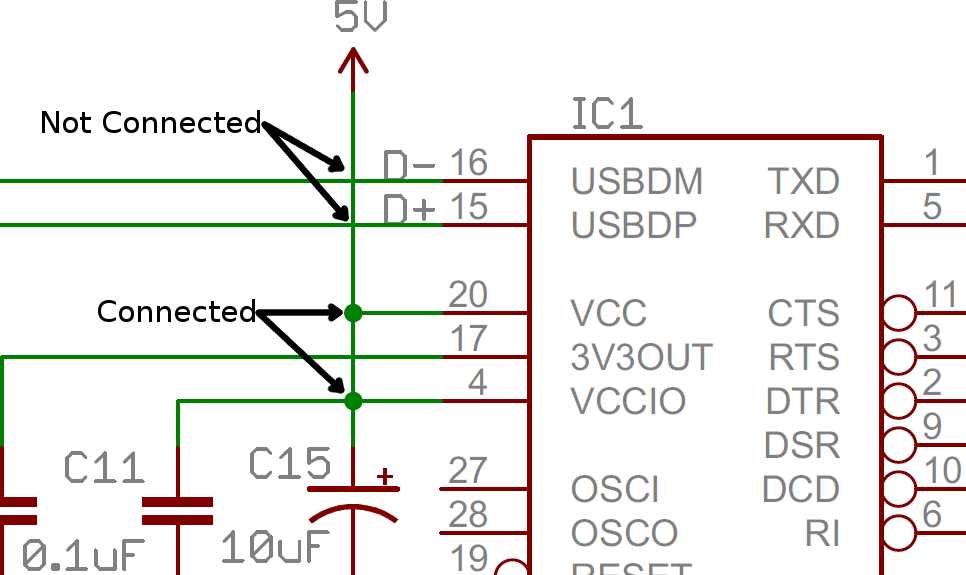

Align common node types–ground symbols, power rails, and output connectors–along a single horizontal or vertical baseline. Ground symbols should point downward, power symbols upward, creating immediate visual polarity. Output connectors should exit on the right side, reinforcing the signal’s termination point without backtracking. When unavoidable, cross signal lines at 90°, never at shallow angles, and mark the crossing with a small arc or junction dot only if ambiguity risks violating logic.
- Scan left-to-right, top-to-bottom.
- Count signal fan-out at each node.
- If fan-out exceeds three, introduce a labeled buffer stage or bus tap to keep net widths consistent.
- Annotate every net with concise identifiers–prefer “CLK_2MHz” over “net3”–but omit repetitive labels on adjacent pins of the same element.
Reduce visual noise by eliminating redundant labels. If a gate’s function is clear from context (e.g., a Schmitt-trigger inverter labeled “SCHMITT”), skip generic “U1” prefixes. Reserve bold or larger font for critical nets–enable lines, interrupts–while using regular weight for auxiliary signals. Color-code only when necessary: red for error conditions, blue for global controls, black for default signals, keeping the palette minimal to avoid misinterpretation.
Rotate non-standard components so their pin numbering increases in the direction of signal flow–counter-clockwise for ICs, left-to-right for discrete transistors. Avoid mirrored orientations unless symmetry is intentional, as mirroring doubles pin-reference effort. For multi-part components like dual op-amps, break them into separate symbols placed adjacent along the signal chain, instead of forcing them into a single composite block that obscures individual stages.
