Begin with a clear sketch using standardized ISO 1219 symbols–every component must adhere to exact proportions and orientations. Motors, pumps, and valves require distinct shapes, while lines should follow logical flow paths without unnecessary bends. Use bold strokes for pressure lines and dashed strokes for return or drain paths to avoid confusion during assembly.
Label each element immediately after placement, assigning distinct identifiers like “P1” for pumps or “V3” for directional valves. Include critical specs–flow rates, pressure limits, and port sizes–directly on the schematic to eliminate ambiguity. Position annotations near components but avoid overlapping symbols or lines.
Verify functionality by tracing the path from the power source through actuators back to the reservoir. Check for missing connections, redundant elements, or incompatible flow directions. Test scenarios under load conditions–if a relief valve activates at 3000 psi, ensure the diagram reflects this threshold.
Simplify where possible–merge parallel branches into single lines if their function is identical, but retain distinct labels. Avoid decorative elements; clarity trumps aesthetics. Store digital copies in vector format (SVG, DXF) for scalability and future modifications without quality loss.

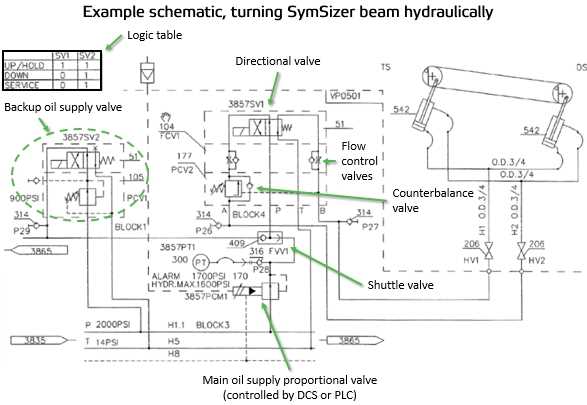

Creating Schematic Representations of Fluid Power Systems
Begin by selecting standardized symbols from ISO 1219-1 for all components–pumps, valves, cylinders, and accumulators–ensuring consistency across schematics. Use a vector-based tool like Inkscape or AutoCAD to maintain precision; raster editors distort symbols when scaled.
Arrange symbols in logical flow sequence, typically starting with the power source at the top-left, followed by control elements, then actuators at the bottom-right. Keep supply lines above return or drain lines to prevent crossovers, which complicate readability.
- Label every symbol with a unique identifier, e.g., “P-1” for the primary pump, “CV-3” for a control valve.
- Include critical specs in parentheses next to symbols: pump displacement (cc/rev), valve pressure rating (bar), cylinder bore (mm).
- Avoid text overlays on symbols; place annotations adjacent to components with thin leader lines.
Separate system sub-circuits into distinct zones using dashed boundaries or color-coding–reservoir loop in light blue, pressure relief in red. Highlight safety-critical paths, like pilot lines to load-holding valves, with boldweight lines (0.5mm thickness).
For complex assemblies, split into functional layers:
- Energy conversion (pumps, motors)
- Directional control (valves)
- Load handling (cylinders, accumulators)
- Conditioning (filters, heat exchangers)
Export each layer as a separate PDF to facilitate troubleshooting.
Verify line connections by tracing each path with a highlighter tool digitally–disconnected ports or misrouted lines introduce errors undetectable until physical prototyping. Use L-shaped connectors for 90° turns instead of sharp angles to reduce pressure losses in simulation software.
Optimizing for Maintenance Documentation
Embed QR codes linking to component datasheets or 3D models next to each symbol. Place a revision table in the bottom-right corner with columns: Date, Change Description, Engineer Initials–update this table with every schematic modification.
Before finalizing, run the schematic through a clash detection algorithm (available in SolidWorks or EPLAN) to identify overlapping symbols or hidden lines. Store the master file in a version-controlled repository with mandatory peer review for changes affecting safety valves or accumulators.

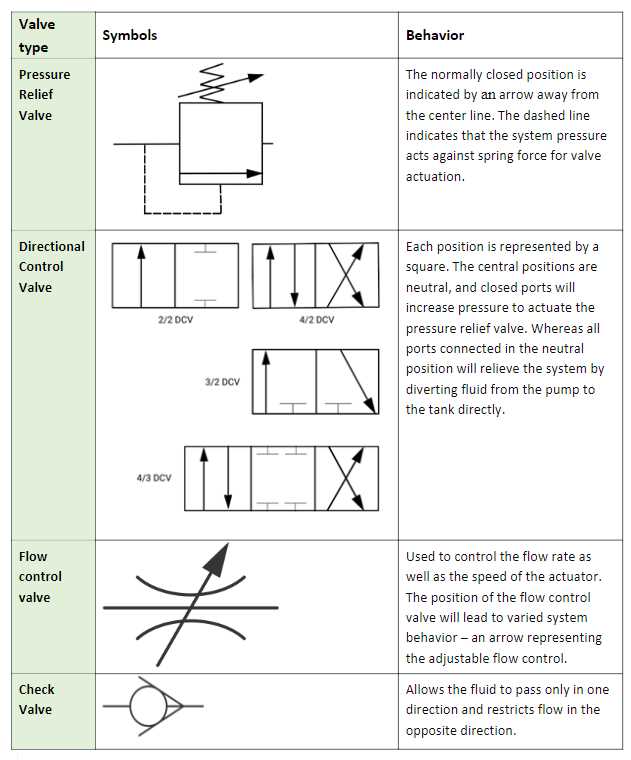

Selecting Appropriate Symbols for Fluid Power Schematics
Begin with ISO 1219-1 as the baseline for component representation–it establishes standardized glyphs for pumps, valves, cylinders, and lines. Deviations from this norm risk misinterpretation, especially in cross-vendor documentation. Verify symbol consistency across schematics by cross-referencing manufacturer datasheets with the ISO guide, ensuring actuators and control elements match their intended function, not just appearance.
For directional control valves, use the correct number of envelope squares to denote valve positions: a three-position valve requires three squares, not two. Label each port according to ISO (P, T, A, B) and avoid custom port nomenclature unless explicitly specified in project requirements. Flow paths within the symbol must align with physical valve behavior–springs, detents, and solenoid actuation should be clearly indicated by arrows or notches.
Pressure relief valves need distinct symbols differentiating pilot-operated from direct-acting types. Pilot-operated valves typically show a dashed control line leading to a separate relief element, while direct-acting valves integrate the relief function into a single glyph. Include cracking pressure annotations next to the symbol if known, using parentheses or a leader line for clarity without cluttering adjacent components.
Handling Discrete Components Beyond Standards
Rotary actuators demand a circular symbol with inlet/outlet ports positioned at realistic angular intervals. A 90-degree or 180-degree actuator requires ports spaced accordingly–never default to uniform spacing unless the physical device matches. Add directional arrows inside the symbol to indicate rotation direction, using solid arrows for powered rotation and dashed arrows for spring return if applicable.
Accumulators require symbols showing precharge state: a single-line symbol indicates a non-precharged type, while a double-line (with space between) denotes a gas-charged accumulator. Specify gas type (nitrogen) and precharge pressure in a nearby note if critical to system operation. Avoid mixing accumulator symbols with filters or heat exchangers, which use distinctly different glyphs despite superficial resemblance.
Custom components absent from ISO 1219-1 should adopt analogies from similar devices. A proprietary proportional valve may resemble a standard directional control valve but include a diagonal overlay indicating proportional actuation. Document these adaptations in a legend adjacent to the schematic, ensuring maintenance personnel or integrators can decode non-standard elements without reference material.

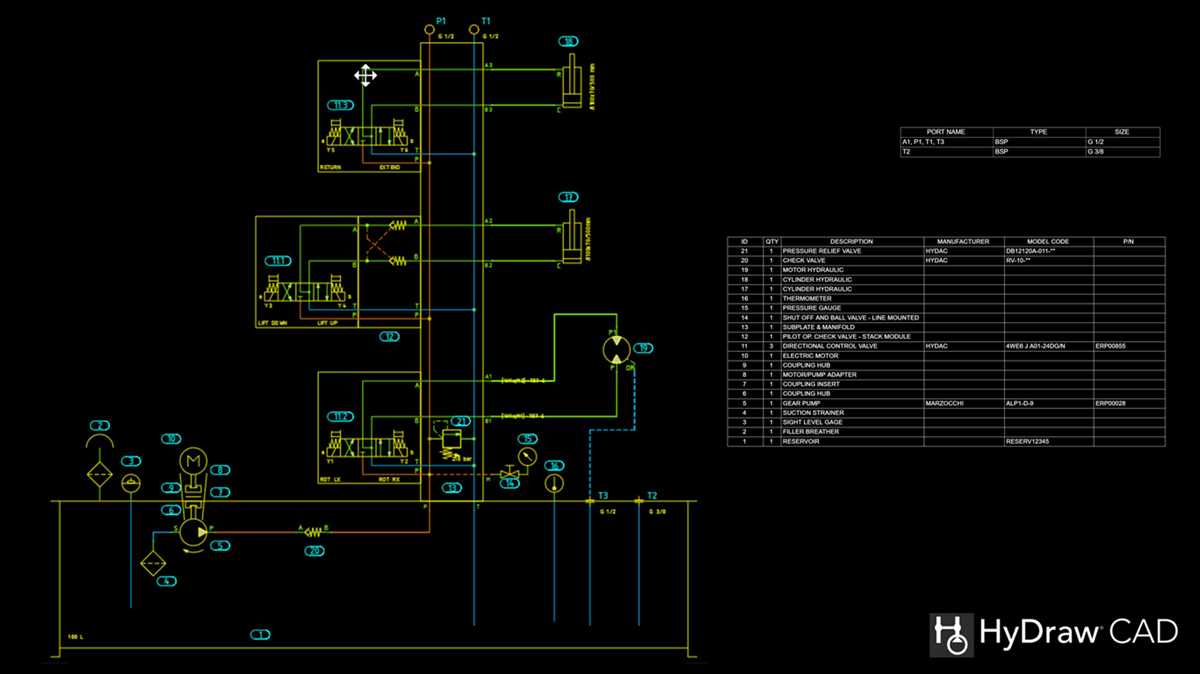

Illustrating a Fluid Power Scheme: Practical Guidelines
Select symbols from ISO 1219-1 for pumps, actuators, valves, and lines before starting. Group components by function, placing pumps at the bottom, actuators at the top, and control valves in between. Maintain consistent spacing–3 cm between symbols horizontally, 5 cm vertically–to prevent visual clutter.
Begin by sketching the power source first. Indicate a fixed-displacement pump with a single arrow inside a circle; variable units require an additional slanted arrow. Connect the inlet line to a reservoir symbol: a horizontal rectangle with a diagonal cross. Extend a pressure line upward from the pump discharge, labeling it “P” if color-coding isn’t used.
- Attach directional valves directly above the pump. Use a 4/3 lever-operated symbol for manual control, ensuring ports align vertically. Label ports: P (pressure), A/B (work), T (tank).
- Position actuators–cylinders as rectangles, motors as circles–at the top. Link cylinder ports A and B to valve ports, adding flow restrictors (two opposing triangles) if deceleration is needed.
- Close the loop by drawing return lines from actuators to the reservoir, adding a return filter (filter basket symbol) before the tank entry.
Annotate critical pressures and flow rates next to components. Write pump specs as “25 cc/rev, 1500 rpm max,” cylinders as “Ø50 × 200 stroke,” and hoses as “Ø12, 25 MPa.” Use arrows along lines to show fluid direction; avoid crossovers by rerouting lines at 90° angles.
Review each connection twice: verify pump outlet connects to valve P, valve A to actuator +, valve B to actuator –, and valve T to reservoir. If auxiliary cooling or filtration is present, integrate heat exchanger symbols (zig-zag lines) parallel to return lines, ensuring separate drain lines terminate at the tank without merging with pressure lines.
Frequent Errors in Fluid Power Schematic Representation
Omitting pressure relief valves in branched systems guarantees uncontrolled pressure spikes. Each actuator requiring independent control must have its own relief valve sized for maximum flow plus 10% safety margin. Table 1 lists recommended valve settings based on cylinder bore:
| Cylinder Bore (mm) | Relief Valve Setting (bar) |
|---|---|
| 25 | 180 |
| 50 | 170 |
| 75 | 160 |
| 100 | 150 |
Misaligning directional control symbols causes misinterpretation of switching logic. Ensure all valve spool positions align vertically with corresponding actuator ports. The left port always connects to pressure, center to tank, right to actuator–no exceptions.
Connecting pump outlets directly to reservoir lines without check valves risks backflow during shutdown. Install a 0.5 bar check valve immediately downstream of every pump discharge. This prevents oil column separation in vertical installations exceeding 2 meters.
Under-sizing return line diameters increases back pressure on actuators. Calculate minimum diameter using: D = √(Q × 0.4 / v) where Q is flow (l/min), v is maximum velocity (4 m/s for inlet, 2 m/s for return). Table 2 shows diameter vs flow:
| Flow (l/min) | Inlet Diameter (mm) | Return Diameter (mm) |
|---|---|---|
| 20 | 8 | 12 |
| 60 | 16 | 22 |
| 100 | 20 | 28 |
Ignoring accumulator pre-charge pressure leads to incomplete energy storage. Maintain pre-charge at 90% of minimum system pressure. For nitrogen-filled accumulators, use: P_pre = P_min × 0.9 – 1 bar. Never exceed cylinder working pressure.
Confusing meter-in with meter-out control wastes energy in resistive loads. Meter-in regulates actuator speed by restricting inlet flow; meter-out controls speed by restricting outlet. Use meter-out for precise control of overrunning loads exceeding 500 kg.
Placing filters immediately after pumps without pressure gauges masks clogging indicators. Install a differential pressure gauge across every filter, setting alarm at manufacturer-specified ΔP. For 10-micron filters, replace at ΔP = 3.5 bar regardless of runtime hours.
