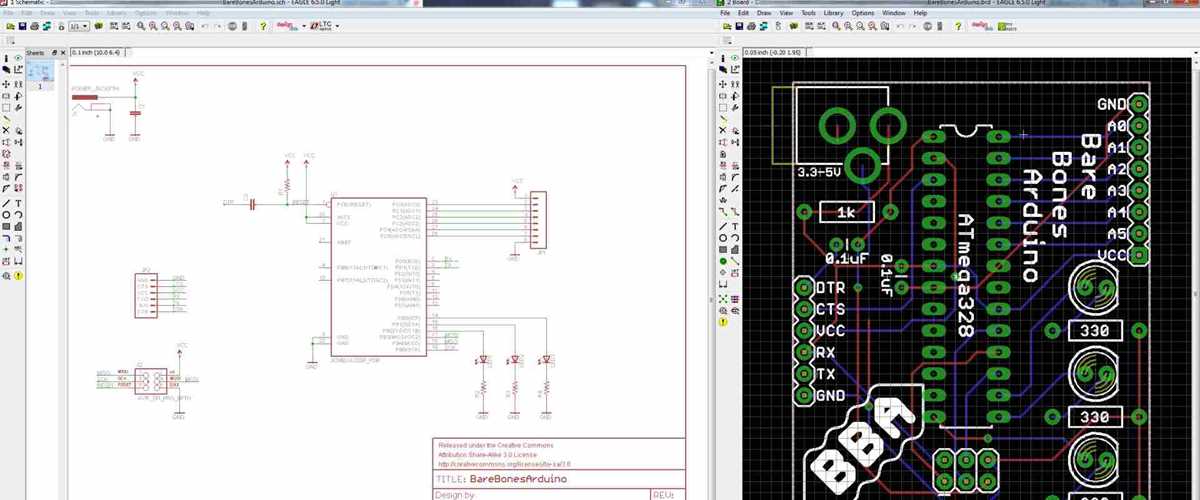

Start by installing a dedicated application like KiCad or Fritzing. These tools provide pre-built component libraries, eliminating manual symbol creation. For instance, KiCad’s built-in eeschema editor includes resistors, capacitors, and ICs with standardized labels, reducing setup time. Place the first element at the origin (0,0) to maintain alignment across the layout.
Use grid snapping at 1.27mm (0.05″) for through-hole components or 0.5mm for SMD parts–this matches industry standards and prevents misalignment. If designing a power supply, connect ground symbols (GND) first; this establishes a reference plane and simplifies debugging. Label nets with meaningful names (e.g., VCC_5V instead of Net1) to avoid confusion during PCB conversion.
Validate connections by running an electrical rules check (ERC). KiCad flags unconnected pins, duplicate nets, and power conflicts with color-coded errors. Export the schematic in SVG for vector clarity or PDF for sharing; avoid raster formats like PNG to preserve sharpness when zooming. For collaborative projects, use Git with .sch files–text-based formats like KiCad’s allow diffing to track changes efficiently.
Custom symbols require precise data: define pin numbers, electrical types (input/output/power), and unit counts (e.g., a 555 timer as 8-pin DIP). Tools like LibrePCB auto-generate UUIDs for components, ensuring consistency across projects. For multi-page designs, use hierarchical sheets; KiCad’s sheet connector tool links ports across pages without manual wire redraws.
Optimize file size by grouping repetitive blocks (e.g., shift registers) into sub-sheets. This reduces clutter and speeds up simulation if paired with SPICE-compatible tools like LTspice. Save versions in separate directories: /v1_base, /v2_with_regulators–this isolates iterations without data loss.
Creating Electronic Schematics Digitally

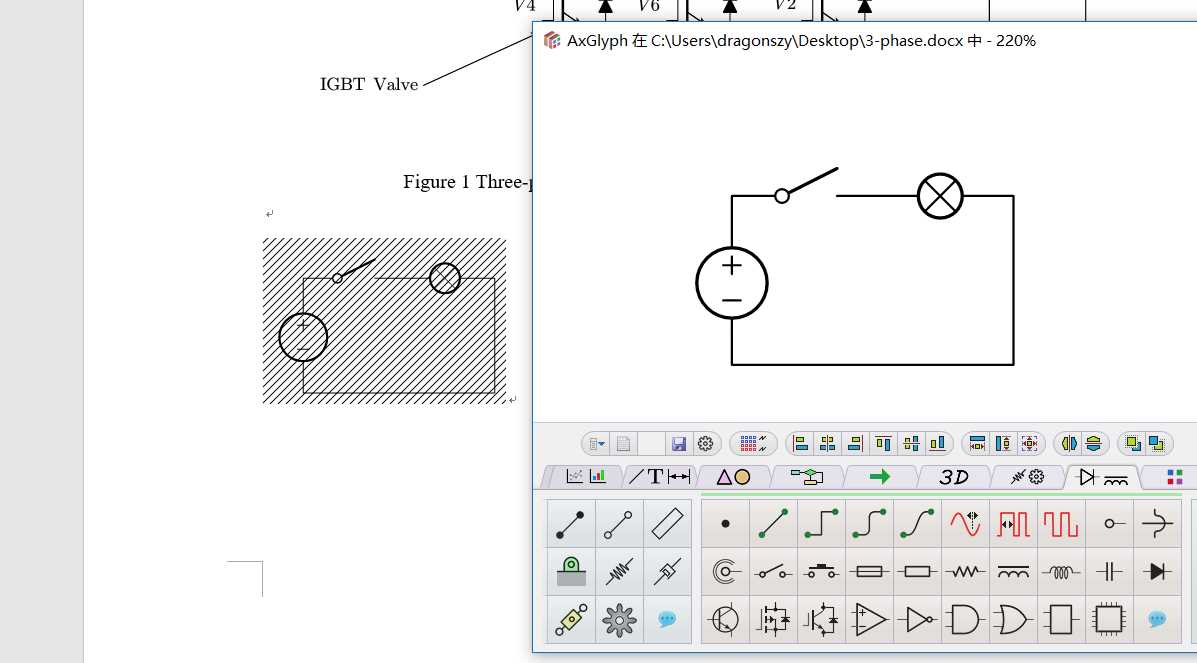

Begin by selecting software specialized for electrical layouts. Programs like KiCad, Eagle, or Altium Designer offer built-in component libraries–avoid manually sketching resistors, capacitors, or ICs from scratch. KiCad provides a free, open-source solution with 3D preview capabilities, while Altium excels in advanced PCB integration but requires a paid license. Download the latest stable version directly from the developer’s website to prevent compatibility issues.
Place components in a logical sequence before connecting them. Start with power sources (batteries, regulators) on the left, progressing toward output devices (LEDs, motors) on the right. Use grid snapping (0.1-inch or 2.54 mm) to align pins precisely–misaligned connections cause errors during simulation. For integrated circuits, orient the notch upward or to the left to match datasheet conventions. Hold Ctrl (or Cmd on macOS) to rotate elements in 90-degree increments.
Optimizing Connections and Annotations
Use net labels instead of crossing wires to simplify complex designs. In KiCad, press L to add a label, ensuring identical names define connected points. Avoid diagonal lines–orthogonal routing improves readability. For power rails, employ dedicated symbols (e.g., VCC, GND) grouped in the schematic editor’s toolbar. Verify connections with the Electrical Rules Check (ERC) tool; resolve warnings about unconnected pins or conflicting signals immediately.
Add descriptive text near critical nodes. Specify resistor values (1kΩ), capacitor types (10µF electrolytic), or transistor models (2N2222). Use text layers differently: place design notes in comments (visible but non-functional), while values should appear alongside components for fabrication clarity. In Altium, press P + T to insert a text string; adjust font size to 8 pt minimum for printouts.
- Assign unique reference designators (
R1,C2)–avoid duplicate labels, which confuse PCB export tools. - Export schematics as PDF for sharing or SVG for vector editing; raster formats lose resolution when scaled.
- Simulate circuits before finalizing: KiCad’s
ngspiceintegration tests DC operating points and transient responses.
Finalizing the Design
Generate a bill of materials (BOM) automatically. Most software includes this feature–ensure all components include manufacturer part numbers for procurement. Cross-reference the BOM with the schematic to confirm no passive elements (e.g., pull-up resistors) are overlooked. For custom footprints, validate pad sizes against datasheets using calipers or digital measuring tools.
Archive the project files in a version-controlled repository (Git) with a README.md detailing:
- Power requirements (
5V @ 500mA). - Intended use-case (e.g., audio amplifier, sensor interface).
- Known limitations (e.g., no ESD protection).
Compress the directory into a .zip before sharing–include the schematic, BOM, and simulation files in organized folders.
Selecting Optimal Tools for Schematic Creation
Begin with KiCad for open-source flexibility–free, actively maintained, and equipped with advanced PCB layout capabilities. Version 7.0 introduced hierarchical sheets, spice simulation integration, and a unified library manager, making it suitable for complex electronic layouts without licensing costs.
Professionals requiring native CAD interoperability should evaluate Altium Designer. Its 365 cloud platform syncs projects across teams, while real-time annotation updates and supply chain management tools reduce errors in multi-layer board development. The 2024 release integrates ECAD-MCAD collaboration workflows for mechanical enclosure alignment.
For rapid prototyping, Fritzing offers an intuitive breadboard view alongside schematic export. Its part library includes 2000+ modules from suppliers like Adafruit and SparkFun, though custom component creation requires manual SVG editing. The tool excels in educational settings but lacks simulation features.
Engineers focused on simulation should prioritize LTspice. Linear Technology’s SPICE variant includes pre-loaded models for op-amps, switching regulators, and passive components, with Monte Carlo analysis for tolerance testing. The software handles transient, AC, and DC sweep analyses but has a steep learning curve for schematic capture.
Autodesk Eagle merges PCB design with CAM outputs for fabrication. The subscription model includes auto-router tools and a 750MB library database, though recent pricing adjustments have made it less competitive for hobbyists. Its strength lies in Gerber file generation with design rule checks.
DesignSpark Electrical targets industrial automation schematics with PLC and industrial networking symbols. The software includes a manufacturer-specific component database from RS Components, reducing procurement research time. Cross-platform compatibility (Windows/macOS) expands accessibility, though large projects may experience slowdowns.
QElectroTech excels in industrial control system documentation. The open-source package includes IEC-compliant symbols and customizable title blocks for technical specifications. Multi-language support enables global team collaboration, while plugin architecture allows custom scripted automation.
For vector-based precision, Inkscape with dedicated electronics extensions converts drawings into netlist exports. The Extensions→Electronics menu offers connectors for KiCad and gEDA compatibility. While primarily a graphic tool, its Bézier curve tools provide exact trace routing for high-frequency designs, though manual netlist labeling remains necessary.
Setting Up a New Project and Configuring the Workspace
Select a schematic editor with a clean, customizable interface–KiCad, LTspice, or EasyEDA offer template-based workflows. Open a new file and name it immediately to avoid unsaved clutter; use a consistent naming convention like proj_module_v1 to track revisions. Set the grid to 1.27 mm (50 mils) for through-hole components or 0.254 mm (10 mils) for surface-mount, as these values align with standard PCB manufacturing constraints.
Workspace Layout Adjustments
Adjust the toolbars to display only essential functions: component library, wiring tool, and property inspector. In KiCad, enable “Grid Snap” and “Object Snapping” under Preferences > Schematic Editor > Editing Options to prevent misaligned connections. For hierarchical designs, activate the “Sheet” tool in the sidebar before starting, as retrofitting sheet references later disrupts net labeling.
Define layer visibility early. Keep copper pour layers hidden during initial schematic capture to reduce visual noise. Reserve silk screen layers for final annotations like reference designators or assembly notes. If the editor supports dark mode (e.g., LTspice), switch to it–studies show a 15-20% reduction in eye strain during extended sessions.
Configure autosave intervals to 180 seconds and enable versioned backups. Most editors default to saving in proprietary formats; ensure compatibility with industry standards like .sch (KiCad) or .asc (LTspice) for interoperability. Use cloud storage integration cautiously–sensitive IP may require local encryption or an on-premises repository with access controls.
Organize component libraries by function (passives, ICs, power) and vendor (e.g., TT_Microchip/, TT_TI/). Prioritize library items with IPC-compliant footprints and simulations. Test-drive a sample schematic with 5–10 components to verify library paths; missing footprints trigger compilation errors during PCB layout handoff.
Set default line widths for nets (0.254 mm) and buses (0.5 mm) to comply with JEDEC standards. Enable “Push & Shove” routing if available–this feature dynamically adjusts traces during edits, cutting manual repositioning time by 40%. For mixed-signal designs, assign signal classes (e.g., AGND, DGND) before placing components to simplify netlist generation.
