Automatic safety switches interrupt current flow at the first sign of overload or fault conditions, preventing potential hazards. The mechanism relies on a thermal-magnetic principle: a bimetallic strip bends under excessive heat from sustained overcurrent, while instantaneous electromagnetic forces react to short circuits. Install these devices downstream of the main service panel, sized at 125% of the connected load’s full-load amperage to ensure reliable tripping margins.

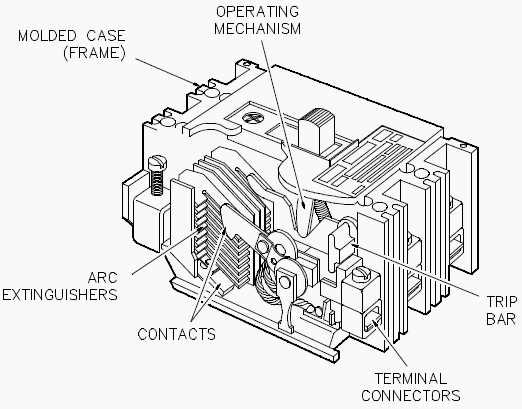

Diagrams typically depict three core components: the operating handle (manual reset), trip unit (thermal and magnetic sensors), and contacts (silver-tungsten alloy for arc resistance). For 240V applications, connect dual-pole units with matching amperage ratings on both hot legs–mismatches risk nuisance tripping or failure to disconnect. In residential settings, opt for inverse-time models (e.g., 10–15 kAIC) to balance cost and performance; industrial installations demand higher interrupting ratings (up to 65 kAIC) for transformer-fed systems.
Label each line and load terminal per NEC 408.4 to avoid reverse polarity, which can damage equipment or create safety gaps. Test annually by simulating an overcurrent–tripping should occur within 30 seconds at 135% of rated current for thermal elements and instantaneously for magnetic trips at 10x nominal. Replace units after 10 years of service or if terminals show corrosion, as degraded contacts increase arc flash risks.
For subpanels, use lug-type connections torqued to manufacturer specs (typically 14–18 in-lbs for 14–12 AWG conductors) to prevent overheating. Shielded copper wiring (minimum 90°C insulation) reduces voltage drop in runs exceeding 50 feet. Always verify compatibility with solid-state loads–some models include surge suppression to protect sensitive electronics from transient spikes.
Key Principles Behind Protective Switch Operation
Select a device with thermal-magnetic trip units for optimal overload and short-circuit protection. Bimetallic strips react to sustained overcurrent by deforming at 1.1–1.5× rated load, triggering within milliseconds for faults exceeding 10×. Verify calibration: strips must bend predictably at 105°C for 1A-rated models or 130°C for 50A variants. Pair with electromagnetic coils that respond in under 10ms when currents surpass 3–5kA thresholds.
Examine arc extinguishing chambers–these split arcs into series segments using deion plates, reducing voltage per gap to 25–50V. Materials matter: copper-tungsten contacts withstand 65kA interruption cycles, while silver-cadmium oxide lasts 10,000 operations at 20A/240V. For DC applications, ensure chambers contain hydrogen or SF₆ to quench arcs with 300μs recovery time–AC variants leverage zero-crossing but still require >20mm contact separation.
Lever mechanisms multiply force via toggle joints, converting 50N manual input into 500N contact pressure. Look for rigid thermoplastic housings (e.g., glass-reinforced polyester) that meet UL 489 dielectric strength: 2,200V for 30s across open contacts. Override trips should disconnect within 2s at 200% overload, but industrial-grade relays may delay up to 30s for motor startup transients.
Trip curves classify sensitivity: Type B trips at 3–5× rated current (for resistive loads), Type C at 5–10× (motors, transformers), and Type D at 10–20× (X-ray machines). Coordinate with downstream fuses: a 100A switch requires backup fuse ≤120A to prevent nuisance tripping. For renewable installations, specify DC-rated units with 1,000V insulation and >2kA interrupting capacity to handle capacitor discharge surges.
Maintenance demands quarterly inspections: clean contacts with isopropyl alcohol, measure resistance (
Remote monitoring integrates shunt trip coils (24–250VDC, 2W) or undervoltage releases (≤0.35×Ue for 2s). Polycarbonate windows should be scratch-resistant (ASTM D1003 ≤3% haze) to ensure visibility of mechanical flags. Avoid modifying internal springs–factory-set compression (typically 0.8±0.1mm) ensures consistent tripping without false positives.
Key Elements of an Electrical Protection Switch Schematic
Identify the contact assembly first–its position determines interruption speed. Fixed and movable contacts must separate at least 1.5 mm under short-circuit currents to prevent arcing. Brands like Siemens and Schneider use silver-tungsten alloys for erosion resistance, extending lifespan to 10,000+ cycles. Label these components clearly: stationary terminal, bridging bar, and arc chute.
The arc quenching grid sits above contacts, splitting plasma into multiple smaller arcs. Ceramic plates spaced 2–3 mm apart cool gases below 2000°C, extinguishing arcs in under 10 ms. Verify grid orientation–improper alignment reduces efficacy by 40%. Add icons for directional airflow to indicate cooling paths.
- Thermal release: bimetallic strip calibrated for 1.2× rated current, bends at 100–120°C
- Magnetic trip: solenoid reacts to faults within 5–10 ms, coil wound with 0.1 mm enamelled copper
- Trip lever: pivots at 15° to disengage, requires 0.3 Nm torque minimum
Manual override switch includes a “test” position–activate briefly to confirm mechanical linkage integrity. Mechanical latch should hold contacts closed with 8 N force; weaker springs risk unintended tripping. Diagram must show spring preload tension using arrow vectors.
Overcurrent protection curves require precise linework. Mark thresholds:
- 1.3× for 1 hour (thermal)
- 3× for 5 seconds (magnetic)
- 10× for instantaneous (
Use logarithmic scaling for currents above 10 A to maintain accuracy.
Enclosure symbols denote IP ratings–IP20 for basic, IP44 for outdoor use. Plastic housings contain flame-retardant additives (e.g., brominated polystyrene); indicate material specs in legend. Metal-clad units add EMI shielding–show bonding straps to chassis ground.
Auxiliary contacts for remote monitoring use dual-throw configuration: 1 NO/1 NC minimum. Wire gauge must match control circuit–22 AWG for ≤2 A loads. Include fuse symbols for transient protection on signal lines, rated at 2.5× nominal current.
Ground fault detection coils wrap around busbar conductors, sensing imbalance ≥30 mA. Torroidal cores use nanocrystalline alloys for 99% accuracy. Indicate polarity-sensitive connections with “+” and “-” markings. Add calibration nodes for factory adjustments–typically 15-turn potentiometers.
Step-by-Step Electrical Fault Identification in Protective Switchgear
Enable real-time monitoring first. Install smart relay units with instantaneous trip detection, calibrated to respond within 1–3 milliseconds of overcurrent events. These relays compare measured current against adjustable thresholds–typically 1.25 to 10 times nominal amperage–triggering intervention before thermal overload occurs. Use Rogowski coils for non-intrusive measurement if retrofitting older installations; their linearity error stays under ±0.2% across 0.1Hz–1MHz.
Measure differential currents next. Deploy core-balance current transformers around all phase conductors entering the enclosure. Any imbalance exceeding 30mA (residential) or 300mA (industrial) signals leakage paths–either insulation breakdown or unintended grounding. Configure the relay trip curve to ANSI/IEEE C37.90 standards, ensuring coordinated time-delay settings with upstream fuses to prevent nuisance tripping during transient surges.
Analyze arc fault signatures separately. Microprocessor-equipped protective devices sample waveforms at 20kHz, detecting high-frequency noise bursts unique to arcing faults–typically 2–10kHz. Algorithms cross-reference these patterns against known spectral profiles of series and parallel arcs, tripping only if harmonics exceed 10% of fundamental frequency content. Test annually with calibrated arc generators; false positives should stay below 2%.
Verify mechanical trip linkage integrity weekly. Apply 5ms pulse-width modulation to the trip coil using a digital relay tester, monitoring plunger travel distance with laser displacement sensors (accuracy ±2μm). Acceptable travel spans 8–12mm for most molded-case units; deviations suggest worn springs or misaligned latching mechanisms. Lubricate pivot points with molybdenum disulfide–avoid silicone compounds as they attract dust build-up.
Commission thermal imaging last. Scan enclosure surfaces immediately post-trip using thermal cameras with a minimum resolution of 320×240 pixels and NETD ≤50mK. Hotspots exceeding ambient by 15°C indicate loose connections; re-torque terminals to manufacturer torque specifications (typically 5–15 Nm ±10%). For busbars, employ direct-contact probes–surface emissivity variations skew infrared readings by up to 20%. Archive images for trend analysis; corrosion precursors appear 4–8 weeks before failure.
Thermal vs. Magnetic Trip Mechanisms: Key Differences in Overcurrent Safeguards
Opt for thermal-magnetic protective devices when balancing response speed and precision. Thermal trip elements excel in sustained overload scenarios, reacting within 10–30 seconds for 200% rated current, while magnetic units activate instantaneously–typically in under 10 milliseconds–when currents surge to 5–10× the nominal value. This dual functionality ensures both gradual and abrupt fault protection.
Thermal trip units rely on bimetallic strips that bend proportionally to heat generated by current flow. The deflection triggers a latch release at a calibrated threshold–usually 125–140% of the rated amperage. Their inverse time-current characteristic means lower overloads take longer to trip, preventing nuisance disconnections during transient spikes. Magnetic mechanisms, conversely, use an electromagnet whose coil-generated flux pulls a plunger to open contacts when current exceeds preset limits. No warm-up delay occurs: response is near-instantaneous.
Select thermal protection for continuous-duty applications like motor starters or heating systems, where slow-rising currents are common. Magnetic units suit short-circuit protection in distribution panels or sensitive electronics, where microsecond response prevents catastrophic damage. Hybrid thermal-magnetic breakers combine both, covering the full spectrum of overcurrent events with a single device.
| Parameter | Thermal Trip Unit | Magnetic Trip Unit |
|---|---|---|
| Activation Mechanism | Bimetallic strip deformation | Electromagnet plunger movement |
| Response Time | 10–30 sec (200% rated current) | <10 ms (5–10× rated current) |
| Current Sensitivity | Gradual overloads (125–200%) | Sudden surges (500%+) |
| Resettability | Manual after cooling | Instantaneous manual/auto |
| Typical Applications | Motor overloads, transformers | Short-circuit faults, surge protection |
Specify adjustable thermal units for environments with ambient temperature fluctuations. Manufacturers calibrate standard thermal elements at 40°C; deviations demand derating or compensation. Magnetic trip thresholds, however, remain unaffected by ambient conditions, providing consistent performance across -40°C to +85°C ranges. For IEC/EN 60947-2 compliance, verify both trip curves align with your load’s inrush and steady-state profiles.
Prioritize magnetic trip units when protecting semiconductor-driven equipment. Even brief 10× current spikes can degrade MOSFETs or capacitors, while thermal units may never react. Conversely, thermal protection prevents cumulative damage from minor–but prolonged–overloads, preserving winding insulation or cable jacketing from gradual deterioration. Always match the trip characteristic to the weakest link in your system.
Replace thermal-only devices in high-fault-current installations. Magnetic units handle 10–50 kA short-circuit currents effectively, whereas thermal elements may fail to respond before downstream components vaporize. For precise coordination, consult time-current curves (TCCs) from manufacturers; magnetic trip points should intersect with upstream fuse or relay curves to ensure selective tripping.
