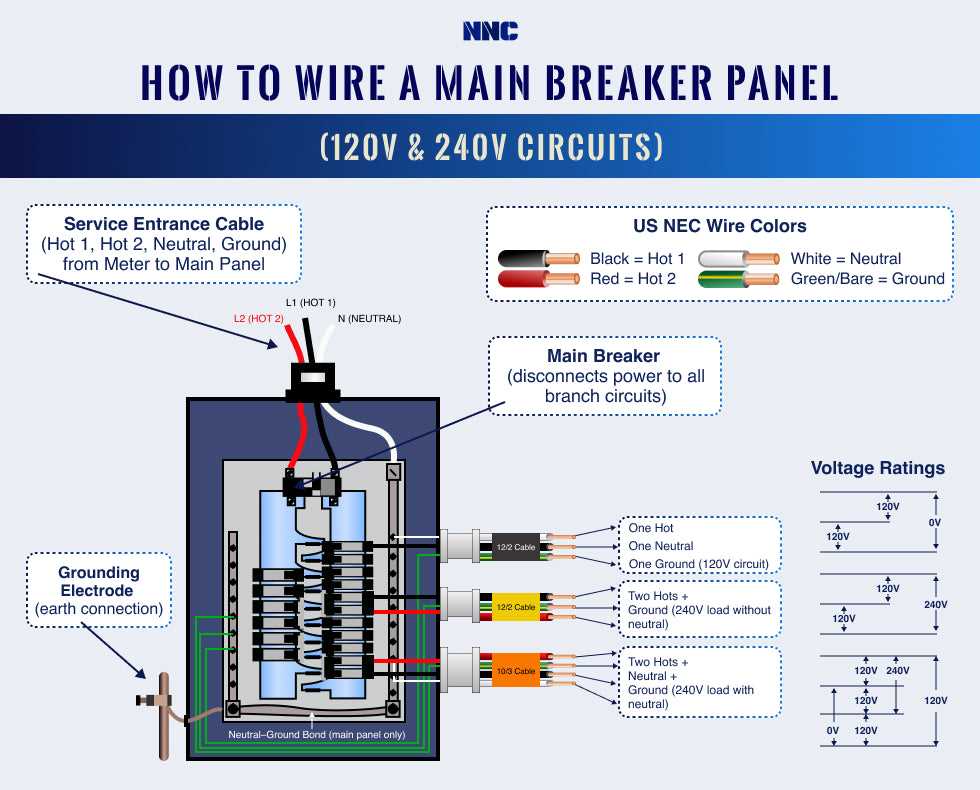

The main distribution unit should be wired with 10-gauge copper conductors for 30-amp circuits, 12-gauge for 20-amp, and 14-gauge for 15-amp branches. Route neutral and ground wires to separate bus bars–never combine them unless the system is a sub-panel with a floating neutral. Label each circuit at the breaker faceplate with permanent markers or engraved tags before energizing the system.
Verify torque specifications: 14-10 AWG wires require 10-18 in-lbs, while 8 AWG and larger need 20-25 in-lbs. Use a calibrated torque screwdriver to prevent loose connections, which cause arcing and overheating. Install arc-fault circuit interrupters (AFCIs) on all bedroom, living room, and kitchen circuits; ground-fault circuit interrupters (GFCIs) in bathrooms, kitchens, and outdoor locations.
Before closing the panel cover, test each circuit with a multimeter: 120V between hot and neutral, 0V between neutral and ground, and 120V between hot and ground. If readings deviate, recheck connections against the manufacturer’s schematic–most panels include a reference diagram inside the door. For 240V appliances, ensure both hot wires share the same phase (240V reading) and aren’t accidentally crossed with a 120V leg.
Metal enclosures must bond to the grounding electrode system via a minimum 6 AWG bare copper wire connected to a listed grounding rod or cold-water pipe clamp. Verify bonding continuity with a ground impedance tester–values should not exceed 1 ohm. If the system includes surge protection, mount the device adjacent to the main disconnect and connect it to neutrals and grounds using 10 AWG or larger conductors.
For sub-panels, run a separate ground conductor (4 AWG minimum) back to the main panel–neutral and ground must remain isolated. Avoid backfeeding breakers unless the panel design explicitly permits it (e.g., some generator transfer switches). Always de-energize the system before modifying connections, and use insulated tools rated for 600V.
Electrical Panel Layout Guide
Label each circuit in your residential load center with durable, waterproof tags matching the official schematic. Use a permanent marker or engraved labels rated for 125°C to prevent fading or detachment. Document amperage (e.g., 15A, 20A), voltage (120V/240V), and connected devices (e.g., “Kitchen GFCI – Microwave + Fridge”) directly on the tag. Store a digital backup with high-resolution photos of the labeled panel, including close-ups of each connection point, saved in a secure cloud drive or encrypted USB.
| Phase | Breaker Slot | Wire Gauge (AWG) | Max Load (Amps) | Circuit Type |
|---|---|---|---|---|
| Single | 1-2 | 12 | 20 | Lighting |
| Single | 3-4 | 10 | 30 | Dedicated Appliance |
| Double | 5-6 | 6 | 50 | Range/Oven |
| Single | 7-8 | 14 | 15 | Outlets (General) |
Verify torque specifications for all terminal screws using a calibrated torque screwdriver–IEC 60947-1 mandates 1.2 Nm for 14-10 AWG copper conductors. Test insulation resistance with a megohmmeter before energizing; readings below 1 MΩ indicate compromised wiring requiring immediate replacement. Group circuits by phase (L1/L2) to prevent imbalance–use a clamp meter to confirm currents differ by no more than 10%. Install an arc-fault circuit interrupter (AFCI) on all 120V branch circuits in living areas, as per NEC 210.12(A).
Identifying Key Elements in an Electrical Panel Configuration
Locate the main shut-off immediately–typically a large switch at the top or side of the unit. This disconnects power to the entire system and is critical for safety during inspections or emergencies. Verify its amperage rating matches the service drop (usually 100A, 200A, or 400A for residential setups) to prevent overloading.

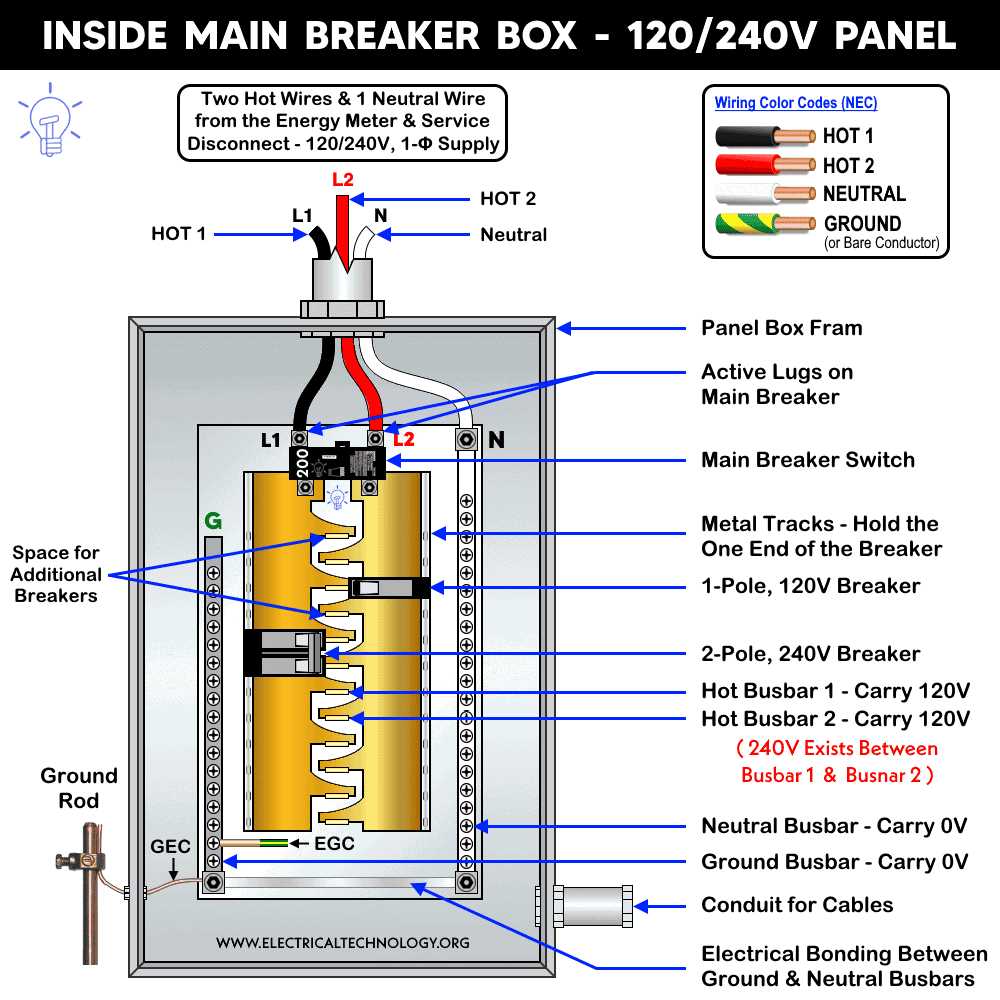

Examine the bus bars: copper or aluminum strips running vertically where circuit switches attach. The neutral bus bar (often white or silver) grounds unused current, while the hot bus bars (black or red insulation) distribute power to individual switches. Check for corrosion or discoloration–signs of overheating that require immediate attention.
Understanding Circuit Switch Arrangement
Note the labeling of each switch–ideally marked with corresponding room or appliance names (e.g., “Kitchen Outlets,” “HVAC”). Unlabeled switches indicate poor maintenance; use a non-contact voltage tester to trace wires before relabeling. Pay special attention to tandem switches (dual smaller switches occupying one slot), as they serve two independent circuits but may exceed panel capacity if not properly rated.
Identify the ground bus bar–a separate bar, often bare copper, connecting to grounding rods via a thick green or bare wire. Ensure all metallic components (switches, conduit) bond to this bar. GFCI and AFCI protection devices may integrate here; verify they meet local codes (NEC 210.8 for GFCI, 210.12 for AFCI).

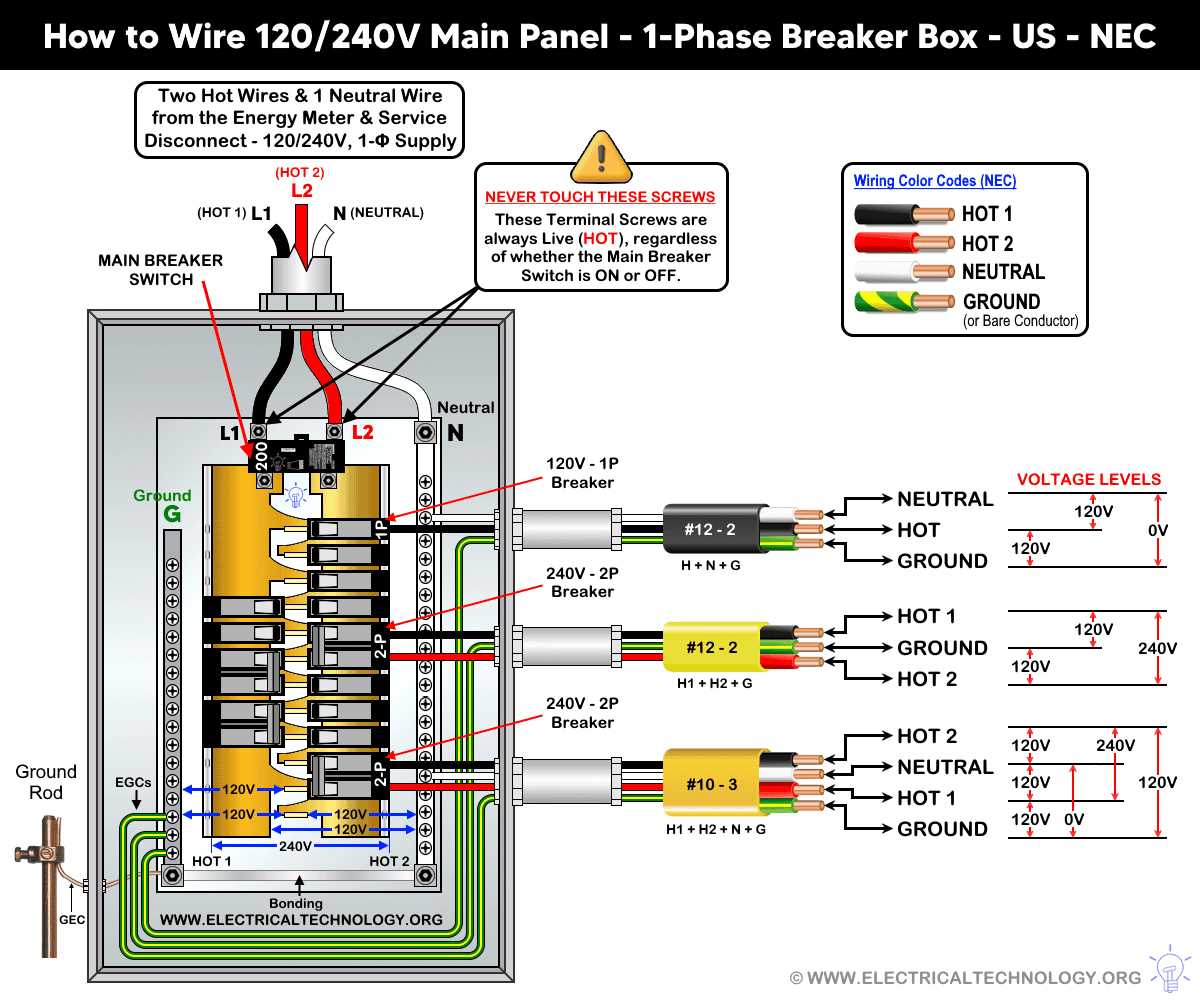

Inspect the incoming service cables: two hot wires (black, red, or brown) from the utility meter and one neutral (gray or white). The neutral should connect to its bus bar with a torque screwdriver set to manufacturer specs (typically 12–18 lb-in) to prevent arcing. Thermal scanners can reveal loose connections by detecting temperature differentials–hot spots >10°F above ambient indicate failure points.
Look for the bonding jumper–a copper wire linking the neutral and ground bars in the main panel only. Subpanels require isolated grounds with a four-wire feed (two hot, one neutral, one ground). Confirm no shared neutrals exist downstream of AFCI-protected circuits, as this violates NEC 210.12 and creates shock/fire hazards. Replace any aluminum wiring with copper or use anti-oxidant compound (e.g., NOALOX) on connections.
Step-by-Step Labeling of Circuits in Your Electrical Panel
Shut off the main power switch to ensure safety before touching any internal components. Use a non-contact voltage tester to confirm no live current exists near the panel’s interior or breakers. Labeling begins only after verifying zero electrical risk–mistakes here can cause severe injury or damage.
Gather these tools before proceeding:
- Fine-tip permanent marker (black or dark blue)
- Adhesive-backed label paper (matte finish)
- Small screwdriver (flathead, non-metallic handle)
- Digital multimeter (with clamp probe for current)
- Circuit mapping sheet (pre-printed or blank grid)
For each switch, restore power to one branch at a time. Have an assistant monitor connected devices (lights, appliances) while you note which toggle controls them. Record the specifics–not just “kitchen lights” but “recessed LED strips, east wall–and include amperage (15A or 20A) from the switch rating. Repeat until all branches are identified. Peel the protective backing from label paper, cut to size, and affix near each switch, ensuring legibility from at least 18 inches away. Backup this map photographically and store in a weatherproof envelope inside the panel door.
How to Safely Map Neutral and Ground Conductors
Begin by isolating the main service disconnect to ensure no current flows through the panel. Use a multimeter set to voltage mode–test between each neutral bus and the ground bus; readings should be 0V (±0.5V tolerance). Any deviation indicates a fault or incorrect bonding. Label each neutral conductor where it terminates on the bus, tracing it back to its corresponding branch circuit with colored tape or numbered tags. Avoid relying solely on insulation color–verify continuity with a tone generator if wires are bundled or obscured.
Key Safety Checks Before Probing
Confirm the panel enclosure is de-energized: probe all busbars, terminals, and incoming lugs with a non-contact voltage tester. If the panel has subfeeds, open those breakers and test again–residual capacitance can hold lethal charge. Wear arc-rated gloves (minimum CAT III/600V) and use insulated tools; even “dead” systems can have induced voltages from adjacent live circuits. Never assume neutral and ground are interchangeable–test each terminal screw torque with a 10-30 in-lb driver to prevent loose connections.
For split-phase systems, identify the bonded neutral-ground junction–this will be a single green screw or strap connecting the neutral bus to the metal enclosure. If the system has a separate grounding electrode conductor, trace it to the grounding rod or water pipe bonding clamp; corrosion or poor clamps here can cause stray voltage on neutral paths. Document every step with photos, noting wire gauge (typically 10-6 AWG) and terminal positions for future troubleshooting.
Common Mistakes When Sketching an Electrical Panel Schematic
Overlooking proper labeling of dual-pole switches during drafting leads to miswiring, especially in 240-volt circuits like stoves or dryers. Each terminal must be marked with its corresponding amperage and phase (e.g., “L1,” “L2,” “Neutral”)–omitting this detail causes confusion during installation. Double-check mixed wire gauges in shared enclosures; a 20-amp circuit paired with 14 AWG copper risks overheating, violating NEC 210.19(A). Always cross-reference conductor sizing charts before finalizing the layout.
Inconsistent Symbol Standards
Using non-uniform symbols for switches, outlets, or GFCI protections creates ambiguity. Stick to IEEE 315 or ANSI Y32.9 standards–grounds should be represented by a solid line with perpendicular dashes, not squiggly lines. Failing to distinguish between single-pole (120V) and double-pole (240V) devices means installers might connect 14 AWG to a 30-amp breaker, violating NFPA 70. Include a legend even for basic schematics; symbols like “⏚” for grounding or “⊔” for disconnects must be explicitly defined to avoid assumptions.
Ignoring load balancing in the schematic guarantees uneven current distribution, tripping protective devices prematurely. Calculate total wattage per busbar–residential systems typically split 200 amps across two 100-amp legs. Label each circuit’s intended load (e.g., “Kitchen – 15A Microwave”) and ensure no single leg exceeds 80% of its rated capacity. Missing this step forces rewiring post-installation, costing labor and materials. Verify conduit fill limits; exceeding 40% capacity for non-metallic tubing (per NEC Chapter 9, Table 1) complicates future modifications.
