Constructing a thermal processing unit requires a layout emphasizing uniform heat distribution across all zones. Prioritize an insulated chamber with dual-layered walls–fiberglass or mineral wool (minimum 50mm thickness) between an outer steel shell and inner aluminum liner reduces heat loss by up to 30% compared to single-layer designs. Position the heating element along the rear and side walls, avoiding direct exposure to samples; coiled nichrome wire (24–26 AWG) delivers consistent output at 400–450°C without localized hotspots.

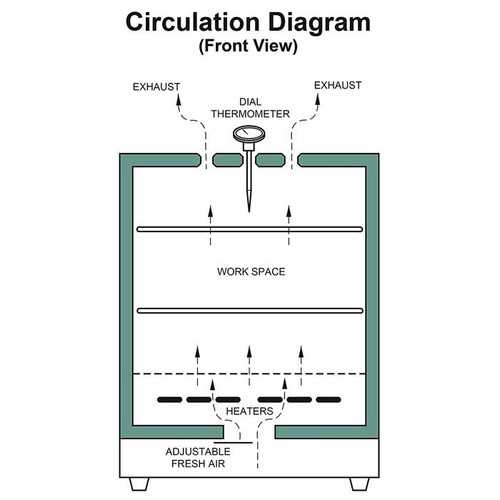

Forced convection accelerates heat transfer: integrate a centrifugal fan (120mm diameter, 3000 RPM) at the base to push warm currents upward through perforated shelves. Shelves should be removable stainless steel mesh (1mm gaps) to allow air circulation; arrange them no closer than 7cm apart to prevent thermal stratification. A PID controller (PT100 sensor) maintains setpoints ±2°C, with a relay or SSR switching the heating element at 1–2 second intervals for optimal stability.

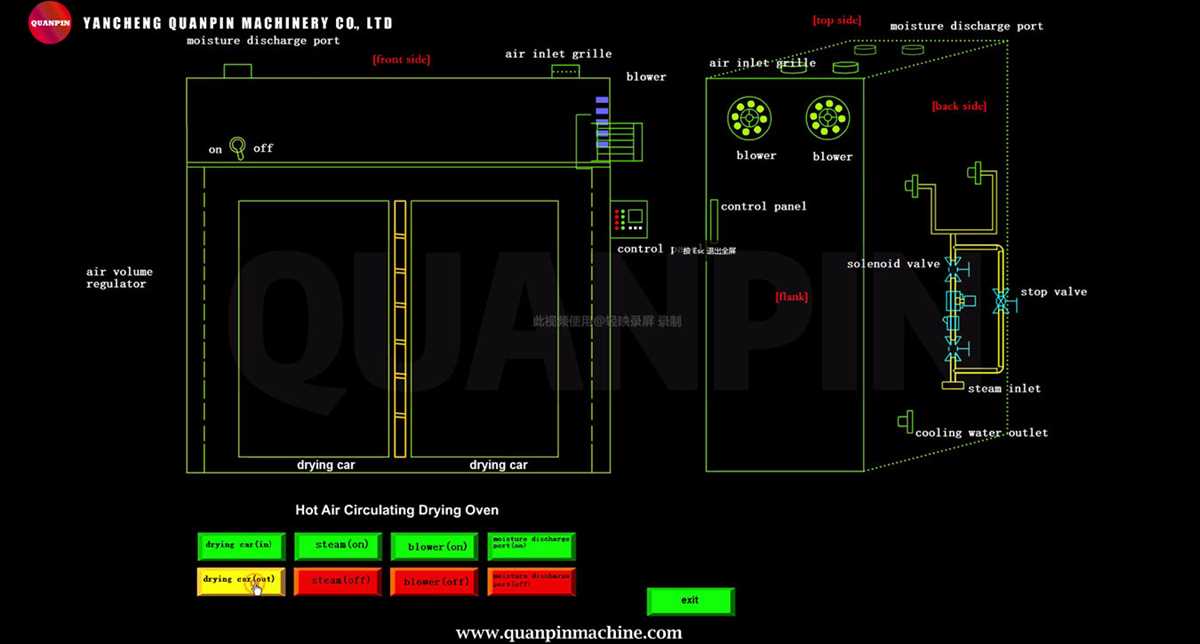

Ventilation is critical–install a diameter-adjustable exhaust port (15–20mm) at the top rear to release moisture without creating cold drafts. A separate 10mm inlet near the fan ensures balanced airflow, while a thermal fuse (rated 250°C) on the heating coil prevents overheating. For multi-zone models, divide the chamber into three horizontal sections, each with dedicated sensors and controls to handle varying load densities.
Safety interlocks are non-negotiable: a door-activated microswitch cuts power if opened mid-cycle, and a grounded stainless steel exterior reduces static risks. Test prototype cycles with data loggers (K-type thermocouples) at corners and center points–temperature variance should not exceed ±5°C across the usable space. For lab-scale units, limit internal volume to 50–80 liters; industrial versions may scale to 1m³, but require finned heat exchangers for efficiency.
Thermal Chamber Wiring Blueprint
Ensure the heating coils are wired in parallel rather than series to maintain consistent temperature distribution–critical for uniform sterilization cycles. Voltage variance across coils should not exceed ±2% to prevent localized hotspots, which degrade sample integrity. Use a 24-gauge nichrome wire for coils rated at 1200W when operated at 220V; this pairing balances resistance and heat dissipation without premature oxidation.
A PID controller must regulate the circuit, with tuning parameters set to a proportional band of 10-15%, integral time of 3-5 seconds, and derivative action at 0.5-1 second. These values prevent overshoot during startup while ensuring rapid recovery from thermal disturbances. Install a solid-state relay (SSR) with a 40A rating to handle inductive loads; mechanical relays introduce latency and arcing risks.
| Component | Specification | Failure Mode |
|---|---|---|
| Thermocouple (K-type) | 0°C to 1200°C range, grounded junction | Decalibration above 900°C, signal drift |
| Blower motor | 230V AC, 120W, IP55 rating | Bearing wear at 80% duty cycle, airflow reduction |
| Insulation (ceramic fiber) | 50mm thickness, 0.05 W/m·K conductivity | Thermal bridging at seams, 15% heat loss |
Ground the outer casing via a dedicated 10mm² copper wire terminated to a star earth point–this eliminates stray currents that corrupt temperature readings. For chambers exceeding 50L, integrate dual blowers mounted at opposing vertical positions; this creates a counter-rotating airflow, eliminating cold zones near doors or corners. Position the intake vent 20mm above the chamber base to prevent dust ingress while maintaining laminar flow.
Calibrate the thermocouple quarterly using a dry-block calibrator set to 200°C, 400°C, and 600°C. Verify accuracy against a NIST-traceable reference probe; acceptable deviation is ±1.5°C. Replace the thermocouple if response time exceeds 3 seconds or if hysteresis surpasses 0.8°C between heating and cooling cycles. Use a dual-channel data logger to cross-validate readings from primary and redundant sensors.
Install a pressure relief valve set to 1.2 bar to prevent chamber deformation during rapid temperature fluctuations. The valve’s orifice diameter should equal 1/12th of the chamber’s internal volume in liters–for a 100L unit, use an 8.3mm orifice. Test the valve annually by pressurizing the chamber to 1.1 bar and verifying leak-free sealing at rated temperatures.
For units operating above 500°C, incorporate a secondary containment layer of 304 stainless steel with 0.8mm thickness. This mitigates corrosion from acidic vapors and extends coil lifespan by 40%. Route electrical conduits through flex conduits with silicone seals at entry points; rigid conduits crack under thermal expansion cycles, allowing moisture ingress that shortens SSR lifespan by 60%.
Critical Elements of a Thermal Processing Unit’s Electrical Framework
Select a precision-controlled heating element rated for 50–200% above the target operating temperature to ensure longevity under cyclic loads. Nichrome 80/20 wire remains the industry standard for forced-convection chambers due to its 1200°C upper limit and 1.1 Ω·mm²/m resistivity; verify coil diameter calculations against airflow cross-sections to prevent hotspots.
The PID controller must sample feedback signals at ≤0.5-second intervals to maintain ±1°C stability within a 250°C range. Choose a microcontroller with 16-bit ADC resolution and isolated ground planes to reject EMI; STM32F334 or equivalent workhorses offer pre-configured PID libraries that eliminate manual tuning overhead.
- Temperature sensors: Type K thermocouples with Inconel sheathing for zones exceeding 800°C; PT100 RTDs for sub-400°C applications where ±0.1°C resolution is non-negotiable.
- Fan assembly: Brushless DC blower rated for 25 m³/min at 50 Pa static pressure; match impeller diameter to chamber width minus 2 mm tolerance to avoid dead zones.
- Insulation: Calcium silicate boards (50 mm) for outer walls, topped with 10 mm microporous blanket facing the cavity; this sandwich reduces exterior shell temperatures below 45°C while retaining 95% thermal efficiency.
Power distribution requires a dedicated branch circuit with 20 A trip curve C breaker and 4 mm² copper conductors for 3 kW loads. Isolate high-current paths from signal traces on the PCB; maintain ≥3 mm clearance to prevent dielectric breakdown in environments approaching dew point condensation.
Safety interlock mechanisms
- Primary over-temperature cutoff: Bimetallic switch with reset delay ≥120 seconds to prevent nuisance tripping during transient spikes.
- Door seal integrity: Pressure-sensitive microswitch wired directly to SSR enable line; interrupts power if closure force drops below 5 N.
- Current sensing: Hall-effect sensor on input line triggers shutdown at ≥2x nominal amperage draw for durations >1 second; add 1.5x safety margin for inductive loads.
Connectivity demands isolated RS-485 transceiver for multi-zone configurations, supporting 1200 m cable runs without repeaters. Implement Modbus RTU protocol with checksum validation to reject corrupted temperature setpoints; reserve register 40001–40020 for real-time PID parameter adjustments.
Grounding strategy dictates star topology from a single chassis earth point, bonded to facility ground via 16 mm² braided strap. Separate analogue and digital grounds meet at the ADC reference pin only; use ferrite beads on all sensor leads to suppress 50–400 kHz noise from SSR phase-cutting.
Step-by-Step Wiring for Thermal Chamber Heater Assembly
Begin by selecting a 10 AWG copper wire for the primary circuit to handle currents up to 30 amperes at 240 volts AC. Verify the wire’s insulation rating matches the operating temperature of the chamber–minimum 90°C for standard silicone-coated wiring. Use a crimping tool to attach ring terminals to each end of the wire, ensuring the connection surface area exceeds 80% of the terminal’s inner diameter for optimal conductivity. Avoid soldering near high-heat zones, as thermal cycling can compromise joint integrity.
Mount the heating element’s terminals onto a ceramic insulator rated for 600°C or higher. Secure the insulator to the chamber’s inner wall using stainless steel bolts and nuts with locking washers to prevent vibration-induced loosening. Position the terminals horizontally on opposite sides of the chamber to distribute thermal expansion evenly. For elements exceeding 2 kW, incorporate a 1-inch air gap between the insulator and chamber wall to mitigate heat transfer to wiring components.
Connect the element’s live terminal to the thermal fuse using a braided copper ground strap rated for continuous 25-ampere service. The fuse must open at 180°C ±5°C–test its activation threshold using a calibrated heat source before final installation. Route the wire away from moving parts or sharp edges, maintaining a minimum 50 mm clearance from any surface exceeding 100°C. Use fiberglass sleeving over exposed wire segments within 150 mm of the chamber’s interior to prevent insulation degradation.
Integrate a solid-state relay (SSR) with a 4-20 mA control input and 240 VAC 40-ampere output rating. Wire the SSR’s input to a PID controller’s 0-10 VDC output, ensuring the relay’s load terminals connect in series with the heating element. Use a 25 mm² heat-resistant cable for the SSR-to-element connection, with a 3% voltage drop tolerance over the cable’s length. Install a snubber circuit (0.1 µF capacitor in series with a 120 Ω resistor) across the SSR’s output terminals to suppress voltage spikes exceeding 1.5× the supply voltage.
Ground the chamber’s metal housing using a 6 AWG bare copper wire connected to a dedicated earth grounding rod via a 10 mm brass lug. The ground resistance must not exceed 0.5 Ω–verify with a megohmmeter after installation. For dual-element configurations, wire elements in parallel, not series, to prevent uneven power distribution. Use a three-phase delta connection if the element’s power rating exceeds 5 kW, ensuring phase imbalance stays below 2% to avoid neutral current flow.
Test the circuit under load using a variable autotransformer. Gradually increase voltage from 20% to 100% of rated value, monitoring for hotspots using an infrared thermometer. At full load, the wire insulation temperature should not exceed 75°C 10 mm from the element terminals. If readings surpass this threshold, increase wire gauge by one size or relocate the wiring harness 30 mm farther from heat sources. Document voltage, current, and temperature readings at 25%, 50%, 75%, and 100% load for compliance validation.
Secure all wiring with stainless steel P-clips spaced at 150 mm intervals along straight runs and 75 mm intervals around bends. Apply dielectric grease to all terminal connections to inhibit oxidation. For chambers operating above 300°C, replace standard wire nuts with ceramic wire connectors rated for continuous 450°C service. Label each wire with heat-resistant polyester tape inscribed with its function (e.g., L1, N, GND) using a permanent ink marker resistant to temperatures up to 250°C.
