Use the Rc and C terminals for cooling systems that share a transformer with the furnace. Connect the red wire to Rc and bridge Rc to Rh if only one power source exists. Ignore separate power connections for heating and cooling unless incompatible voltages require isolation. For single-transformer HVAC setups, keep the jumper intact; remove it only when directed by a licensed technician.
Label wires during removal: yellow (compressor), green (fan), white (heat), blue (common), and red (power). Cross-reference the marked terminals before attaching any conductors. Reverse connections risk permanent board failure. Test voltage between R and C with a multimeter–expect 24VAC. Deviations indicate transformer issues or open circuits in the low-voltage loop.
Place batteries during initial configuration even if the system runs on hardwired power. Backup ensures settings remain during short power interruptions. Match wire gauge to the control board specs: 18 AWG solid for runs under 50 feet; increase to 16 AWG for longer distances to prevent voltage drop. Secure all connections with wire nuts rated for 90°C; standard household nuts degrade under cyclic heating.
Install surge protectors if local power fluctuations exceed ±10%. The TH3210D1004 lacks internal transient suppression. Verify furnace compatibility before connecting auxiliary equipment like humidifiers; non-OEM accessories often exceed the 1A fused circuit limit. Replace any melted connectors immediately–heat damage spreads to adjacent traces.
Program mode settings default to 7-day cycles. Override this only if occupancy patterns demand weekday/weekend differentiation. Set heating differential to 1°F and cooling to 2°F; tighter ranges cause excessive short cycling. Calibrate sensors by placing the unit away from direct sunlight, vents, and appliances.
Connecting the TH3210D1004 Control Unit: Key Terminals and Configuration
Begin by identifying the low-voltage terminal block at the rear of the unit–this model uses a standardized 6-slot layout marked R, W, Y, G, C, and O/B. Ensure power is disconnected at the circuit breaker before handling any connections, as even residual current can damage sensitive components.
For a single-stage heating and cooling system, wire R (power) to the furnace’s 24V terminal. Connect W (heat) to the furnace’s heating relay, Y (cool) to the outdoor condenser’s contactor, and G (fan) to the blower motor relay. If using a heat pump, O/B activates reversing valve: link O/B to the valve’s terminal while ensuring the system’s defrost board matches the valve’s polarity (O for cooling, B for heating).
Common issues arise from misaligned heat pump wiring: check the manufacturer’s specifications for O/B settings, as some systems require a jumper between R and W during emergency heat mode. If the indoor fan fails to engage, verify the G terminal’s connection to the air handler’s blower relay–corrosion or loose screws often disrupt this circuit.
- RH/Rc split systems: Use a jumper wire between RH and Rc if the unit lacks separate transformers. Omit the jumper for dual-transformer setups to avoid feedback loops.
- C wire requirement: Modern units need a dedicated C (common) terminal for consistent power. If the HVAC lacks a C wire, install a 24V adapter or repurpose an unused wire (e.g., from a cable TV line). Avoid using G as a power source–this bypasses safety protocols.
- Heat pump O/B reversal: Test the valve’s operation by switching between heating and cooling modes. A reversed O/B connection causes the system to run in opposition to demand, wasting energy and risking compressor damage.
Troubleshooting Terminal Errors
If the display shows *”System Off”* despite correct wiring, measure voltage at R and C with a multimeter–expect 24VAC. Absence of voltage points to a tripped breaker or faulty transformer. For *E9* errors, check the W and Y terminals for shorts: disconnect wires and test continuity with a multimeter. A reading below 1 ohm indicates a fault in the HVAC equipment, not the control panel.
Humidity sensors integrated into this model rely on the G terminal’s fan signal. If humidity readings freeze, inspect the G wire for fraying–exposed copper near the terminal block can cause intermittent shorts. Replace damaged wires with 18-gauge, solid-core copper for reliability.
For zoned systems, wire zone valves to the W terminal and set DIP switches on the zone panel to match the TH3210D1004’s configuration. Incorrectly mapped zones lead to erratic cycling or complete shutdown. Refer to the zone panel’s schematic for dip switch settings–this step avoids hours of trial-and-error diagnostics.
- Label all wires before removal, using colored tape or a permanent marker.
- Tighten terminal screws to 0.6 Nm (5 in-lbs)–overtorquing strips threads.
- After wiring, restore power and observe the startup sequence. If the screen remains blank, recheck the C wire connection or test the transformer’s output.

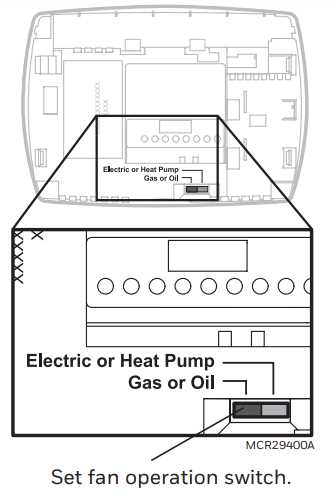

- Program the unit’s setup menu for fuel type (gas/electric/oil) to ensure proper staging logic.
- Calibrate the temperature offset if readings deviate more than ±1°F from a reference thermometer.
Understanding Terminal Connections and Color Standards for the TH3210D1004 Control Unit
Start by locating the R terminal–this is your power source for cooling and heating modes, typically marked in red or attached to a red wire. If your system includes separate power feeds for heating (Rh) and cooling (Rc), connect them to their respective terminals. Ensure the jumper between Rh and Rc is removed if your configuration requires independent circuits; failure to do so may prevent proper operation.
The W terminal governs heat activation and is almost always paired with a white wire. In dual-fuel setups, an additional W2 (or auxiliary heat) terminal may appear, often linked to an orange or dark blue wire. Verify voltage at these points; low-voltage systems (24V) should maintain consistent readings, while missing or fluctuating voltage signals a break in the circuit.
Cooling control goes to the Y terminal, usually connected via a yellow wire. For multi-stage cooling, Y2 may be present, frequently using a light blue or brown wire. Check the outdoor unit’s specifications–some compressors require a dedicated C (common) wire, which should terminate at the blue or black terminal. Omitting this in modern systems can disable smart features or cause irregular cycling.
Fan operation is managed through the G terminal, consistently wired with a green lead. If your system has a variable-speed fan, confirm compatibility; some older models use a separate F terminal instead. Reversing the G and C wires is a common error–this will engage the fan continuously, wasting energy and reducing system efficiency.
For zoned or advanced setups, auxiliary terminals like E (emergency heat) or O/B (heat pump reversal valve) may appear. The O/B terminal commonly uses an orange wire, while E terminals often default to red or purple. Cross-reference these with the equipment manual–incorrect polarity on the O/B terminal can damage the heat pump’s reversing valve, leading to costly repairs.
Step-by-Step Guide to Connecting Low-Voltage Leads to the Control Unit Base
First, identify each wire by its color and label using the system’s wiring reference. Securely strip 1/4 inch of insulation from each lead, ensuring no frayed strands remain. Twist copper strands clockwise to prevent shorts during attachment. Confirm the control panel’s terminal letters match the labels on the HVAC equipment documentation–cross-reference with this table to avoid errors:
| Terminal | Typical Wire Color | HVAC System Function |
|---|---|---|
| R | Red | 24V power from transformer |
| C | Blue or black | Common for power return |
| W | White | Heating call (gas/furnace) |
| Y | Yellow | Cooling call (AC unit) |
| G | Green | Fan activation |

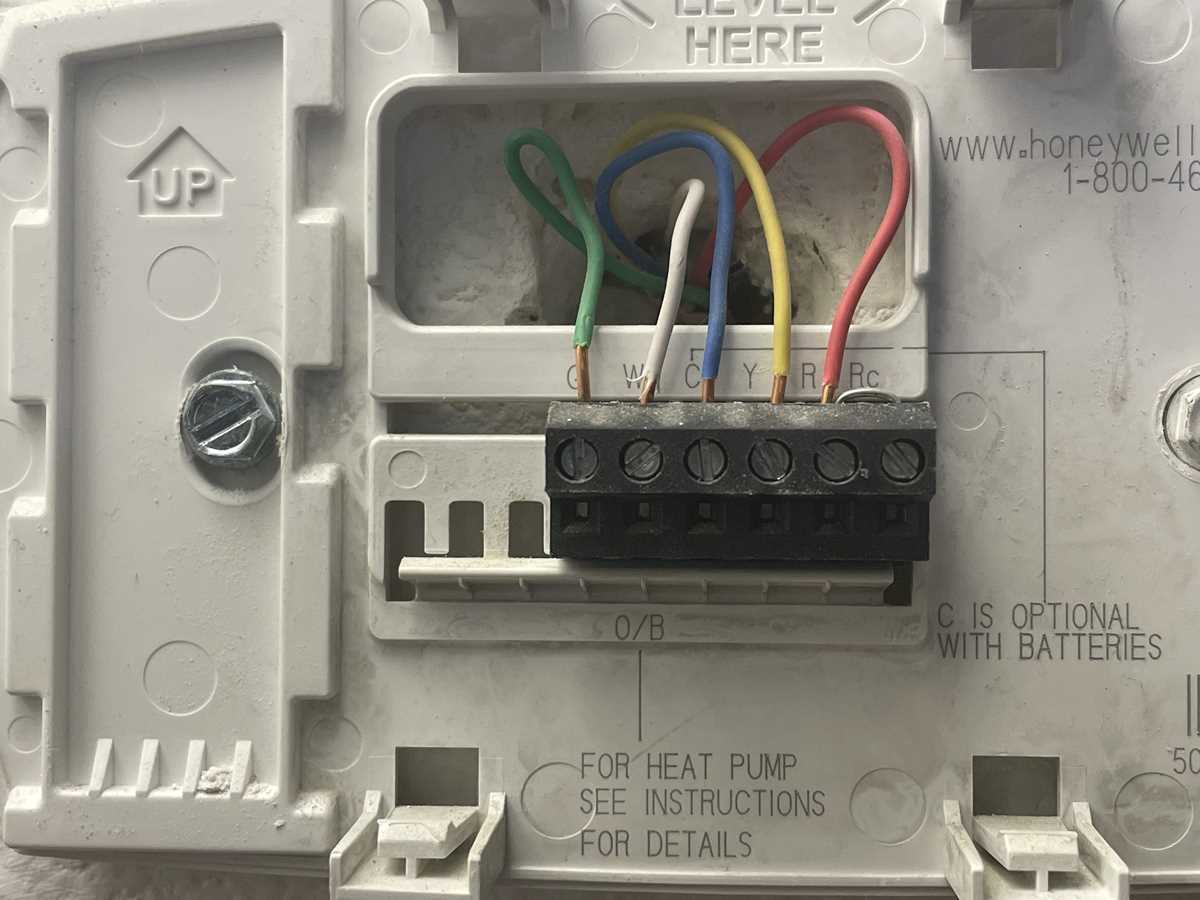

Insert each prepared lead into its corresponding terminal slot on the backplate, pushing firmly until a click confirms full engagement. Verify tension by gently tugging–loose connections cause intermittent failures. If utilizing a dual-transformer setup, attach R and Rc to separate 24V sources with a jumper only if specified by the equipment manual. Miswired jumpers risk damaging the transformer or relay boards.
Final Checks Before Powering On
Switch the circuit breaker to the OFF position before restoring power. Visually inspect each terminal point for stray strands or debris that could bridge contacts. Recheck terminal labels against the HVAC schematic–reversed W and Y leads force simultaneous heating and cooling cycles, tripping safety limits. Power on the system, observing the display for error codes; if present, re-examine connections starting with R and C for improper voltage flow.
Solving Frequent Connection Issues on the TH3210D1004 Control Unit
Verify the correct pairing of low-voltage cables to terminals Rc and Rh. If the system fails to power on, cross-check these inputs with a multimeter–readings below 24VAC between R and C indicate a disruption in the supply path. Swap the leads if voltage is absent, ensuring the transformer feeds the appropriate terminals without shorts.
Mislabeling the W (heat) and Y (cool) contacts remains a persistent error. Activating the wrong stage during testing produces either no response or improper cycling. Confirm wire placement by engaging heating mode–the relay should click at W; analogous behavior at Y verifies cooling. If neither triggers, trace continuity from the unit’s backplate to the actuator.
Interference between G (fan) and O/B (reversing valve) connections often causes erratic blower behavior in heat pump configurations. Disconnect the G lead temporarily; if the fan operates uncontrollably, the O/B signal is bleeding into the fan circuit. Reinsulate the O/B cable with heat-shrink tubing, ensuring it does not contact G or adjacent screws.
Flickering display or intermittent shutdowns typically stem from a loose C (common) connection. Strip an extra 1/4 inch of insulation on this lead, wrap it twice around the terminal screw, and tighten until resistance increases. If symptoms persist, solder a 15-gauge jumper from C to the nearest chassis ground point, bypassing potential corrosion in the original contact path.
