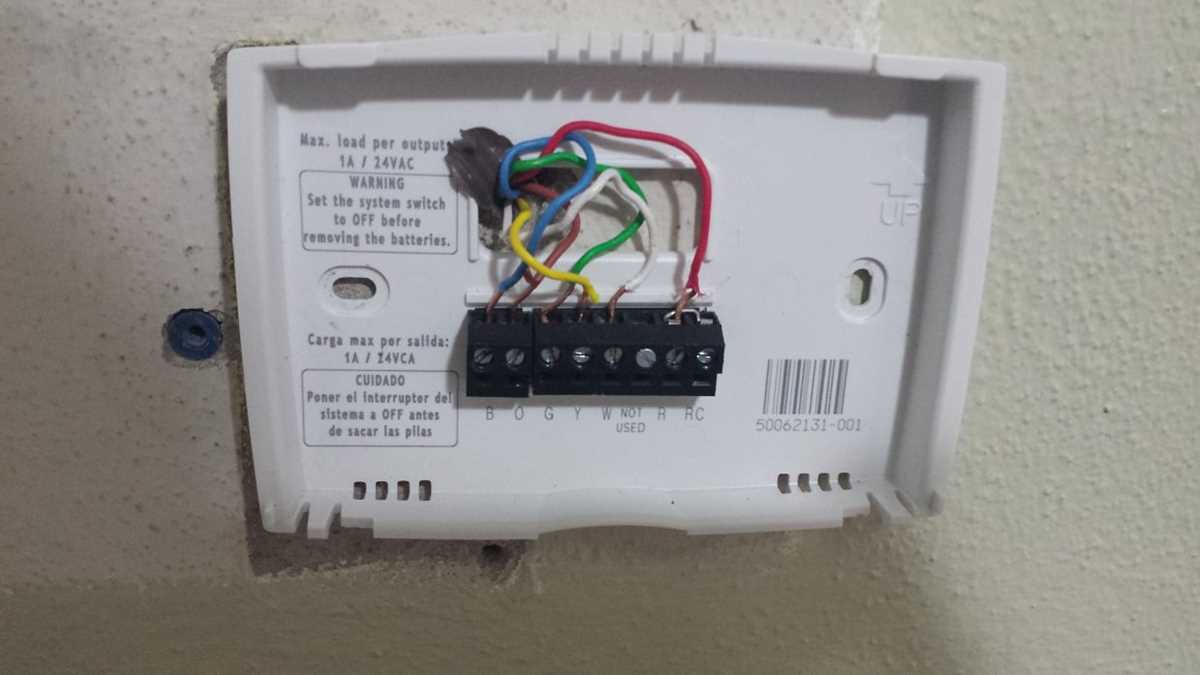

Begin by identifying the three key connectors on the backplate: R (power input, typically red), W (heat call, usually white), and C (common, often blue or black). Ensure the furnace or boiler is powered off before proceeding–this prevents accidental shorts or damage to low-voltage circuits.
Match the terminal colors strictly: R to the transformer’s 24V hot lead, W to the heating relay input, and C to the transformer’s grounded side. Swapouts like replacing blue with black for C are tolerable if the system lacks color coding, but consistency matters. Use 18-gauge solid copper cable–thinner wires risk voltage drops under load.
For single-stage heaters, skip jumper wires; multi-stage units may require a separate W2 terminal, but merge both leads if the control lacks this feature. Test continuity with a multimeter before sealing the plate–open circuits here mean no heat, despite power being on. Apply electrical tape over unused ports if retrofitting a legacy unit to prevent dust ingress.
Power the system and observe: the display should initialize within 30 seconds. If it cycles repeatedly, confirm the R and C connections–reversed polarity causes erratic behavior. For smart variants, pair the device before mounting the faceplate; interference from unfinished hookups confounds pairing protocols.
Connecting a 3-Conductor Climate Control Device: Step-by-Step Guide
Install the control unit by linking the red conductor to the R-terminal–this supplies 24V power from the furnace’s transformer. Attach the white lead to the W-terminal, activating heating when the temperature drops below the set point. For cooling, connect the optional green or yellow conductor to the Y-terminal if the system includes an air conditioner. Verify compatibility with your HVAC setup; mismatched connections may damage components or void warranties.
Follow this terminal mapping for typical setups:
| Conductor Color | Terminal | Function |
|---|---|---|
| Red | R | Power input |
| White | W | Heating activation |
| Green/Yellow | Y | Cooling activation (if applicable) |
Troubleshooting Common Errors
If the unit fails to respond, check for loose connections or incorrect terminal placement. Measure voltage across R and W with a multimeter–24V indicates proper power; lower readings suggest a transformer issue. For systems with separate heating and cooling, ensure jumpers or additional conductors aren’t required. Replace damaged leads immediately; exposed copper risks short circuits. Test the setup by adjusting the dial; delays longer than 5 minutes may signal relay or furnace malfunctions.
Pinpointing Compatible Conductors for a 3-Terminal Climate Control Device
Locate the red conductor–this serves as the primary power feed (usually 24V AC) from the heating or cooling apparatus. Verify its connection to the R terminal, marking it clearly with a label if the conduit lacks color coding. For systems with separate heating and cooling cycles, a jumper may bridge R to Rh or Rc; remove it only if the installation manual specifies dual-transformer setups, as incorrect separation risks damaging the control board.
Diagnosing Remaining Terminals
The white lead typically links to the W post, handling heat activation signals. If the system includes a fan, the green strand connects to the G slot–test continuity with a multimeter before securing, as a misplaced fan lead can trigger erratic blower behavior. For uncommon configurations, trace each strand back to the furnace or AC relay: faint labeling often denotes Y for cooling (yellow) or C for common (blue), though colors vary by manufacturer. Use a voltage detector to confirm no residual charge before handling.
Step-by-Step Guide to Connecting R, W, and C Terminals on Your Climate Control Device
Turn off the power at the circuit breaker before handling any connections. Verify the absence of voltage using a multimeter at the control board to prevent electrical hazards. The R terminal supplies 24V AC power from the transformer, acting as the main hot lead for the system.

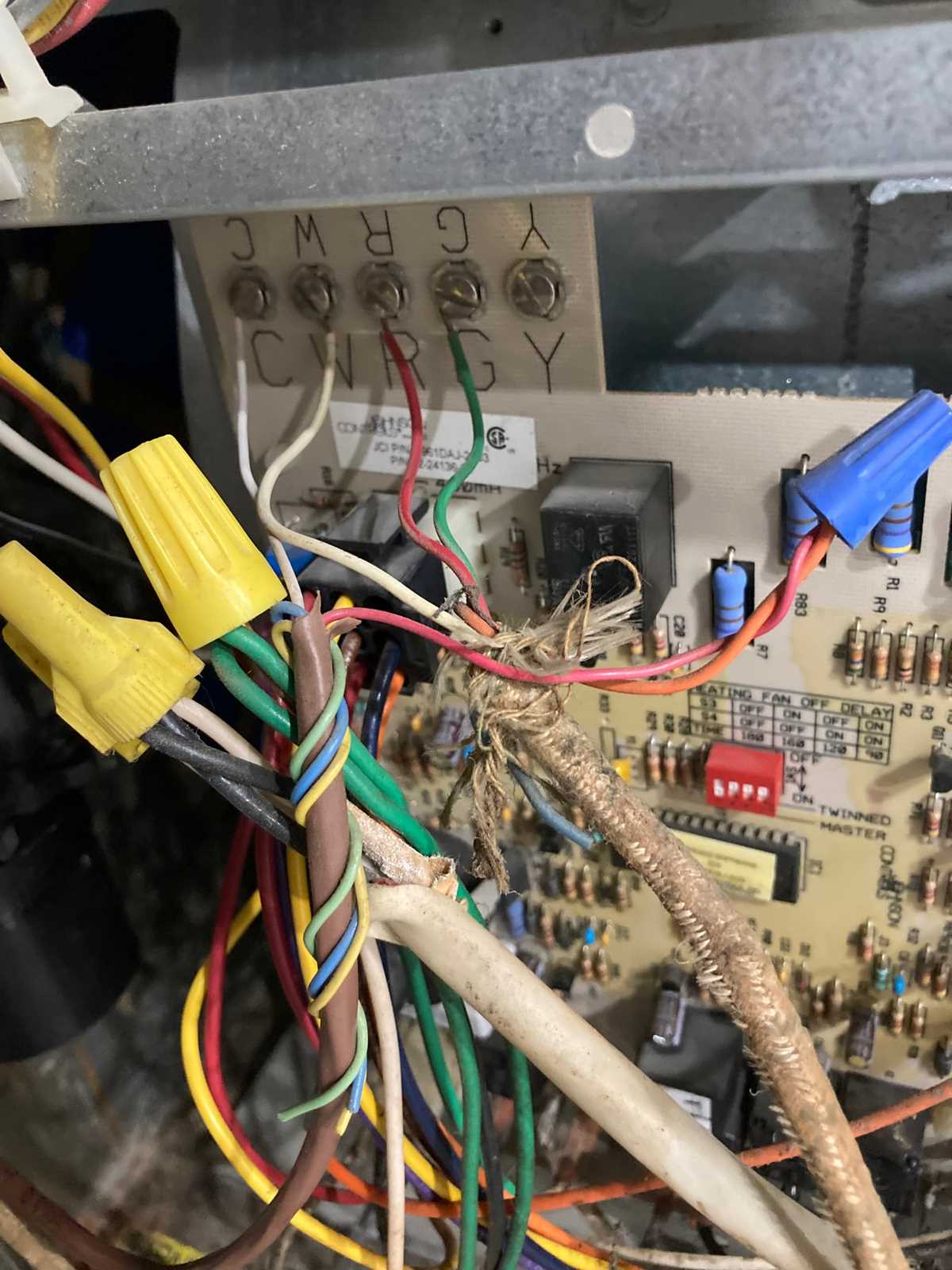

Locate the control board inside the heating or cooling unit–typically behind an access panel. Identify the R, W, and C screws or slots, often labeled in red (R), white (W), and blue or black (C). Confirm the transformer’s capacity: most residential setups handle 40VA, ensuring stable power for both the controller and peripheral devices.
Attach the red conductor to the R terminal first. Strip exactly ¼ inch of insulation from the end, then secure it tightly under the screw or insertion slot. Loose connections cause intermittent faults, so double-check the hold by gently tugging the conductor. Use a screwdriver with a magnetic tip to prevent dropped fasteners inside the unit.
The white conductor connects to the W slot, controlling the heating call. For heat pumps, this may pair with an auxiliary heat strip; verify the system type before proceeding. If the model includes emergency heat, a separate conductor (often orange) may also link here–follow the manufacturer’s color coding precisely.
Connect the blue or black conductor to the C terminal, completing the 24V circuit. This common lead provides a return path for power when the controller activates. Modern systems with smart features require a stable C connection for Wi-Fi and battery-free operation. Without it, the display may flicker or fail to retain settings.
Verifying Connections and Testing
Recheck each connection for corrosion, frayed strands, or improper stripping. Corroded terminals should be cleaned with emery cloth or replaced entirely. Reenergize the circuit breaker and observe the display: it should power on immediately. If it doesn’t, remeasure voltage at R and C–expect 24V AC; deviations indicate a transformer or wiring fault.
Set the device to call for heat, then listen for the furnace blower or heat pump startup. Use a meter to confirm voltage at W when the system engages–typically 24V AC. If the unit cycles erratically, inspect for crossed conductors or a weak transformer. For variable-speed blowers, ensure the control board’s firmware aligns with the installed model to avoid communication errors.
Seal the access panel securely to prevent dust or moisture ingress, which can corrode contacts over time. Update the controller’s settings to match the system’s configuration–single-stage, multi-stage, or heat pump–to optimize performance. If integrating with a smart hub, follow the pairing protocol after confirming stable power at all terminals.
Common Pitfalls in Connecting a Tri-Lead Climate Controller and Corrective Measures
Mixing up the power lead (often red) with the heating or cooling conductor (typically white or yellow) immediately disrupts system functionality. Verify each conductor’s purpose with a multimeter before attachment–R terminals consistently carry 24V AC, while W and Y outputs activate heating or cooling relays. Labeling each conductor with masking tape during removal prevents confusion when reattaching to the base plate.
- Ignoring polarity for battery-backed units causes constant low-battery warnings and intermittent power loss. Install alkaline cells observing the printed polarity symbols, never rechargeables.
- Over-tightening terminal screws strips threads or cracks the plastic housing. Use a screwdriver that fits snugly and stop turning once resistance increases.
- Leaving bare strands exposed invites short circuits. Trim excess conductor length so insulation ends flush with the terminal clamp.
Skipping Continuity Checks Before Finalizing Installation
Attach the multimeter probes to the R and W terminals after insertion but before restoring power. A reading below 0.5 ohms confirms solid heating output; anything above indicates poor contact, corrosion, or a broken conductor. Repeat for the cooling circuit using the corresponding terminal pair. Re-clean corroded contacts with fine sandpaper and contact cleaner if necessary, then re-test before proceeding.
- Confirm all wall plate fasteners are secured; a single loose screw can break contact when the cover is pressed.
- After restoring power, check the display contrast immediately–flickering digits point to unstable voltage, often due to reversed conductors.
- Wait 120 seconds after power-up before adjusting settings; most solid-state relays require this cooldown period to initialize safely.
Verifying Electrical Integrity in a Three-Conductor Climate Control Installation
Begin by setting the multimeter to measure AC voltage in the 20–30V range. Place the probes on the R (power) terminal and the C (common) terminal–readings should stabilize between 24V and 28V. Fluctuations beyond this range suggest a failing transformer or loose connection in the low-voltage circuit. If zero voltage appears, inspect the furnace or air handler breaker before proceeding.
Shift the meter to continuity mode. Disconnect all leads from the control panel to prevent false readings. Touch one probe to the R terminal and the other to W (heat) or Y (cool). A continuous beep confirms an uninterrupted path; silence reveals a break in the signal chain. Repeat for C and G (fan) terminals–each must register solid contact. Corrosion on terminals often mimics open circuits; clean with fine-grit sandpaper if resistance exceeds 1Ω.
For heat pump configurations, test O/B (reversing valve) during cooling mode. Energize the system and measure voltage between R and O/B–expect 24V AC. If voltage drops below 20V, the valve solenoid may be failing. During heating, voltage should flip to C; inconsistency here indicates misconfigured staging or faulty defrost controls.
Check for parasitic voltage by probing between any inactive terminal and C. Voltages above 0.5V suggest cross-wiring or damaged insulation; isolate each lead one at a time to identify the source. Gas valves and electric heat strips require precise sequencing–ensure W delivers zero volts in standby and full voltage during heating cycles. SCR or relay failure typically manifests as delayed response or rapid cycling.
Examine the anticipator adjustment if equipped. Locate the small resistor near the R terminal and measure its resistance–match this value to the system’s nominal current draw (e.g., 0.4A for most residential setups). Drift from the target often causes temperature swings exceeding ±2°F; recalibrate by bending the metal tab slightly toward higher or lower resistance.
High-voltage components demand extra caution. With the system powered down, remove the circuit access panel. Use a 600V-rated multimeter to verify zero voltage across the R lead and ground before handling. Any measurable potential here indicates improper grounding–trace back to the furnace chassis or air handler frame. Tighten all grounding screws to 12–15 in-lbs; loose connections foster nuisance tripping.
Final validation involves observing system behavior through a full operational cycle. Monitor voltage at the G terminal while toggling the fan switch–the signal should alternate between 0V (auto) and 24V (on) without hesitation. For two-stage units, verify that W2/Y2 terminals activate only under heavy load; premature engagement typically points to misaligned dip switches or faulty isolation diodes.
