Replace a faulty ignition module in under 30 minutes by identifying the core wire paths for power delivery. The main harness connects via a four-pin plug: red supplies constant 12V, black grounds the system, yellow engages the starter solenoid, and green activates accessory circuits. Disconnect the battery’s negative terminal before probing any connectors to avoid shorts.
Use a multimeter set to DC voltage to verify correct current between red and black wires; readings should stabilize at 12.6V or higher. If voltage drops below 11.8V, inspect the battery terminals for corrosion or loose connections. For solenoid activation tests, connect a jumper wire between the yellow terminal and red while the key is off–listen for a distinct click to confirm relay operation.
Trace the green wiring through the handlebar pod to a two-position toggle; this controls auxiliary lighting and winch functions. Interference here often causes sporadic power loss–replace frayed sections with 14-gauge automotive wire, crimping connectors at 45-degree angles for secure fits. Label each segment with heat-shrink tubing to avoid cross-wiring during reassembly.
Locate the engine control unit (ECU) near the air intake; a five-wire harness links the ignition module to fuel injectors and choke solenoids. Match wire colors precisely–white with blue stripes signals throttle position, while brown with a white stripe regulates idle speed. Swap malfunctioning components one at a time, testing each step before proceeding.
Restore function by reinstalling the original key tumbler or upgrading to an aftermarket push-button start kit. Ensure all替换零件兼容OEM specifications–alternate parts may require additional relay adjustments. Recheck torque values on all fasteners to prevent vibration-induced disconnections.
Electrical System Mapping for ATV Starter Circuits
Begin by locating the main harness connector beneath the instrument panel–pin assignments typically follow a standardized color code: black/white (ground), red (primary power), yellow/red (accessory feed), and brown (starter solenoid trigger). Cross-reference the harness against an OEM schematic to identify potential splices or aftermarket modifications; deviations often cause intermittent ignition failures. Use a multimeter in continuity mode to verify circuit integrity between the key-operated relay and the solenoid–resistance should read below 0.5 ohms. If readings exceed this threshold, inspect the inline fuse for oxidation or corrosion, particularly where the wiring exits the frame near the rear axle.
For models equipped with auxiliary lighting or winch controls, isolate the accessory circuit by disconnecting the orange wire at the fuse block–this prevents voltage spikes from disrupting the primary starting sequence. When reinstalling connectors, apply dielectric grease to contacts prone to moisture ingress, especially in areas exposed to wheel spray. Secure all loom segments with UV-resistant zip ties spaced at 15 cm intervals to prevent chafing against the frame rails.
Trace the pink wire from the relay to the kill switch–this path is critical for emergency shutdowns. If the system exhibits delayed cranking, test the diode on the relay by applying 12V directly to the trigger lead; a functioning diode will allow current flow in one direction only. Replace swollen or leaking capacitors near the voltage regulator if intermittent power loss occurs under load.
Finding the Key Assembly Connector Terminals on an ATV

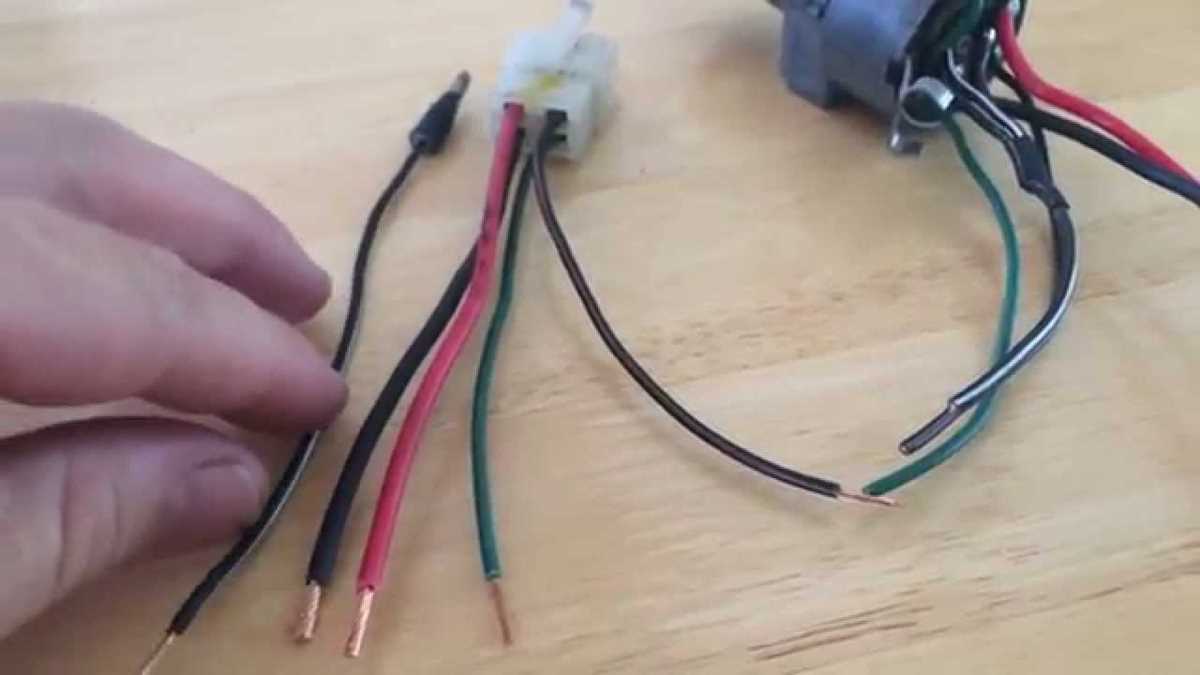

Begin by removing the left-side panel beneath the handlebar cover to expose the electrical harness. The main plug for the activation mechanism is typically a 6-pin or 8-pin rectangular connector, colored black or dark gray, positioned near the steering column base. Look for a latch or retaining clip securing it–press firmly to release.
Label each terminal using a permanent marker or masking tape before disconnecting. The pins follow a standard layout but vary slightly across models:
- Pin 1 (Red): Power input from the battery, usually 12V when engaged.
- Pin 2 (Black/White): Ground connection, often shared with other components.
- Pin 3 (Yellow): Output to the starter solenoid, active during cranking.
- Pin 4 (Green): Accessory power, energized in “ON” or “ACC” positions.
- Pin 5 (Brown/Black): Kill circuit, interrupts engine operation when grounded.
- Pin 6 (Blue): Lighting or indicator feed, sometimes unused.
Verify pin assignments with a multimeter set to DC voltage. Probe each terminal while rotating the key to confirm live circuits–readings should align with the table above. A mismatch suggests corrosion or internal breakage.
Troubleshooting Hidden Issues
If terminals appear corroded, clean with electrical contact cleaner and a small wire brush. For intermittent failures, check the harness for chafed insulation near sharp edges or heat sources–re-wrap damaged sections with high-temp vinyl tape. Replace the entire connector if pins show pitting or melting.
Some variants omit Pin 6 or repurpose it for fuel injection signals. Cross-reference the actual mechanical key positions with voltage readings:
- “OFF”: All pins except ground should read 0V.
- “ACC”: Pin 4 only (accessories) active.
- “ON”: Pins 1, 4, and possibly 6 active.
- “START”: Pins 1, 3, and 5 active (momentary).
Deviations indicate worn wafers inside the barrel–disassemble and inspect for debris or misaligned tumblers.
Reassembly Precautions
Secure the connector fully until the latch clicks–partial engagement causes erratic behavior. Route the harness away from moving parts (e.g., throttle cables, shift linkages) and fasten loose sections with zip ties. Reinstall the panel only after confirming no voltage leaks to adjacent circuits.
For aftermarket alarm systems, identify the correct bypass wire (Pin 3) and splice carefully–incorrect connections drain the battery or prevent starting. Use crimp connectors rated for 20A minimum.
Store the key code (stamped on the barrel assembly) in a safe location–replacement keys require this number for programming.
Step-by-Step Connector Coloring Guide for ATV Utility Series
Start by locating the main harness plug beneath the handlebar cover. The primary lead colors follow a distinct pattern–black/white stripe serves as ground, while red solid carries the battery feed. Ensure the black/white wire connects directly to the frame or engine block for proper grounding.
Trace the power distribution paths using this key:
- Red solid: Main power input–verify connection to the 12V source before proceeding.
- Green solid: Accessory circuit–links to lighting/accessories, check for 1A fuse inline.
- Black/yellow stripe: Starter solenoid trigger–momentary 12V pulse during cranking.
- Brown/white stripe: Neutral safety–completes to ground only in neutral gear.
- Blue/yellow stripe: Reverse inhibit–prevents starter engagement in reverse.
Test each circuit with a multimeter. Probe the red lead–should read 12V+ at all times. If voltage drops below 11.8V, inspect the battery terminals for corrosion or loose connections. The black/yellow wire should show 0V until ignition engagement, then spike to 12V during cranking.
Identify the five-position harness connector near the steering column. Match wires by position, not just color:
- Position 1: Black/white (ground)
- Position 2: Red (constant power)
- Position 3: Green (accessory)
- Position 4: Blue/red stripe (brake light)
- Position 5: Black/yellow (starter)
Use dielectric grease on connector pins to prevent oxidation. Reinsert pins firmly–loose connections cause intermittent failures.
For models with electronic fuel injection, locate the gray/red wire. This carries 5V reference voltage from the ECU. A break here disrupts fuel pump operation. Check continuity to the pump relay if the engine cranks but won’t start.
Common failure points:
- Chafed brown/white wire at the transmission–reroute if insulation is damaged.
- Corroded black/yellow at the solenoid–clean terminals with a wire brush.
- Green wire short to ground–inspect all lighting circuits for bare spots.
Final verification: With ignition engaged, confirm voltage at each circuit:
– Red: 12V+
– Black/yellow: 12V only during cranking
– Brown/white: 0Ω to ground in neutral
– Blue/yellow: open circuit (no continuity to ground)
Failure here indicates a fault in the safety interlock system.
Diagnosing Electrical Faults in ATV Power Activation Systems
Start by inspecting the main power connector for corrosion or loose terminals, particularly the red wire leading from the battery. A multimeter set to 12V DC should register steady voltage when probing the positive terminal and chassis ground. If readings fluctuate below 11.8V, trace the circuit back to the source–often a degraded battery cell or poorly secured cable connection.
Check the fuse holder for discoloration or melted plastic around the contact points. Replace standard fuses with ones rated at 15A to prevent false failures. If the fuse blows repeatedly, suspect a short circuit in the harness–use a tone generator to locate hidden breaks near heat shields or sharp edges where wires bend frequently.
Examine the kill circuit for intermittent operation by pressing the emergency stop button while monitoring voltage drops. A healthy circuit maintains 0V across the button terminals when disengaged and full voltage when activated. Resistance above 0.5 ohms between the solenoid and frame ground indicates oxidized connectors–clean with 400-grit sandpaper or replace terminal ends if pitted.
Identifying Hidden Circuit Breakers
Observe the solenoid’s clicking behavior during activation. A single sharp click followed by silence suggests insufficient current flow–test for voltage at both small trigger wires while engaging the system. No voltage on one side signals a broken relay coil or faulty internal contacts requiring replacement.
Isolate parasitic drains by disconnecting the battery overnight and measuring current draw the next morning. Readings above 50mA indicate an unintended load–remove components sequentially until the culprit is found, typically a faulty CDI unit or aftermarket accessory with poor grounding.
Verify the integrity of the pulse generator by checking for a consistent 1.2-1.8V AC signal at idle. Absence of signal or erratic waveforms often stem from a damaged flywheel magnet–inspect visually for cracks or misalignment, ensuring a minimum air gap of 0.3mm from the stator using a non-magnetic feeler gauge.
Repairing Damaged Conductors
Solder splices rather than twisting wires when repairing breaks, using heat-shrink tubing with adhesive lining to seal connections. Avoid electrical tape–it traps moisture, leading to oxidation. For temporary fixes in wet conditions, apply dielectric grease to exposed terminals before reassembling.
Inspect the main loom for brittle insulation, especially near exhaust manifolds or suspension pivots. Replace entire harness sections if more than three wires show cracking, ensuring new cables follow the original routing to prevent chafing against sharp metal edges.
