Installing a new HVAC interface requires adherence to specific electrical pathways to avoid malfunctions. Begin by identifying the R (power), W (heat), Y (cool), and G (fan) terminals on both the control panel and the replacement unit. Systems with heat pumps include an O/B (reversing valve) connection–verify whether your setup uses O (energized in cooling) or B (energized in heating) mode before attaching wires.
For gas furnaces, the W terminal must connect directly to the furnace’s relay without intermediary switches. If your system includes a dual-stage heater, locate W2 and ensure the secondary heating element activates only when primary output is insufficient. Miswiring here risks short cycling or permanent damage to heating coils. Always cross-check wire gauges: 18 AWG is standard, but low-voltage setups near transformers (typically 24V) may require 16 AWG for stability under load.
Multi-zone configurations demand separate relays for each zone’s dampers or valves. Label all cables at both ends–numbered tags prevent confusion during troubleshooting. Test circuits with a multimeter before finalizing connections: open or shorted wires will disrupt temperature regulation. For smart adapters, confirm compatibility with your HVAC’s anticipator settings; improper calibration leads to temperature overshoots.
Always disconnect power at the circuit breaker before handling wires. Use crimp connectors or terminal screws–avoid twisting wires together for permanent solutions. If replacing an older mechanical model, note whether it includes a C (common) wire; newer digital units frequently require this for consistent operation. Failure to include it may result in erratic screen displays or loss of programmability.
How to Connect Climate Control Systems Correctly
Always turn off the power at the breaker before handling any low-voltage connections. A multimeter set to AC voltage (20V range) should confirm zero reading between the R and C terminals–this prevents accidental shorts and equipment damage. Most modern heating/cooling units operate on 24V AC, delivered via a step-down transformer; exceeding this voltage risks frying sensitive electronics.
Label each wire with masking tape at both ends before disconnecting the old regulator. Mismatched connections–especially reversing W (heat) and Y (cool)–can force the system into opposing modes, causing overheating or compressor burnout. Common color codes include: red (power/R), white (heat/W), yellow (cool/Y), green (fan/G), blue (common/C). Older installations may deviate; always cross-reference with the unit’s manual.
For dual-fuel setups pairing a heat pump with auxiliary resistance strips, the O/B terminal controls reversing valve polarity–miswiring here locks the unit in heating-only or cooling-only mode. Verify this function by selectively energizing the circuit; the valve should audibly click when powered. High-efficiency systems often require additional W2/Aux for secondary heating stages, typically marked in orange or brown.
Troubleshooting Common Errors

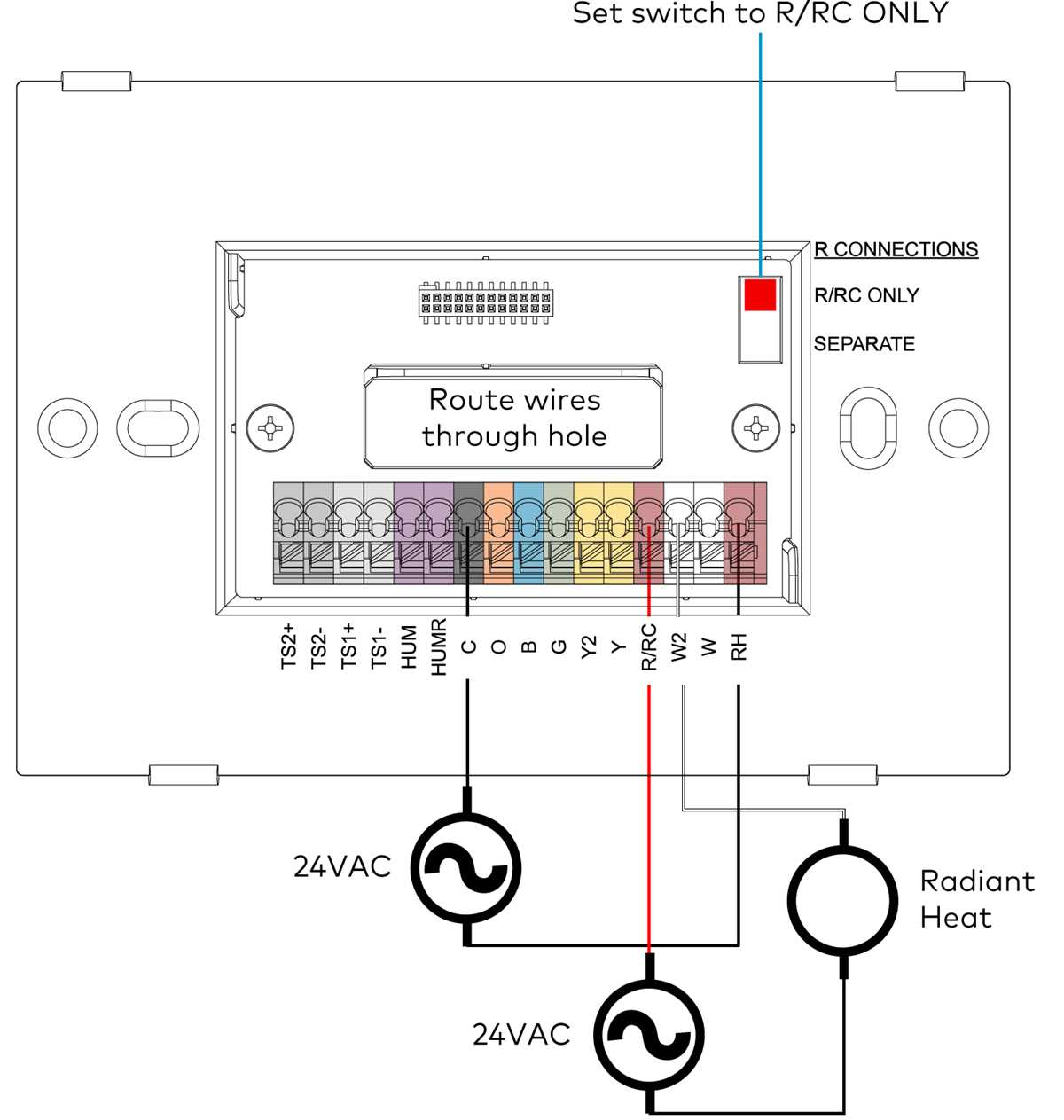

If the display fails to power on despite correct 24V supply, check the C (common) wire connection–intermittent connectivity here disrupts both sensing and backlight functions. Rh (heating) and Rc (cooling) terminals must be bridged if using a single transformer; jumperless wiring causes erratic cycling. Smart regulators with Wi-Fi or Zigbee modules often need dedicated neutral–confusing it with common (C) returns user interface glitches.
Install a surge protector between the transformer secondary and the regulator’s R terminal. Inductive loads from compressors and blower motors generate voltage spikes exceeding 40V, degrading solid-state relays within three months without protection. Verify surge capacity matches the transformer’s VA rating–most residential units use 40VA transformers.
For zoned systems with damper motors, run a dedicated 18 AWG shielded cable for each zone controller–unshielded wires pick up RF interference triggering false tells. Damper motors typically draw 300mA; exceeding circuit capacity risks tripping the transformer’s internal thermal fuse. Calibration requires anemometer checks at 50% open/closed positions–deviations beyond ±5% indicate misaligned gears or binding linkages.
Decoding Common Climate Control Cable Colors and Their Purposes
Start by locating the low-voltage panel where cables connect–typically behind the control unit. Most standard configurations follow a color scheme, though exceptions exist, especially in older or custom installations. Use a multimeter set to voltage mode to confirm function: energized wires will show ~24VAC between the transformer lead (usually red) and each terminal.
Below is a reference for conventional cable functions, but always cross-check with system documentation:
| Cable Color | Primary Role | Typical Connection | Voltage Confirmation |
|---|---|---|---|
| Red (R, Rh, Rc) | Power feed from transformer | Main power terminal | ~24VAC (always hot) |
| White | Heating circuit closure | W terminal on furnace | ~0V (energizes when called) |
| Yellow | Cooling activation | Y terminal on condenser relay | ~0V (energizes when called) |
| Green | Fan motor relay trigger | G terminal on air handler | ~0V (energizes when called) |
| Blue or Brown | Common return for 24V circuits | C terminal (if present) | ~0V (ground reference) |
| Orange | Heat pump reversal valve (cooling) | O/B terminal on heat pump | ~24VAC (polarity determines mode) |
Discrepancies often appear in upgraded systems–split transformers (separate Rh/Rc for heating/cooling) may require jumper removal. Heat pumps swap orange-green polarity for reversing valve operation; verify O/B labeling against outdoor unit specs. For dual-fuel setups, a light blue wire might handle auxiliary heat staging, distinct from white’s primary call.
Never assume color-coding–always tag cables at both ends before disconnecting. Miswiring risks damaging control boards (e.g., connecting C directly to R bypasses fusing). For smart controllers, the blue/brown common wire enables continuous power; absence reduces features. If replacing units, note wire gauge (typically 18AWG)–local codes sometimes mandate 16AWG for longer runs.
For European systems or line-voltage setups, colors may follow IEC standards (e.g., brown=live, blue=neutral, yellow-green=earth). Always isolate power at the breaker before servicing, even low-voltage lines–capacitors in modern ECUs can retain hazardous charge.
Step-by-Step Guide to Safely Removing an Outdated Climate Controller
Switch off the circuit breaker assigned to the heating or cooling system. Locate the panel–typically in basements, garages, or utility closets–and flip the breaker marked for HVAC equipment. Use a non-contact voltage tester on the device’s backplate to confirm no current remains. Failure to cut power risks electrical shock or damage to delicate components.
Detach the Faceplate
Remove the front cover by pressing release tabs or unscrewing mounting screws–most models require a flathead or Phillips screwdriver. Set screws aside in a labeled container to prevent loss. Gently pull the cover forward to expose wiring connections, then take a photo of the setup for reference. Avoid tugging wires directly; looped connections may loosen unexpectedly.
Label each wire with pre-cut adhesive tags matching the letters on the terminal block (e.g., R, W, Y, G). Peel backing and press firmly onto insulation–ink smears if touched too soon. Loosen terminal screws with a small screwdriver, keeping wires clamped until fully detached. For push-in terminals, insert a thin tool into the release slot to free the conductor. Place wires in a small plastic bag to prevent grounding or accidental reconnection.
Remove the mounting bracket by unscrewing fasteners securing it to the wall–studs or drywall anchors may require a socket wrench for stubborn bolts. Inspect the junction box for debris or moisture; clean with a dry cloth if needed. Patch wall damage with spackle, sanding smooth before painting to prevent drafts. Dispose of the old unit according to local electronics recycling guidelines–do not discard in household trash.
Step-by-Step Connections for Single-Stage Climate Control Units

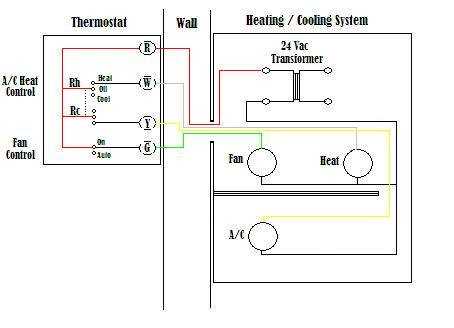

Connect the R (power) terminal on the control unit to the RC or RH input on the wall panel–use a jumper wire if the system lacks separate transformer feeds for heating and cooling. For gas furnaces or electric heaters, link the W terminal to the control board’s heating relay; ensure the circuit handles at least 1.5A at 24VAC to prevent voltage drop during operation.
Attach the Y wire to the cooling compressor contactor–verify the gauge matches the system’s current draw (18-10 AWG for most residential setups). If the outdoor unit includes a fan relay, connect the G terminal to the blower motor’s low-speed winding for optimal airflow during cooling cycles; bypass this step if the air handler handles fan control independently.
Ground the C (common) wire to the transformer’s neutral side–avoid splicing into existing circuits without confirming the VA rating (minimum 40VA for single-stage systems). For heat pumps, merge the O/B terminal with the reversing valve solenoid; polarity determines heating (O) or cooling (B) mode–consult the outdoor unit’s label to avoid misconfiguration.
Test each connection with a multimeter before energizing: 24VAC between R and C, 0V at W or Y when idle, and 24VAC when activated. If the display flickers, check for loose terminals or insufficient power supply–replace corroded connectors with tinned copper spade terminals to ensure conductivity.
For systems with auxiliary heat (emergency or backup), wire the E terminal to the secondary heating element’s relay; use a dedicated 20A breaker for electric resistance coils. If integrating a humidifier, tap the HUM output into the control board’s humidistat input–ensure the water supply valve matches the control voltage (24VAC or 120VAC as required).
Seal exposed wires with waterproof wire nuts and secure them with zip ties to prevent vibration-induced disconnects. Label each wire at both ends–color codes vary by manufacturer (e.g., Rh may be red or white with a red stripe). For smart panels, confirm compatibility with delay-on-break relays if the legacy system uses mercury switches.
