Secure the main breaker in the off position before initiating any connections. Identify the dedicated inlet box installed near your primary service panel–this should be a NEMA L14-30 or L14-50 receptacle, depending on your unit’s wattage rating. Verify the inlet’s compatibility with the cable gauge: 10 AWG for 30-amp systems, 6 AWG for 50-amp configurations. Strip insulation precisely–expose 1/2 inch of copper wire to prevent short circuits during transfer.
Route the supply lines from the inlet to the automatic transfer switch (ATS) using schedule 40 PVC conduit. Maintain a minimum 18-inch separation from high-voltage utility lines to comply with NEC Article 702. Label each conductor: black (hot), red (hot), white (neutral), green (ground). Terminate wires at the ATS using lug-type terminals, torquing connections to 15–20 inch-pounds for 30-amp circuits or 30–35 inch-pounds for 50-amp setups.
Avoid connecting the neutral and ground wires together downstream of the ATS–this violates NEC 250.142(B) and risks parallel paths during faults. Test polarity with a non-contact voltage tester before energizing. For liquid-cooled models, install a secondary ground rod bonded to the main grounding electrode system with #6 bare copper wire, driven 8 feet deep and spaced 6 feet from the primary rod.
Program the ATS to 10-second delay before transfer and 5-minute cool-down post-shutdown to protect the engine. Use Class T fuses rated for 20% above the system’s maximum amperage as a backup overcurrent device. Validate all connections with a megohmmeter set to 500V, ensuring insulation resistance exceeds 1 MΩ between conductors and ground. Keep the manual bypass switch accessible for maintenance.

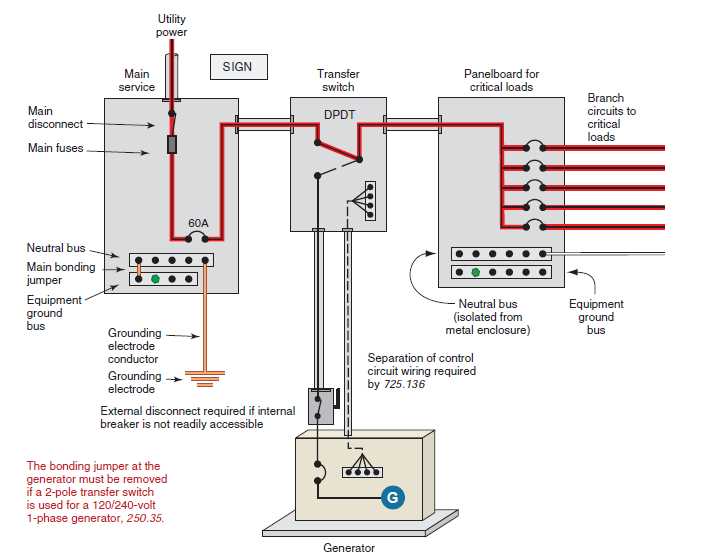

Residential Power Backup Electrical Schematic
Install a double-pole transfer switch rated for 200 amps or the maximum capacity of your service panel, whichever is higher. Mount it within 3 feet of the main breaker box to minimize voltage drop. Use 6 AWG copper conductors for the neutral and grounding links between the switch and panel; 4 AWG aluminum is permissible only if local codes explicitly allow it and conductors are terminated with anti-oxidant compound.
Key Connection Pathways
- Line Side: Connect the incoming utility conductors to the top lugs of the transfer switch using torque values specified on the device label (typically 75 in-lbs for 2/0 copper).
- Load Side: Route the output conductors from the bottom lugs of the switch directly to a dedicated subpanel if supporting more than 6 circuits; otherwise, wire each circuit’s hot conductor to its respective breaker position in the main panel.
- Neutral-Ground Bond: Break the bond inside the backup unit only if it is a separately derived system; otherwise, leave the bond intact in the main service to prevent circulating currents during parallel operation.
Label every conductor at both ends with heat-shrink tubing marked per NEC 110.12: “UTILITY LINE,” “GEN LOAD,” and “GROUND.” Use dual-wrench tightening on aluminum lugs to counteract cold creep. Verify switch operation with a digital multimeter set to 500 VAC: measure across the generator input terminals while the switch is in the utility position–expected reading should be 0 V; flipping the switch should instantly toggle to 240 V if the backup source is live.
- Position the fuel inlet at least 5 feet horizontally from any window or door; slope the fuel line ¼ inch per foot downward toward the unit to prevent vapor lock.
- Install a remote start relay wired to a normally open dry contact on the automatic controller; program a 15-second crank cycle with 3 retry attempts.
- Run a dedicated 12 AWG conductor from the controller’s alarm output to a supervised fire alarm panel or monitored security system for fault notification.

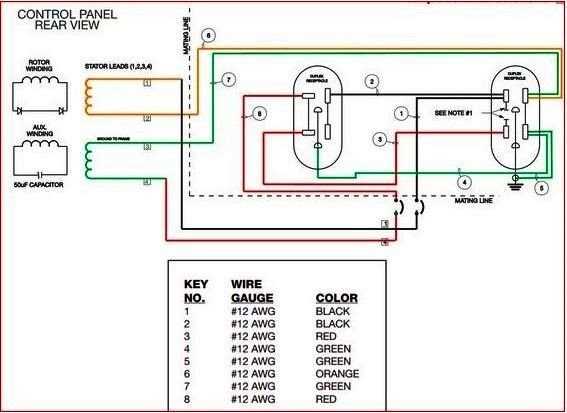

Choosing the Right Cable Thickness for Your Backup Power System
For most residential standby units rated between 5,000 and 12,000 watts, use 8 AWG copper conductors for runs up to 30 feet and 6 AWG for distances between 30 and 100 feet. These sizes handle the continuous current draw without exceeding a 3% voltage drop under full load. Aluminum conductors require one size larger (6 AWG for short runs, 4 AWG for longer distances) due to higher resistivity. Always verify local electrical codes–some jurisdictions mandate copper for specific applications.
| Unit Capacity (Watts) | Copper AWG (≤30 ft) | Copper AWG (30–100 ft) | Aluminum AWG (≤30 ft) | Aluminum AWG (30–100 ft) |
|---|---|---|---|---|
| 5,000–7,500 | 10 | 8 | 8 | 6 |
| 8,000–10,000 | 8 | 6 | 6 | 4 |
| 11,000–12,000 | 6 | 4 | 4 | 2 |
| 13,000–15,000 | 4 | 2 | 2 | 1/0 |
Never rely on the equipment’s factory cord for permanent connections–upgrade immediately. High-starting-current devices (compressors, pumps) demand a size jump beyond the table above. For example, a 10,000-watt system powering two 1.5-ton AC units needs 4 AWG copper even at 20 feet to accommodate the 60–80A instantaneous surge. Use a clamp meter during initial testing to confirm actual current draw; undersized cables overheat junction boxes and melt insulation within minutes under peak load.
Step-by-Step Guide to Integrating a Power Transfer Device with Your Utility Board
Shut off the main breaker in your utility board before handling any connections to prevent backfeeding or electrical shocks. Locate the bus bars–typically copper or aluminum strips where circuit breakers attach–and identify the circuits you intend to back up. Label each wire with its corresponding breaker to simplify reinstallation.
Position the transfer device within 18 inches of the utility board to comply with NEC Article 445.11(A), which mandates minimal cable length for safe voltage drop. Use 10-gauge THHN wire for circuits up to 30 amps and 6-gauge for heavier loads, ensuring the conductor size matches the breaker rating. Route wires through conduit if exposed runs exceed 6 feet to meet code requirements.
Securing Connections and Testing Configuration
Attach the output lugs of the transfer device to the utility board’s bus bars using torque values specified by the manufacturer–typically 25-30 lb-in for copper connections. For a manual device, connect the neutral bar directly to the utility board’s neutral; for an automatic model, link the emergency panel’s neutral to the utility board via a bonding screw, then isolate it after testing to avoid ground loops.
Verify the setup by simulating a power loss. Turn off the main breaker, flip the transfer device to its backup position, and activate the power source. Check voltage at each critical circuit with a multimeter–expect 115V for single-pole breakers and 230V for double-pole. If readings deviate by more than 3%, recheck terminal tightness and wire gauge compatibility.
Once testing confirms accurate voltage, seal the utility board and label the transfer device with its capacity, date of installation, and support contact. Store spare fuses or breakers near the unit for quick replacement during outages. Schedule annual inspections to clean dust accumulation from terminals and retorque connections, as loose links account for 40% of backup system failures.
Key Safety Measures for Self-Installed Power Source Connections
Shut off the main breaker before initiating any work on the electrical panel. This prevents backfeeding, which can electrify utility lines and pose fatal risks to repair crews. Use a non-contact voltage tester to confirm all circuits are dead before proceeding.
Ground the auxiliary unit properly using an 8-foot copper rod driven at least 5 feet into damp soil, away from foundations or walkways. Connect it to the transfer switch with a minimum #4 AWG stranded copper wire, secured with approved clamps. Improper grounding can lead to equipment damage or lethal shocks.
Install double-pole, double-throw switches rated for 25% above the system’s maximum load. Verify the rating matches the breaker size–common values for residential setups are 30, 50, or 100 amps. Miscalculations here risk overheating or fire.
Seal all outdoor cable entries with waterproof duct seal compound to prevent moisture intrusion. Use liquid-tight flexible metal conduit for runs exposed to weather, ensuring bends have a radius no tighter than 6 times the conduit diameter to avoid insulation damage.
Label every circuit in the subpanel clearly, using flame-resistant tags. Include voltage, amperage, and purpose (e.g., “20A – Refrigerator – 120V”). This speeds up troubleshooting and prevents accidental overloads during maintenance.
Avoid placing the unit closer than 5 feet from doors, windows, or vents. Carbon monoxide detectors–separate from smoke alarms–should be mounted at knee height within 15 feet of the setup. CO poisoning symptoms mimic flu and can incapacitate within minutes.
Critical Errors in Auxiliary Power Distribution Panel Installation
Undersizing the transfer switch leads to tripped breakers under load. A 50-amp switch cannot reliably supply a 12,000-watt backup unit–calculate required amperage by dividing total watts by 240 volts, then add 25% for continuous operation. For a 15,000-watt unit, that translates to 78 amps, demanding a 100-amp switch. Anything less risks overheating under prolonged use, especially during simultaneous high-power appliance operation.
Mixing neutral and ground conductors in the subpanel violates NEC 250.142(B). Installers often bond them mistakenly, creating parallel return paths that introduce stray currents. This elevates shock hazards and causes nuisance tripping of arc-fault breakers. Isolate neutral and ground terminals in the subpanel–only bond them in the main service disconnect. Use a torque screwdriver to tighten terminal screws to manufacturer specifications (typically 20-25 lb-in) to prevent loose connections.
Skipping conductor derating for temperature or fill capacity triggers thermal failure. Three 6-gauge THHN wires in a 1/2-inch conduit exceed the 40% fill limit, raising internal temperatures by 15°C–derate the ampacity from 55A to 42A per NEC Table 310.16. Oversized raceways prevent this but increase installation costs. For outdoor runs, upgrade to XHHW insulation if ambient temperatures exceed 30°C. Verify derating calculations with a thermal imaging device post-installation to confirm safe operation.
Improperly sizing the feeder breaker from the main panel overloads the system. A 60-amp breaker on 6-gauge wire (rated 55A at 60°C) lacks a 3% safety margin. Match breaker amperage to the conductor’s derated ampacity, not the switch’s rating. Use time-delay breakers to handle startup surges–motor loads draw 6-10x their running current for 200-500ms. Test the entire system with a Megger at 500V for minimum 1MΩ insulation resistance before energizing.
