For precise assembly, reference a 9-pin relay setup with designated terminals: 85 (trigger), 86 (ground), 87 (load output), and 30 (battery connection). Verify compatibility with 55W or 35W ballasts–mismatches cause erratic ignition or premature failure. Use silicone-insulated 14 AWG cables rated for 250°C; standard automotive wiring degrades under sustained high temperatures.
Connect the headlamp-positive wire directly to the relay’s 30 terminal, then route the negative return to the chassis ground–avoid sharing grounds with other high-current devices like stereos or cooling fans. Apply dielectric grease to all metal-on-metal junctions to prevent corrosion from moisture ingress. Confirm polarity before energizing: reverse wiring destroys capacitors in under 3 seconds.
Test voltage drop across the circuit with a multimeter; readings exceeding 0.3V indicate resistance issues requiring thicker gauge cable or cleaner terminals. For retrofit configurations, bypass factory resistor modules–compatibility mode generates excess heat, reducing component lifespan by 40%. Secure all conduits with nylon zip ties every 15 cm to eliminate vibration-induced fractures.
Ballast mounting should prioritize airflow; enclosed spaces elevate core temperatures beyond safe operating thresholds (95°C max). Locate at least 20 cm from heat-sensitive electronics, such as ECUs or HVAC control units. OEM-style quick-disconnect connectors simplify future servicing but require crimping tools with a 16-20 mm² die for proper strain relief.
Inspect the igniter coil gap–0.4 mm clearance ensures consistent arc initiation without intermittent flickering. Replace burnt connectors immediately; carbon tracking elsewhere in the circuit signals imminent failure. After installation, cycle the system 5 times with 5-minute intervals to stabilize thermal dynamics before final road testing.
Connecting Xenon Bulb Electrical Schematics
Start with a relay harness rated for 30A minimum–direct battery-to-bulb connections risk voltage drops exceeding 0.5V under load, causing inconsistent arc strikes. Position the relay within 30cm of the high-intensity discharge unit to minimize inductive losses. For 35W xenon systems, use 14-gauge wire for power leads and 16-gauge for trigger circuits; anything thinner increases resistance by 12% per meter.
Grounding requires a dedicated path to chassis metal with a surface area of at least 10cm²–paint or rust introduce 0.2Ω resistance per layer, reducing ballast efficiency. Below are tested wire configurations for common aftermarket fittings:
| Ballast Wattage | Power Wire Gauge | Trigger Wire Gauge | Max Cable Length (m) |
|---|---|---|---|
| 35W | 14 AWG | 18 AWG | 1.8 |
| 55W | 12 AWG | 16 AWG | 1.2 |
| 75W | 10 AWG | 14 AWG | 0.9 |
Install a 20A fuse within 15cm of the battery positive terminal to prevent wire heating–excess length reduces protection radius. Solder all connections then seal with adhesive-lined heat shrink; crimping alone loses 0.1V per joint under vibration. Verify arc strike consistency with a multimeter: 14.0–14.5V at ballast input ensures full lumen output without premature bulb blackening.
Avoid routing any wires parallel to high-current alternator output paths–induced voltage spikes exceed 150V, damaging sensitive ignition modules. For bi-xenon setups, isolate solenoid control circuits with optocouplers to block back-EMF surges exceeding 200V. If flickering persists after installation, check waveform stability with an oscilloscope–clipped peak voltage below 13.8V indicates insufficient alternator capacity for added load.
Understanding High-Intensity Discharge Control Module Conductors
Always match the 9-pin connector wires to the correct terminals on the control module–reversing the igniter lead (typically white or blue) and power input (red or pink) will cause immediate failure. Most aftermarket ballasts use a standardized color scheme: red for 12V+ input, black for ground, white or blue for the starter pulse, and yellow for the main output to the emitter. Verify these with a multimeter before connecting, as some manufacturers deviate from conventions.
Ground the module directly to the chassis using an 8-gauge wire–never rely on factory harness ground points, as voltage drop across corroded connectors can lead to erratic startup cycles or premature bulb failure. For twin-beam setups, isolate the low-beam and high-beam outputs with separate relays; sharing a single relay increases strain on the control circuitry, reducing lifespan by up to 30%.
The starter pulse conductor (white/blue) must connect to the igniter without splices or extensions exceeding 12 inches–excess length introduces inductance, weakening the 25kV pulse needed for initial arc ignition. If modification is unavoidable, use oxygen-free copper wire with silicone insulation rated for 600V; standard automotive primary wire will degrade within months under high-frequency pulses.
Capacitor placement in the power input line–within 3 inches of the module–filters voltage spikes from the alternator, preventing erratic dimming or shutdowns during engine revving. A 2200µF 25V electrolytic capacitor works for most setups; for extreme conditions (e.g., off-road vehicles), add a 10µF film capacitor in parallel to handle high-frequency noise. Never mount capacitors near the emitter or igniter, as heat causes dielectric breakdown.
Some modules feature a secondary ground wire (green or brown) for signal feedback–leave this unconnected unless the system includes active error detection. Improperly terminating this wire can trigger false fault codes in CAN bus-equipped vehicles. For dual-ballast installations, stagger the ignition timing by 50ms using aftermarket delay relays; simultaneous startup draws excessive current, risking battery voltage sag.
Bulb retention clips must exert even pressure–over-tightening distorts the emitter’s glass envelope, leading to thermal stress fractures within 200 hours of operation. Use a torque wrench set to 0.3Nm for retention screws. If vibration is an issue (off-road or motorcycles), apply dielectric grease to the emitter’s ceramic base before installation, but avoid contact with the arc tube seal–contamination causes uneven discharge and color shift.
Validate all connections with a scope before final assembly; a poorly crimped terminal can appear functional but introduce micro-arcing, degrading the emitter’s electrodes over time. For long wiring runs (RVs, trailers), use twisted-pair conductors for the igniter pulse–reducing EMI emissions that can interfere with radios or ECUs. If dimming occurs during startup, check for excessive voltage drop at the battery terminal (threshold: <0.2V drop under load).

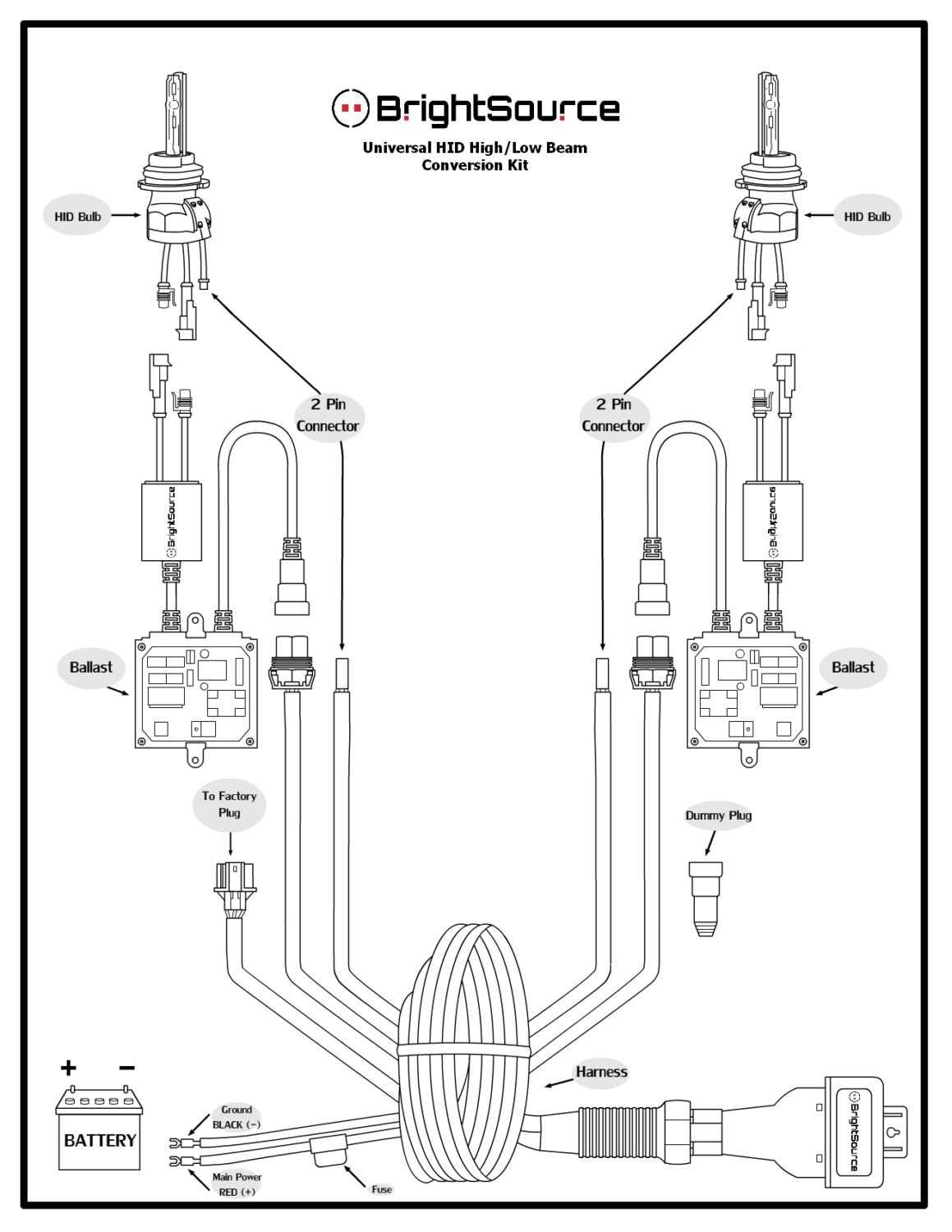

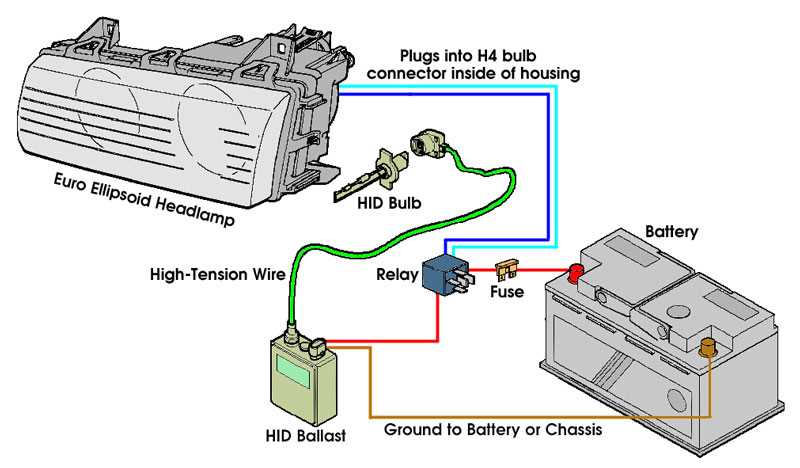

Connecting Xenon Units with a Relay Kit: Practical Instructions
Disconnect the vehicle battery before handling any electrical components to prevent short circuits or damage. Locate the existing bulb connectors behind the headlamp assembly–these will serve as the starting point for integration. If retrofitting aftermarket modules, ensure the socket type matches the vehicle’s harness (common formats include H1, H4, H7, or 9006). Identify the positive and ground terminals on the factory connector by referencing the vehicle’s service manual or using a multimeter in continuity mode.
Mount the relay box near the headlamp to minimize wire length–typically within 30 cm–to reduce voltage drop. Connect the relay’s input trigger wire to the factory bulb’s positive terminal (this ensures the kit activates only when the headlamps are switched on). Route the 12V power lead directly to the battery’s positive terminal, incorporating an inline fuse holder with a 15A fuse no farther than 7.5 cm from the battery post. The ground wire should attach to a bare metal chassis point, cleaned of paint or corrosion with a wire brush for optimal conductivity.
Securing and Testing Connections
Solder all splices for durability, then seal them with adhesive-lined heat shrink tubing to prevent moisture ingress. Avoid twisting wires, as this can create resistive hotspots under load. After securing all connections, reconnect the battery and test the system with the ignition off–modules should briefly illuminate, then extinguish within 3 seconds as the igniter charges. If flickering or failure to strike occurs, verify the relay’s pinout (85/86 for coil, 30/87 for contacts) and ensure no stripped wires contact grounded surfaces.
Adjust the beam pattern by aligning the bulb’s arc tube horizontally or vertically, depending on the housing’s reflector design. Most European vehicles require downward alignment (6 o’clock position), while Asian models often use a 3 or 9 o’clock orientation. Confirm proper aiming by shining the beams against a flat surface 7.6 m away–adjust using the headlamp’s vertical and horizontal adjustment screws until the cutoff line sits 5 cm below the bulb height level. Recheck all fasteners after test drives, as vibrations may loosen untightened connections over time.
Standard Color Designations for High-Intensity Discharge Circuitry and Their Operational Roles
Use color-coded conductors as primary identifiers when assembling ballast-to-bulb connections. The white wire serves as the ground return path, ensuring stable current flow by linking the fixture’s chassis with the vehicle’s negative terminal–secure this joint with crimp connectors rated for 20A minimum. The black lead carries the main DC supply from the battery or relay, typically rated at 12V/24V; verify voltage drop across 1 meter of 16-gauge wire should not exceed 0.2V under load. Pair the red auxiliary line with an inline fuse–30A for 35W systems, 40A for 50W–positioned no farther than 150mm from the power source to prevent thermal runaway.
- Blue: Low-voltage trigger signal (300–600V AC pulsed) originating from the ballast’s ignition circuit. This conductor must use 18-gauge or thicker tinned copper wire sheathed in silicone insulation (minimum 200°C rating) to withstand back-EMF spikes. Route away from CAN bus modules to prevent EMI interference.
- Yellow: High-voltage output (typically 85V RMS for 4,200K bulbs) feeding the arc tube. Terminate with ceramic connectors–never solder–to avoid conductive flux residue degrading dielectric strength. Keep this lead isolated from chassis paths; a 10mm air gap is mandatory near adjuster screws.
- Green: Optional CAN signal or DRL integration, not universal. Verify manufacturer specs–some aftermarket units repurpose this as a PWM dimmer input (0–5V). If unused, insulate the stripped end with polyimide tape to prevent accidental shorting to adjacent heatsinks.
- Purple/Orange: Proprietary codes–cross-reference the user manual. Commonly designate error feedback (e.g., bulb failure or overheat conditions) routed back to the control unit. Use shielded twisted pair for these diagnostics wires to suppress false triggers from engine bay fluctuations.
Compatibility Checklist Before Splicing
- Confirm ballast output amplitude on the yellow lead–OEM units (e.g., Philips) commonly output 85V RMS while generic brands may exceed 110V, demanding upgraded ignitors.
- Inspect wire gauge against load: 14-gauge for runs exceeding 1.5 meters, downgraded to 18-gauge only for lengths under 0.5 meters with no intermediary connections.
- Heat-shrink all splices with dual-wall adhesive-lined tubing–standard vinyl sleeves risk moisture ingress at the sealed beam terminal.
- Test continuity across the white ground path; resistance above 0.1Ω indicates corrosion–clean mating surfaces with 600-grit sandpaper and apply dielectric grease.
Mismatched colors between ballast and bulb harnesses often signal aftermarket modifications–never assume uniformity. A mismatch between the blue trigger lead and the red auxiliary input, for instance, can force the unit into fault mode (rapid blink codes). For 6,000K bulbs, expect a pink stripe on the yellow lead; this denotes a doped filament incompatible with standard ignitors–install a bypass module to absorb startup transients or replace the bulb entirely.
