For reliable operation of gas-discharge lamps rated above 35W, use a two-stage ignition module with separate low- and high-voltage triggering sections. The initial pulse must exceed 4 kV for arc formation, followed by a sustained 85V–115V AC supply to maintain stable plasma conductivity. Pair this with a ferrite-core inductor (200–300 µH) to limit inrush current below 3.5A during ignition–critical for preventing electrode sputtering.
Ground the metal housing of the control unit through a 10 mm² braided copper strap directly to the chassis, bypassing standard wiring harnesses. This prevents conducted EMI from disrupting vehicle communications (CAN/LIN buses) when switching transients exceed 1.2 kA/µs. For aftermarket installations, include a transient voltage suppressor rated for 600W peak pulse power between the input and output terminals of the module.
Position the high-voltage ignition coil ≥50 mm from the gas-discharge capsule to avoid capacitive coupling, which degrades starting reliability at temperatures below -20°C. Use silicone-insulated wiring (300V rms minimum) for all connections, with crimp terminals rated for 20A continuous. Verify the solid-state relay’s on-resistance (≤50 mΩ) during bench testing–excessive resistance causes premature failure in PWM dimming applications.
For systems requiring 1kHz–2kHz square-wave modulation, select a MOSFET driver with ≤15 ns rise/fall times to minimize switching losses. The output capacitance of the driver should not exceed 100 pF to prevent excessive ringing in compliance with CISPR 25 conducted emissions limits. Calibrate the feedback loop’s gain margin to 12–15 dB for stable operation across load variations (20W–100W).
Electronic Control Unit for Gas-Discharge Lamps: Schematics and Key Components
Start assembly by securing a high-voltage ignition module rated for 20–35 kV peak output–exceeding this range risks arc instability or premature electrode wear. Place the module adjacent to the secondary winding of the flyback transformer to minimize inductive losses (keep trace lengths under 15 mm). Use a snubber network (47 Ω resistor + 100 pF ceramic capacitor) across the transformer’s primary to suppress voltage spikes that degrade MOSFET longevity.
For current regulation, implement a push-pull topology using two IRFP460 MOSFETs driven by a half-bridge driver IC like the IRS2153D. Ensure the gate resistors (10 Ω, 1 W) are placed directly at each MOSFET pin to prevent ringing. The input DC bus should be filtered with a 470 μF electrolytic capacitor and a 1 μF polypropylene bypass capacitor to handle ripple currents typical in automotive environments (12–14.4 V systems).
Design the feedback loop with an optocoupler (e.g., PC817) to isolate the control circuit from high-voltage transients. Connect the optocoupler’s phototransistor to a TL431 shunt regulator configured for a 5 V reference voltage–this controls the PWM signal to the driver IC. Adjust the sense resistor (typically 0.22 Ω) to limit steady-state current to 350 mA (±20 mA) for 35 W lamps; deviations cause thermal runaway or insufficient lumen output.
Thermal management requires a dedicated ground plane for the MOSFETs and driver IC, with vias connecting to a copper pour on the PCB’s backside. Apply thermal interface material (e.g., Arctic MX-6) between the heatsink and components, targeting a maximum case temperature of 85°C. Exceeding this threshold reduces the lifespan of electrolytic capacitors by 50% for every 10°C increase.
Fault Protection and Debugging
Integrate short-circuit protection by monitoring the voltage across the sense resistor–if it exceeds 0.7 V, trigger the shutdown pin of the driver IC via a comparator (LM393). Add a 10 μF tantalum capacitor to the shutdown circuit to prevent false triggers from transient noise. For lamp failure detection, use a voltage divider (10 kΩ + 4.7 kΩ) to monitor the output voltage; if it drops below 20 V for more than 50 ms, reset the system via a monostable multivibrator (e.g., CD4047).
PCB layout demands a star ground configuration with the high-current paths (MOSFETs, transformer) routed first, followed by signal traces. Keep the high-voltage traces (ignition module output) at least 3 mm away from low-voltage paths to prevent arcing. Use 2 oz copper for the top and bottom layers to handle the 10 A peak currents typical during startup. Test prototypes with a differential probe to verify waveform integrity; ideal ignition pulses should show a clean 3 μs rise time with
For extended endurance, select components rated for industrial-grade applications: opt for X7R/X8R ceramic capacitors (not Y5V/Z5U), 105°C electrolytic capacitors, and automotive-grade MOSFETs (e.g., Infineon IPD50N04S4-10). Avoid cost-cutting on the ignition module–OEM units (e.g., Philips or Osram) ensure consistent performance, whereas послеmarket alternatives often use undersized diodes or inadequate potting, leading to premature failure in high-vibration environments.
Critical Elements in High-Intensity Discharge Driver Design
Select a regulated switching converter rated for at least 120% of the lamp’s nominal power to prevent thermal runaway. Buck, boost, or buck-boost topologies each demand distinct MOSFETs, diodes, and inductors; match component tolerances to the target operating frequency. For example, a 400 kHz design requires an inductor with
Isolation is non-negotiable–use a gate-driver transformer with 10 pF at 200 °C; anything less risks dielectric breakdown during ignition transients. Verify creepage distances meet IEC 60950-1:2020 spacing rules for 380 VDC bus voltages.
| Component | Min. Rating | Recommended Margin | Test Condition |
|---|---|---|---|
| MOSFET (VDS) | 600 V | 750 V | Tj = 125 °C, ID = 5 A |
| Diode (VF) | 1.2 V | 0.9 V | IF = 3 A, Tj = -40 °C |
| Inductor (saturation) | 4.5 A | 5.2 A | 100 kHz, ΔI = 30% |
Control-loop compensation hinges on dual-pole placement: aim for a crossover frequency between 1/10 and 1/5 of the switching frequency. Implement a type-III compensator using 0603 SMD resistors (20,000 hours under 250 VAC.
Ignition circuitry must generate a >25 kV pulse within 50 μs; trigger transformers wound on EE16 ferrite cores provide the necessary flux swing. Add a 47 kΩ bleed resistor across the secondary to drain residual charge faster than 10 ms, preventing false strikes. Stack two series SIDACs (e.g., Littelfuse Kxxx) for >3 kV hold-off–single devices fail catastrophically at high-altitude installs.
Thermal management dictates PCB layout: assign 3 oz copper pours to high-current paths, stitch vias every 2 mm, and deploy aluminum-core baseplates for >50 W loads. Use thermocouples soldered
EMI suppression demands a multi-stage approach: start with a π-filter (L: 100 μH, C: 1 μF X2 + 10 nF Y1), then add a snubber network (R = 100 Ω, C = 220 pF) across switching nodes. Conducted emissions should stay below CISPR 25 Class 5 limits; radiated noise

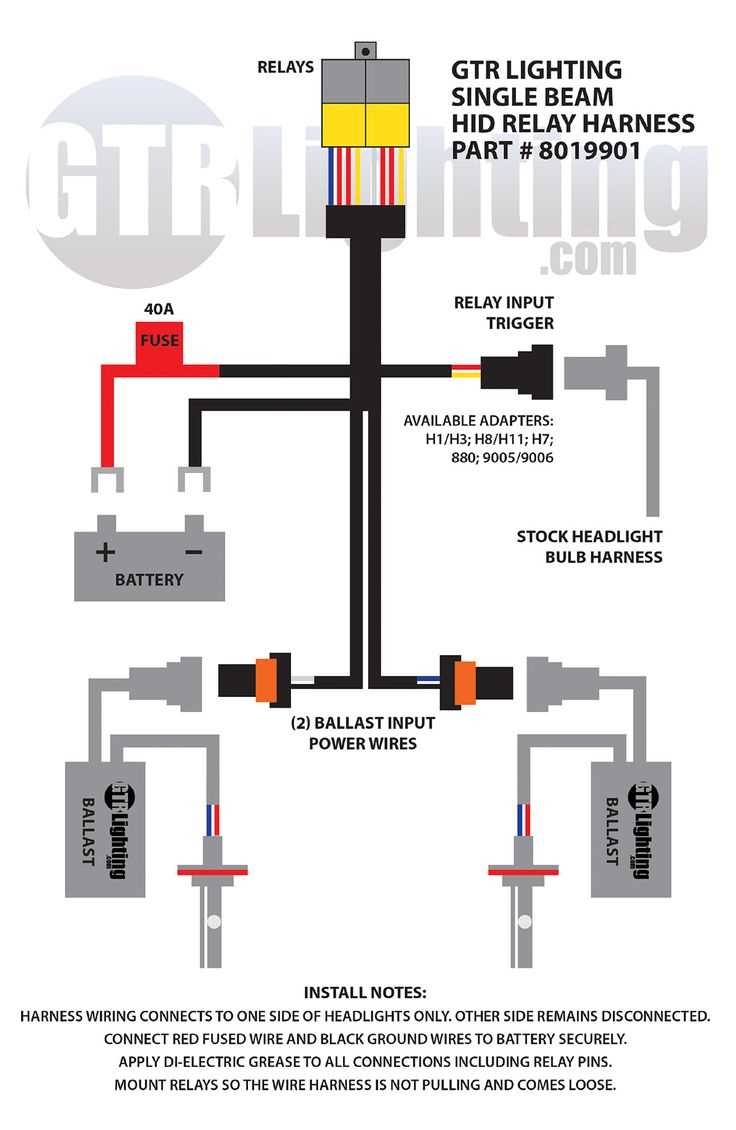

Step-by-Step Guide to Connecting Your High-Intensity Discharge Power Regulator
Disconnect the vehicle’s battery terminals before handling any wiring to eliminate short-circuit risks. Identify the manufacturer-recommended fuse rating (typically 20–30A for 35W systems or 30–40A for 55W setups) and install the inline fuse holder 15–20cm from the power source terminal. Match the thick-gauge input wire (minimum 14 AWG for 35W, 12 AWG for 55W) to the fuseholder’s output, then route it through the firewall grommet toward the engine bay–avoid sharp edges or moving components to prevent chafing.
Secure the regulator’s power input to the positive battery terminal via a ring terminal crimped with a hydraulic crimper, ensuring no exposed strands remain–cover the connection with heat-shrink tubing or dielectric grease to prevent oxidation. Attach the negative lead (same gauge as the positive) to the nearest chassis ground point, verifying the surface is bare metal and free of paint, rust, or coatings with a multimeter resistance test (
Snap the output connectors onto the bulb’s base, aligning the notches or keyways to prevent reverse polarity–most 9006/HB4 bases require a 90° twist, while D2S variants push straight in. Verify ignition voltage stability at the power regulator’s input (12.6–14.4V DC with engine off and running, respectively) using a digital multimeter before finalizing connections. If flickering persists, isolate the system with a capacitor (470µF, 50V) wired parallel to the regulator’s power input, soldered and sealed against moisture. Test for interference with vehicle electronics (radio, ABS sensors) by monitoring for erratic behavior at 2,000–3,000 RPM under full load.
Common Troubleshooting Issues in High-Intensity Discharge Power Regulators
Check ignition voltage immediately if the lamp fails to start–most modular drivers require a minimum of 23 kV for initial arc formation. Use an oscilloscope to verify the pulsating waveform at the transformer’s secondary winding; irregular spikes often indicate insulation breakdown or capacitor leakage. Replace the snubber capacitor if ESR readings exceed 5% of its rated value, as degraded components cause high-frequency noise and premature ignition failure.
Overheating shunts or inductors signal excessive current draw–measure resistance across the ballasting coil; deviations above 10% from the datasheet specification confirm shorted turns. Clean oxidized terminals with isopropyl alcohol and fine-grit sandpaper to restore conductivity, as corrosion disrupts low-voltage control signals. If the starter relay clicks but no light emits, test the thyristor gate voltage; absence of 1.2–1.8 V indicates a failed trigger circuit.
- Flickering often stems from unstable arc current–adjust the feedback loop resistor (typically 10–50 kΩ) to stabilize output.
- Dim illumination may result from weakened mercury vapor pressure–replace the tube if lumen output drops below 70% of nominal.
- Buzzing noises originate from loose laminations in the choke–tighten mounting screws or re-varnish windings to eliminate vibration.
For intermittent failures, probe the EMI filter components; swollen electrolytic capacitors (common in 400–600 VDC variants) must be swapped immediately. Verify the ground plane integrity–a missing or corroded earth connection disrupts high-voltage isolation, leading to erratic operation. If the unit exhibits slow warm-up, inspect the thermal cutoff; many designs trip at 105°C, and a faulty sensor causes premature shutdowns.
When replacing semiconductors, match the VCEO rating precisely–underrated transistors fail under inductive load spikes, while overrated ones reduce efficiency. Use a thermal imager to identify hotspots on the PCB; temperature gradients above 30°C between adjacent traces reveal delamination or cold solder joints. For systems with digital controllers, reflash the firmware if corrupted–many modules store calibration data in EEPROM, and mismatched parameters skew performance.
- Test the dimming interface by measuring control voltage–0–10 VDC signals should correspond linearly with light output.
- Inspect the fuse rating–slow-blow types rated 2–3× the steady-state current protect against surge damage.
- Examine the arc tube for blackening near electrodes–this indicates electrode erosion and necessitates tube replacement.
