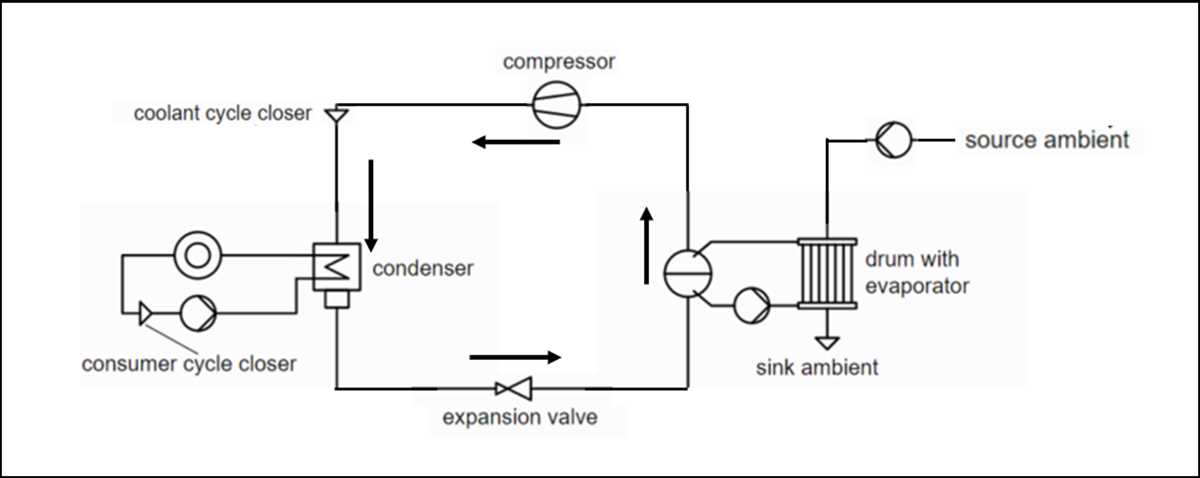

Start by identifying the four primary elements in any refrigeration cycle layout: the evaporator coil, compressor unit, condenser assembly, and expansion valve. Each component must be positioned with precision to ensure minimal pressure loss and optimal thermodynamic efficiency. The evaporator should be placed downstream of the expansion device, where refrigerant absorbs ambient energy at low pressure. A coil with fin density between 12–18 fins per inch improves surface contact without restricting airflow.
Position the compressor immediately after the evaporator outlet to maintain consistent suction pressure. Scroll compressors tolerate up to 25% liquid slugging without damage, whereas reciprocating models require a dedicated accumulator for protection. Condenser placement depends on the environment: air-cooled units need unobstructed airflow with a minimum clearance of 30 cm on all sides, while water-cooled designs demand a closed-loop cooling tower with 3–5°C approach temperature for peak performance.
Use copper tubing with a wall thickness of at least 0.8 mm for lines connecting components under high pressure. Suction lines should be insulated with foam sleeves (R-4 insulation value minimum) to prevent condensation and energy loss. The expansion valve must be sized according to refrigerant type: for R-32, a valve with a 0.8 mm orifice handles up to 5 kW capacity under standard conditions. Always include a filter-drier upstream of the valve to trap contaminants larger than 15 microns.
Integrate pressure and temperature sensors at critical points–evaporator inlet/outlet and condenser inlet/outlet–to enable real-time performance monitoring. A differential pressure switch across the compressor protects against motor overload; set the cut-out at 30% below nominal operating pressure. Label all wiring with heat-resistant sleeves and ground the system using 6 AWG copper wire connected to a dedicated earth rod.
Key Components in a Thermal Energy Transfer System Schematic
Begin by labeling the refrigeration loop’s critical points: compressor inlet, condenser coil outlet, expansion valve inlet, and evaporator coil return. Use industry-standard symbols (ISO 1219) for each element–hermetic scroll compressor (arrowed circle), finned tube exchanger (wavy lines), thermostatic expansion device (angled arrow), and suction line accumulator (oval). Avoid generic block diagrams; precise placement ensures accurate pressure-drop calculations.
Color-code the piping segments to distinguish flow phases: red for high-pressure vapor (compressor discharge to condenser), blue for high-pressure liquid (condenser outlet to metering valve), green for low-pressure liquid (metering valve outlet to evaporator), and yellow for low-pressure vapor (evaporator return to compressor). This visual demarcation prevents misrouting during installation or troubleshooting.
Pressure and Temperature Reference Points
- Compressor discharge: 350–450 psi, 85–105°C (R-410A)
- Condenser midpoint: 300–400 psi, 35–45°C
- Metering valve inlet: 290–380 psi, subcooled 5–8°C
- Evaporator outlet: 100–130 psi, superheated 5–10°C
- Compressor suction: 90–120 psi, –5 to 0°C
Annotate these values directly on the schematic beside the corresponding components. Include separate columns for alternative refrigerants (e.g., R-32, R-134a) if the system supports multiple fluid types. Omitting these details risks operating outside safe enthalpy windows.
Integrate defrost control logic into the evaporator section. Show a parallel bypass line with a solenoid valve and a timer relay (settable 30–90 min intervals). Label defrost termination at 5°C coil surface temperature; exceeding 8°C wastes energy. Position the bypass upstream of the evaporator to maintain liquid seal in the expansion valve during defrost cycles.
Safety and Monitoring Devices
- Dual high-pressure cutouts (adjustable 450–500 psi) on compressor discharge.
- Low-pressure switch (80–100 psi) on suction line to prevent vapour lock.
- Liquid line sight glass (moisture indicator) between condenser outlet and filter-drier.
- Oil separator (98% efficiency) on compressor discharge line for scroll compressors exceeding 5 HP.
- Thermistors at evaporator outlet and condenser inlet for delta-T monitoring (target 8–12°C).
Place each device on the schematic with arrowed leads indicating wiring connections. Include terminal numbers for relays (e.g., compressor relay coil: terminals 1–2, contacts 3–4). Specify wire gauges (e.g., 14 AWG for control circuits, 10 AWG for power lines). Never combine safety device wiring with variable-speed drive inputs.
Document auxiliary loops if present: domestic hot water desuperheater (counterflow plate exchanger between compressor discharge and storage tank, 60–70°C target), buffer tank recirculation (variable-speed ECM pump, 40–50 L/min), or ground-source refrigerant pre-cooler (vertical borehole, 15–20 W/m gradient). Each loop requires its own expansion vessel (min. 8% of loop volume) and isolation ball valves rated for 600 psi.
Include a bill of materials table beneath the schematic listing part numbers, manufacturer specifications (e.g., Copeland ZR94KCE scroll compressor), quantity, and notes on compatibility (e.g., “not for use with R-410A above 4.5 tons”). Add a revision block (date, initials, change description) in the bottom-right corner for version control. Without these data, procurement and maintenance teams risk ordering incorrect or incompatible components.
Key Components and Their Symbols in Energy Transfer System Schematics
Accurate interpretation of installation blueprints begins with recognizing standardized symbols for core elements. Compressors–typically depicted as a circle with an “M” or motor symbol–serve as the system’s driving force, converting low-pressure refrigerant into high-pressure gas. Expansion valves, shown as a simple valve icon (e.g., a “T” with a diagonal slash), regulate fluid flow by reducing pressure before evaporation. Evaporators and condensers share a similar coil symbol, though placement context distinguishes them: evaporators sit upstream of the compressor, while condensers follow it.
Refrigerant lines demand precise labeling in schematics to avoid misrouting. Liquid lines, solid single-arrow vectors, carry high-pressure fluid post-condensor, while suction lines, dashed arrows, denote low-pressure vapor returning to the compressor. Auxiliary symbols include dryers (a rectangle with staggered lines) and sight glasses (a circle with a vertical bar), critical for monitoring moisture and liquid levels. Non-return valves, marked by a check valve symbol, prevent reverse flow, a common failure point in improperly designed layouts.
Pressure and Temperature Indicators
Gauges appear as small circles with pointers, often annotated with “HP” (high-pressure) or “LP” (low-pressure). For manual systems, pressure switches exhibit a squiggly line intersecting a straight line–this visual cue prevents overlooking safety overrides. Thermistors or PT100 sensors, drawn as a thermometer icon within a circle, provide temperature data at key junctions; placement errors here cascade into efficiency losses. Ensure symbols align with ISO 14617 or ASHRAE Standard 134 to maintain cross-project consistency.
Electrical controls introduce additional complexity. Capacitors–start/run–use parallel lines with a curved connection, while relays show as a square with a coil symbol adjacent. Fuses appear as a rectangle bisected by a diagonal line. Misplacing these in schematics risks component burnout, particularly in inverter-driven units where voltage fluctuations are frequent. Always verify symbols against manufacturer datasheets, as corporate-specific variations exist, notably in scroll versus reciprocating compressors.
Step-by-Step Wiring for a Residential Climate Control Installation
Begin by shutting off the main power supply at the breaker panel before handling any electrical connections. A non-contact voltage tester confirms the absence of current at both the indoor and outdoor units–failure to verify this risks severe injury or equipment damage. Label each wire with color-coded tags or masking tape to match the schematic provided in the manufacturer’s manual, ensuring consistency in later steps.
Connecting Low-Voltage Thermostat Wiring
Run 18-gauge stranded wire from the thermostat location to the air handler, typically requiring a four-wire configuration: R (red), C (blue or black), Y (yellow), and G (green). Strip 1/4 inch of insulation from each end, then secure the wires under the terminal screws–R to the power input, C to the common, Y to the compressor relay, and G to the fan relay. Tighten screws with a torque screwdriver to 6-8 in-lbs to prevent loosening from vibration. Cross-check against the unit’s wiring label, as some models use O/B for reversing valve control instead of a separate wire.
For dual-fuel systems, an additional W wire (white) connects to the auxiliary heating element–route this through a separate 24V relay if integrating with a gas furnace. Avoid daisy-chaining thermostat wires through multiple splices, as voltage drop can cause erratic operation. Instead, use a single run with junctions at the air handler if extensions are necessary.
High-Voltage Power Supply Configuration
Feed the outdoor condenser unit with 240V power using 10-gauge copper wire for systems up to 3 tons (36,000 BTU) or 8-gauge for larger capacities. Route separate conductors for L1, L2, and ground from the double-pole breaker (typically 20-40 amps) to the unit’s disconnect switch, then to the compressor contactor. Confirm the breaker size matches the equipment’s minimum circuit ampacity (MCA) listed on the nameplate–undersizing risks tripping, while oversizing wastes panel capacity.
Earth the system by attaching a 10 AWG bare copper wire to the ground lug in the outdoor unit, then bonding it to the indoor air handler’s ground terminal. For installations in areas with unstable grid voltage, add a hard-start kit across the compressor’s start and run capacitors to reduce inrush current. Verify proper operation by setting the thermostat to cooling mode and monitoring the compressor’s 3-5 second startup delay–immediate cycling indicates incorrect wiring or capacitor failure.
Finalize the setup by securing all wire nuts with electrical tape and enclosing splices in weatherproof junction boxes for outdoor runs. Test continuity with a multimeter between each terminal and ground to confirm no shorts exist before restoring power. Document the configuration with photos or a hand-drawn sketch for future reference, noting any deviations from standard color codes (e.g., European models often use brown for live instead of black).
