Begin with an accurate representation of the oxygenator’s inflow and outflow connections–place the arterial line above the venous reservoir to prevent retrograde air embolism during priming. The venous cannula must connect to the reservoir’s lowest port, ensuring gravity-driven drainage without collapse. Use a 3/8-inch tubing for the main circuit to maintain flow rates up to 6 liters per minute while minimizing hemolysis; smaller diameters increase shear stress exponentially.
Integrate a heat exchanger directly downstream of the pump head to stabilize temperature gradients–position it before the oxygenator for optimal gas exchange efficiency. Place the cardiotomy reservoir parallel to the venous line, not in series, to avoid fluid stagnation and clotting. The arterial filter should be the last component in the line, with a pore size of 40 microns to capture debris without restricting flow.
For the pump, use a centrifugal head for flows above 3 L/min to reduce hemolysis compared to roller pumps–calibrate RPM based on the patient’s body surface area (BSA) with a target of 2.4 L/min/m². Bypass circuits require two dedicated suckers: one for the field and one for the cardiotomy, each with independent roller heads to prevent competition for volume. The suction lines must include 40-micron filters to trap particulate matter before it enters the main reservoir.
Prime the system with 1.5 liters of crystalloid (balanced electrolyte solution) and 500 mL of albumin 5% to reduce platelet adhesion. Add 1,000 units of heparin per liter during priming to achieve a target ACT of 400-480 seconds before cannulation. The oxygenator’s gas flow should be set at 1:1 blood flow ratio (e.g., 4 L/min O₂ for 4 L/min blood flow) with a FiO₂ of 50-60% to avoid hyperoxic lung injury during reperfusio
Monitor pressure gradients at key points: arterial line (150-250 mmHg), post-oxygenator (50-100 mmHg), and cardioplegia delivery (250-350 mmHg). A sudden drop in post-oxygenator pressure indicates oxygenator thrombosis–immediately divert to the second oxygenator or switch to deep hypothermic circulatory arrest if unplanned. Use phosphorylcholine-coated tubing to reduce contact activation and inflammatory response during prolonged support (>6 hours).
For pediatric applications, scale tubing diameters to 1/4-inch for arterial and venous lines and reduce priming volume to to avoid hemodilution. The pump flow rate should be adjusted to 150 mL/kg/min for infants under 5 kg, with a minimum of 300 mL/min to prevent circuit stagnation. Always include a recirculation line from the arterial filter back to the reservoir to maintain flow during low-demand periods.

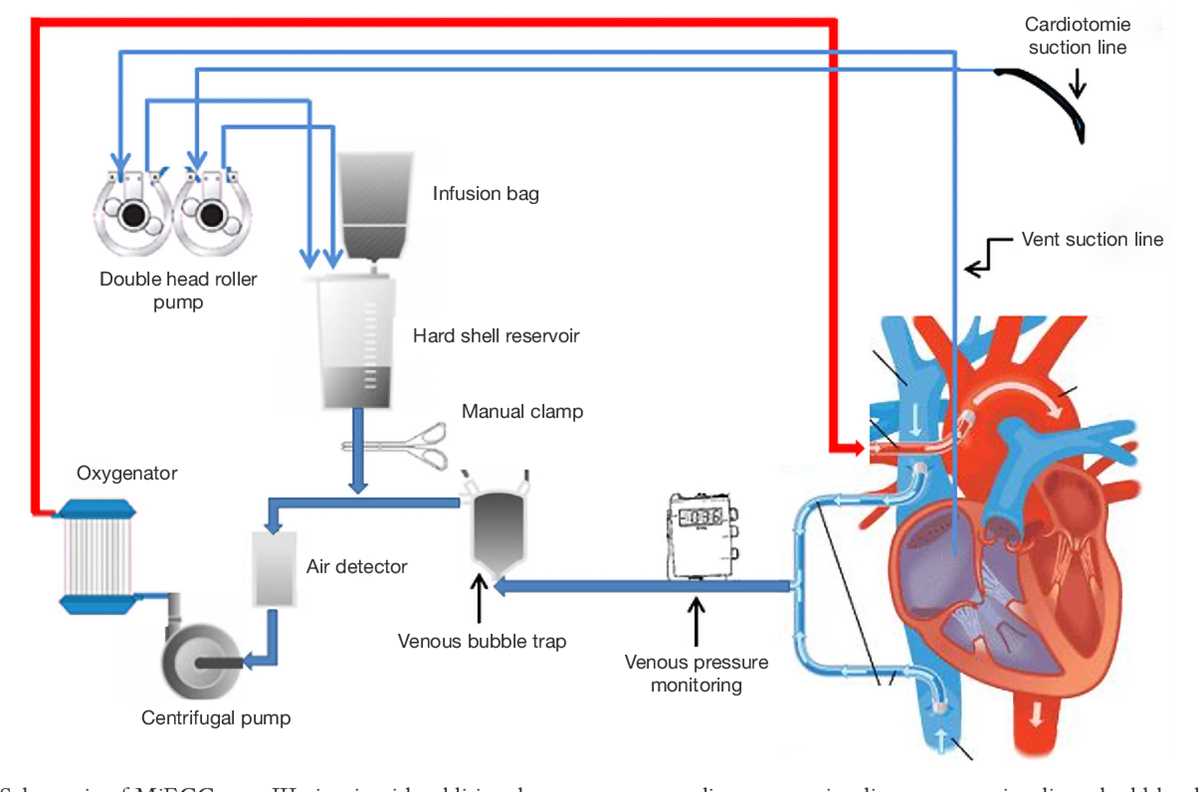

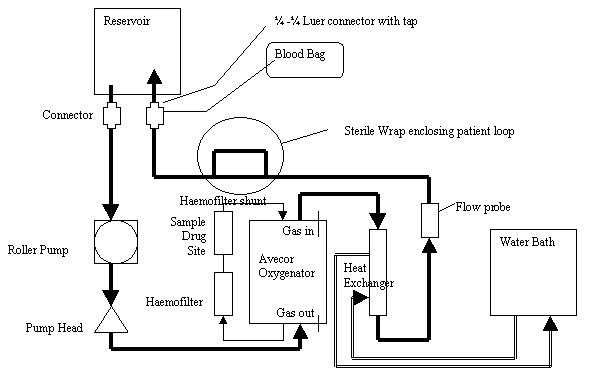

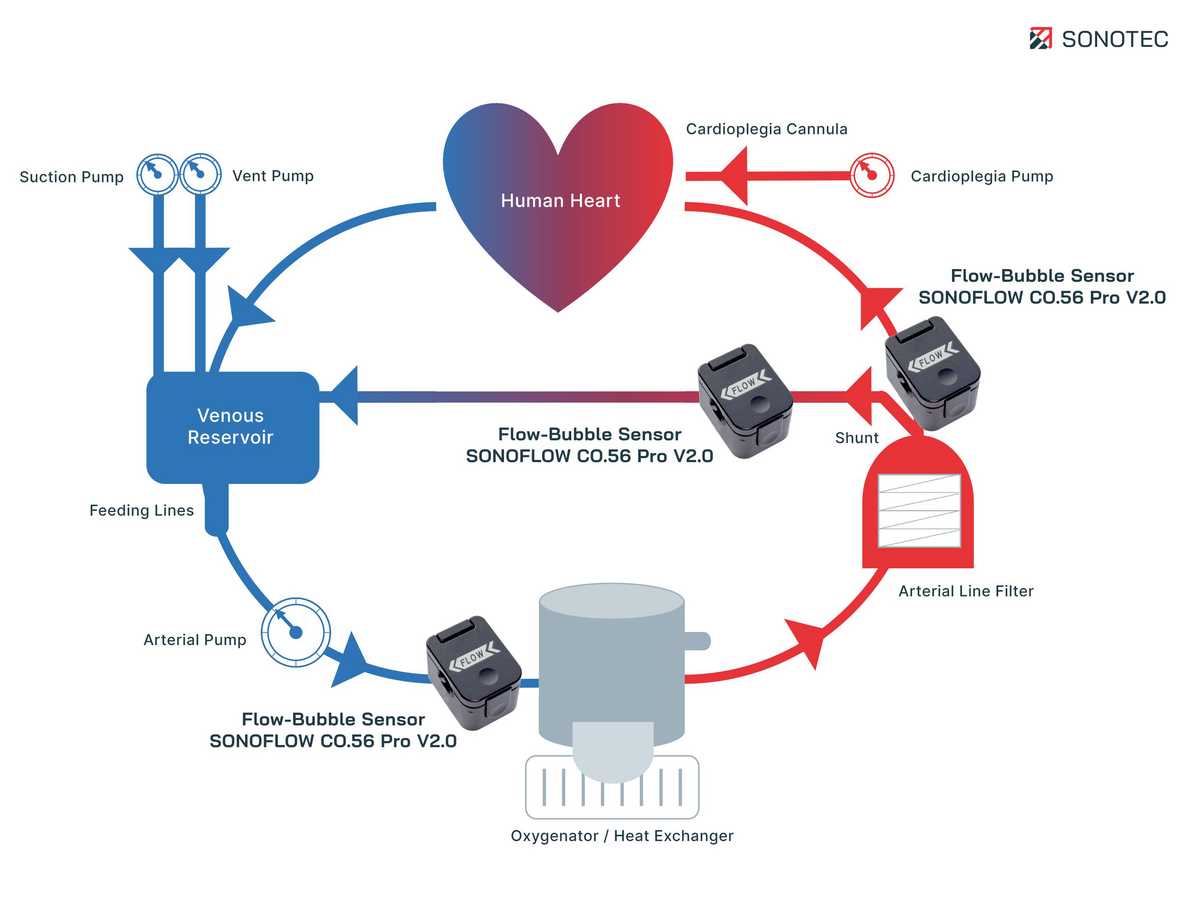

Extracorporeal Perfusion System Schematic: Key Components and Flow Pathways
Begin assembly by positioning the oxygenator upstream of the heat exchanger to prevent bubble formation during temperature fluctuations. The standard setup requires a 3/8″ tubing diameter for the arterial line and 1/2″ for venous return to maintain optimal flow rates between 4-6 L/min, adjusting based on patient body surface area (BSA). Verify pressure gradients across the system–arterial pressure should not exceed 300 mmHg, while venous saturation should remain above 65% to avoid hypoxia.
- Use a membrane-type gas exchanger with a surface area of 1.8–2.4 m² for adults; smaller units risk insufficient oxygenation at high flows.
- Integrate a 40-micron arterial filter to trap microemboli; replace after 4–6 hours of usage or if pressure drop exceeds 100 mmHg.
- Place cardiotomy suction lines on separate pumps with 1/4″ tubing to reduce hemolysis–limit suction pressure to -150 mmHg.
Connect the roller pump to the venous reservoir with a level sensor calibrated to trigger alarms at 200 mL remaining volume. For centrifugal pumps, ensure the impeller speed aligns with the manufacturer’s RPM-viscosity curve–typically 1500–2500 RPM for blood at 37°C. Bypass the pump head during priming to prevent air entrapment; use a 0.9% saline solution with 1% albumin to coat tubing surfaces and reduce platelet activation.
Monitor three critical points in the flow path: pre-oxygenator (venous), post-oxygenator (arterial), and post-filter. Pre-oxygenator blood should register a pO₂ below 50 mmHg; post-oxygenator values must reach 200–300 mmHg. Deviations indicate faulty gas exchange–check sweep gas flow (recommended 1–2 L/min) and FiO₂ settings (adjust to 60–100%). Post-filter pO₂ drops exceeding 20% suggest filter clogging or systemic desaturation.
- Validate all connections with a pressure test before patient attachment–occlude lines sequentially while observing reservoir levels.
- Use ultrasonic flow meters on arterial and venous lines for real-time monitoring; readings should match pump output within ±10%.
- Prime the system in reverse flow direction to purge air; tilt the oxygenator 30° to assist bubble migration to the purge port.
Key Components of a Standard Extracorporeal Perfusion System
Select an oxygenator with a membrane surface area of at least 1.8 m² for adult patients, ensuring a gas exchange capacity of 400–600 mL/min under standard conditions. Polymethylpentene (PMP) membranes outperform older polypropylene models in durability and thromboembolic resistance, reducing microbubble formation by up to 30%. Always verify the pressure gradient limits–exceeding 100 mmHg across the oxygenator risks plasma leakage.
Centrifugal pumps, such as the RotaFlow or BPX-80, should replace roller pumps in prolonged procedures exceeding 3 hours. These devices maintain consistent flow with less hemolysis (plasma hemoglobin increase <10 mg/dL per hour) but require precise calibration: a 1% speed deviation alters flow by 25–50 mL/min at 3–5 L/min outputs. Use integrated flow sensors, not estimates, to avoid inaccurate readings from tubing compression or reservoir shifts.
The venous reservoir must handle 1.5–2.5 L of volume with a minimum filter pore size of 40 µm. Hard-shell reservoirs reduce air entrainment but require active level sensing to prevent cavitation. For soft-shell variants, ensure the collapsible design includes a 30-minute emergency volume buffer at the lowest safe operating level. Avoid low-level alarms set above 200 mL–they trigger unnecessary volume additions and destabilize perfusion.
Arterial line filters with 20–40 µm pore sizes remove macroemboli but demand pre-bypass priming to eliminate trapped air. Replace filters after 6 hours of continuous use; microscopic fiber fractures increase particulate release. Tubing diameter for the arterial conduit should be 3/8″ for flows >4 L/min, reducing shear stress (keep Reynolds number below 2,000). Silicone-based tubing lasts 5–7 uses, while co-extruded PVC degrades faster under hypothermic conditions.
Heat exchangers using stainless steel or aluminum achieve temperature gradients of 8–10°C/min without risking protein denaturation. Position the exchanger downstream of the oxygenator to avoid gas solubility changes with temperature shifts. Monitor surface temperatures–exposing blood to >42°C coagulates fibrinogen, while <30°C increases viscosity nonlinearly (η increases 2.5× per 10°C drop).
Critical Ancillary Devices
Cardiotomy suction systems must operate at <300 mmHg vacuum; higher pressures lyse red blood cells (free hemoglobin >50 mg/dL). Use dual-lumen cannulae for left ventricular venting, with diameters >12 Fr to prevent occlusion from clots. Pressure monitors should sample near the cannulation site–tubing resistance can create 50–80 mmHg errors over 1 meter. Ultrafiltration modules, when used, remove lactate and inflammatory mediators but discard >1 L/hour risk hypovolemia.
Step-by-Step Assembly of the Extracorporeal Perfusion System
Begin by laying out all components on a sterile, flat surface in the order of connection: venous reservoir, oxygenator, heat exchanger, arterial pump head, and cardioplegia module. Verify the integrity of each tubing segment–replace any with visible cracks, discoloration, or kinks exceeding 5 mm in radius. Pre-prime the system with 1.5 liters of balanced crystalloid solution (e.g., Plasma-Lyte A) at 36°C to eliminate air bubbles before patient cannulation.
Attach the venous line to the reservoir inlet, ensuring a secure luer-lock connection. Use a torque wrench set to 12 Nm for tubing clamps–over-tightening may compromise silicone integrity. Connect the reservoir outlet to the oxygenator’s blood inlet port with a 3/8-inch diameter line, confirming a 10° downward angle to facilitate air bubble migration toward the purge line. Secure the purge line to a dedicated waste container with a one-way valve to prevent retrograde flow.
Integrate the heat exchanger between the oxygenator’s gas outlet and the arterial pump head. Check the temperature probe accuracy by immersing it in a water bath at 37°C–acceptable variance is ±0.2°C. Connect the arterial line to the pump head outlet, then attach a 40-micron filter downstream to trap microemboli. Flush the filter with 200 ml of prime solution at 150 mmHg pressure to dislodge manufacturing debris.
Prepare the cardioplegia subsystem by connecting the delivery line to a dedicated roller pump. Use a Y-connector to bifurcate flow into antegrade and retrograde cannulae, with separate pressure monitors for each limb–maintain pressures below 250 mmHg to prevent aortic root dissection. Test the subsystem with a 5% dextrose solution at 0.5 ml/kg/min for 30 seconds to confirm uniform perfusion distribution.
Install inline sensors for hematocrit, oxygen saturation, and pressure at critical junctions: venous return, arterial filter outflow, and cardioplegia delivery. Calibrate sensors using standardized solutions (e.g., 40% hematocrit control for the hematocrit monitor). Attach the gas blender to the oxygenator, setting initial FiO₂ to 60% and sweep gas flow to 2 L/min–adjust based on post-oxygenator blood gas analysis during bypass initiation.
Verify all tubing connections with a 3 kg tensile strength test–the line must not detach under sustained traction for 10 seconds. Perform a leak test by pressurizing the system to 300 mmHg for 5 minutes–acceptable loss is
Prior to patient connection, recirculate the prime solution at 2 L/min for 5 minutes while monitoring for foam formation–if persistent after 30 seconds, add 5 ml of 25% albumin. Discontinue recirculation, clamp all lines, and attach the patient cannulae using aseptic technique. Begin bypass only after confirming zero air in the arterial line via transesophageal echocardiography Doppler.
