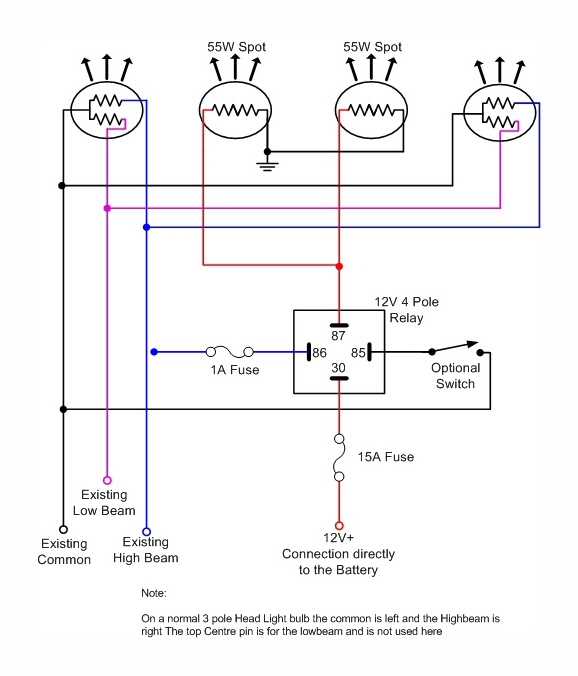

Install a four-pin SPDT unit rated for 30A min between the power source and lamp bulbs–never splice directly into the OEM harness. Locate the relay within 12 inches of the lamps to cut voltage drop below 0.3V during full load. Connect the 85 pin to a controlled 12V trigger–either the factory switch output or a separate dash-mounted toggle–ensuring 10A fuse protection on this input line. Ground the 86 pin through a dedicated path to the chassis, avoiding shared ground points used by sensitive electronics. Wire the 30 pin directly to the battery via 10-gauge cable or thicker, fused no more than 7 inches from the terminal. Run 12-gauge wire from the 87 pin straight to the bulb sockets, keeping total circuit length under 18 feet to maintain stable output.
Remove factory variators if present; they induce flicker at high currents and degrade bulb lifespan by 40%. Test resistance across every connection with a digital multimeter–values above 0.5Ω indicate corrosion or undersized wire. Use dielectric grease on all terminals, especially in high-vibration areas like fender wells. Label each wire at both ends before routing to prevent misconnections during maintenance. For HID lamps, add a dedicated capacitor (4700µF, 25V) parallel to the relay output to filter voltage spikes that can trigger ballast failures.
Route cables away from sharp edges and moving components; secure with nylon loom every 8 inches. Avoid zip-ties on hot wires–use adhesive-backed clips for engine bay runs. Verify ground continuity before finalizing connections–poor grounds are the primary cause of dimming under electrical load. For dual-filament bulbs, implement a double relay setup to isolate low and high beams, preventing cross-talk that can overload the dimmer circuit. Always bench-test the setup before permanent installation using a spare bulb and 12V power supply.
Mount the auxiliary switch within 12 inches of the steering wheel for quick access during emergencies. Include a LED indicator wired in parallel to the relay trigger to confirm circuit activation. When using aftermarket bulbs, check filament alignment–misaligned beams create uneven patterns and corridor shadows at night. For high-wattage upgrades, install a secondary fuse block between the battery and relay to distribute load across two 20A fuses rather than a single point of failure. Document every connection with digital photos and a hand-drawn schematic for troubleshooting.
Automotive Beam Circuit Configuration Using Auxiliary Switching
Install a 30A SPDT auxiliary switch near the vehicle’s fuse box to prevent voltage drop when powering high-intensity front lamps. Connect the control side to the existing low-beam activation line via a 12V 1A fuse, ensuring the relay coil draws under 200mA to avoid overloading the factory harness. Route the power input directly to the battery’s positive terminal or an ignition-switched circuit capable of handling 25A continuous load–never splice into the original lamp feed.
Select a Bosch 0 332 209 150 or Hella 4RA 929 605-602 relay for consistent arc suppression across 10,000+ switching cycles. Ground the relay housing to the chassis with a minimum 8AWG wire length under 18 inches to reduce electromagnetic interference. For halogen bulbs over 60W, incorporate a separate 20A fuse on the load side to protect the relay contacts from thermal fatigue.
Test the circuit with a multimeter before finalizing connections: verify 12.6V at the relay input, 0.2V or less drop across the load side, and coil resistance between 50–120 ohms. If ambient temperatures exceed 40°C, relocate the relay away from heat sources like exhaust manifolds or radiators to prevent premature coil failure. Use dielectric grease on all terminal connections to inhibit corrosion in humid environments.
For HID or LED assemblies, insert a transient voltage suppression diode (1N4007) across the relay coil to clamp inductive spikes exceeding 30V, safeguarding the vehicle’s ECU. Avoid parallel wiring of multiple lamps on a single relay; distribute load across dual 40A units if total current exceeds 18A. Replace relays every 80,000 miles or at the first sign of erratic lamp behavior, whichever occurs first.
Key Principles of Automotive Light Control Systems Using Switching Modules
Begin by sourcing a 40-amp SPDT switch module–rated for at least 125% of your lighting circuit’s peak draw. Standard halogen units operate at 10-15 amps per side; HID or LED assemblies may require 20+ amps. Overlooking ampacity risks module failure or fire.
- Pin 85: Ground return (splice to chassis, ensure
- Pin 86: Switched 12V trigger (tap ignition-switched source, fuse at 10A)
- Pin 30: Heavy-gauge input (direct from battery, fuse at 30A minimum)
- Pin 87: Output to lighting assembly (use 12 AWG for
Avoid triggering the module with constant battery voltage. Use an ignition-switched source to prevent parasitic drain–even 10 mA can flatten a battery in 2 weeks.
Mount the module within 18 inches of the battery. Heat dissipation diminishes exponentially beyond this distance; relay case temperature should not exceed 85°C during sustained operation.
Ground-side switching (Pin 85) is preferable for corrosion-prone environments. Salt spray increases terminal resistance–apply dielectric grease to all connections and torque to 8-10 in-lbs.
- Verify coil resistance (should read 60-100 ohms;
- Load-test outputs by substituting a 10-ohm/50 W resistor–expected voltage drop
- Inspect harness for chafing at sharp edges (use split loom, avoid PVC where ambient >60°C)
Opt for sealed modules if operating near high-humidity zones (e.g., engine bays). Standard open-frame relays absorb moisture, increasing coil resistance and triggering erratic cycling.
For dual-filament setups, use separate modules per circuit. Parallel switching causes voltage sag–measure bulb resistance (halogen ~1.5 ohms cold, LED ~4 ohms) and match module ampacity accordingly.
Step-by-Step Guide to Connecting a Lighting Circuit Switch Module
Disconnect the battery’s negative terminal before starting to prevent short circuits. Locate the factory light assembly harness–typically a 6-pin connector for low and high beams–and identify the power (12V), ground, and trigger wires using a multimeter. Label each wire with masking tape to avoid confusion during reassembly.
Required Components and Tools
| Item | Specification | Purpose |
|---|---|---|
| 40A SPDT switch module | 12V, 80A contact rating | Handles high-current load |
| 14-gauge wire | Stranded copper, 30A capacity | Primary power feed |
| Heat-shrink tubing | Adhesive-lined, 4mm diameter | Insulates splices |
| Crimp connectors | Ring terminals, 6.3mm stud size | Secure battery connections |
| Fuse holder | Inline, 30A blade fuse | Circuit protection |
Route the 14-gauge wire directly from the positive battery terminal to the switch module’s common terminal, securing it with a ring terminal. Install a 30A fuse within 7 inches of the battery to comply with automotive safety standards. Connect the module’s normally open terminal to the factory high-beam trigger wire, ensuring a solid crimp or solder joint–test continuity with a multimeter before proceeding. Ground the module’s coil terminal to a clean chassis point using 12-gauge wire, removing paint or corrosion at the attachment site.
Reconnect the battery’s negative terminal last. Activate the vehicle’s light switch and verify operation: the module should emit an audible click when engaging. Use a non-contact voltage tester to confirm power reaches all terminals without parasitic draws. If flickering occurs, recheck ground integrity and splice quality; if the module overheats, reduce load or upgrade wire gauge to 12-gauge for the main power feed.
Frequent Errors in Automotive Beam Electrical Setups Using Switching Devices
Skipping fuse placement in the power lead to the switching unit exposes the circuit to short-circuit damage. Use a fuse rated no higher than 15A for standard halogen units, positioned within 15cm of the battery terminal to interrupt excessive current before it reaches sensitive components. Without this safeguard, a single faulty connection can melt insulation or ignite wiring harnesses.
Incorrectly pairing wire gauges causes voltage drop and overheating. Employ 12-gauge copper conductors for the main power feed and control lines; thinner wires create resistance that dims illumination and shortens bulb lifespan. Measure each run length–every additional meter demands thicker wires to maintain consistent brightness, especially in vehicles with extended front ends.
Grounding through painted body panels introduces instability. Secure grounds directly to bare metal chassis points using star washers and corrosion-resistant terminals. Paint or rust acts as an insulator, causing flickering or intermittent operation during rain or engine vibration. Locate ground connections in dry areas near the switching device for reliability.
Misrouting signal cables alongside high-current leads induces electromagnetic interference. Keep low-voltage trigger conductors separated from battery cables by at least 5cm, using spiral wrap or looms where necessary. Ignoring this precaution leads to erratic switching behavior, especially in systems with halogen bulbs that produce high-frequency noise during warm-up.
Overloading switching devices with excessive current ratings reduces lifespan. Most aftermarket automotive relays handle 30A continuously, but connecting both main beams through a single unit when they draw 25-30A combined risks overheating. Install separate switching devices for high and low beams if total draw exceeds 80% of the relay’s capacity.
Using adhesive-backed connectors instead of soldered joints results in corrosion over time. Crimp connectors properly with heat-shrink tubing, then apply dielectric grease to prevent moisture ingress. Cheap butt connectors fail under vibration, creating intermittent contact that damages bulbs or switching components through arcing.
Neglecting diode protection on trigger circuits backfeeds current into other electrical systems. Install a 1N4007 diode across the switching coil terminals, cathode to the positive side, to block reverse voltage spikes that can destroy onboard computers or LED drivers. Without this safeguard, a faulty switch can cascade failures through multiple vehicle subsystems.
