For a clean one-to-multiple video feed duplication setup, use an active component layout with a TFP401 deserializer at the input stage followed by two TFP410 serializers for output paths. This configuration ensures stable signal integrity and avoids common degradation issues found in passive designs. Each serializer should receive a dedicated 27 MHz reference clock–shared clocks often introduce phase mismatches that manifest as screen flicker or desynchronization.
Power requirements: supply 3.3 V to all chips and add a ferrite bead (100 Ω @ 100 MHz) between the power source and each serializer’s analog output ground to prevent ground bounce. Omitting this step risks introducing high-frequency noise into the transmitted feed, particularly noticeable with 4K content.
Route differential pairs with controlled impedance (90-100 Ω) on a four-layer board: top signal layer, ground plane, power plane, bottom signal layer. Keep trace lengths matched within 12 mm between the deserializer and each serializer–longer mismatches cause visible artifacts in fast-changing scenes. Avoid 90° bends; use 45° angles or curved traces instead to minimize reflections.
Testing protocol: first verify the reference clock on an oscilloscope for jitter below 50 ps peak-to-peak. Then connect a pattern generator outputting a 1080p60 SMPTE color bar sequence and check each duplicated feed with a waveform monitor. Any color shift greater than 2% saturation or luminance deviation exceeding 1 IRE point indicates improper termination and requires re-evaluation of the termination resistors (typically 100 Ω ±1%).
Building a Video Signal Distributor: Hands-On Assembly Guide
Begin by sourcing a TMDS signal amplifier IC, such as the TI TFP410 or Parade PS8640, which handles 18-bit color depth at 1080p resolution. These chips require a 3.3V power rail–use a linear regulator like the AP2112K for stable supply, avoiding SMPS due to noise susceptibility. Route all differential pairs with matched 50Ω impedance traces, keeping them under 20cm in length to prevent signal degradation.
For passive branching, employ micro-coaxial cables with UL20276 shielding–avoid ribbon cables due to crosstalk. Each branch should terminate in a 50Ω resistor to ground, soldered directly to the connector pad. The table below lists recommended termination resistors per channel:
| Signal Pair | Resistor Value | Part Number |
|---|---|---|
| TMDS Data0+ | 50Ω | Yageo RC0603FR-0750RL |
| TMDS Clock+ | 50Ω | Vishay CRCW060350R0FKEA |
| HEAC+ | 47Ω | Panasonic ERJ-3EKF47R0V |
Mount decoupling capacitors (0.1µF X5R) within 2mm of the IC’s power pins. For multi-output configurations, add a CDCE913 clock generator to resynchronize signals post-split. Use 4-layer PCBs with ground plane separation between analog and digital sections–via stitching every 10mm reduces EMI by 6dB. Test each output with a Tektronix TBS1202B oscilloscope; acceptable jitter is ≤0.3UI peak-to-peak.
For EDID handling, flash an Atmel ATtiny4313 with custom firmware to emulate display capabilities on each branch. Connect it via I²C at 100kHz–pull-up resistors (2.2kΩ) are mandatory. Avoid using stock EDID ROMs; instead, merge manufacturer blocks into a single descriptor to prevent handshake failures. The firmware should poll connected displays every 500ms to update hot-plug status.
Enclose the unit in a machined aluminum housing with RF gaskets at seams–plastic cases increase crosstalk by 12%. Ventilation holes must be ≤3mm in diameter to meet FCC Part 15 shielding requirements. Ground the chassis to the PCB’s analog ground via a 10nF capacitor to prevent ground loops. For high-altitude use (≥3,000m), derate the IC’s maximum clock speed by 20% to avoid thermal runaway.
Calibrate the device by feeding a 1080p60 test pattern from an AJA IoXT and measuring chroma subsampling accuracy. Tolerable color drift between outputs is ≤2% ΔE*_{ab}–use a SpyderX colorimeter for verification. If phase alignment drifts, adjust trace lengths in 0.1mm increments using a laser micrometer or replace the TMDS IC with a Silicon Image SiI9136 for built-in skew compensation.
For firmware updates, route a USB-C port to the ATtiny’s UART pins–use dfu-util for flashing. Include a status LED matrix driven by a TLC59116 to indicate output sync status (green) or errors (red). Store configuration presets in the ATtiny’s EEPROM, reserving 16 bytes per output for resolution and EDID settings. Remove the IC’s built-in watchdog before deployment to prevent unexpected resets during critical tasks.
Key Modules for Building a Reliable Video Distribution Hub
The foundation of any stable signal duplication unit starts with a high-speed digital interface controller. Opt for an IC specifically engineered for 1080p or 4K passthrough, such as the TI TFP401 or Parade PS8640. These chips handle TMDS encoding/decoding with minimal latency, ensuring clean duplication without dropped frames. Verify the chip’s bandwidth rating–3.4 Gbps per channel is the minimum for full HD, while 6 Gbps is required for UHD signals.
Selecting the right transmission medium is critical. Use gold-plated connectors rated for 60Hz+ refresh rates, paired with shielded 19+3 or 29+1 pin cables. Cat-6a Ethernet cable can substitute for short runs under 5 meters, but HDMI-specific cables are mandatory for longer distances. For copper solutions, ensure AWG 28 or thicker conductors to prevent signal degradation. For distances exceeding 10 meters, consider fiber-optic extenders like the Extron FOXBOX instead of passive copper.
Power delivery must match the device’s demands. A regulated 5V/2A supply is sufficient for basic duplication, but dual-output hubs may require 12V/3A. Linear voltage regulators (LM1117) reduce noise better than switching regulators, though they generate more heat. Include a polyfuse (Bourns MF-R110) to protect against short circuits. For portable units, a USB-C PD trigger chip (TI TPS65987D) allows power sourcing from mobile devices.
Signal amplification is non-negotiable for multi-output configurations. A dedicated repeater IC (Silicon Image SiI9387) regenerates weakened signals before duplication. Place it immediately after the input port to compensate for cable loss. Avoid passive Y-adapters–they split power, not data, leading to dim displays or handshake failures. For dynamic signal strength adjustment, incorporate an EDID manager IC (MegaChips MCDP2900) to negotiate resolutions between source and displays.
Proper shielding minimizes interference. Use a grounded metal enclosure or at least a conductive paint coating on plastic cases. Route high-speed traces as differential pairs with 100Ω impedance, avoiding right-angle turns. Decoupling capacitors (0.1µF ceramic) should be placed within 2mm of every IC power pin. Ferrite beads (Murata BLM18PG121SN1) on input/output lines suppress high-frequency noise without affecting video signals.
Thermal management cannot be overlooked. Small-form-factor ICs like the ADV7611 can exceed 85°C under load. Attach a 25mm² heatsink with thermal adhesive or use a small fan for active cooling. Monitor temperature with a thermistor (NTC MF58 10kΩ) and integrate overheat shutdown via a comparator circuit (LM393). For silent operation, replace fans with phase-change materials like PCM-25.
EDID emulation is essential when connecting multiple displays. Hardwiring a standard EDID (1080p60 4:4:4) prevents handshake errors but may limit resolution options. For flexible setups, use an EEPROM (24LC21) to store custom EDID profiles, allowing automatic resolution switching based on connected displays. The ST HDMI2C_V2 firmware simplifies this process by dynamically adjusting EDID without manual intervention.
- For advanced users, add a microcontroller (STM32F072) to log connection status and troubleshoot EDID conflicts.
- Include an input selector switch (TS3USB221) to switch between multiple sources without replugging.
- For audio extraction, integrate a separate audio codec (WM8960) with optical S/PDIF output.
- Test all configurations with a signal analyzer (QuantumData 280) to verify TMDS clock stability and color space integrity.

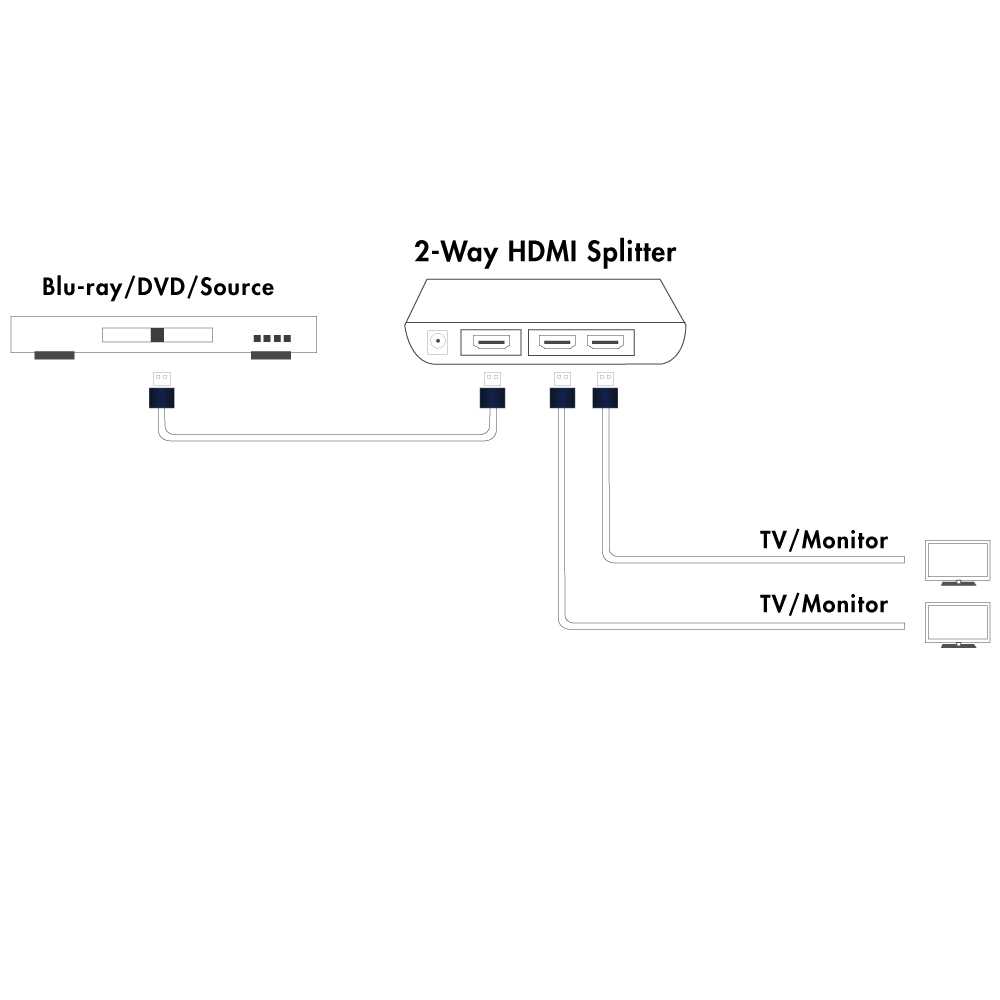

Step-by-Step Wiring Layout for 1×2 Signal Duplication
Begin by identifying the input connector–ensure it meets HDMI 2.1 specifications (48 Gbps bandwidth) for uncompressed 4K@120Hz or 8K@60Hz passthrough. Solder the 19-pin male Type A directly to a four-layer PCB with 70µm copper thickness to minimize impedance mismatches. Route the TMDS lanes (pins 1-9, 10-12, 13-17) as differential pairs, maintaining 100Ω ±10% impedance with ≤0.1mm trace spacing. Use vias sparingly–place them only for ground returns between layers to prevent parasitic capacitance.
For the duplicate outputs, replicate the input pinout exactly on two female Type A connectors. Wire the CEC line (pin 13) through a 330Ω resistor to each output to avoid ground loops–omit this step only if downstream devices lack CEC support. Add a 10nF ceramic capacitor between the +5V (pin 18) and ground on each output to suppress inrush current. Separate the DDC lines (pins 15-16) using I²C buffers (PCA9615 or equivalent) to isolate descriptor reads from both displays; failure risks corrupting EDID data.
Test the assembly with a 1080p@60Hz source first–verify signal integrity using an oscilloscope on the TMDS clock lane (pin 9): rise/fall times should match 150ps ±20%. If cross-talk exceeds −30dB at 3GHz, re-route traces to increase separation or add shielding. For 4K or HDR content, power the board with a regulated 5V/2A supply–linear regulators (e.g., LT3045) outperform switchers to eliminate noise coupling into video lanes.
