For correct installation, locate terminals labeled L1, L2, and Ground inside the motor housing. Use 12-gauge copper wire for circuits up to 20 amps; 10-gauge for 30-amp configurations. Verify local codes–some regions mandate GFCI protection within 6 feet of water.
Attach the black (hot) wire to L1, white (neutral) to L2, and green/bare copper to the grounding screw. Secure connections with a torque screwdriver (12-15 in-lbs) to prevent overheating. Avoid aluminum wire–it requires specialized connectors not typically included.
Check the capacitor rating (usually 40-50 μF, 370V AC) before powering on. Mismatched values can burn the start winding. If the motor hums but doesn’t start, disconnect immediately–the capacitor or centrifugal switch may be faulty.
For variable-speed models, connect the control cable per manufacturer specs–typically a 4-wire shielded cable (24V power, communication, and ground). Improper connections void warranties and risk controller damage. Always test with a multimeter before sealing the housing.
Running the circuit through a dedicated breaker (size based on motor nameplate amps) prevents nuisance trips. Label the breaker clearly to comply with NEC Article 680 for aquatic equipment.
Connecting Your Pool Circulation System: Electrical Layout Guide

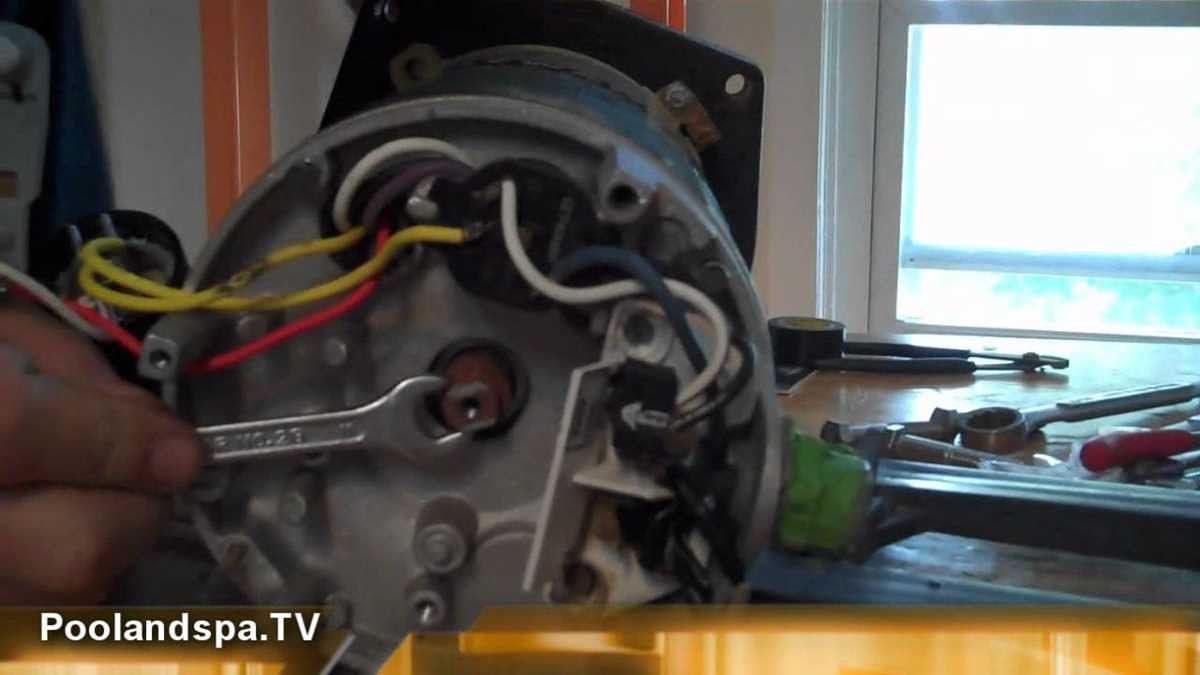

Begin by shutting off the main breaker supplying the filtration unit to prevent accidental starts. Locate the terminal box on the side of the motor housing–typically a rectangular cover secured with two screws. Remove the cover to expose the internal connections: a capacitor, thermal overload protector, and three binding posts labeled L1, L2, and ground. Verify the voltage rating on the motor’s nameplate matches your supply (usually 115V or 230V); mismatches risk permanent damage.
For a 115V setup, link the black (hot) wire from the power cable to L1, the white (neutral) to L2, and the green or bare copper (ground) to the designated post. Tighten each connection with a screwdriver, ensuring no exposed wire extends beyond the terminal. If using 230V, connect two hot wires (often black and red) to L1 and L2, leaving neutral unused, and attach ground as before. Double-check torque specifications–loose terminals cause arcing and overheating.
- Capacitor leads: Insert the red wire into the slot marked “C” and the black into “H” or “Herm.” Swap these if the motor hums but doesn’t start.
- Thermal overload: This device resets automatically after cooling. If tripped frequently, measure motor current with a clamp meter; readings exceeding nameplate amps indicate bearing wear or impeller blockage.
- Conduit seal: Use a compression fitting to prevent moisture ingress at the cable entry point–condensation accelerates corrosion.
After securing wires, replace the terminal box cover. Restore power at the breaker and observe the startup sequence: the impeller should reach full speed within 2–3 seconds. If the motor stalls or runs erratically, disconnect immediately and test winding continuity with a multimeter (healthy windings read 5–20 ohms between L1 and L2). Persistent issues often trace to a failed capacitor–replace with an identical microfarad rating (typically 10–40 MFD).
Label all wires at both the motor and breaker ends for future troubleshooting. For outdoor installations, apply dielectric grease to terminals and use liquid-tight conduit. Regularly inspect the bond wire connecting the motor to the pool’s equipotential grid; corrosion here can induce stray voltage hazards. Keep a spare thermal overload protector and capacitor on hand–these components degrade faster than the motor itself.
Locating Critical Parts in the LX Series Motor Connection Layout
Start by locating the terminal block–typically a rectangular housing with screw-down connectors positioned near the rear of the unit’s housing. This section bridges external circuits to internal windings and is identifiable by its three primary terminals labeled L1, L2, and GND. Verify markings with a neon voltage tester before proceeding; misaligned connections risk thermal overload or motor stalling.
Inspect the on-board capacitor–usually a cylindrical or oval canister with dual spade terminals. LX variations often integrate a start/run capacitor rated between 15–30 µF, critical for phase shifting during startup torque generation. If the motor hums without rotation, capacitor failure is the likely culprit; replace with an exact microfarad match to prevent winding burnout.
Key Circuit Elements to Validate
- Thermal overload protector: A small bimetallic disc beneath the winding cover, designed to break the circuit at 110°C (230°F). Test continuity with a multimeter; zero resistance signals a functional device.
- Centrifugal switch: Mounted on the shaft end, this mechanical relay disengages the start winding post-acceleration. Manual spin tests confirm engagement; hesitation indicates fouling requiring lubrication or replacement.
- Pressure switch interface: A low-voltage Molex connector linking to automatic systems. Jumper this connector only after verifying 24VAC control circuits to bypass inadvertent safety locks.
Trace wire colors to their respective roles: 14-gauge red and black conduct 230VAC input, while green or bare copper denotes chassis ground. LX units frequently incorporate a secondary brown/white striped lead for remote timer integration. Failure to isolate this lead when bypassing control boxes risks phantom loads tripping GFI circuits upstream.
Examine motor housing seams for moisture ingress–LX enclosures rely on a silicone bead around the cover flange. Compromised seals introduce corrosion on terminal screws; clean with contact cleaner and re-tighten to 12 in-lbs torque. Corroded strands on the neutral (white) lead often cause intermittent operation; strip back insulation ¾” and crimp a fresh fork terminal for reliable contact.
- Toggle the breaker off before disassembly; residual voltage persists in capacitors for up to 5 minutes.
- Label each conductor with masking tape noting terminal position.
- Capture a reference photo of the complete assembly before modifications.
- Utilize a megohmmeter to test winding insulation resistance–values below 1 megohm indicate compromised dielectric.
- Replace any conductor showing nicks or abrasions, regardless of apparent functionality.
Electrical Hookup Guide for the LX Circulation Unit
Begin by securing the line voltage feed to the motor’s terminal block. Match the black (hot) wire to the L terminal, the white (neutral) to N, and the green (ground) to the G or grounding screw. Verify the voltage rating on the unit’s label–most residential models operate on 120V or 240V–then confirm the circuit breaker matches this specification. Avoid mixing wires; reversed polarity risks immediate motor failure.
Attach the timer or control interface by splicing its red control wire into the COM post and the black relay wire to the LINE post if automated scheduling is required. For standalone operation, bypass this step entirely. Cap unused wires with wire nuts sealed in electrical tape to prevent accidental shorts. Use a multimeter to test continuity across terminals before energizing the system; readings should show open circuits between L/N and zero resistance on G to chassis.
Seal the terminal cover tightly after connections are verified–moisture infiltration corrodes contacts within hours. Route excess cable into the housing’s integrated strain relief slot to prevent vibration-induced wear. If the unit hums but fails to start, check capacitor charge by disconnecting power, discharging the capacitor with an insulated screwdriver, then measuring microfarads; deviation beyond ±5% of the labeled rating requires replacement.
Start the breaker, listen for smooth impeller rotation, and monitor the pressure gauge–sudden pressure drops signal improper plumbing or debris obstruction. Repeat voltage checks at the motor leads while running; fluctuations exceeding 10V above or below rated input indicate supply issues or poor connections requiring immediate correction.
Common Electrical Setup Errors and Quick Fixes
Reverse the polarity on the cap if the motor hums but doesn’t spin. Use a multimeter set to AC volts between the neutral terminal and ground; a reading above 5 VAC confirms swapped leads. Label both incoming and outgoing wires with colored sleeves before reconnecting to prevent confusion.
Check for a loose grounding strap first when tripped circuit breakers occur repeatedly. A corroded bonding lug can introduce resistance; sand both metal surfaces with 120-grit paper until bright and retighten to 25 lb-in with a torque screwdriver. Verify zero continuity between the lug and the housing with a low-ohm setting on an ohmmeter.
Voltage Drop Symptoms and Thresholds
| Cable Length (ft) | Minimum Copper Gauge (AWG) | Max Acceptable Drop (V) |
|---|---|---|
| 50 | 10 | 3.0 |
| 100 | 8 | 2.5 |
| 150 | 6 | 2.0 |
Replace undersized conductors immediately if readings exceed the above values; thermographic scans typically show hot spots near terminals when undersized wire is present.
Misaligned thermal protector clips often cause erratic starts. Remove the motor end cap, inspect the clips for pitting, and clean each contact with a fiberglass pen. Realign the clips so they exert 7-9 oz of pressure on the thermal disc; use a spring scale for verification.
Shielded conduit must maintain a minimum 3-inch separation from any inductive loads like variable-speed drives. Maintain 12 inches of distance from fluorescent ballasts; failure to do so induces harmonic currents that prematurely fail bearing grease.
Capacitor Fault Codes and Actions
| Code | Symptom | Troubleshooting Step |
|---|---|---|
| C-1 | No start, quiet | Replace start capacitor, ESR below 0.5 Ω |
| C-3 | Rapid cycling | Test run capacitor at 370 VAC; replace if below rated μF |
| C-6 | High-pitched whine | Check terminals for micro-fractures with dye penetrant |
Always discharge capacitors through a 1 kΩ 10 W resistor before handling; residual voltage above 50 VDC can damage meters.
