For a standard 3-speed model with pull chains, locate the labeled terminals: L for power, M for medium, H for high, and N for neutral. Capacitors typically connect between L and the speed terminals–verify correct microfarad values before attaching wires (common ranges: 1.5–5 μF for start capacitors, 10–25 μF for run capacitors). If replacing a switch, note that most utilitarian rotary selectors use a 4-wire configuration: black (line), red (medium), blue (high), and white (neutral).
Safety begins with isolating the breaker–test for 0V at the fixture box before handling conductors. Most utilitarian designs incorporate a ground wire (bare or green) that must terminate to the housing or ground screw; never omit this connection. For units with integrated lighting, separate the light kit wires (typically orange for supply and yellow for return) from the motor leads to prevent interference. If wiring appears brittle, replace the entire harness with 18 AWG stranded copper rated for 300V.
Compatibility varies between older and newer models–check the motor’s voltage rating (120V or 240V) and ensure the circuit matches. Some assemblies include a thermal fuse (located near the stator coils); if tripped, the unit will fail to operate until reset or replaced. For remote-controlled variants, identify the receiver module (usually tucked near the motor) and match its color-coded outputs to the corresponding motor terminals. Always cross-reference against the original schematic supplied with the fixture, as terminal designations may differ.
Ceiling Rotator Electrical Layout: Step-by-Step Installation
Before connecting any leads, verify the power is off at the circuit breaker. Use a non-contact voltage tester on each wire to confirm no current is present. Incorrect handling of live circuits poses severe electrical hazards.

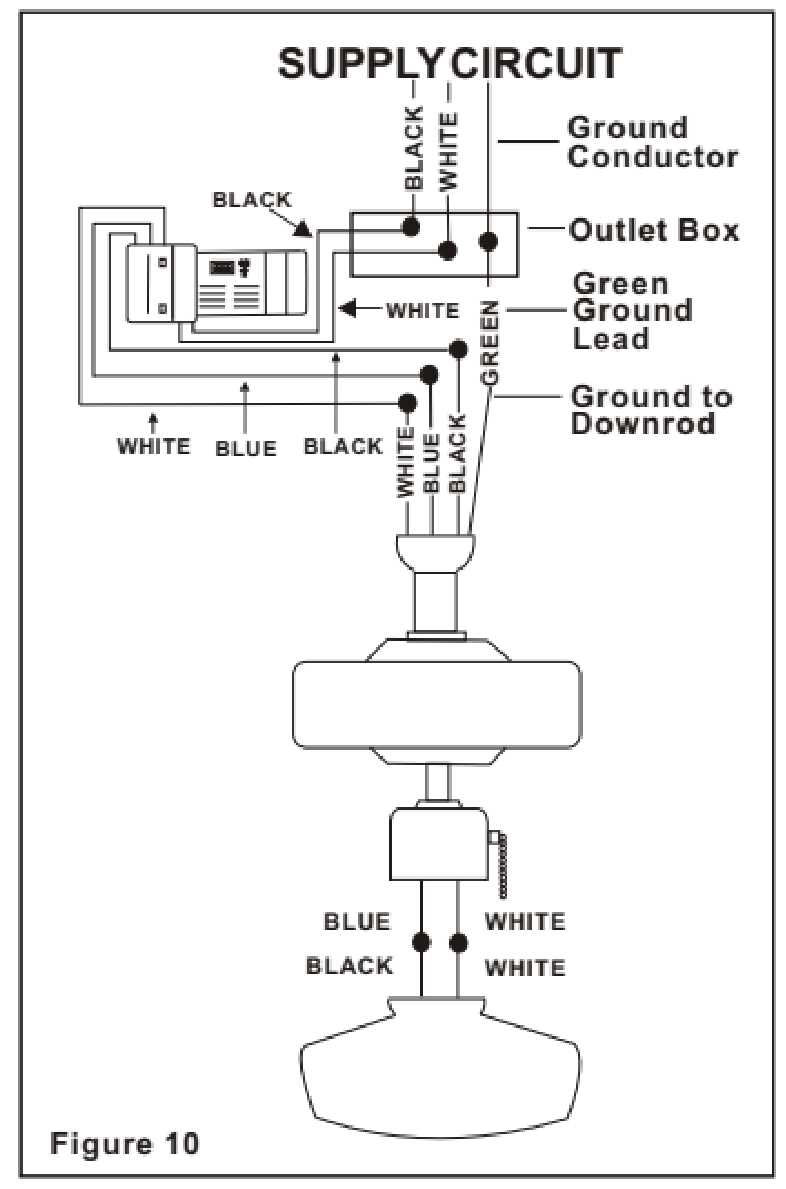

Most assemblies use a color-coded system for simplicity. The standard configuration includes:
| Wire Color | Function | Connection Point |
|---|---|---|
| Black | Primary motor hot lead | Circuit switch (hot) |
| Blue | Light kit hot lead | Separate switch or combined with motor |
| White | Neutral | Neutral bus or wire nut bundle |
| Green or Bare Copper | Ground | Ground screw or grounding bus |

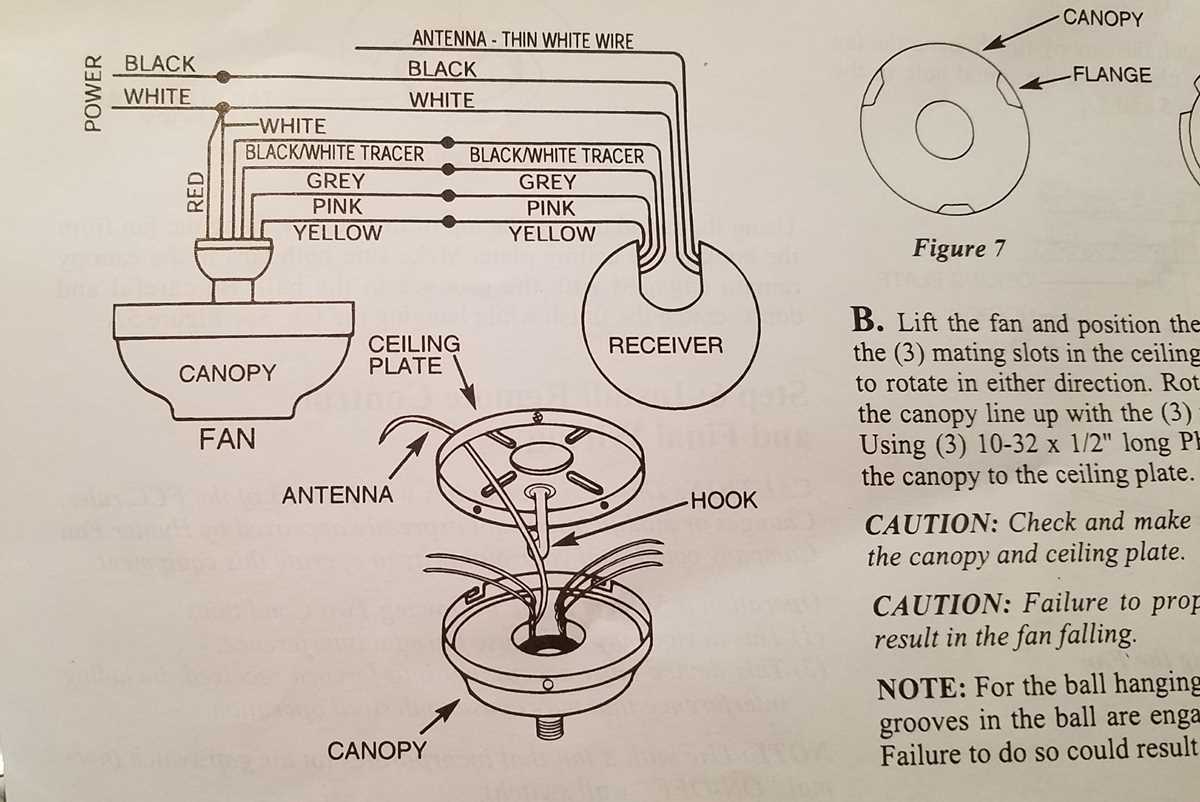

If the unit includes a remote receiver, locate the labeled “AC In” terminals and match them to the corresponding house wiring–typically black to black, white to white, and ground to ground.
For dual-switch setups (separating motor and light control), run a 3-conductor cable between the switches and the ceiling box. Connect the red conductor to the blue lead for dedicated light operation. Ensure the neutral remains continuous across all components.
After securing all connections with wire nuts and electrical tape, wrap exposed terminals with approved insulating putty if working in damp locations. Mount the unit to the ceiling bracket, ensuring the downrod is properly aligned to prevent wobble. Restore power only after double-checking all connections against the included schematic.
If the unit fails to operate after power-up, first inspect the remote receiver’s battery and dip switch settings. Misaligned frequencies between the remote and receiver prevent correct function. For persistent issues, measure voltage at the motor terminals using a multimeter–absence of voltage indicates a fault in the supply wiring or switch, while present voltage suggests motor or capacitor failure.
Decoding the Terminal Connections on Your Ceiling Unit
Begin by locating the central junction box beneath the motor housing–typically a rectangular or circular enclosure with labeled screws or clamps. Most models use a standardized color scheme, though variations exist: black (primary live), blue (secondary live or light kit activation), white (neutral), green or bare copper (ground), and sometimes red (alternate live for dual-switch setups). Verify these with a non-contact voltage tester before handling.
If the blue conductor connects to a separate wall switch, it powers accessory components like integrated lighting. Trace this lead back to its source–often a spliced pair or a dedicated terminal marked “L” or “ACC.” In single-switch installations, the blue wire may remain capped with a twist-on connector unless explicitly tied to another circuit. Double-check the owner’s manual for manufacturer-specific deviations, particularly in older or custom assemblies.
Models with reverse functionality include a stripped or tinned wire (often gray, brown, or purple) paired with the main power input. This leg toggles rotational direction when energized via a separate control or wall-mounted selector. Confirm its role by observing voltage fluctuations during operation–it should pulse only when changing spin orientation. If absent, the feature may rely on a wireless remote module instead.
Grounding paths require meticulous verification. The green or bare wire must link directly to the motor’s mounting bracket or a dedicated screw terminal with a corresponding symbol (⏚). Loose or corroded connections here introduce safety hazards; clean contact surfaces with fine-grit sandpaper if oxidation is evident. Never splice this lead into neutral lines–grounding and return currents must remain electrically isolated.
Neutral conductors (white) should form a continuous loop from the junction box to the circuit breaker panel. Measure continuity with a multimeter in resistance mode (Ω) to detect breaks. If readings exceed 1 ohm, inspect splices for loose strands or thermal damage. Some residential installations mistakenly omit neutral access in switch boxes; in such cases, rewire to include it or retrofit a relay-based workaround.
For units equipped with dimmable lamps, look for orange, pink, or striped wires–these handle variable voltage loads. Connect them only to compatible dimmer switches rated for inductive loads (minimum 450W). Standard toggle switches will cause flickering or premature failure. If the terminal block lacks clear labeling, cross-reference the wire gauge: heavier gauge (14-12 AWG) handles motor current, while lighter gauge (18-16 AWG) serves auxiliary circuits.
Lastly, document each connection with photographs or a schematic before reassembly. Note any non-standard colors or splices–some Asian or European imports invert live and neutral conventions. Label temporary leads with masking tape to avoid confusion during maintenance. If the block includes an unmarked wire (e.g., yellow, violet), consult technical support with the exact model number–it may control advanced features like seasonal speed presets or automatic humidity response.

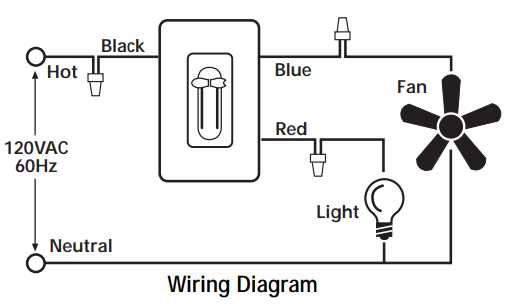

Step-by-Step Connection Guide: Single vs. Dual Wall Switch Setup
For a single-switch setup, connect the black supply line directly to the motor’s black lead. The blue (light kit) wire should attach to the white neutral bundle if illumination is required–otherwise, cap it with a wire nut. Ground all components by linking the green motor wire to the bare copper or green grounding conductor in the electrical box. Ensure the circuit breaker is off before handling any live terminals.
Dual-switch control demands splitting the supply: run the black hot wire to both switch terminals. From the first switch, extend a wire to the motor’s black lead; from the second, route another wire to the blue light lead. Neutral wires (white) for both circuits must tie into the same bundle in the junction box. Verify polarity with a multimeter–voltage between hot and neutral should read 110-120V for North American systems. Twist connections tightly and secure with UL-listed nuts before restoring power.
Label all conductors at both ends to prevent miswiring. If the ceiling fixture includes a pull-chain mechanism, disable it by removing the pull-string or securing it in the “off” position–this avoids conflicting signals between wall switches and manual controls. For installations with a capacitor, match its microfarad rating to the motor’s specifications (typically 4-5µF for standard models). Test rotational direction after energizing; reverse any two motor leads if rotation contradicts the desired airflow pattern.
Diagnosing Frequent Electrical Errors in Ceiling Rotators
Swap the capacitor if the unit spins sluggishly or emits a hum without rotating. Locate the cylindrical component near the motor housing–typically a 2.5 to 10 microfarad device with a voltage rating matching your system (usually 250VAC). Verify the capacitance with a multimeter; deviations beyond ±10% indicate failure. Replace with an identical model to prevent motor burnout.
Inspect the pull-chain mechanism for corroded contacts or broken springs. Clean oxidized terminals with sandpaper, ensuring no debris lodges in the switch housing. If the chain fails to engage speed settings, disassemble the switch and check for continuity between terminals using a multimeter. A reading above 1 ohm suggests the switch requires replacement–use only manufacturer-approved parts to avoid mismatched resistance values.
Verifying Ground Connection Integrity
Test the green or bare grounding wire for solid attachment to the metal mounting bracket. Loose or disconnected grounds create shock hazards and can cause erratic operation. Use a non-contact voltage tester to confirm the absence of current in the ground before handling. If the bracket lacks a grounding screw, retrofit a green pigtail wire connected to the junction box’s ground terminal–torque screws to 12–15 in-lbs to prevent loosening.
Ensure the remote receiver’s antenna wire (often a thin black lead) isn’t coiled tightly or crimped. Wireless controls rely on this unshielded extension for signal reception; folding it neatly along the canopy edge optimizes responsiveness. If interference persists, relocate the receiver at least 12 inches from other electromagnetic sources like transformers or LED drivers.
Check for reversed hot and neutral leads in the ceiling box–an error that prevents proper start-up sequences. Use a polarity tester to confirm the brass screw terminal (hot) connects to the black wire, and the silver terminal (neutral) to the white. Miswired installations may exhibit flickering lights or intermittent operation; correct immediately to avoid damaging the motor’s windings.
If the device vibrates excessively, balance the blades by attaching adhesive weights to the leading edge of the lightest paddle (determined via a blade balancing kit). Secure each weight with a clamp until the assembly spins smoothly at all velocities–typically within ±0.01 oz-in of static imbalance. Misaligned mounting can also cause wobble; ensure the downrod hangs perpendicular to the ceiling by adjusting the support bracket’s set screws.
