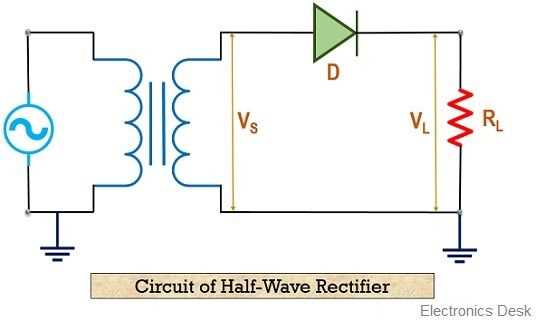

To build a functional unidirectional current converter, start with a single PN junction diode rated for at least 1.5× the peak input voltage. A 1N4007 diode handles up to 1000V reverse voltage and 1A forward current–sufficient for most AC sources between 5V and 24V RMS. The diode’s forward voltage drop (typically 0.6V–1.1V depending on silicon vs. Schottky) dictates efficiency losses; for low-voltage inputs, Schottky diodes reduce this drop to ~0.2V. Position the diode in series with the AC source, ensuring the anode connects to the positive half-cycle input.
Load resistance directly impacts performance. Use a resistor sized to draw no more than 80% of the diode’s maximum forward current–for a 1A diode, aim for 50Ω–500Ω. Higher resistance reduces ripple but lowers output current. For smoothing, add a capacitor in parallel with the load; a 1000µF electrolytic capacitor across a 12V RMS input with a 200Ω load yields
Grounding errors cause instability. Connect the diode’s cathode to the load’s positive terminal, with the load’s negative terminal tied directly to the AC source’s neutral or ground–never omit this step. Test with an oscilloscope: a properly configured converter will show a single-polarity pulsating DC signal with intervals matching the AC input frequency. For 60Hz inputs, expect 8.3ms conduction periods followed by equal-length zero-output gaps. Adjust the load or capacitor if the waveform deviates by >10% from expected values.
Single-Phase Unidirectional Current Conversion Layout
Select a diode with a reverse breakdown voltage at least 1.5× the peak input amplitude to prevent avalanche conduction during negative swings. For typical 230V RMS mains, this equates to a 490V rating; 1N4007 suits most 50-60Hz applications, tolerating 1A continuous forward current while handling 30A transient surges.
Place a 2W resistive load directly across the output terminals; sizing τ = RC as 20× the input period ensures
Terminate ground at a dedicated plane tied to the chassis via a star point to minimize conducted emissions. Shield I/O traces ≥2mm apart to limit capacitive coupling; route high-current paths on 35μm copper pours ≥2mm wide to prevent voltage drops exceeding 50mV.
- Input waveform: 12V AC RMS, 50Hz
- Diode forward drop: 0.7V (silicon)
- Peak output voltage: 16.2V
- Average DC output: 5.1V
- Ripple frequency: 50Hz
- Load current: 5-15mA
Isolate the transformer secondary with a 1nF Y2-rated safety capacitor between windings. Position it ≤10mm from the diode anode to attenuate common-mode transients ≥30dB above 1MHz. Verify isolation resistance ≥100MΩ at 500V DC.
Add a flyback diode across inductive loads; orient it cathode to positive rail, anode to the switch node. A 1N5819 recovers energy stored in 10mH coils, clamping voltages to ~0.3V above rail, protecting downstream capacitors from overvoltage exceeding their 1.4× rated value.
- Assemble on single-sided FR4, 1.6mm thickness
- Etch 70μm traces for ≥3A paths
- Solder diode leads through via stitches (≤1mm diameter)
- Thermally couple diode tab to ground pour ≥5mm²
- Enclose in metal box, bonding EMI gasket to chassis
Core Elements for a Single-Phase Signal Converter Build
Select a power diode with a peak inverse voltage (PIV) rating at least 1.5 times the input AC peak amplitude–typical silicon diodes like 1N4007 handle up to 1000V PIV, sufficient for most 230V RMS mains supplies without avalanche breakdown risks.
Use a transformer with a secondary voltage tailored to the DC load requirements; for example, a 12V AC secondary yields roughly 5.4V DC after conversion losses. Ensure the transformer’s VA rating exceeds the load current by 30% to prevent core saturation and overheating.
For filtering, a smoothing capacitor sized at 2000µF per ampere of load current eliminates most ripple in 50Hz/60Hz systems–calculate using C = I_load / (2 * f * V_ripple), where V_ripple (target
Include a load resistor matching the converter’s power rating; a 1kΩ resistor draws ~5mA from a 5V output, ideal for low-current applications like LED drivers. For variable loads, add a 1W current-limiting resistor in series to protect against short-circuits.
Precision Enhancements
Add a fast-recovery diode (e.g., UF4007) if the converter drives inductive loads–standard diodes cause reverse recovery spikes, risking output voltage overshoot up to 20% of the nominal value without suppression.
Mount components on a perfboard with 2.54mm pitch or a custom PCB; maintain at least 3mm creepage distance between high-voltage traces (AC input) and low-voltage sections (DC output) to comply with IEC 61010. Use 2oz copper for traces carrying >1A to prevent resistive losses.
Test with an oscilloscope probe set to 10x attenuation–measure input AC sinewave, output pulsating DC, and filtered DC to verify the converter’s efficiency (typically 40-60% without active regulation). Ensure the probe ground clip connects directly to the circuit ground, not the chassis, to avoid ground loops.
Building a Single-Phase Signal Converter: Practical Assembly Guide

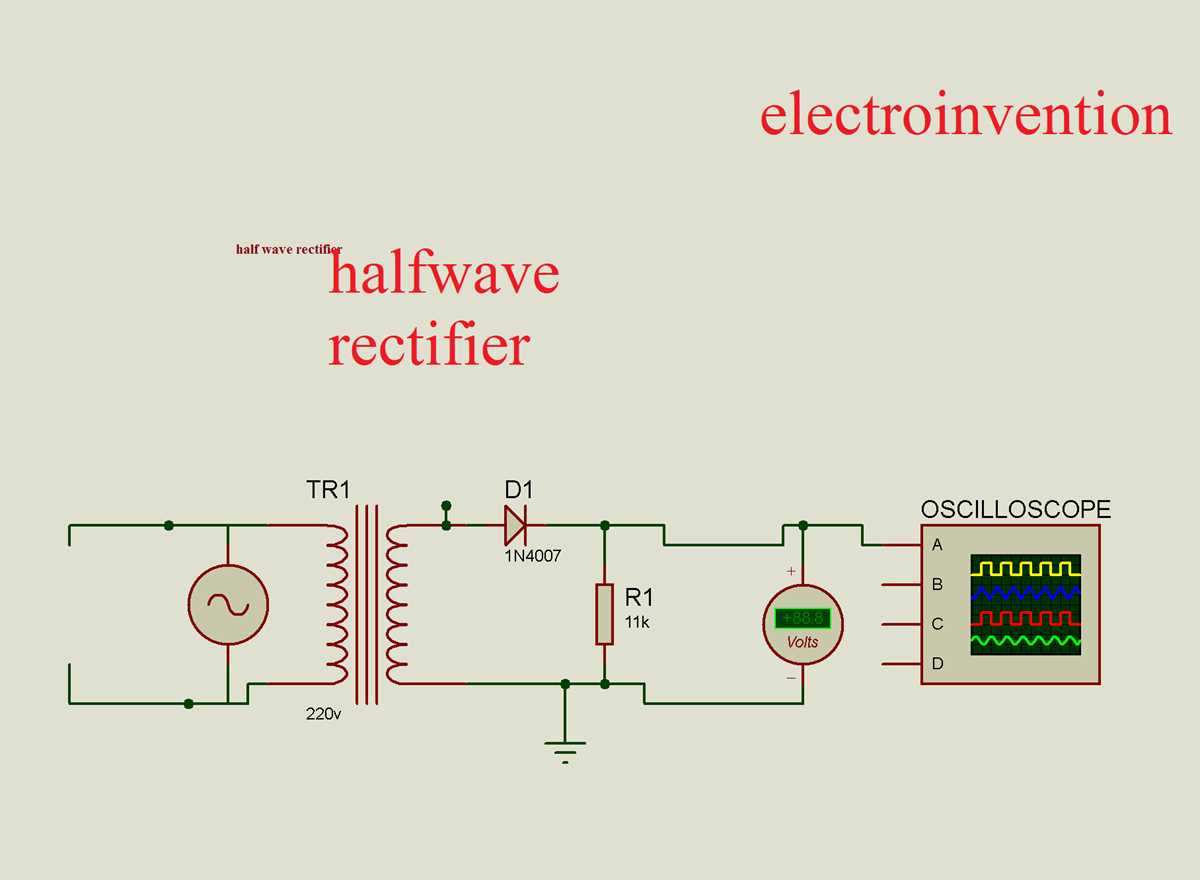

Begin by securing a 1N4007 diode on a breadboard, ensuring the cathode (marked with a silver stripe) faces the output terminal. This orientation dictates current flow–reversing it will block conduction entirely. Verify the stripe’s position against the component datasheet to avoid errors during testing.
Connect the input lead to an AC transformer secondary winding rated at 6V–12V RMS, depending on your load requirements. For low-power applications (e.g., LED indicators), 6V suffices; motor drivers or relays may need 12V. Use a multimeter to confirm the transformer’s output voltage matches expectations before proceeding.
Attach a smoothing capacitor (470µF–1000µF) across the output terminals, positive terminal to the diode’s anode junction. The capacitor’s value directly impacts ripple reduction–the larger the capacitance, the lower the residual fluctuation. Refer to the table below for capacitor selection based on load current:
| Load Current (mA) | Minimum Capacitance (µF) | Typical Ripple (Vpp) |
|---|---|---|
| 10–50 | 220 | 0.8 |
| 50–200 | 470 | 0.5 |
| 200–500 | 1000 | 0.2 |
Ground the negative terminal of the capacitor to the circuit’s reference point. Insert a 1kΩ resistor in series with the load to limit current–this prevents diode burnout during initial tests. Monitor output voltage with an oscilloscope; expect a unidirectional pulse train with a peak value approximating (VAC RMS × 1.414) − 0.7V (diode forward drop).
For troubleshooting, if output remains zero, check diode continuity with a multimeter’s diode test mode (forward voltage ~0.6V). If ripple exceeds 1Vpp, increase capacitance or add a second-stage filter using a 10Ω resistor and another 1000µF capacitor. Thermal considerations: ensure the diode’s leads are short to minimize resistive losses, especially at currents above 500mA.
Determining Load Voltage and Current in a Single-Phase Diode Converter
Measure the AC input RMS voltage (Vin(rms)) across the transformer secondary–this directly scales the DC output. Subtract the diode’s forward voltage drop (Vd), typically 0.7 V for silicon diodes or 0.3 V for Schottky variants, from the peak input (Vin(peak) = √2 × Vin(rms)). The resulting DC value is Vout(dc) = Vin(peak) – Vd, neglecting load resistance effects.
- For precise ripple estimation, use Vripple(peak) = Iload / (f × C), where f is mains frequency (50/60 Hz) and C is smoothing capacitance in farads.
- Diode current rating must exceed Iload(avg) = Vout(dc) / Rload by at least 2× to prevent thermal runaway; verify datasheet IFSM (surge current) margins.
- Transformer VA rating should be > 1.2 × (Vin(rms) × Iload(avg)) to avoid core saturation under transient loads.
Calculate conduction angle (θ, in radians) using θ = arccos[(Vd + Iload × Rseries) / Vin(peak)], where Rseries includes transformer winding resistance, diode bulk resistance, and any series parasitic elements. This angle determines thermal dissipation–integrate diode power loss (Pd = Vd × Iload(avg) + Iload(rms)2 × Rdiode) over θ to size heatsinks or adjust ambient derating.
For resistive loads, approximate RMS current through the diode as Iin(rms) ≈ √(Iload(avg)2 + Iripple(rms)2), where Iripple(rms) = Vripple(peak) / (2√2 × Rload). Validate against diode’s IRMS rating; exceeds risk reverse recovery failures in fast-switching applications. Use SPICE models to cross-check transient response if dI/dt > 50 A/μs.
Common Issues and Troubleshooting in Single-Phase Current Conversion
Check the diode forward voltage drop–silicon devices typically require 0.7 V, while Schottky types may need as little as 0.2 V. If the input AC RMS value is below this threshold, the component fails to conduct, resulting in zero DC output. Use an oscilloscope to confirm the diode’s forward voltage during the positive AC cycle.
Excessive reverse voltage spikes can destroy the diode. Add a snubber network–a 1 kΩ resistor in series with a 0.1 µF capacitor–across the diode to clamp transient voltages exceeding the diode’s PIV rating. Verify the snubber’s effectiveness by monitoring reverse recovery current on a current probe.
Load current exceeding the diode’s average rectified current rating causes thermal runaway. Calculate the maximum allowable load current using Iload(max) = Iavg(rated) / (1 + Trise / 25 °C), where Trise is the expected temperature increase. Replace the diode with a higher-rated model if calculations exceed 70% of the datasheet value.
Low-frequency AC inputs (below 45 Hz) increase capacitive ripple in downstream smoothing capacitors. Replace standard electrolytic capacitors with polypropylene film types, which exhibit lower ESR and better ripple current handling at sub-50 Hz frequencies. Measure ripple voltage with a true RMS meter; values above 5% of DC output indicate insufficient capacitance.
Ground Loops and Parasitic Coupling
Stray inductance in long PCB traces or wiring generates ground loops, manifesting as high-frequency noise on the DC output. Route the diode’s cathode directly to the smoothing capacitor’s positive terminal using a single, uninterrupted trace at least 2 mm wide. Keep the anode-to-ground return path separate to minimize loop area. Use a spectrum analyzer to detect noise frequencies above 1 MHz, then adjust trace geometry accordingly.
Incorrect transformer secondary taps reduce output voltage. For a 12 V DC target, select a transformer with a secondary RMS voltage equal to Vout(DC) / 0.45. If using a center-tapped transformer, verify that only one tap is connected to the diode–dual connections create a short across the secondary winding. Measure the open-circuit secondary voltage with a multimeter before connecting the diode.
Diode overheating often stems from reverse leakage current at elevated temperatures. At 75 °C, silicon diodes exhibit reverse leakage current up to 10 µA, increasing exponentially with temperature. Implement a heatsink with a thermal resistance below θja = 40 °C/W or replace the diode with a silicon carbide variant, which maintains leakage below 1 µA even at 150 °C. Monitor diode case temperature with a non-contact infrared thermometer.
Capacitor ESR increases with age, degrading transient response. For switching loads, use low-ESR tantalum capacitors instead of aluminum electrolytic types. Calculate required capacitance via C = Iload / (2 × f × ΔV), where f is the AC frequency and ΔV is the acceptable ripple voltage. Replace capacitors if ESR measurements exceed 0.5 Ω at 1 kHz.
