Use complementary power transistors (e.g., N-channel MOSFETs on the low side paired with P-channel MOSFETs on the high side) for minimal switching losses when driving inductive loads. This arrangement avoids shoot-through currents if dead-time intervals of 200–500 ns are inserted between gate signals. Ensure each transistor’s gate driver delivers peak current ≥1.5 A to maintain rise/fall times under 50 ns, preventing thermal runaway.
For voltage ranges 12–48 V, rely on Schottky diodes (e.g., 1N5822) across each transistor’s drain-source junction to clamp back-EMF spikes. These diodes must handle repetitive surge currents ≥ twice the steady-state load current. Skip slower PN-junction diodes–their reverse recovery time (≥300 ns) causes excessive switching noise.
Implement current-sense resistors (0.1 Ω, 1 W) on the return path to monitor load conditions. Connect these resistors directly to a differential amplifier (e.g., LM358) configured for a gain of x10. This setup enables real-time overcurrent protection, tripping at 90% of the transistor’s maximum drain current to prevent damage.
Avoid ceramic capacitors for DC bus decoupling. Instead, use low-ESR electrolytics (e.g., 1000 µF, 63 V) paired with 10 µF film capacitors to handle ripple currents above 10 kHz. Position these components within 1 cm of the switching node to suppress voltage transients exceeding 5% of the supply voltage.
Control signal isolation is critical: opt for optocouplers (e.g., HCPL-3120) with a common-mode transient immunity >15 kV/µs. This prevents false triggering when the switching node swings between ground and supply voltages at rates >50 V/µs. Alternatively, use isolated gate drivers (e.g., ISO5852S) for layouts where PCB space permits.
Designing a Four-Switch Power Conversion Schematic
Begin by selecting MOSFETs or IGBTs rated for 20-30% above your target voltage and current. For a 12V DC input converting to 230V AC, IRFZ44N or IGBT modules like IXYS IXFN32N120P offer reliable performance with low RDS(on). Ensure gate drivers–preferably isolated types like TLP250–are placed within 5 cm of switches to minimize inductance. High-speed Schottky diodes (e.g., 1N5822) across each switch clamp voltage spikes, protecting against avalanche breakdown during switching transitions.
Layout demands a star-ground configuration with direct copper traces for high-current paths–avoid vias unless doubled or filled. Place snubber capacitors (100nF X7R) parallel to each switch, positioned no farther than 10 mm from terminals. Keep PWM signals shielded from power traces using guard rings connected to a clean digital ground. Optimal dead-time between complementary switches ranges 1-3 μs; adjust via firmware (STM32 or ATmega) or dedicated ICs like IRS2104, which integrate level-shifting and dead-band control.
Calculate DC-link capacitance using C = (2 × Iload × thold) / ΔV, where ΔV is 5-10% of input voltage. For a 500W load, 2200μF 50V electrolytic caps provide sufficient hold-up during zero-crossings. Fuse input lines with slow-blow types rated at 1.5× continuous current. For EMI suppression, add a common-mode choke (e.g., Würth 744821210) and ferrite beads on signal lines entering the driver IC.
Fault Protection Mechanisms
Implement hardware interlocks using NOR gates (74HC02) to disable both high-side switches if one fails–preventing shoot-through. Current sensing via low-value shunt resistors (0.01Ω) paired with INA826 amplifiers triggers shutdown at 120% of max load. Thermal protection integrates NTC thermistors (10kΩ) mounted near heat sinks, feeding analog inputs on the microcontroller. Set firmware thresholds to power-down at 85°C, ensuring safe recovery below 70°C.
Enclose the assembly in a vented aluminum chassis, grounding the heatsink to the star point. Use M4 screws torqued to 4 Nm for thermal interface pads (e.g., Arctic MX-4). Test switching waveforms with a differential probe (100:1 attenuation) and oscilloscope bandwidth ≥50 MHz to capture ringing frequencies above 1 MHz, which indicate layout issues requiring snubber adjustments or shorter trace lengths.
Key Components Required for Assembling a Four-Switch Power Converter
Select MOSFETs rated at least 1.5 times the maximum load voltage and 2 times the peak current to prevent thermal runaway. IRF540N (100V, 33A) suits 12V–24V applications, while IRFP260N (200V, 50A) handles 48V systems. Ensure gate threshold voltage (VGS(th)) is below 4V for reliable switching with 5V logic. Verify RDS(on) under 0.05Ω to minimize conduction losses.
Use ultrafast recovery diodes (UF4007) for freewheeling paths to suppress voltage spikes exceeding 15V. Schotky diodes (SB560) reduce reverse recovery losses but limit use to
Opt for gate drivers capable of sourcing/sinking 2A peak current to charge/discharge MOSFET input capacitance below 50ns. Isolated drivers (IR2104, 600V) protect control logic from high-side floating voltages. Non-isolated drivers (TC4427, 18V) work for low-voltage setups but require separate power rails.
Passive Elements and Protection
- Snubber capacitors (0.1µF–1µF, 250V X7R) placed across each switch suppress ringing at switching edges.
- Series gate resistors (10Ω–100Ω) dampen oscillations but increase rise/fall times; adjust for
- Ferrite beads on signal lines filter high-frequency noise above 1MHz without affecting PWM signals.
Logic-level microcontrollers (STM32F103, 72MHz) generate complementary PWM with
DC-link capacitors (100µF–1000µF, low-ESR) stabilize input voltage under dynamic loads. Aluminum polymer types withstand ripple currents up to 3A; film capacitors (PP) handle higher currents but occupy more space. Calculate capacitance using C = Iripple / (2πfVripple), where f is switching frequency and Vripple ≤ 5% of input voltage.
Thermal and Structural Considerations
- Mount switches on heatsinks with thermal resistance
- Add thermistors (NTC 10kΩ) to disable outputs if junction temperatures exceed 125°C.
- Enclose the assembly in a grounded metal chassis to shield against EMI; keep high-current traces (
Step-by-Step Wiring Guide for a Dual Half-Bridge Motor Controller
Start by placing four power MOSFETs or transistors in a symmetrical arrangement–two on the high side and two on the low side–forming a quad-switch layout. Position Q1 and Q2 above the load, with Q3 and Q4 directly below, ensuring no overlap between their drain-source paths. Use complementary pairs (N-channel for low side, P-channel or N-channel with bootstrap for high side) to simplify gate driving logic.
Connect the positive supply rail (+VDC) to the source terminals of Q1 and Q2, while the drains of Q3 and Q4 tie to ground. The load (motor or inductive element) links between the midpoint of each switch pair–Q1/Q3 junction to one load terminal, Q2/Q4 junction to the other. Verify polarity; reversing these nodes will cause shoot-through during commutation.
Gate drivers demand isolated or level-shifted signals for the high-side switches. Dedicate a driver IC (e.g., IR2104, DRV8301) for each half, feeding complementary PWM inputs to avoid simultaneous conduction. For bootstrap circuits, inject a diode (1N4007) from +VDC to a bootstrap capacitor (0.1μF ceramic), then to the driver IC’s boot pin. The capacitor charges during low-side conduction, supplying gate voltage for the high-side switch.
Solder 10kΩ pull-down resistors from each gate to its respective source to prevent floating nodes during startup. Add 1Ω series resistors on gate lines to dampen ringing if switching edges exceed 50ns. A flyback diode (UF4007) across the load absorbs inductive kickback; omit this only if using synchronous rectification with low-side switches actively driven.
Thermal and Layout Precautions

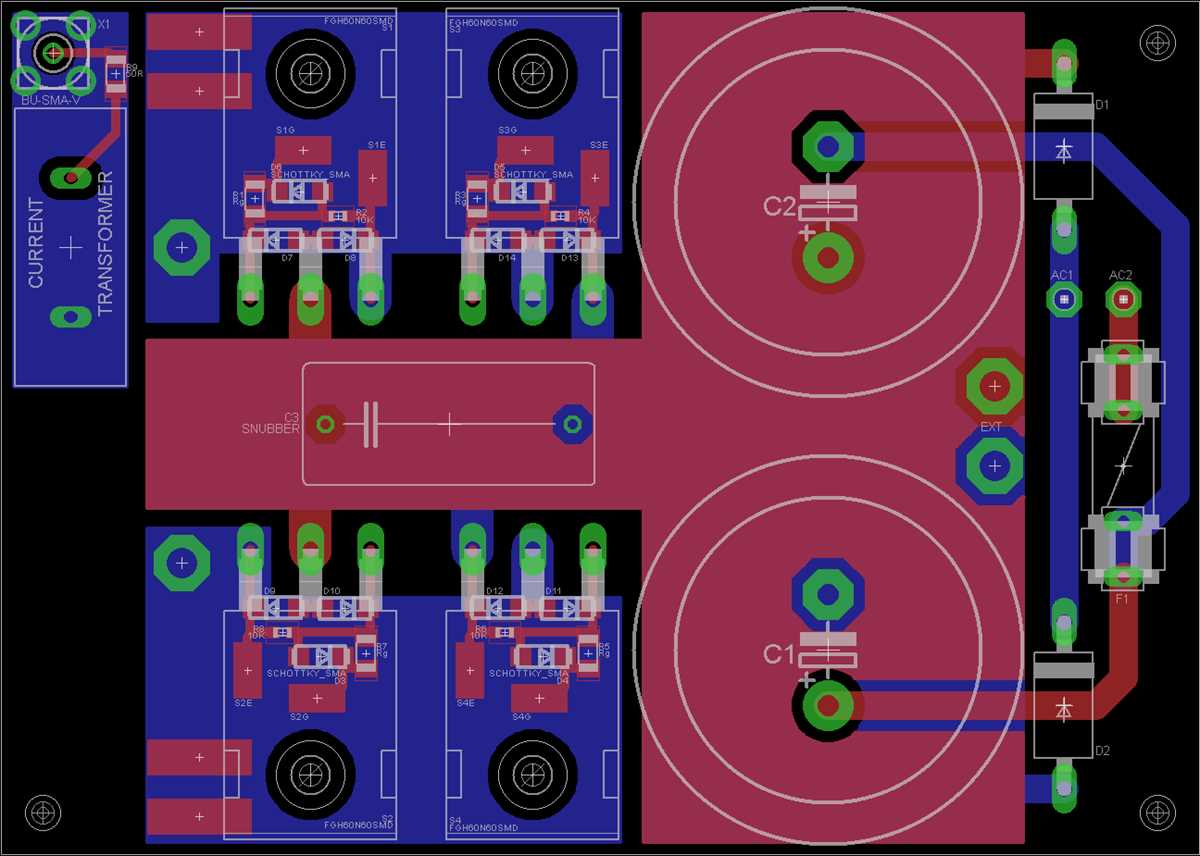

Thermal vias under MOSFET pads dissipate heat; use 1mm diameter vias filled with solder for copper planes thicker than 2oz. Keep high-current traces wide–minimum 2mm per ampere–with the midpoint node (load connection) as short as possible. Ground planes should surround the low-side switches to minimize loop inductance, reducing voltage spikes during switching.
Decouple the supply with a 100μF electrolytic capacitor and a 0.1μF ceramic directly across the +VDC and ground rails, positioned within 10mm of the switches. For microcontroller-driven setups, isolate digital grounds from power grounds at the driver IC’s logic pins using a star connection or ferrite bead (100Ω @ 100MHz) to suppress noise.
Final Validation Checks
Before applying power, measure resistance between +VDC and ground–expect >1MΩ with gates off. Toggle switches in pairs (Q1/Q4 active, Q2/Q3 inactive) and monitor load voltage with an oscilloscope. Correct operation shows near-zero dead-time between transitions; if cross-conduction occurs, adjust gate resistor values or dead-time in firmware. For bidirectional control, ensure PWM dead-band matches the driver IC’s specifications (typically 500ns–1μs).
Selecting Optimal Semiconductor Components for Variable Power Demands
For resistive loads under 500W, MOSFETs rated at 60V–100V (e.g., IRF540N, STW13NK100Z) deliver switching losses under 1.2W at 50kHz with RDS(on) below 40mΩ. Pair these with ultrafast recovery diodes (UF4007) to prevent ringing at turn-off. Inductive loads demand higher voltage headroom–choose 200V–300V MOSFETs (IPP60R099C6, IXFH26N250) if current exceeds 10A, ensuring Safe Operating Area (SOA) margins for transient spikes (up to 3× nominal current for 100µs).
Capacitive loads require soft-switching topologies to limit inrush current. Use IGBTs (IXGH40N120, 1200V/75A) for 1kW–5kW systems, where their 3µs turn-off tail current is negligible compared to MOSFETs’ 20ns–50ns switching speeds. For motor drives above 5kW, opt for SiC MOSFETs (C3M0065090J, 900V/36A) or GaN HEMTs (EPC2034, 100V/30A) to reduce losses by 40% at 100kHz–critical for variable torque applications. Always derate voltage by 30% and current by 20% against datasheet maxima.
- ≤1kW, resistive: MOSFETs (60V–200V), low RDS(on), ultrafast diodes.
- 1kW–5kW, inductive: IGBTs (600V–1200V) or SiC (900V–1700V).
- ≥5kW, dynamic loads: SiC/GaN modules (CAB021M12FM3, 1200V/120A) with 5kHz–200kHz switching.
Thermal management dictates component lifespan. TO-220 packages (e.g., IXFB52N120P) handle 3W–5W with passive heatsinks at 25°C ambient; beyond 20W, switch to TO-247 (IXFN75N120) or bolt-down modules (Infineon FF600R12ME4) with thermal paste (λ=2.5W/m·K) and forced air (≥20CFM). For compact designs, GaN devices (GS66508T) operate at 150°C junction temperature but require PCB copper pours (2oz) for heat spreading. Use gate drivers (IXDN609SI) with ±15V rails and
