Locate the ignition coil connector first–it’s the four-wire plug near the engine’s left side. The red wire carries 12V directly from the battery, while the black/yellow stripe delivers switched power. Test for voltage at the connector before proceeding further; if readings dip below 11.5V, inspect the main fuse and regulator-rectifier for corrosion or loose terminals. Replace the fuse with a 10A blade-type only; higher ratings risk damaging the CDI unit.
Trace the stator’s wiring harness next. The white/red wire outputs AC voltage (20–30V unloaded) to the regulator; confirm this with a multimeter while running the engine at 3000 RPM. If readings fluctuate erratically, the stator’s coils may be shorted–disconnect and measure resistance between each coil (4–8 ohms typical). The green wire grounds to the engine casing; sand down any paint or oxidation at the contact point to prevent intermittent failures.
Identify the CDI wiring cluster–the four-wire connector underneath the seat. The black/white stripe grounds the module, while the orange wire receives pulse signals from the pickup coil. If the engine misfires or cuts out, probe this wire for 0.5–2V AC with the ignition on. No signal? The pickup coil (mounted behind the flywheel) likely requires replacement. Remove the flywheel using a puller tool; avoid prying to protect the crankshaft taper.
Map the lighting circuit separately. Headlights connect via a three-wire plug: high-beam (yellow), low-beam (blue), and common ground (white/black). Low-beam draw should not exceed 3A; verify by disconnecting the bulb and measuring current at the plug. If beams dim at idle, upgrade to a MOSFET-based regulator-rectifier to stabilize output. Taillights use a brown wire for +12V and a green stripe for brake activation; test brake switch continuity by pressing the lever with a multimeter set to ohms.
For troubleshooting, sketch a physical layout: mark wire colors on paper, noting junctions like the kill switch (black/white stripe) and starter relay (red). Label connectors with masking tape to avoid accidental swaps during reassembly. Always disconnect the battery’s negative terminal before probing circuits to prevent shorts. Use heat-shrink tubing on soldered repairs; electrical tape degrades over time under engine heat.
Understanding Your Compact Engine Electrical Layout
Start by identifying the CDI unit–this rectangle with multiple pins sits near the crankshaft casing. Locate the yellow wire (ignition pulse) first; it connects to the stator’s pickup coil. If this link fails, the engine won’t spark. Test continuity with a multimeter: resistance should read between 50-200 ohms. Lower readings indicate short circuits; higher, an open coil.
Check the regulator-rectifier’s heat sink–mounted near the frame’s rear. Three yellow wires feed AC voltage from the stator; the red input and black ground must attach securely. Loose connections here cause battery drain or headlight flickering. Use dielectric grease on terminals to prevent corrosion–especially critical in humid climates.
The main harness splits behind the speedometer pod. Blue (high beam), white (low beam), and green (ground) wires run to the headlight assembly. If illumination dims, bypass the switch temporarily: jump the blue and white inputs directly to the battery positive. Immediate brightness confirms a faulty switch; persistent dimming points to stator issues.
Inspect the kickstart relay beneath the seat. The brown wire carries current from the ignition switch; pink powers the starter motor. Corroded contacts here prevent electric start. Sandpaper the relay contacts lightly–avoid removing too much material. Replace if pitting exceeds 0.5mm depth; cheaper than rewiring the entire ignition system.
Trace the taillight circuit: red (brake input), black (ground), and yellow (running light). Verify the brake light activates first; a sticky switch often mimics fuse failure. Swap bulbs between positions to isolate filament breakage. LED replacements require different resistors–install a 200-ohm resistor across the socket if flickering persists.
Grounding issues manifest as inconsistent electrics. Locate chassis grounds–typically bolted to the frame near the battery tray. Scrape paint beneath the washer until bare metal shows; oxidation here disrupts voltage return paths. Star washers improve contact; silicone spray prevents future corrosion.
When rewiring, bind cables in split loom tubing, not electrical tape. Route harness away from exhaust and sharp edges–chafing causes shorts. Use bullet connectors for stator wires; solder joints overheat under vibrations. Label each connector with tape flags before disassembly; sketch the layout on paper for reference.
Pinpointing Critical Elements in a Compact Two-Wheeler Electrical System
Locate the main ignition switch connector first–typically a 6-pin plug with color-coded leads: red (constant 12V), black/white (ground), yellow/red (ignition), blue/white (starter relay), green/white (signal return), and brown (accessory). Verify continuity between the red and black/white wires using a multimeter set to resistance; readings above 0.5 ohms indicate corrosion or a faulty ground requiring immediate replacement. Check the CDI unit’s 5-wire harness–white (pulse), black (ground), blue (generator coil), brown (charging coil), and yellow (high voltage)–for voltage spikes exceeding 200V AC at 5000 RPM, which signal a failing stator.
Test the rectifier-regulator’s three-phase input (yellow, white, green) and DC output (red, black) by probing with a scope: AC ripple should stay below 0.5V at idle, while DC output must maintain 13.8–14.5V under load. Replace the unit if ripple exceeds 1V or voltage drops below 13.2V. Examine the fuse block–usually a 10A blade fuse protecting the lighting circuit–and confirm the turn signal flasher relay clicks at 60–120 cycles per minute; irregular timing points to a degraded relay. Inspect the throttle position sensor’s 3-wire plug (5V reference, signal, ground) for proper voltage sweep (0.5–4.5V) as the throttle opens, recalibrating or replacing it if readings plateau.
Troubleshooting Common Failure Points
- Battery terminals: Clean corrosion with baking soda paste, tighten to 4–6 Nm torque–loose connections cause intermittent power drops.
- Headlight circuit (H4 bulb): Measure bulbs’ resistance (5–6 ohms for high beam, 2–3 ohms for low); lower values indicate filament fatigue.
- Engine kill switch: Bypass the switch temporarily–if the engine starts, replace the switch or check the red/green wire for shorts.
- Coil packs:probe primary/secondary windings–primary should read 0.2–1.0 ohms, secondary 6–15k ohms; higher values mean internal breakage.
- Fuel pump relay: Swap with a known-good relay (e.g., horn relay) to isolate faults–non-functional fuel delivery often stems from a stuck relay.

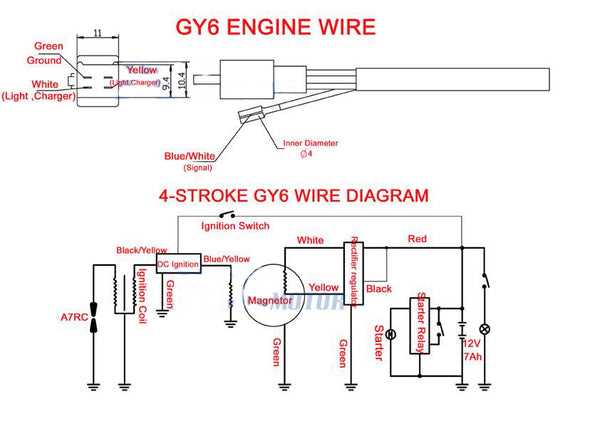

Step-by-Step Connection Guide for Compact Engine Stator and CDI
Disconnect the battery before handling any electrical components to prevent short circuits. Locate the stator assembly–typically mounted beneath the engine cover near the flywheel–then identify the three output wires: ignition (thin, often white), lighting (yellow or green), and ground (black or brown). Use a multimeter set to resistance mode to verify continuity between the stator terminals; expected readings range between 0.2–1.5 ohms for functional coils.
Trace the CDI unit, usually positioned near the battery or under the seat. Confirm the connectors: a 4-pin plug (for stator input) and a 2-pin plug (for ignition coil). The stator’s ignition wire attaches to the CDI’s corresponding terminal–match polarity by referencing a voltage test with the engine cranking (look for 50–200V AC). If voltage is absent, recheck the flywheel magnet alignment; gaps exceeding 0.5mm disrupt signal generation.
Grounding and Signal Verification
Secure the stator’s ground wire to a clean, unpainted metal surface on the engine block using a 6mm bolt. Avoid terminal corrosion by applying dielectric grease to connections. For the lighting circuit, route the yellow/green wire to the regulator-rectifier if equipped–incorrect polarity here causes bulb failures. Test the CDI’s pickup coil by measuring resistance between its two smaller terminals (expected: 50–300 ohms); deviations indicate a faulty unit.
Connect the ignition coil to the CDI’s output terminal. Use heat-shrink tubing on splices to prevent moisture ingress. Verify spark by grounding a spark plug against the engine block and cranking the starter–consistent blue sparks confirm proper timing. If sparks are weak or absent, swap the CDI with a known-good unit before suspecting coil failure. Replace both components if issues persist, as faulty CDIs often damage coils.
For engine control modules lacking a regulator, wire the stator’s lighting output directly to the headlight after confirming bulb wattage matches the stator’s output capacity (typically 35W–50W). Overloading causes premature stator burnout. Use 14-gauge wiring for the lighting circuit to handle current draw without voltage drop. Avoid splicing into existing harnesses; instead, run dedicated wires from the stator to the load.
Double-check all connections for strain relief. Loose wires near moving parts (e.g., kickstarter, drive belt) risk chafing. Route wires away from exhaust components to prevent heat damage. Reconnect the battery terminals last, ensuring the negative cable is attached first to prevent sparks. Start the engine and monitor voltage at the battery with a multimeter–idle readings should stabilize between 13.5–14.8V.
Troubleshooting Erratic Performance
If the engine misfires or cuts out, inspect the CDI’s trigger wire (often blue/white) for intermittent contact. Clean the flywheel’s pickup with electrical contact cleaner if voltage spikes occur. Replace the stator if resistance readings fluctuate wildly under load–this indicates internal shorting. For persistent issues, test the kill switch wiring for grounding leaks; disconnect and bypass the switch temporarily to isolate the fault.
