Constructing your own signal processor starts with a verified layout. For distortion units, begin with an MXR Distortion+ clone: a TL072 op-amp, two 1N4148 diodes in anti-parallel, and a 470kΩ feedback resistor. This yields a 350mVpp clipping threshold, ideal for mid-gain saturation. Avoid 1N4001 diodes–their slower recovery time muddies high-frequency response.
Delay circuits demand precise component matching. Use a PT2399 IC for simplicity; pair it with a 22µF electrolytic capacitor at pin 6 for 300ms delay. For longer trails, swap the cap to 100µF–this extends range to 800ms but introduces −3dB treble attenuation at 8kHz. Ground the IC’s VREF pin through a 10kΩ resistor to stabilize noise floor below −90dBV.
Tone-shaping requires exact potentiometer values. In a wah circuit, a JRC4558 op-amp with a 10kΩ linear taper pot delivers 800Hz sweep. Replace the pot with a 25kΩ version to widen the sweep to 2.2kHz, but expect +2dB midrange peak at 1kHz. For buffer circuits, a BS170 MOSFET ensures −0.5dB insertion loss; substitute with a 2N7000 for +0.3dB output impedance consistency.
Power regulation is critical. A 78L09 voltage regulator delivers stable 9V with ripple. For bipolar circuits, use a TC1044S charge pump–it achieves ±4.5V with 50mA capacity, sufficient for single-op-amp designs. Always add a 100nF decoupling capacitor within 2mm of IC power pins to prevent oscillation above 1MHz.
PCB trace width dictates current handling. For 20mA analog paths, use 0.5mm traces; for 50mA power rails, 1.2mm is mandatory. Via placement: space signal vias apart to minimize inductance. Ground pours under ICs reduce crosstalk by −12dB; isolate them with 0.25mm clearance to prevent shorts during soldering.
Understanding Effect Circuit Blueprints
Begin with a low-noise operational amplifier like the TL072 for signal buffering. Place a 10µF coupling capacitor at the input to block DC while preserving frequencies below 20Hz. Use a 1MΩ resistor to ground after the capacitor to prevent static buildup–this combination ensures stable impedance matching with instrument outputs.
For distortion circuits, bypass the amplifier with a soft-clipping diode pair (1N4148) in feedback loops. Adjust gain via a 10kΩ potentiometer between the op-amp stages; this controls harmonic saturation without introducing excessive noise. Include a 100nF power decoupling capacitor near each IC power pin to filter high-frequency interference from switching supplies.
Delay-based effects require BBD chips like the MN3007, paired with a clock driver (MN3101). Route the signal through a 47kΩ resistor into the BBD input, then follow with a 10kΩ trimmer to fine-tune regeneration. Use a 1µF output capacitor to remove clock bleed while retaining the wet signal’s depth. Ground unused BBD pins to reduce crosstalk.
- Voltage regulators: Install a 78L09 for stable 9V rails–this prevents tone degradation under load.
- Switching: Use 3PDT footswitches with debounce capacitors (100nF) to eliminate popping during engagement.
- Enclosure shielding: Line the housing with copper tape connected to signal ground to block RF interference.
Tone-shaping circuits benefit from RC networks between stages. A 22kΩ resistor and 4.7nF capacitor in series roll off highs at 1.5kHz, while a 0.1µF capacitor in parallel with a 1kΩ resistor cuts low-end mud at 1.6kHz. Place these filters after gain stages but before timing circuits to preserve clarity under heavy modulation.
Always validate the layout with a multimeter before powering. Probe for continuity on all ground paths–resistance should read under 0.1Ω. Test DC voltage at each IC pin; deviations over ±5% indicate incorrect decoupling or improper soldering. For SMD components, use a hot-air station at 300°C with leaded solder to avoid tombstoning.
Key Components of a Basic Overdrive Effect Circuit
Start with a clipping stage–the core of any distortion-based signal modifier. Two silicon diodes (1N4148 or 1N914) in anti-parallel configuration will yield a smooth, warm breakup, while germanium diodes (1N34A) produce a softer, more vintage compression. For tighter dynamics, consider LED clipping (3mm red or amber), which introduces slight asymmetry for a more controlled transient response. Ensure the diodes connect to a cathode resistor (typically 4.7kΩ to 10kΩ) to limit current and preserve tonal balance.
The operational amplifier selection dictates headroom and character. A TL072 offers low noise and a neutral response, making it ideal for transparent overdrive, while a NE5532 provides slightly more gain and a warmer midrange. For aggressive saturation, swap in a LM386 (biased into class A via a 10µF cap to ground) for a gritty, amp-like grind. Match the op-amp’s input impedance to the preceding stage with a bias resistor (1MΩ) to avoid signal degradation.
Capacitor values in the tone stack drastically alter frequency response. Use a 0.047µF film cap for the high-cut filter to tame harshness without sacrificing clarity, paired with a 10kΩ potentiometer for adjustable roll-off. For bass retention, place a 22µF electrolytic cap before the gain stage, ensuring it’s oriented correctly to prevent distortion. A 1µF bypass cap on the op-amp’s power rails (10µF for decoupling) eliminates noise from unstable power supplies.
A well-designed gain control requires a 100kΩ logarithmic potentiometer, wired in a reverse audio taper configuration to maintain smooth sweep through the breakup range. For finer adjustment, pair it with a 47kΩ resistor to ground, preventing the signal from dropping too abruptly at lower settings. If hard clipping is too aggressive, substitute a 22kΩ resistor in series with the diodes to reduce compression and retain dynamics.
Power supply filtering is non-negotiable. A 100nF ceramic cap across the supply pins of the op-amp rejects high-frequency noise, while a 100µF electrolytic cap near the input jack prevents voltage sag under load. For true bypass circuits, use a 3PDT switch with gold-plated contacts to avoid signal loss, and route the input through a 1N4001 diode to protect against reverse polarity. Always test the circuit with a 9V battery before finalizing the layout.
Final voicing tweaks include swapping the 10µF coupling cap for a 4.7µF to reduce bass bloom or a 0.1µF for a brighter, more articulate response. Experiment with resistor values in the feedback loop: a 470kΩ resistor increases gain, while a 2.2MΩ resistor adds subtle compression. Document every modification–even minor changes in component values can shift the circuit’s character from crunch to fuzz or a clean boost.
How to Read Resistor and Capacitor Values in Circuit Blueprints
Identify resistor markings first: three-digit codes indicate value in ohms. The first two digits are significant numbers, the third is a multiplier. For example, 472 means 4.7 kΩ (47 × 10²). Four-digit codes add precision–1001 equals 1 kΩ (100 × 10¹). Tolerance bands follow: gold (±5%), silver (±10%), brown (±1%), red (±2%). Absent bands default to ±20%.
Decode capacitors by number-letter combinations: 104 (10 × 10⁴ pF) simplifies to 100 nF. Letters after values denote tolerance: J (±5%), K (±10%), M (±20%). Voltage ratings appear separately–50V or 250V–and must match or exceed circuit requirements. Polarized types (electrolytic/tantalum) show polarity: + for positive, striped/banded for negative.
Recognize IEC standard tolerances: B (±0.1%), C (±0.25%), D (±0.5%). Military-style color bands use a similar system but may include an extra band for reliability. For SMD components, numbers follow the EIA-96 format: 150 = 4.7 Ω, 222 = 2.2 kΩ–cross-reference with lookup tables.
Measure unknown resistors with a multimeter if markings are obscured. For capacitors, check stored charge first–discharge through a resistor to avoid damage. Note that film capacitors often use three-digit codes identical to resistors (e.g., 223 = 22 nF), while ceramic types may omit voltage ratings entirely. Replace components only after verifying both value and voltage compatibility.
Use spice prefixes for quick conversions: p (pico-), n (nano-), μ (micro-), m (milli-). A 4μ7 capacitor equals 4.7 μF; 2n2 is 2.2 nF. For axial resistors, count bands from the side closest to the end–the first band is never gold/silver (multiplier/tolerance only).

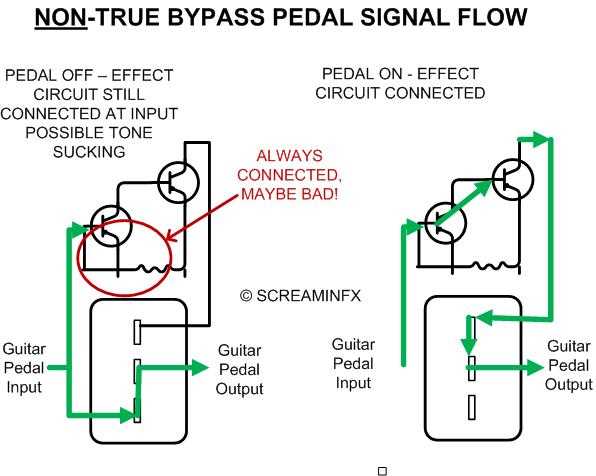

Integrating a True Bypass Footswitch into Your Circuit Layout
Position the 3PDT switch at the core of your signal route to eliminate tone loss when disengaged. Connect the input jack’s tip terminal directly to the switch’s middle lug of the first pole, then route the output from the corresponding outer lug to the next effect stage or output jack. Use the second pole to handle grounding: link the input sleeve to the switch’s center lug, and tie the outer lug to the output sleeve for consistent ground continuity.
- Select a 3PDT switch with gold-plated contacts to minimize oxidation and signal degradation over time.
- Keep wire runs between the switch and jacks under 8cm to avoid capacitive loading, which can roll off high frequencies.
- Insert a 1MΩ resistor between the input and ground lugs of the switch to prevent popping when engaging the footswitch.
For buffered configurations, wire the send/return paths through the third pole of the switch. Connect the effect’s output to the switch’s center lug, then split the outer lugs to the return path and a dummy load (e.g., 10kΩ resistor) to maintain consistent impedance when bypassed. This preserves circuit stability and prevents signal dropout during transitions.
Test the bypass with an audio probe or oscilloscope by toggling the switch while monitoring the output waveform. Aim for less than 5mV of DC voltage change at the output jack when switching; values above this threshold may indicate a grounding issue or improper lug connection. If popping persists, add a 100nF capacitor in parallel with the 1MΩ resistor to filter transient spikes.
- Solder connections with 60/40 rosin-core solder, ensuring
- Use twisted-pair wire for ground paths to reduce electromagnetic interference from pickups or power supplies.
- Verify switch functionality with a multimeter in continuity mode before enclosing the circuit to confirm all lugs toggle correctly.
