Connecting Your Smart Video Entry System: A Precise Schematic Guide
Before handling any hardware, verify your transformer’s voltage output matches the specifications for your smart entry device–typically 16–24V AC for most models. Locate the transformer (often near your existing chime box or fuse panel) and measure its output with a multimeter. If readings fall below 14V, replace the transformer; low voltage causes flickering, failed connections, or overheating. For homes with older wiring, consider upgrading to a 40VA transformer to ensure stable power delivery, especially if running additional features like floodlights or extended Wi-Fi extenders.
Identify the two critical wires from your existing setup: Front Door (labeled “F” or “1”) and Transformer (often red or white). Disconnect power at the breaker before proceeding. Strip ¼ inch of insulation from each wire end and connect them to the corresponding terminals on the smart device: the transformer wire to the “AC” or “Power” terminal, and the front door wire to the “Chime” or “Signal” terminal. Use
- A weatherproof wire nut for outdoor connections to prevent corrosion.
- 18-gauge silicone-coated wire if extending lengths beyond 30 feet to minimize voltage drop.
- A surge protector (inline between transformer and device) in lightning-prone areas.
For mechanical chime compatibility, bridge the chime’s “Front” and “Transformer” terminals with a jumper wire before installing the smart unit. Test activation by pressing the button–if the chime rings weakly, adjust the chime’s internal voltage selector to 16V or install a power booster. For digital chimes, confirm compatibility via the manufacturer’s list; most models require a resistor kit (included in pro installation packs) connected in parallel to the chime’s terminals. Post-installation, check Wi-Fi signal strength near the device–RSSI above -70 dBm ensures reliable alert transmission; reposition the router or add a mesh node if readings dip below this threshold.
Essential Gear and Supplies for Smart Entry System Installation
Begin with a multimeter rated for at least 30V AC to verify voltage levels at the transformer before connecting any components. Most modern entry systems require a steady 16-24V AC power source–anything below 14V risks intermittent operation, while voltages exceeding 28V can permanently damage circuitry. Check the transformer’s label for its output specs and confirm compatibility with the device’s requirements.
Opt for 18-gauge solid copper wire, preferably UL-listed, to handle the 1-2 amp draw typical of video-enabled security devices. Stranded wire is prone to oxidation at connection points, leading to voltage drops over time, while aluminum wire requires specialized connectors and isn’t recommended for low-voltage applications. If replacing existing cables, ensure they’re free of nicks or fraying; even minor damage can cause erratic behavior.
A wire stripper with 10-12 AWG markings prevents accidental cuts into the conductor, which weaken signal integrity. Avoid utility knives or scissors–they inconsistently remove insulation and risk nicking wires. For older installations with cloth-insulated wiring, use a heat gun to soften the material before stripping instead of forcefully pulling, which can tear the conductor.
Butt splices with heat-shrink tubing (16-22 AWG) provide durable, water-resistant connections. Crimp connectors alone fail in humid environments; always apply heat to seal the tubing over the joint. For outdoor setups, use silicone-filled wire nuts designed for wet locations–standard plastic caps degrade within months under UV exposure or temperature swings.
Voltage converters or power extenders are mandatory if the transformer outputs less than 16V or if the run exceeds 50 feet. A standard 24V AC transformer can be paired with a buck converter to step down to 16V at the device, but verify the converter’s wattage rating–most smart door systems draw 10-20W during operation, including peaks for video recording or face recognition.
Non-contact voltage testers detect live wires behind drywall without physical contact, reducing shock hazards. Test every wire before handling, even if marked as “off”–neutral wires in multi-switch circuits can remain energized due to backfeeding. For circuits with a battery backup, ensure the tester is sensitive enough to detect DC currents below 5V.
Fish tape with a glow stick attachment simplifies routing cables through walls, especially in retrofits where existing paths are narrow or obstructed. Avoid pulling wires tightly around corners–leave a 6-inch slack loop to prevent tension from breaking connections inside junction boxes. For stucco or brick exteriors, use a masonry bit (3/8″ or 1/2″) to drill entry points, then seal gaps with outdoor-rated silicone to prevent moisture intrusion.
Label every wire at both ends with heat-shrink tubing or plastic tags to identify functions (e.g., “TRANS HOT,” “CHIME N”). Color-coding alone isn’t reliable–older installations often repurpose wires, and mismatches cause malfunctions. Keep a digital photograph of the labeled setup for future reference, as handwritten notes fade or get misplaced.
Step-by-Step Guide to Connecting Wires to Your Smart Entry Chime

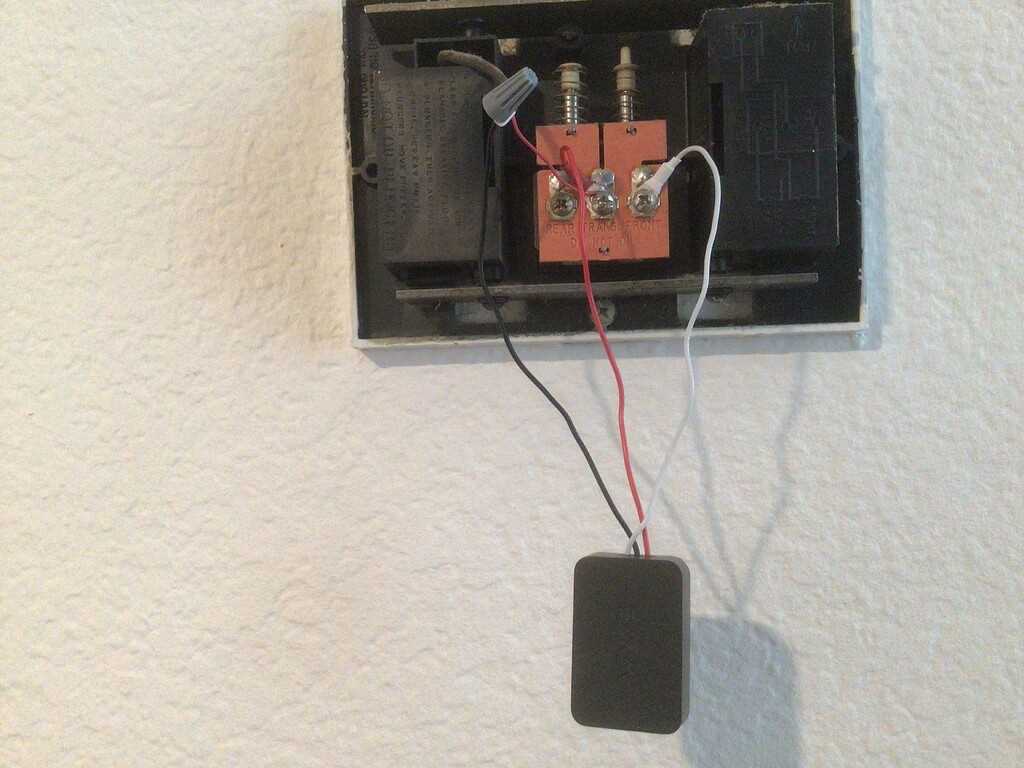

Turn off the power at the circuit breaker before handling any cables to prevent electric shock–this applies whether you’re replacing an old chime or installing a new one. Identify the transformer voltage first: most residential systems operate at 16-24 volts AC, but verify yours with a multimeter if the label is missing. Strip ¼ inch of insulation from each wire end using wire strippers, ensuring no frayed strands remain; twist strands tightly if needed to maintain a solid connection. Attach the front and rear terminals marked “FRONT” and “TRANS” (or similar labels) to the corresponding wires–match colors if present (typically red to “FRONT” and white/black to “TRANS”) or follow the existing setup if replacing hardware. Secure connections with a screwdriver, tugging lightly to confirm they don’t loosen, then tuck excess cable into the mounting bracket to avoid interference.
Testing and Troubleshooting
Restore power and press the activation button to check functionality–listen for a clear tone and verify the device powers on (indicated by a light ring or display). If silent, recheck wire attachments for corrosion, loose screws, or incorrect voltage (below 16V AC will cause failure). For intermittent issues, inspect the transformer’s amperage rating; modern video-enabled models require at least 10VA and may need an upgrade from older 8VA setups. Consult the manufacturer’s voltage compatibility chart if the device fails to initialize–some models reject non-standard configurations. Finally, seal exposed wires with waterproof connectors if mounting outdoors to prevent moisture damage.
Key Setup Variations for Smart Entry Signal Systems
For mechanical chime units designed for low-voltage alternating current (typically 16-24V AC), connect the transformer’s terminals to the labeled ports on your receiver–usually marked “FRONT” or “TRANS.” Verify polarity only if integrating battery-backed devices or energy-harvesting components, as incorrect terminal pairing can trigger silence instead of alert tones. Use 18-gauge solid copper conductors for standard installations; stranded wire may be needed for outdoor routes exposed to movement or moisture. When retrofitting a legacy system lacking a transformer, select a plug-in adapter with a minimum 10VA rating to sustain both the signal emitter and any auxiliary cameras or sensors.
- Dual-button setups: Run a shared neutral feed from the transformer to both push plates, then split separate live leads to each button. Label wires at the junction box to prevent confusion during maintenance.
- High-current configurations: For systems incorporating floodlights or sirens, upsize conductors to 14-gauge and install a separate 30VA transformer to isolate power demands.
- Existing AC circuits: Splice into a nearby 120V line using a Class 2 step-down transformer rated for continuous duty; avoid tapping HVAC or appliance circuits prone to voltage drops.
- Battery-powered units: Use pre-charged lithium-ion packs only with included regulators–third-party batteries risk overheating if mismatched. Route solar trickle chargers north-facing in Northern Hemisphere installations for consistent irradiation.
Two-wire video intercoms require shielded twisted pairs (CAT5 minimum) to prevent cross-talk between signal and data channels; grounding the shield at a single point reduces hum. Wireless repeaters should operate on non-overlapping 2.4GHz channels if placed within 10 feet of Wi-Fi routers to avoid latency spikes during alerts.
