Begin by disconnecting all power sources at the main breaker before handling any internal components. Verify zero voltage with a multimeter across all terminals–L1, L2, and ground–before proceeding. Failure to confirm absence of voltage risks severe injury or system damage.

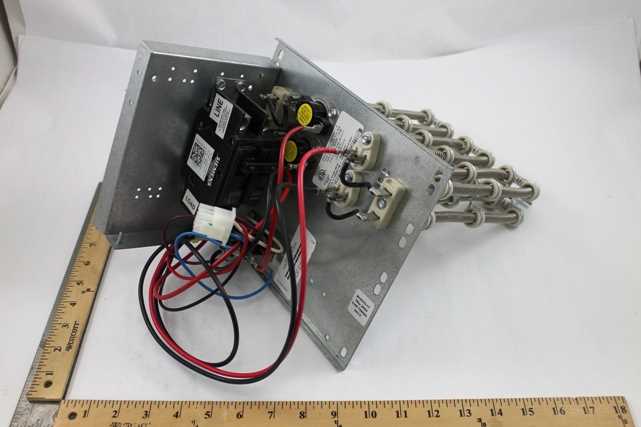

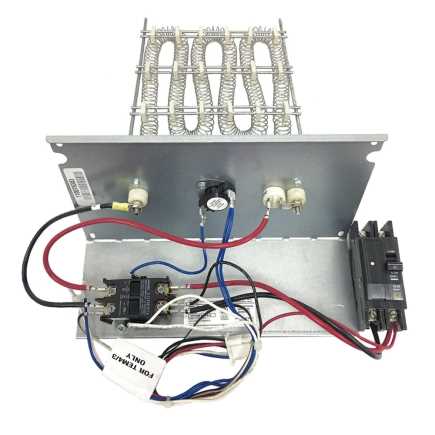

Locate the auxiliary heating element assembly in the air handler. Standard models use a 60-amp double-pole breaker with 6-gauge copper conductors for 240V circuits. Check the data plate for exact specifications–some units require 30-amp breakers with 10-gauge wire for lower-capacity setups. Mismatched wire gauge or breaker rating will trip safety mechanisms or cause overheating.
Connect the line conductors to the outer terminals of the control relay, labeled L1 and L2. Secure each wire with a torque screwdriver set to 12 inch-pounds–overtightening strips threads, while loose connections create dangerous arcing. Route the neutral (if present) to the designated terminal block; older models may lack this requirement.
Attach the control wires from the thermostat to the relay coil terminals. Use 18-gauge solid wire for low-voltage signals–typically red to R and white to W. Incorrect pairing prevents staging or causes erratic cycling. Confirm polarity with a circuit tester before energizing.
Install the heating coils to the contactor terminals, following the schematic silk-screened on the panel cover. Sequencer-controlled units require staggered connections to prevent power surges–connect each coil to a separate leg of the sequencer output. Ground all metal components with 10-gauge green wire tied to the chassis ground lug.
Reassemble the access panel, then restore power. Test operation in stages: first, verify the thermostat engages the relay, then check each heating coil activates sequentially with a clamp meter measuring current draw. Excessive amperage indicates shorted coils–immediately shut down and inspect for burnt connections.
Final checks include verifying temperature rise across the coils (15–25°F delta) and ensuring the high-limit switch cuts power at 160°F. Document all connections with a label maker for future service reference–handwritten notes fade and become illegible.
Connecting Supplementary Resistance Coils: Key Configuration Steps
Start by verifying the manufacturer’s load calculation for the auxiliary heating element before attaching any conductors. Locate the sequence labels on the terminal block–typically marked L1, L2, and L3 for three-phase setups or H1/H2 for single-phase–ensuring they match the contactor’s voltage rating (e.g., 240V or 480V). Use 10 AWG copper wire rated for at least 75°C for connections under 30A, upgrading to 8 AWG for circuits handling 40-60A to prevent overheating at splice points.
Shunt the safety devices: attach the high-limit switch and fusible link in series with the coil’s power lead, observing polarity if using a polarized relay. For variable-speed air handlers, integrate the resistor bank’s control wire into the ECM module’s designated port–consult the unit’s data plate for pinouts, as incorrect pairing can trigger fault code 25 (open heater circuit). Secure all connections with torque-limiting drivers set to the manufacturer’s specification (usually 12-15 in-lbs for 10 AWG terminals) to avoid loose contacts.
Test the assembly with a multimeter set to continuity mode; probe each conductor from the breaker to the terminal while cycling the thermostat. A reading below 1Ω confirms proper bonding, while voltage checks should show line potential at the coil inputs when energized. If deploying sequencers, stagger the relay activation by 30 seconds to prevent inrush surges on compressors–a common failure point in dual-fuel systems.
Decoding Terminal Markings on Supplemental Resistance Kits
Locate the data plate on the blower compartment side panel–engraved markings follow a strict sequence: L1, L2, T1, T2 for 240 V models; add T3 only on 220 V dual-stage units. Always verify the voltage stamped beside each terminal; mismatched ratings risk immediate coil burnout or tripped breakers.
Use a multimeter set to continuity mode to cross-check terminal pairs before attaching leads. Probe T1→T2 first–resistance should read 7–12 ohms for 5 kW elements, 14–18 ohms for 10 kW. If readings exceed ±5% of factory specs, replace the entire element assembly; partial failures cascade quickly.
| Terminal | Function | Voltage | Acceptable Resistance |
|---|---|---|---|
| L1 | Line hot leg (primary) | 240 VAC | N/A |
| L2 | Line hot leg (secondary) | 240 VAC | N/A |
| T1 | Thermal overload cutoff | 120 VAC (control) | Open circuit |
| T2 | First stage element | 240 VAC | 7–12 Ω |
| T3 | Second stage element (dual) | 220 VAC | 14–18 Ω |
Fast Identification Shortcuts
Terminals L1 and L2 are always brass-colored screws; T-series terminals are nickel-plated and recessed 3 mm deeper. On units manufactured post-2020, T1 carries a red warning dot–this indicates a fused 3 A thermal disconnect; bypassing triggers warranty void.
Label wires at the disconnect box before disconnecting power. Use permanent marker or heat-shrink labels showing terminal origin–L1 red, L2 black, T1 blue, T2 brown, T3 orange. Reconnect precisely in reverse order; swapping L1↔L2 reverses blower rotation, stalling airflow and overheating coils in under 90 seconds.
Step-by-Step Connection Guide for Single-Stage Heating Elements
Verify the main power supply is off at the circuit breaker before handling any components. Use a non-contact voltage tester to confirm absence of current at the disconnect box and control board terminals. Label each conductor with masking tape and a marker–black/red for load, white for neutral, green or bare copper for ground–to prevent misconnections during reassembly.
Terminal and Component Preparation
Identify the heating coil’s terminal block, typically marked L1/L2 or T1/T2. Securely fasten the load conductors (black/red) to their respective terminals using a torque screwdriver set to manufacturer-specified inch-pounds–usually 12-15 in-lbs for 10-12 AWG wire. Route the neutral (white) directly to the designated N terminal on the control panel, avoiding sharp edges that may damage insulation. Ground the unit by attaching the green/bare wire to the chassis ground lug, ensuring the connection is free of paint or corrosion.
Install a factory-specified high-limit switch in series with the load circuit, placing it adjacent to the coil housing for accurate temperature monitoring. Connect the switch’s normally closed contacts between the power source and the heating element terminals. Test continuity with a multimeter–resistance should read near zero ohms when cold–before closing the access panel. Energize the system at the breaker, then monitor the first operational cycle for proper activation and deactivation at setpoint thresholds via the thermostat interface.
Integrating Multi-Tempo Blower Engines with Auxiliary Heating Loops
Match the blower’s speed tap to the auxiliary loop’s amperage rating–use the 240V label on the motor’s nameplate as the baseline. For a 5 kW loop, wire the motor’s “high” tap to a 30-amp breaker; scale down to “medium” for 3.5 kW loops and “low” for 2 kW loops. Confirm the tap’s continuity with a megohmmeter before energizing.
Dual-speed motors require a separate relay for each tempo change. Connect the common motor terminal to L1; branch the “high” and “medium” taps through two SPST relays, controlled by a 24V thermostat. Keep relay coils on opposite phases to prevent simultaneous engagement. Add a 5-amp fuse in line with each relay coil for protection.
- Label every conductor–color-coding alone risks misidentification.
- Use 12 AWG copper for loops up to 3.5 kW; up-size to 10 AWG for 5 kW.
- Avoid shared neutrals–dedicate a return path for each tempo setting.
- Mount relays within 10 feet of the motor to minimize voltage drop.
Fault Detection During Commissioning
Energize the loop with the blower set to “medium.” Verify airflow reaches 1,200 CFM within 120 seconds. Detect hot spots with an infrared probe–temperatures above 140°F at the loop’s exit indicate an undersized conductor or loose terminal. Reset breakers and test each tempo sequentially; listen for arcing or humming. If the motor fails to start on “high,” check for an open winding or reversed polarity in the relay circuit.
Safety Precures for High-Voltage Heating Element Connections
Always verify the power supply is disconnected at the breaker panel before touching any components. Use a non-contact voltage tester to confirm circuits are dead–never rely on switches alone. High-amperage elements can retain lethal charge even moments after disconnection.
Wear insulated gloves rated for at least 1,000V when handling live terminals or exposed conductors. Standard work gloves provide no protection against accidental contact. Replace gloves immediately if signs of wear, cuts, or contamination are visible.
- Store tools in a dry, insulated container to prevent moisture accumulation.
- Use only UL-listed or similarly certified cables and connectors.
- Avoid temporary “alligator clip” connections–these cannot withstand vibration or thermal cycling.
Keep a minimum 3-foot clearance around the unit while servicing to prevent accidental brushes against adjacent surfaces. High-voltage terminals can arc over unexpectedly, especially in humid conditions or when dust accumulates on insulating surfaces.
Thermal and Overcurrent Protection
Install dual-element fuses or HACR-rated circuit breakers upstream to protect against short-circuit events. Single-element fuses may not react quickly enough to prevent equipment damage. Verify the amperage rating matches the manufacturer’s specifications–oversizing voids safety margins.
Check resistance values across element coils using a megohmmeter before powering the system. Readings below 1MΩ indicate compromised insulation and imminent failure risk. Replace defective coils rather than attempting repairs.
- Inspect wiring harnesses for brittle insulation or exposed strands annually.
- Secure all connections with torque wrenches to manufacturer specifications; loose terminals generate heat and increase fire hazard.
- Never bypass thermal limit switches–these prevent overheating even if control logic fails.
Ground all metallic components directly to the panel via 6 AWG or larger copper conductors. Avoid relying on conduit as the sole grounding path–corrosion or loose couplings can interrupt continuity. Test grounding integrity with a 3-point ohmmeter; values above 0.1Ω require immediate correction.
