For a 120V single-speed unit, connect the power lead (usually black) to the common (C) terminal on the control board and the neutral (white) to the neutral (N) screw. Ground (green or bare) attaches to the dedicated grounding terminal. Verify polarity with a multimeter before energizing–incorrect wiring risks damaging the capacitor or triggering safety lockouts.
Variable-speed models require precise voltage matching. Identify the labeled terminals: HERM (compressor relay), M1 (high-speed), M2 (medium-speed), and M3 (low-speed). Connect the fan’s red lead to M1 for maximum airflow, blue to M2 for medium operation, and yellow to M3 for minimal output. Omit unused wires by securing them with terminal caps to prevent shorts.
For ECM modules, reference the manufacturer’s schematic–color codes vary by model year. Common configurations pair BLUE = 120V input, RED = control signal, and BLACK = ground. Always disconnect power at the breaker before adjusting connections. Test resistance between terminals; values outside 5-15 ohms indicate internal faults.
Thermal overload protection integrates into the motor housing. Locate the thermal switch leads (often black with spade connectors) and attach them to the control board’s TSTAT or OF terminals. Bypass only for diagnostic purposes–permanent bypass circumvents critical safety measures.
Understanding Fan Assembly Electrical Connections
Always match wire colors to the terminal labels on the unit’s control board before making any connections. Most residential HVAC fans use a standard color scheme: red for 24V power, black for high-speed, yellow for medium, blue for low, and green for ground. Check the label plate on the fan housing–it often lists the correct sequence for multi-tap models.
- Red (24V) → R or “Power” terminal
- Black (High) → “High” or “H” terminal
- Yellow (Medium) → “Medium” or “Med” terminal
- Blue (Low) → “Low” or “L” terminal
- Green/bare (Ground) → Ground screw or terminal
If the control board uses numbered terminals instead of labels, refer to the system’s manual–common sequences include 1=High, 2=Medium, 3=Low, 4=Common. Some boards reverse this order, so never assume without verification. A mismatch here can damage the fan or create a fire hazard.
For variable-speed ECM fans, ignore the color-coding. These units require a specific 4-wire harness where each conductor corresponds to a pin on a Molex-style connector. The harness is usually keyed to prevent incorrect insertion, but verify pin assignments using the schematic–swapping pins 1 and 2 can destroy the module.
Before energizing the system, disconnect power and use a multimeter to check for continuity between each terminal and the fan’s common wire. Proper readings should show near-zero resistance on the active taps and infinite resistance on unused ones. Any deviation suggests a fractured coil or damaged winding, requiring replacement.
Capacitor connections demand attention. Many fans require a dual-run capacitor with separate “C” (common), “Fan,” and “Compressor” terminals. Connect the fan’s brown wire to the capacitor’s “Fan” terminal and the brown/white stripe to “C.” Forgetting this step leaves the fan running at reduced torque, leading to overheating.
After securing all connections, wrap exposed terminals with insulating tape and fasten wires to the housing with zip ties. Loose strands can vibrate against metal, causing shorts. Finally, restore power and observe the fan’s startup–it should accelerate smoothly within 3-5 seconds. Noisy operation indicates miswiring or a failing capacitor.
Finding the Electrical Connector on Your HVAC Air Handler
Locate the access panel on the right side of the unit–most models position the harness here, secured by a single Phillips screw. Peel back insulation if present; the connector sits near the fan assembly, often marked with colored leads (red, white, blue) or labeled terminals (C, R, G). Trace the bundle from the control board if uncertain–it’s typically a 3-5 wire plug with a locking tab.
Key Landmarks for Quick Identification
Check for a rectangular plug (1.5–2 inches wide) with molded ridges; newer units may integrate a snap-fit design. Avoid mistaking adjacent capacitor wires–the harness is always detachable without tools. For vertical models, inspect the lower third of the casing; horizontal units usually place it mid-section near the blower cage.
Step-by-Step Connection Guide for Single-Speed Fan Assembly Hookup
Begin by disconnecting power at the circuit breaker to eliminate electrical hazards. Locate the furnace control board’s terminal strip–typically marked with labels like “HEAT,” “COOL,” and “FAN” for single-phase units. Identify the neutral (white) wire from the fan assembly and secure it to the board’s neutral terminal, often designated as “C” or “COM.” Verify the connection with a multimeter, ensuring 0V between this point and ground before proceeding.
Attach the high-speed lead (usually red or black) to the “FAN” terminal on the control panel. For 120V systems, confirm the fan’s label specifies a single-speed configuration; mismatched voltage will damage components immediately. If the unit includes a capacitor, connect its two leads directly to the designated fan posts–capacitor failure is a primary cause of startup issues, so ensure snug crimped connections with insulated tools.

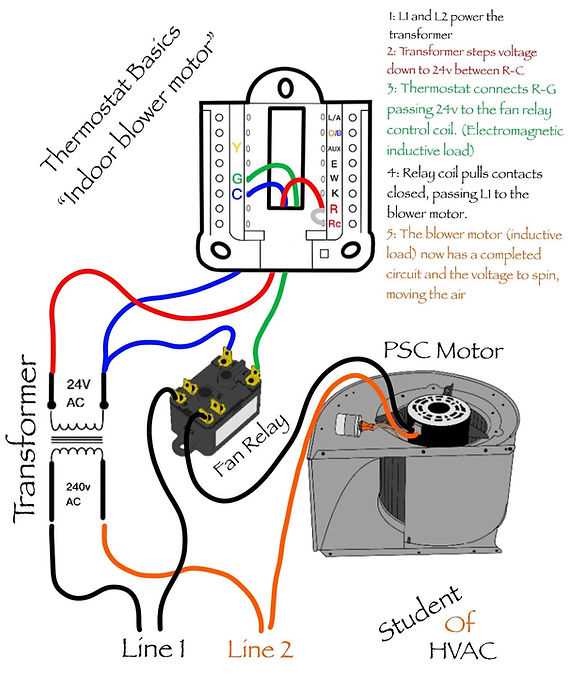

Route low-voltage signal wires (if present) from the thermostat to the control board’s “G” terminal for manual fan activation. Test this pathway by setting the thermostat to “FAN ON”–listen for a quiet hum within 10 seconds; prolonged silence suggests incorrect polarity or a tripped safety switch. Check door interlocks and rollout switches before assuming wiring errors.
For three-wire setups, the brown wire (if included) connects to the capacitor’s opposite post from the high-speed lead–label each wire with heat-shrink tubing for future troubleshooting. Avoid twisting exposed conductors; use wire nuts or spade terminals rated for 600V minimum. Reapply power only after double-checking all terminals against a reference schematic unique to your model’s revision.
Final verification involves measuring current draw with a clamp meter–expect 3-5 amps for standard residential units under normal load. Deviations above 7 amps indicate bearing wear or obstructed airflow; below 2 amps suggests an open winding. Document readings alongside date and ambient temperature for trend analysis during seasonal maintenance.
Identifying Common Wire Colors and Their Functions in Climate Control Systems
Start by locating the high-voltage leads–typically red (R) for power input from the furnace control board and black (C or “common”) for the return path. These two form the primary circuit, with R delivering 120V (or 240V in dual-voltage setups) and C completing it. Mismatched connections here will prevent startup or cause immediate tripping of safety switches. Verify polarity with a multimeter before securing connections.
Secondary terminals handle control signals and speed settings. Key colors include:
- Yellow (Y) – Cool call signal from the thermostat (24VAC)
- White (W) – Heat call signal (24VAC)
- Green (G) – Fan activation (manual override or thermostat request)
- Blue (cooling-related) or Purple – Stage 2 cooling/heat pump reversing valve (O/B) in variable-speed models
For ECM (electronically commutated) assemblies, add brown and orange–these carry DC voltage for speed modulation (often 0-10VDC or PWM). Reverse these, and the unit may run at unintended speeds or fail to start. Check manufacturer specs; some use pink for high-speed tap instead of brown.
Advanced Troubleshooting for Signal Wires
If the system cycles erratically, test the low-voltage conductors (yellow, white, green) for shorts or opens with a multimeter (set to 24VAC range). A reading below 20VAC suggests a short to ground–inspect for pinched cables near the housing or rodent damage. For ECM units, confirm brown and orange polarity–reversed leads can destroy the module. Always cap unused terminals with wire nuts to prevent accidental contact.
Identifying and Fixing Electrical Faults in HVAC Fan Assemblies
Check the capacitor first if the unit hums but fails to start. A faulty capacitor often causes insufficient torque, preventing the rotor from spinning. Use a multimeter set to the capacitance mode–compare readings with the label on the component. Values deviating by more than 10% require replacement. Replace with an exact microfarad match; mismatched specs risk overheating or premature failure.
Inspect the run and start relays if the assembly cycles on and off intermittently. Remove the control panel cover to access the relay switches. Test continuity across the terminals with the multimeter in resistance mode. A reading above 5 ohms indicates a defective relay. Swap with a relay of identical amperage and voltage ratings to avoid damaging the circuit board.
| Component | Symptom | Test Method | Acceptable Reading |
|---|---|---|---|
| Capacitor | Hums, no rotation | Capacitance mode | ±10% of labeled µF |
| Thermal fuse | No power at all | Continuity mode | 0 ohms |
| Relay contacts | Short cycling | Resistance mode | <5 ohms |
Examine the thermal fuse when the fan assembly remains completely inert. Locate the fuse inside the housing near the coil stack. Test for continuity–an open fuse (infinite resistance) confirms failure. Replace the fuse with the same current rating; using a higher-rated fuse risks overheating the windings. Ensure the replacement fuse is securely crimped to eliminate loose connections.
Trace the color-coded leads from the fan assembly to the control board. Look for chafed insulation, exposed copper, or burnt spots. Use heat-shrink tubing to repair minor abrasions; splice with matching gauge wire and solder for secure joints. Avoid electrical tape–it degrades over time. Verify sleeve ratings; some models require flame-retardant tubing for high-temperature zones.
Measure voltage at the fan assembly terminals with the unit powered on. Expect 115V or 230V depending on the system configuration. Zero volts suggests an open safety switch or tripped breaker. Confirm voltage across the switch contacts; if present, the switch is faulty. Replace with an identical part–modifying mounting locations may misalign internal safety mechanisms.
Test the control board by jumping the fan relay terminals. If the fan starts, the board output is suspect. Inspect for burnt traces or swollen components on the circuit board. Replace the board if visual damage is evident; patching traces with solder risks intermittent failures. Ensure firmware compatibility when swapping boards–mismatched versions can cause erratic behavior or lock-out conditions.
