For reliable operation of your climate control unit, locate the dual-round component (typically rated between 40-60 MFD) and link its Herm terminal to the compressor’s common terminal. Attach the Fan lug to the blower motor’s start connection, ensuring a secure crimp or solder joint. Verify the run winding path remains uninterrupted–trace the wire from the C post on the outdoor coil to the C slot on the control module. Misplaced leads create erratic cycling; symptoms include abnormal humming or failure to engage.
Use a multimeter set to capacitance mode to confirm the stored charge before handling. Polarized leads eliminate guesswork: black probe to the common post, red to either hermetic or fan tap. Readings outside 5% of the stated microfarad rating signal degradation and necessitate immediate replacement. Avoid over-tightening mounting screws–torque specs rarely exceed 6 in-lbs for terminal screws to prevent thread stripping.
Route wiring away from sharp sheet metal edges, securing every 6–8 inches with UV-resistant zip ties. Apply dielectric grease sparingly on terminals to inhibit oxidation, focusing on contact points rather than surrounding insulation. Label each wire with heat-shrink tubing markers denoting Herm, Fan, and Common; this step accelerates future diagnostics and prevents accidental cross-connection.
After physical attachment, energize the system in cool mode and observe startup behavior. A properly sequenced component should show a momentary 2-3 second delay before compressor engagement–immediate activation suggests reversed run-start leads. Monitor line voltage at the compressor terminals; consistent readings between 230–240 VAC indicate correct phase sequencing. Any deviation above ±10 V from rated voltage indicates potential supply issues or internal fault conditions.
Understanding Your Climate Control System’s Electrical Component Connections
Start by disconnecting all power sources before examining any connections–failure to do so risks electrical shock or equipment damage. Identify the two primary sections on the oval or round energy storage unit: the fan terminal (often labeled “FAN” or “HERM”) and the compressor terminal (“COMP” or “C”). Verify the component’s microfarads (μF) rating printed on its casing matches the replacement part specifications, typically ranging between 35-55 μF for fan motors and 440-660 μF for compressors in residential systems.
Trace the colored wires from the outdoor unit’s control board to their respective terminals on the energy storage device. The brown wire usually connects to the fan terminal, while the purple or gray wire links to the compressor terminal. The black or dark blue common wire (labeled “C”) completes the circuit–ensure it securely fastens to the storage unit’s designated common post. Loose connections corrode over time, increasing resistance and causing premature failure.
| Wire Color | Terminal Assignment | Voltage (When Active) |
|---|---|---|
| Brown | Fan Motor | 240V |
| Purple/Gray | Compressor | 240V |
| Black/Dark Blue | Common | 0V (Reference) |
Inspect the contactor’s wiring while examining the energy storage unit’s configuration. The contactor’s coil typically receives 24V from the thermostat, energizing its internal switch to allow 240V power to flow to the compressor and fan. Cross-reference the outdoor unit’s model number (found on the side panel) with the manufacturer’s technical guide to confirm terminal assignments–variations exist between 2.5-ton and 5-ton systems.
Measure the energy storage device’s charge if the system fails to start. Use a multimeter set to capacitance mode; connect the probes to the FAN and COMP terminals. A reading within ±10% of the rated μF value indicates proper function–readings below 60% signal imminent failure. Replace immediately if bulging, leaking oil, or emitting a pungent odor, as these symptoms precede catastrophic failure.
Attach the replacement part using crimp connectors sized for 14-12 AWG wire. Apply dielectric grease to terminals to prevent oxidation, but avoid over-application–excess grease attracts dirt and debris. Secure all connections with insulated wire nuts and verify tightness with a torque screwdriver set to 3-4 in-lbs to prevent arcing. Reconnect power and test the system in both cooling and fan-only modes, monitoring for unusual humming or slower-than-normal fan speeds.
Label all wires with heat-shrink tubing during disassembly to avoid miswiring. Mark the fan wire “F,” the compressor wire “H,” and the common wire “C.” Photograph the original setup before removal–a single misrouted wire can prevent startup or damage the control board. Store the technical manual’s wiring schematic inside the unit’s access panel for future reference.
Check for voltage drop across the energy storage device’s terminals during operation. Using a multimeter set to AC voltage, measure between FAN and COMMON (should read ~240V) and COMP and COMMON (also ~240V). Voltages below 220V indicate potential issues with the power supply, contactor, or internal wiring. Systematically isolate each component to identify the fault.
Schedule regular inspections every 12-18 months for systems in coastal or high-humidity areas, as salt air accelerates terminal corrosion. Replace the energy storage device every 5-7 years regardless of apparent condition–internal degradation occurs gradually, reducing efficiency before total failure. Keep spare commonly sized units (e.g., 45+5 μF and 35+5 μF) on hand for rapid replacement during peak cooling demand periods.
How to Pinpoint the Right Terminal Connections for HVAC Start Components

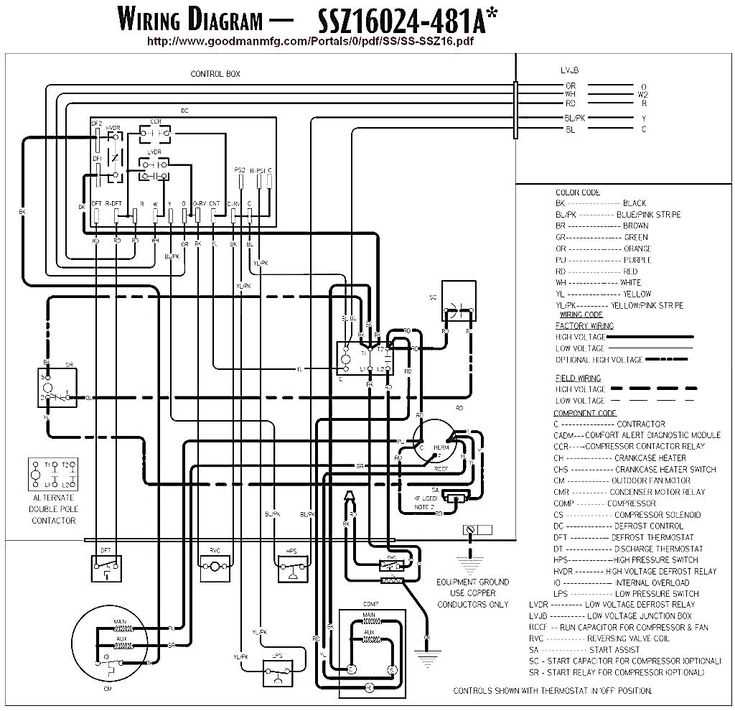

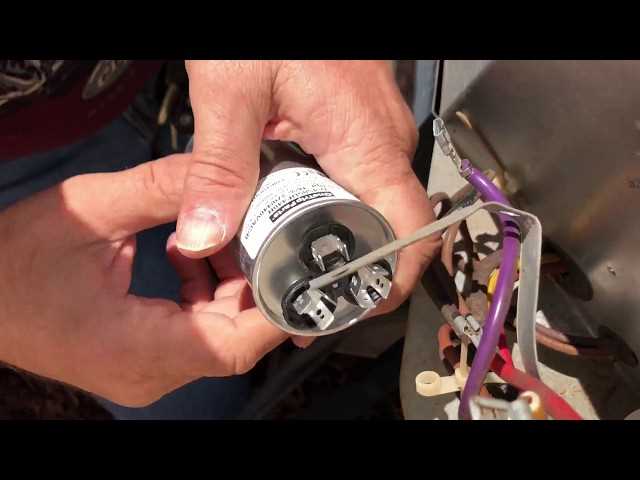

Locate the dual-run element first–it’s a cylindrical or oval metal can with three spade connectors labeled HERM, FAN, and COM. The HERM post always pairs with the compressor motor’s start wire, typically a brown or black lead. The FAN terminal connects to the condenser blower motor’s start lead–look for a yellow, purple, or striped conductor. Secure COM to the common wire, which is almost always the black or dark blue conductor.
Verify terminal orientation using the embossed label on the side–some units feature a circular indentation next to COM. If the markings are worn, note that HERM sits closest to the retaining clamp, FAN occupies the middle slot, and COM aligns with the mounting bracket’s screw hole.
Avoid reversing connections between HERM and FAN. Swapping them causes:
- Compressor failure within minutes due to inadequate torque
- Condenser fan overheating and motor winding burnout
- Overload protector tripping with rapid cycling
Check capacitance values stamped on the can–typical ratings range from 35+5 μF to 70+7.5 μF. A 440VAC rating is standard; anything lower risks dielectric breakdown. Use a multimeter set to capacitance mode to confirm stored energy matches the label–deviations above 10% indicate internal degradation.
Quick Terminal Matching Guide
- Compressor lead (brown/black) →
HERM - Blower motor lead (yellow/purple) →
FAN - Common lead (black/dark blue) →
COM
After securing spade connectors, tug each lead to confirm retention–loose contacts create intermittent arcing. Wrap terminals with high-dielectric silicone tape to prevent moisture intrusion. Test system operation with thermostat set 10°F above ambient; normal start-up should complete within 3 seconds, and both compressor and fan should run continuously without humming or buzzing.
Step-by-Step Assembly for Dual-Compressor Energy Storage in HVAC Units
Shut off power at the disconnect box–verify absence of voltage with a multimeter before handling any terminals. Locate the round or oval canister encased in metal near the outdoor condenser; this houses the dual-purpose storage device. Note the three labeled posts: “C” (common), “FAN,” and “HERM” (hermetic). The first connects to the compressor relay, the second to the blower motor, and the third to the sealed refrigeration circuit.
Attach the 10–20 AWG solid copper wires to the terminals using a flat-head screwdriver. Secure the wire from the “C” post to the compressor contactor’s common side–ensure a snug fit, as loose connections generate heat. Next, run a wire from the “HERM” post to the compressor’s start terminal; use heat-shrink tubing to insulate the joint if exposed to moisture. For the “FAN” post, connect a similarly gauged wire to the condenser fan motor’s start lead–polarity is irrelevant, but labeling prevents future confusion.
Matching Microfarad Ratings to Components
Compare the original storage device’s µF value with the replacement–mismatches cause premature failure. A 35/5 µF dual-unit typically suits 3–5 ton systems, while 45/5 µF handles larger compressors. Cross-reference these figures with the motor nameplates–blower motors often require 5–10 µF, while compressors demand 30–50 µF. Installed values should not deviate by more than 10% from manufacturer specifications; exceeding this risks capacitor rupture or inefficient torque.
Route wires away from sharp edges or moving parts–use cable ties every 6 inches to prevent vibration abrasion. Reinstall the protective cover, ensuring no conductors are pinched or grounded against the enclosure. Restore power at the disconnect, then observe the system for 3–5 minutes. Listen for smooth compressor activation; irregular humming or frequent cycling indicates incorrect µF matching or faulty connections.
Troubleshooting Immediate Post-Installation Issues
If the compressor fails to start, recheck the “HERM” terminal wire–poor contact mimics a faulty storage device. For fan-only operation, verify the “FAN” post connection hasn’t loosened. Use an analog capacitance meter to confirm the µF values remain within tolerance; drift suggests internal damage. Replace the unit immediately if bulging, leaking, or emitting a burnt odor–these signs indicate imminent failure and potential fire risk.
Finally, document the µF values, wire colors, and terminal positions on a waterproof label adhered to the condenser housing. This simplifies future diagnostics and ensures consistent performance during seasonal maintenance.
