Begin troubleshooting by isolating the fuse box near the driver’s side dashboard–locate fuse #15 (10A) controlling the instrument cluster. If voltage drops below 11.8V at this point, inspect the red/black wire from the ignition switch for fraying or corrosion at connector C201, positioned behind the glove compartment. Standard resistance across this segment should not exceed 0.5 ohms; readings above indicate internal breakage requiring wire replacement.
For climate control malfunctions, verify the light blue/black feed line running from the BCM to the HVAC module. Probe pin B3 at the module harness while cycling the fan–consistent 12V confirms continuity. Absence of signal directs focus to the black/white ground strap securing the blower motor housing; corrosion here mimics open-circuit conditions. Clean contact points with 800-grit sandpaper and dielectric grease rated for temperatures up to 150°C.
When addressing intermittent exterior lighting failures, prioritize the tan/yellow circuit serving the DRLs. Measure voltage at relay socket terminal 87a–fluctuations suggest a faulty relay or corroded socket. Swap the relay with the horn relay (S102) to confirm; if symptoms persist, trace the circuit back to the headlamp switch, checking for melted plastisol at connector T105. Re-secure any loose terminals with a nylon tie-wrap rated for 120 lbs tensile strength.
Critical safety circuits (ABS, airbag) demand precise voltage tracking–use a digital multimeter with True RMS capability. Probe the orange/yellow ABS power feed at pin 9 of the EBCM; 13.2-14.7V is mandatory. Deviations under load indicate alternator diodes failing–replacement units must meet OEM specifications (200A minimum). For airbag diagnostics, never power the system without disconnecting the battery first–residual energy in the capacitors can trigger inadvertent deployment.
Wiring harness repairs near high-vibration zones (e.g., suspension towers) require soldered splices protected by adhesive-lined heat shrink (3:1 ratio). Avoid crimp connectors in these areas–mechanical stress fractures copper strands within 12 months. Route replacement wires parallel to existing bundles using factory loom channels; secure with spiral wrap every 15 cm to prevent chafing against frame edges.
Electrical Schematics for Full-Size SUV Models
Locate the fuse box under the instrument panel on the driver’s side to access primary circuit maps. Label each fuse with its corresponding amperage and system–critical for troubleshooting sudden power losses. The central junction block (CJB) connects to 32 distinct pathways; cross-reference pinouts with the vehicle’s manual before probing.
Trace the lighting harness from the headlamp switch to the multifunction lever–color-coding follows SAE standards: orange (high beam), dark green (low beam), and light blue (parking). Ground faults often originate near the front passenger kick panel; check for corroded terminals here first.
For accessory circuits, examine the rear body control module (BCM). It manages power windows, door locks, and rear defrost via 6 CAN bus lines–disconnect the battery before testing resistance between pins 16 and 18 to avoid module reset errors.
Scan the powertrain harness for chafing near the transmission bellhousing; exposed wires here interfere with shift solenoids. Use a non-contact voltage tester to confirm live circuits before splicing repairs–failed splice crimps rank among the top three electrical faults.
Inspect the trailer wiring connector at the rear bumper. Verify continuity between the 7-way plug and the tow module using a load tester; voltage drops exceeding 0.5V indicate faulty grounds, often resolved by cleaning the frame contact point beneath the spare tire.
Navigate the HVAC blower motor circuit by testing the resistor block behind the glove box. Use an ohmmeter to measure resistance across resistor terminals–values outside 0.8–1.2 ohms confirm failure, requiring replacement of the resistor or fan assembly.

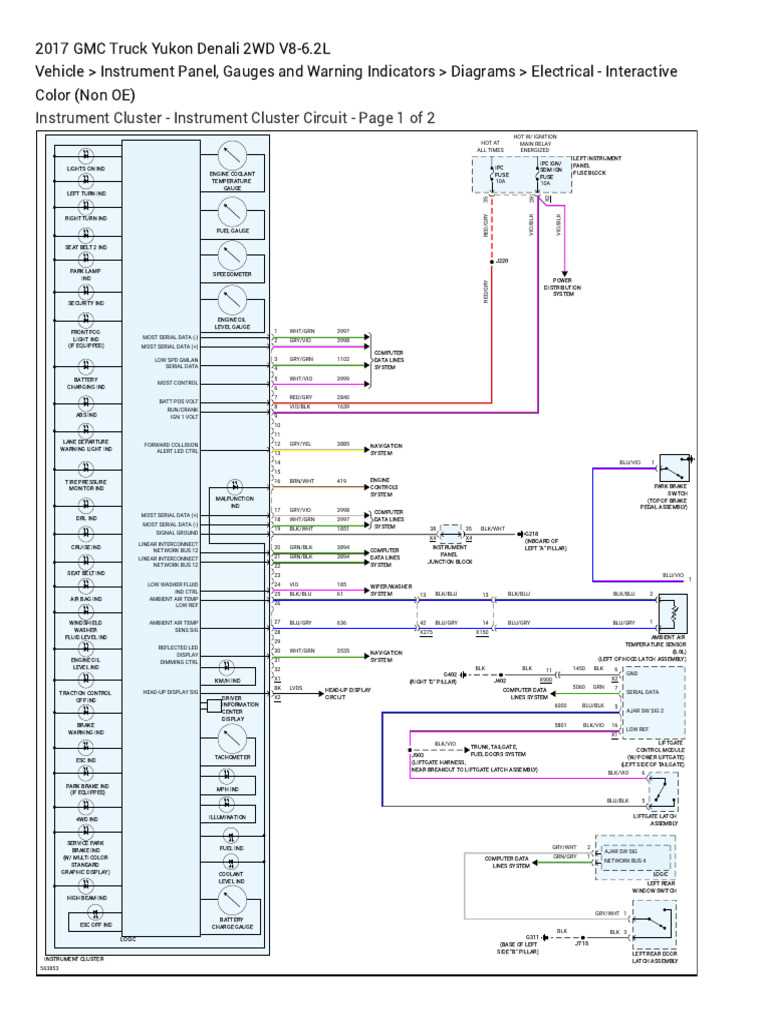

Check the instrument cluster wiring by probing the purple (battery) and pink (ignition) wires at the 12-pin connector. Voltage spikes in these leads can corrupt the digital display; add a transient voltage suppressor (TVS) diode to prevent recurrence.
For keyless entry systems, test the door jamb switches for proper grounding. Replace switches showing infinite resistance when depressed–failure here prevents remote lock/unlock functionality. Always re-secure wiring looms with nylon straps post-repair to prevent vibration-related damage.
Finding the Right Electrical Schematic for Your Full-Size SUV by Production Year
Begin with the official manufacturer’s repair manual corresponding to your vehicle’s exact build date. General Motors publishes detailed schematics in their Service Information portal, organized by VIN prefixes or model codes like K1500/G1500 for early 2000s variants or K2XX for post-2015 platforms. Locate the specific platform generation–first (1992–1999), second (2000–2006), third (2007–2014), or fourth (2015–present)–to avoid mismatched connections for ABS, BCM, or instrument clusters.
For pre-2007 models, prioritize Chilton or Mitchell1 manuals; these often include annotated voltage paths for alternator outputs (typically L-terminal pins) and ground distribution blocks. Post-2007 variants require Tech2Win or GM Global Diagnostic System (GDS2) access–schematics here display CAN bus topologies and fuse ratings directly tied to RPO codes like UE1 (hybrid battery) or N26 (trailer brake controller). Cross-reference the RPO label inside the glovebox door.
When dealing with 2015+ iterations, note the shift from single-wire CAN to GMLAN high-speed circuits. Schematics for these years split into subsystem modules–Infotainment (CGW), Body Control (BCM), and Electronic Brake Control (EBCM). Use GM’s TIS2Web to filter by option codes; a 2020 Denali with RPO UQA (Adaptive Cruise) will show additional wiring for radar sensors, absent in base trims.
Verify pin assignments for aftermarket installations–common failure points include connector C1 (underhood bussed electrical center) and X5 (instrument panel harness). A 2008 LTZ with heated seats will feature distinct circuits for memory seat modules (RPO AD8), while a 2012 SLE lacks these entirely. Always confirm wire colors (e.g., YE/BK for fuel pump) against the legend; GM switched color-coding on 2014+ vehicles from traditional stripes to microprint labels.
For quick troubleshooting, third-party platforms like ALLDATA or Identifix offer searchable PDFs with hyperlinked component callouts–useful for tracing PARA (park assist) or OnStar circuits in 2018–2024 models. Avoid generic diagrams; a 2021 AT4’s Trailering Package (RPO V92) adds dedicated wires for a 7-way connector, omitted in standard configurations.
Decoding Color Markings and Icons in Full-Size SUV Electrical Blueprints
Begin by locating the primary power distributor–typically represented as a vertical bar with branching lines. Each conductor is color-coded: red stripes on white identify the constant 12V+ supply under the hood fuse block; orange circuits with blue tracer denote switched ignition sources routed through the instrument panel cluster. Ground paths almost always terminate in black with bare copper leads or a solid black line connecting to chassis points labeled CHG-01 through CHG-05 in schematics. Verify continuity with a multimeter set to 200Ω before trusting visual cues alone.
Symbols carry precise meaning–open circles mark splice junctions where three or more wires converge, while filled triangles indicate inline connectors requiring mating terminal release before separation. A dashed line signals shielded harness shielding against RF interference under the dashboard; these demand extra care to avoid damaging foil wraps during repairs. Refer to the legend printed on fold-out pages for abbreviations: “P” followed by a number shows pin assignments on module connectors (e.g., P3-15 links to the transmission control unit), “SP” denotes special function circuits like heated seats with dual-element resistance grids. If labels are unreadable, cross-reference component location tables in section 8D-7 of the official service manuals–specific to model-year variants post-2017 due to revised CAN bus topology.
How to Map Out Electrical Paths in a Full-Size SUV
Locate the vehicle’s service manual section covering circuit layouts–typically organized by system (lighting, ignition, sensors). Print or download the relevant pages, as cross-referencing physical connections with schematic symbols saves hours.
Strip back interior panels methodically: use trim removal tools to avoid snapping clips, especially near the dashboard, fuse box, and rear tailgate. Label each connector with masking tape and a fine-tip marker, noting pin count and color codes visible on the harness.
- Driver-side kick panel hides the primary junction block.
- Center console removal exposes auxiliary relays under a snap-fit cover.
- Rear cargo area conceals the trailer light converter in a sealed compartment.
Set a multimeter to continuity mode (200Ω range) and probe connector pins against the corresponding points on the schematic. Record readings in a notebook: consistent low resistance confirms intact paths; infinite resistance indicates breaks or open circuits. For live testing, switch to DC voltage (20V scale) and verify expected power levels at key nodes–12.6V at battery-sourced leads, 5V at sensor feeds.
Common failure points include corroded grounds under the third-row seat mounting bolts and brittle wiring behind the instrument cluster. Inspect splices near the steering column, as repeated pedal adjustments stress these junctions over time. Replace any visibly oxidized terminals with gold-plated replacements to prevent future oxidation.
Use a tone generator for tracing hidden circuits–attach the probe to an individual wire lead, then follow the audible signal with the inductive wand. This technique isolates wires bundled in harnesses behind the headliner or under carpeting without unnecessary disassembly. Mark traced paths with highlighters directly on the schematic for quick reference during reassembly.
- Reconnect all components before powering the system–test each function sequentially (headlights, brake signals, HVAC blower).
- Clear diagnostic trouble codes with an OBD-II scanner if warning lights persist.
- Coil excess wire lengths with spiral wrap, securing them with zip ties every 6 inches to prevent chafing against sharp chassis edges.
