Begin troubleshooting by identifying the primary color codes on the vehicle’s harness connector. The left-side assembly typically uses a dark green wire for the brake signal, a yellow wire for the turn indication, and a brown wire for the running lamps. On the right side, these functions often correspond to light green, dark blue, and brown wires, respectively. Confirm these configurations with a multimeter set to DC voltage (20V range) while engaging each function–brake pedal, turn signal lever, and parking mode–to verify 12V output.

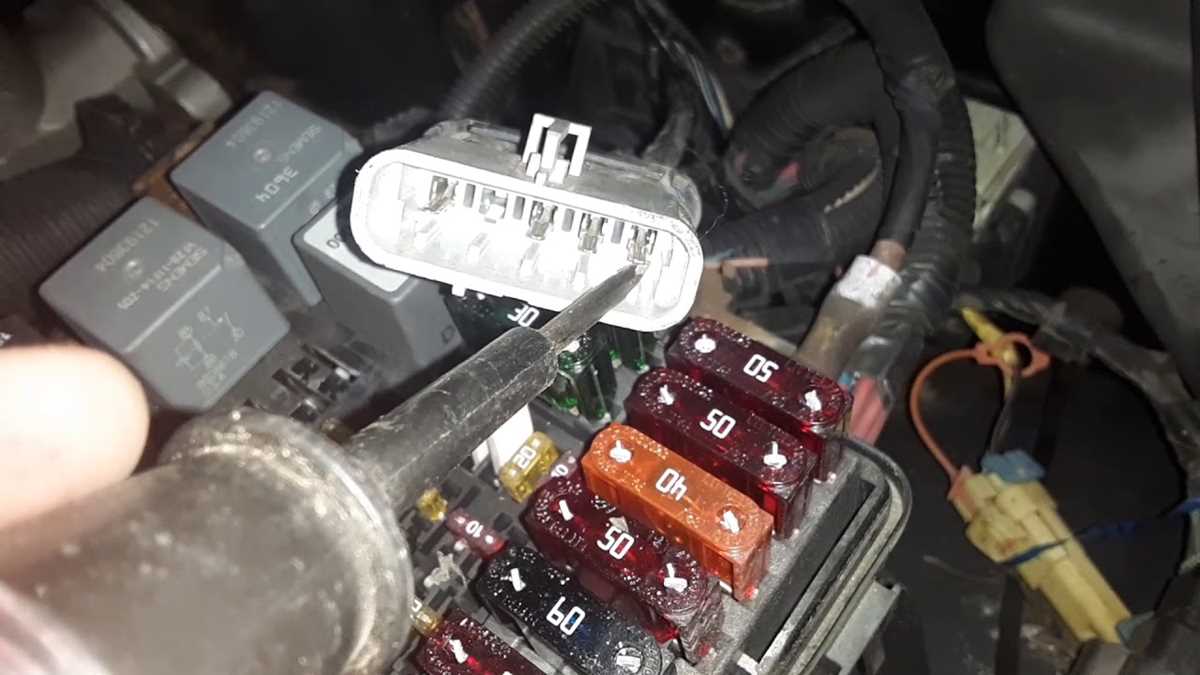

If no voltage is detected, inspect the fuse panel located under the dashboard. For most variants produced between 2007–2014, fuse F5 (15A) governs the rear lamp circuits, while F6 (10A) handles the brake and hazard signals. Use a fuse tester or substitute with a known-good fuse to rule out failure. For models equipped with trailer wiring, ensure the integrated controller isn’t diverting current; disconnect the trailer plug at the rear bumper to isolate the issue.

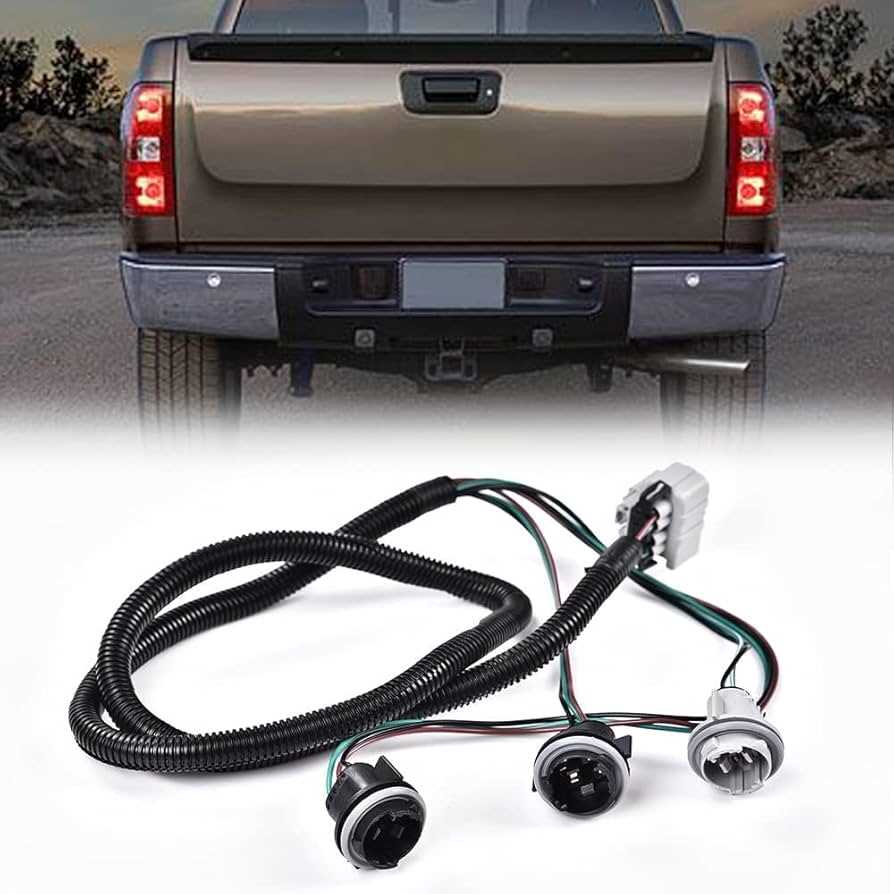

Corrosion at the wiring harness connectors is a frequent failure point, particularly in regions with high road salt exposure. Disconnect the plug at the assembly and examine the pins for oxidation or pitting. Clean contacts with a wire brush or electrical contact cleaner, then apply dielectric grease before reconnecting. If the socket itself is damaged, replacement units are available under OEM part numbers 22851607 (left) and 22851608 (right), though aftermarket alternatives may lack exact pin layouts–verify compatibility with a pinout diagram specific to your build year.
For vehicles with factory trailer prep packages, the circuit may include a load-equalizing module, which can interfere with signal continuity. Locate the module (usually behind the rear bumper or under the spare tire carrier) and probe its output wires while activating the brake and turn signals. If the module fails to deliver consistent voltage, bypass it temporarily by connecting the trailer harness directly to the vehicle’s circuits–this confirms whether the module is the root cause. Permanent solutions include module replacement or hardwiring the lamps to bypass the load manager entirely.
When retrofitting aftermarket components, avoid splicing into the main harness. Instead, use T-tap connectors or pigtail adapters designed for the OEM plug. For LED upgrades, ensure the selected bulbs have built-in resistors or load simulators, as the factory circuits are calibrated for incandescent loads and may trigger hyperflash or error codes without proper compensation. If trouble persists, trace the wiring from the lamp socket back to the body control module (BCM), checking for chafed wires near suspension components or frame crossmembers.
Understanding Rear Illumination Circuit Schematics for 2014-2022 Full-Size Pickup Models
Locate the brown wire in the vehicle’s harness–this carries the running lamp power supply. For models equipped with LED assemblies, verify voltage at the connector pins using a multimeter set to DC 12V range. A reading outside 11.8-12.4 volts indicates a failing body control module or corroded ground near the rear bumper mounting bolt (GM service bulletin #PIT5510D). Replace the 15-amp fuse labeled “RL” if intermittent flickering occurs during rainy conditions, as moisture ingress often triggers false fault codes in the BCM.
Trace the purple-striped conductor responsible for brake activation–this wire terminates at the left assembly’s dual-function bulb socket (part #22839323). Splice repair requires crimp connectors meeting GM specification GMW3326; avoid solder-only joints due to vibration fatigue. For trailer wiring integration, use a relay (ACDelco AR507) between the vehicle’s brake signal output and the trailer harness to prevent voltage drop exceeding 0.5V during simultaneous trailer and cargo lamp loads.
For aftermarket upgrades, match load resistance–stock bulbs draw 2.1A per side, while LED retrofit modules require 0.35A. Incorrect load values may trigger false DTC B251A-00 or illuminate the instrument cluster “Service Trailer” message. Clear stored codes using a bidirectional scanner (Snap-on Zeus or equivalent) after wiring modifications.
Finding Rear Illumination Connector Points on Your Truck
Begin by lowering the spare tire carrier if equipped–most full-size pickup models conceal the primary harness cluster behind it. Use a 10mm socket to remove the two bolts securing the carrier, then tilt it downward to expose the wiring grommet entering the frame rail. The main junction for the rear assembly includes a white 6-pin connector; trace the cables from this point to locate splice points for brake lamps, turn signals, and reverse indicators.
Key Access Points
- Behind rear panel: Remove the interior trim cover on the driver’s side quarter panel to reveal a secondary harness bundle. Look for a black 3-pin connector labeled “LH” (left-hand) or “RH” (right-hand) near the cargo bed edge–this feeds the side marker illumination.
- Frame rail entry: Follow the main loom from the spare tire area toward the rear bumper. A T-tap split directs power to the license plate fixture; this connection is often corroded–inspect terminals for green oxide buildup.
- Bumper assembly: Two 8mm bolts hold the rear fascia; pry the clips free to access the rear-most connectors. A twin-wire pigtail (red/black) supplies the high-mount stop lamp, while a separate 2-pin plug handles fog lamp circuits (if equipped).
For dual-exhaust models, the ground strap attaches to the passenger-side frame rail near the muffler hanger. Clean this point thoroughly–poor grounding is a frequent cause of intermittent faults. Use dielectric grease on all reconnected plugs to prevent moisture ingress.
- Disconnect the negative battery terminal before probing any circuits.
- Label each connector with masking tape before separation to avoid miswiring.
- Test continuity with a multimeter before reattaching trim panels–hidden chafing often occurs near the tailgate hinge area.
Step-by-Step Guide to Diagnosing Rear Lamp Circuits with a Multimeter
Begin by setting your multimeter to the DC voltage range, ideally 20V or higher if testing a 12V automotive system. Probe the ground pin of the socket with the black lead while touching the power pin with the red lead. A reading of 12-14V indicates a functional power feed from the fuse box. If voltage is absent, trace the circuit back to the relay or fuse, checking for corrosion or breaks at connection points.
For bulb continuity testing, switch the multimeter to resistance mode (Ohms). Remove the lamp and place one probe on the socket’s base contact, the other on the side contact. A reading below 5 Ohms confirms a good filament–higher values or infinite resistance signal a blown bulb. Repeat for all filaments (e.g., brake, turn signal). Use a test light to cross-verify ground faults if resistance checks pass but the lamp remains inoperative.
| Component | Multimeter Setting | Expected Reading | Fault Indication |
|---|---|---|---|
| Power pin (socket) | DC 20V | 12-14V | <10V or 0V |
| Ground pin (socket) | DC 20V | 0-0.5V | >0.5V |
| Lamp filament | Ohms (200Ω) | <5Ω | >10Ω or OL |
Isolate ground issues by probing the socket’s ground lead directly at the chassis connection. A 0V reading against the battery negative terminal confirms a clean ground; voltage spikes suggest corrosion or a loose terminal. Clean ground points with a wire brush and dielectric grease before retesting. For stubborn grounds, run a temporary jumper wire from the socket’s ground pin to the battery negative–if the lamp illuminates, the original ground path is faulty.
Check for voltage drops across connectors by probing both sides of a plug with the multimeter in DC voltage mode while the circuit is active. A drop exceeding 0.5V indicates resistance (e.g., oxidized terminals). Disassemble connectors, inspect for green/white corrosion, and apply contact cleaner. Reassemble with dielectric grease. For splices, cut back damaged wiring and resolder joints with heat-shrink tubing to prevent moisture ingress.
Test relay-controlled circuits by removing the relay and probing the socket terminals with the multimeter. Terminals 85 and 86 should show 12V when the circuit is activated; terminals 30 and 87 should pass voltage when the relay clicks. Replace relays that fail to switch–observe a ~5Ω coil resistance between 85/86 for a functional unit. Swap with a known-good relay from an unrelated system (e.g., horn relay) to confirm.
Use the continuity mode to trace wiring breaks. Disconnect the battery, then probe from the lamp socket to the fuse box, listening for the multimeter’s beep. Silence at any point reveals a break–flex wires gently along their path to pinpoint intermittent shorts. For hidden breaks, strip back insulation at 12-inch intervals until the circuit resumes; repair with solder and adhesive-lined heat shrink.
Document every reading and repair step in a spreadsheet or notebook. Compare faulty circuit values to known-good readings (e.g., identical vehicle side or service manual specifications). Prioritize fixes based on voltage drops: address grounds and power feeds before tackling lamp sockets or relays. Retest after each repair–isolate variables to avoid misdiagnosis.
Standard Color Schemes for Pickup Rear Illumination Systems and Their Roles
Locate the brown wire first–it universally carries the running illumination signal in models from 2007 onward. Splice this conductor directly to the bulb socket’s center contact for immediate functionality without relay insertion. Verify polarity with a 12V test lamp before finalizing connections to prevent reverse biasing integrated circuits in the assembly.
Dark green striped cables typically feed brake engagement circuits. Distinct from turn indication inputs, these lines must merge through a pressure switch when integrating aftermarket trailer modules to maintain proportional brightness during towing. Avoid pairing these with amber filaments to eliminate phantom activation in adjacent circuits.
White-striped orange strands govern right-side directional flashes, while their left-side counterparts use solid yellow. Both require fusible links rated at 15A minimum; substitute with 20A only if leveraging LED replacements exceeding 3 ohms resistive load. Isolate these from running lights using Schottky diodes when fabricating custom sequential systems.
Ground paths utilize black or occasionally black-striped wires routed directly to chassis points near the rear bumper. Sand mounting surfaces until bare metal appears–oxidized junctions create voltage drops exceeding 0.5V, triggering diagnostic trouble codes even when illumination appears operational. Employ M8 star washers for corrosion-resistant anchoring.
Purple stripes denote reverse gear detection, activating auxiliary lamps or camera modules. Connect these downstream of the transmission range sensor; tapping into the backup lamp circuit introduces parasitic drain when manually overriding gear selection. Crimp terminals with heat-shrink sleeves to prevent moisture infiltration in high-vibration zones.
Certain trim packages incorporate dual-intensity circuits where light blue wires modulate brightness. These split between the body control module and a dedicated dimmer relay–never bridge them to fixed 12V sources unless replacing the factory switch with an OEM-equivalent rheostat. Transient voltage protectors rated at 40V prevent surge damage from winch operations.
For vehicles equipped with cargo illumination, tan-striped lines activate interior LEDs simultaneously with exterior markers. Disable this feature entirely when installing bed-mounted work lamps by disconnecting the Pin 15 feed from the BCM; reroute to an auxiliary switch fused at 10A to preserve internal lighting functionality.
In hybrid and diesel variants, orange-striped cables manage high-load circuits, including trailer power outlets. These require 12-gauge minimum conductors and must bypass single-filament lamps–employ relay-controlled wiring when retrofitting European-spec assemblies to meet SAE J2863 load ratings.
