Start by checking the coil connection at terminal B. This critical junction links the ignition harness to the distributor assembly, carrying the high-voltage pulse from the amplifier circuit. A loose or corroded terminal here will cause intermittent misfires, particularly under acceleration. Use a multimeter to verify continuity between terminal B and the coil’s negative post–readings should remain stable under 0.5 ohms. Replace the pigtail connector if resistance fluctuates.
The reference signal wire (typically orange) supplies a 5-volt signal from the ECM to the ignition amplifier. This voltage triggers the dwell cycle, determining spark timing. Probe the wire with the engine running–acceptable voltage ranges between 4.5V and 5.2V. Any deviation suggests a faulty ECM output or a grounded circuit. Insulate all splices with heat-shrink tubing, as even minor moisture ingress can corrupt the signal.
Ground integrity is non-negotiable. The amplifier’s black wire must terminate at a dedicated chassis stud, preferably within 12 inches of the mounting location. Scrape paint or rust to bare metal and secure with a star washer for consistent electrical contact. Test for proper grounding by measuring voltage drop across the connection–drops exceeding 0.2V indicate resistance, leading to erratic spark delivery.
Primary power (red wire) should register 12-14V at the amplifier connector with the key in the ON position. Voltage below 11V suggests a deteriorated fuse, corroded relay contacts, or undersized wiring. Upgrade to 12-gauge wire if the original harness shows resistance above 0.1 ohms per foot. Bypass the ignition relay during testing–unexpected voltage loss often traces to this component.
The tach signal (gray wire) outputs a square wave proportional to engine RPM. Capture this waveform with an oscilloscope to assess amplitude (should peak at 9-12V) and frequency (60-70Hz per 1000 RPM). Irregular patterns reveal amplifier failure or damaged pickups inside the distributor. Ensure the varistor (located near the amplifier) is intact–its absence can allow voltage spikes to destroy the amplifier’s switching transistors.
Resist the urge to splice into existing wires. Factory harnesses use stranded copper conductors with Teflon insulation, rated for 200°C. Aftermarket splices often introduce resistance or compatibility issues with high-frequency ignition pulses. When extending circuits, match the gauge and insulation properties exactly. Label all connections with heat shrink markers–miswiring the bypass resistor (pink wire) will falsely trigger diagnostic trouble codes.
GM Ignition Control Assembly: Step-by-Step Connection Instructions

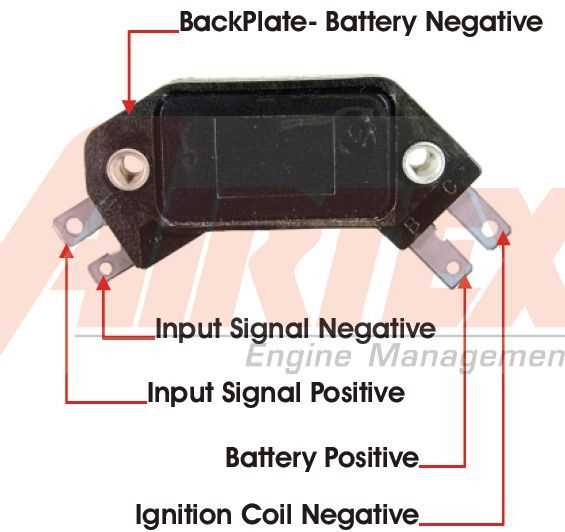

Start by identifying the four primary terminals on the GM ignition control unit: BAT (+12V), ignition switch input, coil negative, and tachometer output. The BAT terminal must connect directly to the battery’s positive post via a 10-gauge wire to ensure uninterrupted power for the internal circuits. Omit any inline fuse here as the unit has built-in protection, but add a 20-amp fuse within 18 inches of the battery if the original harness lacks one.
Attach the ignition switch input terminal to the 12V source from the ignition key’s “run” position. Use a dedicated 16-gauge wire with a crimped ring terminal, soldered for corrosion resistance. Avoid splicing this wire into accessory circuits–voltage drop under load will cause erratic spark cutoff at high RPM. If the vehicle has an aftermarket tachometer, route the signal from the dedicated output terminal, not the coil negative, to prevent signal noise.
For coil connections, link the control unit’s negative terminal to the coil’s negative post. GM specifies a maximum resistance of 1.5 ohms for this path; exceed this and expect misfires above 4,500 RPM. Replace the stock wire with 12-gauge silicone-insulated cable if resistance checks high. The coil’s positive post must tie into the switched ignition feed–never the constant battery line–to prevent coil burnout during prolonged cranking.
- Bypass capacitors: Install a 0.1µF ceramic disc capacitor between the BAT terminal and engine ground, mounted within 2 inches of the control box. This filters voltage spikes from the alternator, which can corrupt the internal timing logic during deceleration.
- Grounding: Scrape paint from the mounting surface and secure the unit with star washers. Poor ground is the leading cause of random stalling; test continuity with a multimeter (
- Distributor pickup: If replacing the stock magnetic pickup, ensure the air gap between the reluctor and sensor remains 0.008–0.012 inches. Use a non-magnetic feeler gauge to verify–magnetized tools distort measurements.

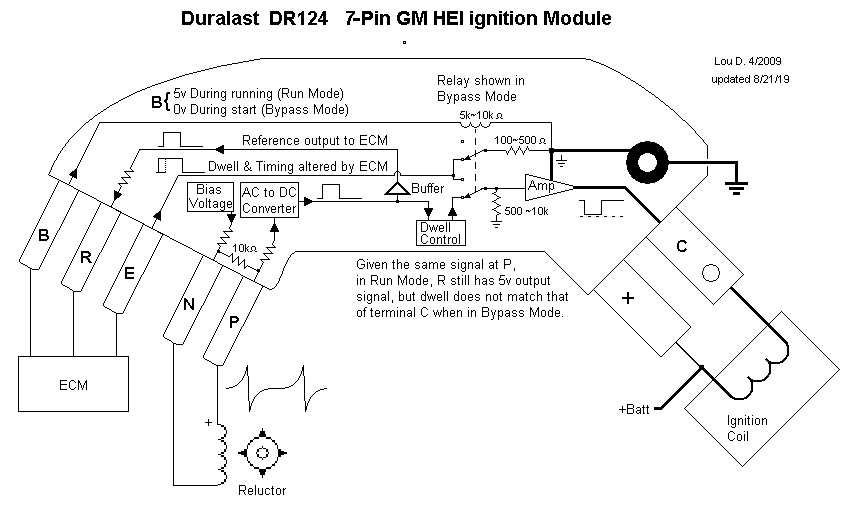

For vehicles with electronic fuel injection, connect the EST (Electronic Spark Timing) terminal to the ECM’s matching pin. Use shielded 18-gauge wire, with the shield grounded only at the ECM end to suppress RF interference. Disconnect this wire temporarily when diagnosing hard starts–if the engine fires, the issue lies in the ECM or its sensors, not the ignition assembly.
When retrofitting to a non-GM system, match the trigger voltage: GM units expect a 5–8V peak-to-peak signal from the distributor. Aftermarket hall-effect sensors may output 12V; adapt with a voltage divider (two 1K-ohm resistors, 1% tolerance) to avoid damaging the control circuitry. Curve shaping resistors (typically 100–500 ohms) may be required if timing advance becomes erratic–refer to service bulletin 86-6E-12 for exact values.
Final verification involves static timing and dynamic tests. Set initial timing at 10° BTDC with the EST wire disconnected and idle speed at 650 RPM. Scope the coil negative terminal: the waveform should show a clean 350V primary collapse with no ringing or oscillating afterpeaks. If present, check for excessive induction from nearby wires or a failing coil. Reconnect the EST wire–timing should advance smoothly to 32°–38° by 3,000 RPM without misfire.
Identifying Key Components in an Ignition System Schematic
Locate the distributor’s pickup coil first–it appears as a paired set of thin, coiled lines connected to two distinct terminals. Most schematics label these terminals “P” and “N” or denote them with a polarity marker (e.g., a dot). Measure resistance across these points: 500–1500 ohms confirms functionality. Replace the assembly if readings fall outside this range or show infinite resistance, as this indicates internal failure.
Trace the primary power feed, typically a thick red wire originating from the ignition switch or fuse panel. Verify a constant 12V supply when the key is in the “ON” position using a multimeter. If voltage drops below 10.5V under load, inspect the battery, alternator output (minimum 13.8V), and ground connections–corrosion at the chassis mount or poor terminal crimps are common culprits. Use dielectric grease on connections to prevent future oxidation.
Critical Sensors and Trigger Points
- Ignition Control Unit: Identify the 4-pin connector linking the distributor to the ECU. Terminal labels often include “B” (battery), “C” (coil), “R” (reluctor), and “G” (ground). Probe the “B” pin for 12V with the key “ON”–absence points to a blown fuse (usually 15A) or open circuit in the harness.
- Coil Assembly: The secondary winding connects to the distributor cap via a high-tension lead. Check for 5–15 kΩ resistance between the coil tower and the positive terminal. Readings above 20 kΩ signal internal degradation; below 3 kΩ suggests shorting, necessitating replacement.
- Ballast Resistor: Some systems include an inline resistor (1.8–2.2 ohms) to limit coil current. Bypass it temporarily–if spark improves, replace the resistor to restore optimal current flow.
Ground paths demand scrutiny: follow the black or green wire from the distributor base to its chassis or engine block attachment. Scrape paint or rust from the mounting surface and secure with a star washer for reliable contact. For diagnostic testing, substitute the distributor ground with a temporary jumper cable connected directly to the battery negative terminal–if performance stabilizes, the original ground path is compromised.
Step-by-Step Guide to Electrical Hookups for High-Energy Ignition Distributor Enhancements
Disconnect the battery’s negative terminal before handling any electrical components to prevent short circuits or accidental sparks. Locate the existing distributor’s coil tower–this is the primary input point for the upgraded ignition setup. Strip ¼ inch of insulation from the end of a 10-gauge silicone-jacketed cable, ensuring the conductor is tinned if using stranded wire to avoid fraying. Attach this to the coil’s positive terminal using a crimp-on ring connector rated for 12 AWG or thicker, secured with a 10mm socket to torque specifications (typically 5–7 Nm).
Route the cable away from moving engine parts and heat sources, using split loom tubing for protection where it passes near exhaust manifolds or sharp edges. Connect the other end to the ignition control unit’s designated output post, verifying polarity–most aftermarket systems label this as “BAT” or “12V+”. For systems requiring a tachometer signal, splice a secondary lead (18–20 AWG) from the coil’s negative terminal to the control box’s tach input, using a scotch-lock connector if the original harness lacks this provision. Ground the control box directly to the engine block with a 6 AWG braided strap, avoiding painted or powder-coated surfaces for optimal conductivity.
| Component | Wire Gauge (AWG) | Connector Type | Torque (Nm) |
|---|---|---|---|
| Coil Positive (+) | 10 | Ring (crimp-on) | 5–7 |
| Ground Strap | 6 | None (direct bolt) | 12–15 |
| Tach Signal | 18–20 | Scotch-lock or butt splice | N/A |
Test the installation with a multimeter set to 20V DC before reconnecting the battery. Probe the coil’s positive terminal–voltage should read 11.5–14.5V with the ignition switched on but the engine off. If readings are absent, check fuse integrity (typically a 15–20A blade fuse in the power distribution block) and crimp connections for continuity. For systems with adjustable timing, connect a timing light to the spark plug lead and verify baseline advance settings (usually 6–10 degrees BTDC at idle) before fine-tuning under load. Replace any corroded or undersized factory harness segments with marine-grade wire to prevent voltage drop under thermal stress.
