Start by locating pinout charts for your specific GM vehicle series–GMLAN (Single Wire) or High-Speed GMLAN protocols dictate the critical data links. For 2007–2014 Chevrolet Silverado 1500 models, verify the X1 connector (24-pin, gray) on the integrated node: pins X1-14 (CAN H) and X1-6 (CAN L) must show 2.5V nominal voltage with an oscilloscope. Deviations超过±0.3V indicate termination resistor failures, commonly traced to faulty splice packs in the IP harness.
Check power distribution at the fuse block underhood–fuse F46UA (10A) supplies ignition-switched power to the central unit. If voltage drops below 11.8V at pin X1-1 (B+), inspect the S230 splice near the junction block; corrosion at this junction disrupts wake-up signals for retained accessory power (RAP). Use a low-ohm meter to confirm resistance below 0.5Ω between X1-1 and fuse F46UA–readings above 2Ω require harness repair.

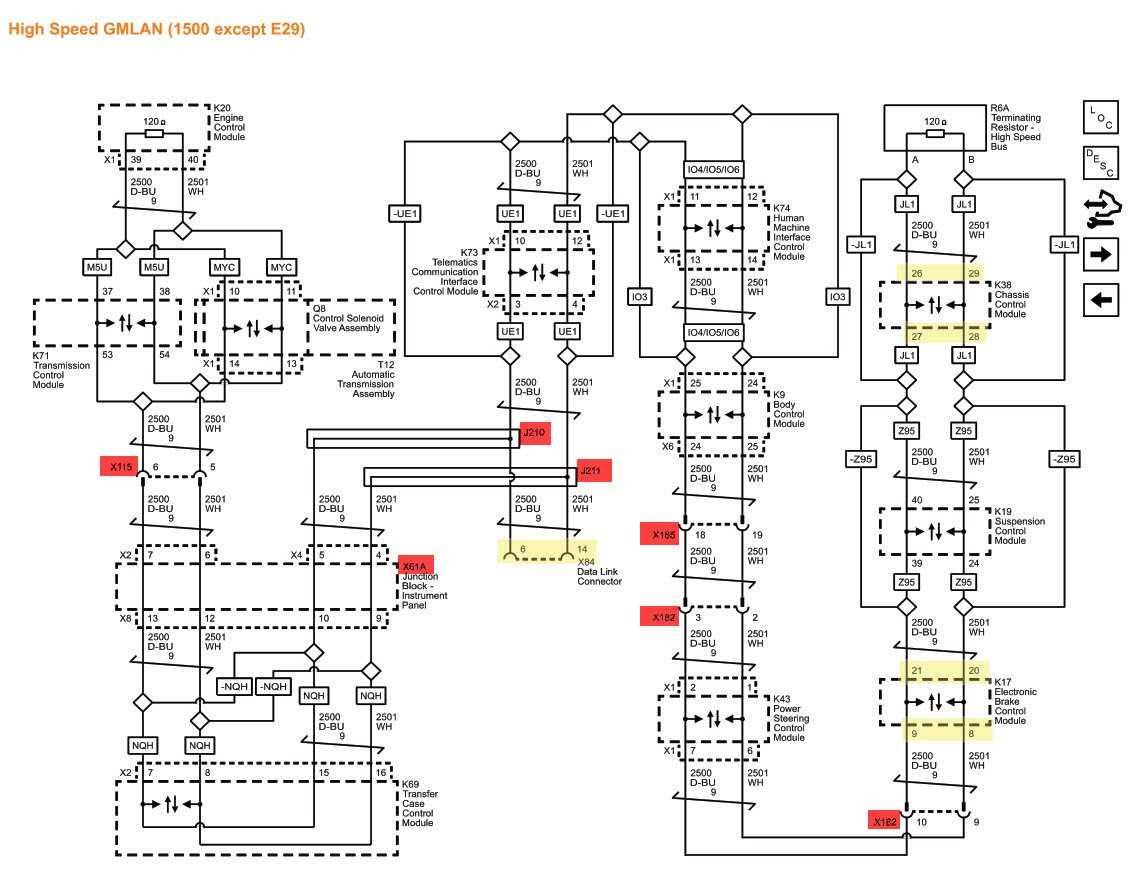

For diagnostic access, connect a Tech 2 scanner via the DLC (OBD-II port) at pin T4 (GMLAN). If communication fails, probe pin X1-14 for a clean square wave (500 kbps for high-speed networks); absent or noisy signals suggest a short to ground, often found in the door jamb harness where wires flex repeatedly. Replace the entire section if chafing is visible.
Ground integrity is non-negotiable–measure digital ground (X1-2) to chassis; resistance must stay under 0.1Ω. For 2010–2016 Buick LaCrosse models, the auxiliary ground stud (G108) corrodes frequently–clean with a wire brush and apply dielectric grease. Misfires in automatic window operation often stem from broken strands in the door hinge bundle, where strands fracture just above the lower hinge pivot.
When replacing the node, ensure calibration verification via GM SPS (Service Programming System). Failure to reflash with the latest VIN-specific calibration can cause inoperative HVAC or faulty DIC (Driver Information Center) displays. For 2015+ Cadillac CTS, the K9 body integration node requires a 12V battery maintainer during programming–voltage dips during flashing corrupt the EEPROM, leading to permanent loss of immobilizer sync.

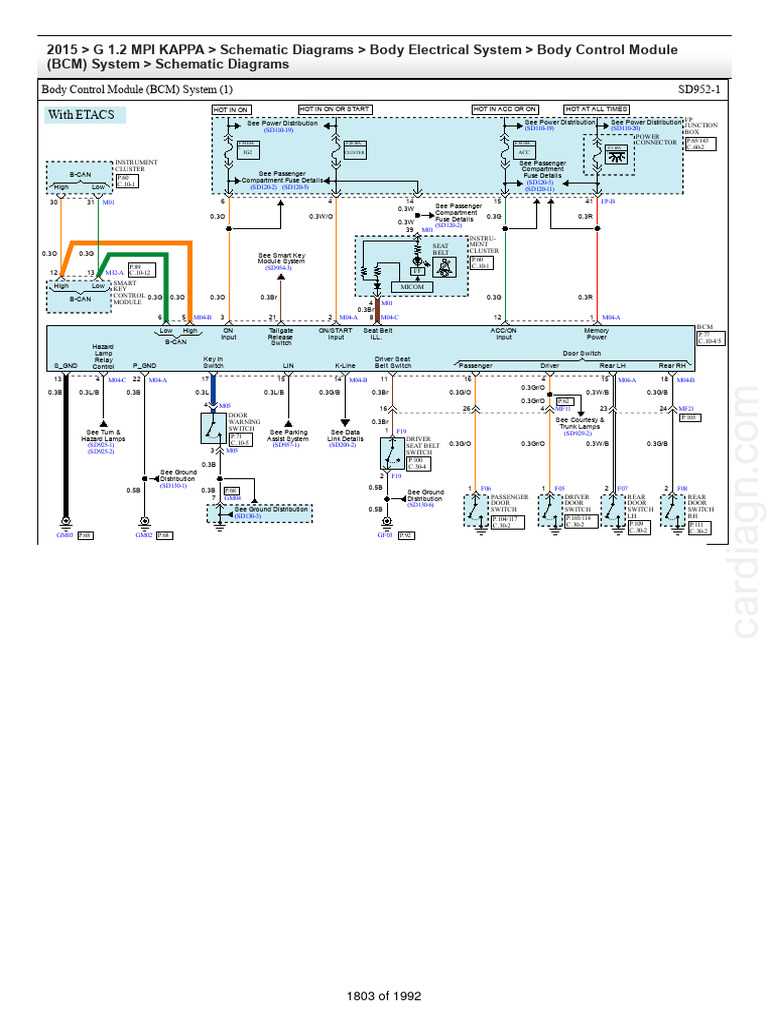

Understanding GM Vehicle Central Unit Electrical Schematics
Begin by locating the main harness connector labeled C1 or C2–these are typically 60-pin interfaces for GM’s electronic integration units. Pin assignments differ by model year; for 2014-2019 Chevrolet Silverado, pin 15 on C1 delivers constant 12V power (fused at 10A), while pin 30 on C2 manages ground return for the data bus. Always cross-reference the build sheet or VIN-specific service manual before probing, as late-model trucks may route additional circuits through these connectors.

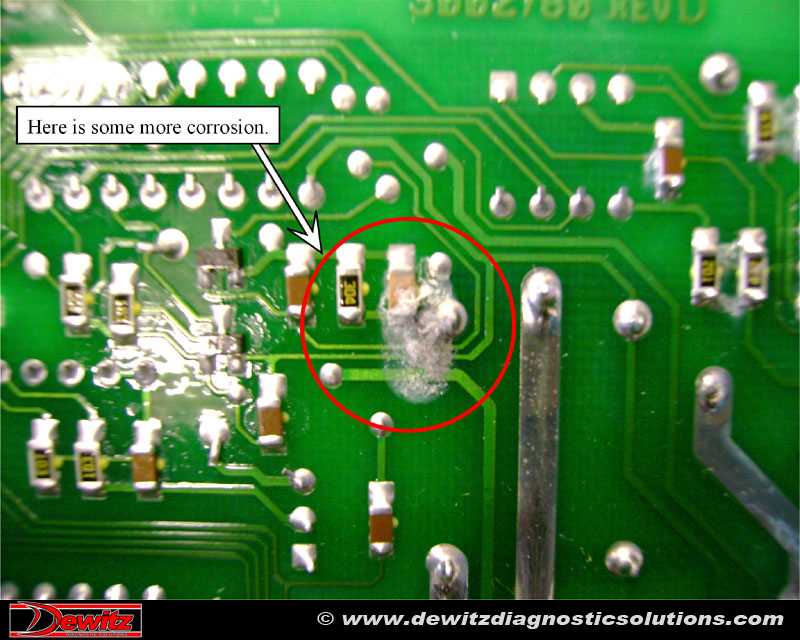

Use a multimeter with a diode test function to verify signal integrity on the Class 2 serial data line (pin 2). A properly functioning circuit should show 0.5-3V DC with brief voltage spikes during communication. If readings exceed 4V, check for shorted traces on the printed circuit board–GM’s units frequently suffer corrosion at the rear terminals where the harness enters the enclosure. Clean contacts with DeoxIT D5, not abrasive compounds, to avoid damaging tin plating.
For troubleshooting intermittent issues like erratic door locks or instrument cluster failures, focus on the accessory delay relay feedback loop. Terminals 85 and 86 on the relay socket receive input from the integration unit, while 30 and 87 supply power to downstream components. Use a 30A relay bypass tool to isolate faults–if symptoms disappear, replace the relay or inspect the circuit board for cracked solder joints at the relay driver transistor (usually a ZXMN3A01FHTA).
Critical safety circuits, such as theft deterrent or high-beam feedback, rely on twisted-pair wiring to reduce EMI. Measure resistance between pin pairs (e.g., pins 5/6 and 29/30 on C1)–readings should fall between 50-120 ohms. Values above 200 ohms indicate broken strands or corroded splices, typically found within 12 inches of the rear bumper harness on SUVs. Repair with heat-shrink butt connectors crimped at 18-22 in-lbs, never solder alone, as vibration causes fatigue failures over time.
When retrofitting aftermarket components like remote start, avoid tapping into the CAN bus at points marked “Bus L” or “Bus H.” Instead, use the auxiliary output circuit (pin 14 on C2 for 2007-2013 GMC Sierra) with a 200Ω current-limiting resistor. GM’s factory schematic shows this circuit rated for 250mA continuous draw, though practical testing suggests 150mA for long-term reliability. Always fuse new connections at the source, not at the integration unit, to prevent fire hazards from melted harness insulation.
- 2020+ Cadillac Escalade uses a dual-core setup–primary unit handles lighting, secondary manages telematics; schematics split across two 80-pin connectors.
- Early Buick Enclave (2008-2012) shares a unique pinout: pin 53 (C1) carries pulsed 5V for rain sensor input, not found in Chevrolet equivalents.
- Voltage drop across ground circuits (pins 16-24) should never exceed 0.1V under load–values above indicate insufficient wire gauge or corroded chassis grounding.
Identifying Common BCU Connector Pinouts for Key GM Vehicle Lines

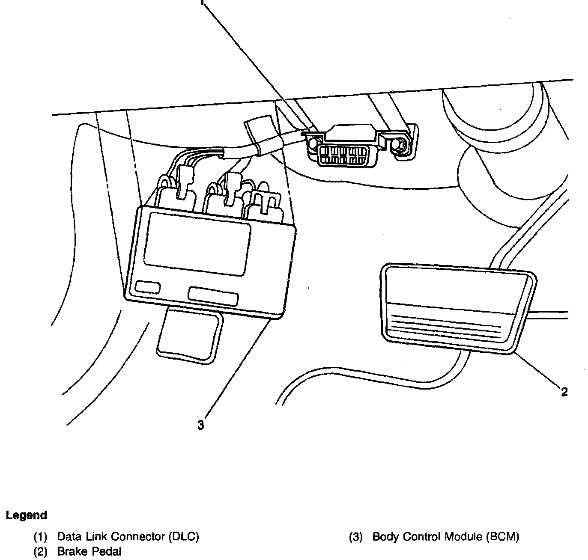

Start by locating the primary 80- or 120-pin multiport on the central unit–typically positioned beneath the dashboard on the driver’s side. GM’s C1 connector (black) handles most low-speed CAN and power distribution, while the C2 (gray) and C3 (white) interfaces manage high-speed communications and dedicated actuator feeds. Always verify pin numbering from the top row left to right, as labeling conventions vary between production years.
For Chevrolet Silverado and GMC Sierra (2014–2022), pin assignments follow this structure:
| Connector | Pin | Signal Type | Typical Voltage | Diagnostic Notes |
|---|---|---|---|---|
| C1 | 12 | Run/Crank Sense | 12.0V IGN | Check fuse 27 (10A) if no voltage |
| C1 | 30 | Ground | 0.0V | Splice to chassis ground at G101 |
| C2 | 47 | High-Speed CAN+ | 2.5V nominal | Orion yellow/black stripe |
| C2 | 48 | High-Speed CAN- | 2.5V nominal | Termination resistor at DLC |
| C3 | 14 | Fog Lamp Relay | 12.0V | Controlled via K18 relay |
Buick Enclave and Chevrolet Traverse (2017+) share an identical layout, but the C3 connector adds pins 8 and 9 for adaptive cruise interface. Use a digital multimeter set to diode mode to confirm continuity–open circuits here often trace to broken splice packs at the front bumper harness.
Cadillac Escalade and Yukon Denali (2015–2023) employ a 104-pin variant with distinct ignition cycle pins:
| Connector | Pin | Signal Type | Wire Gauge |
|---|---|---|---|
| C1 | 84 | Retained Accessory Power | 18 AWG |
| C1 | 85 | Battery Sense | 20 AWG |
| C2 | 63 | Keyless Entry Antenna |
If diagnosing intermittent start failures on these models, probe C1-38 (starter request); resistance above 0.5 ohms indicates a corroded junction at the under-hood splice block. Always disconnect the battery before probing power pins to avoid shorts that trigger non-resettable fault codes in the SPS programming.
For pre-2014 GMT900 platforms (Silverado 2500HD, Tahoe Hybrid), the C2 interface consolidates park lamp and trailer brake outputs into pins 52–56. Measure voltage drop across C1-18 (trailer brake output) under load–values above 0.3V suggest a defective output transistor, requiring unit replacement. Retain original coding values during reprogramming to maintain adaptive learning parameters.
Color codes repeat across GM divisions but interpret them critically: “DK GRN” always denotes ground returns, while “LT BLU” consistently identifies Class 2 serial data. Always cross-reference against service manual revisions–mid-cycle updates (e.g., 2019.5 Traverse) introduced silent pin swaps that void earlier schematics.
Step-by-Step Guide to Tracing Vehicle Central Unit Power and Ground Paths
Locate the fuse box first–typically under the dashboard or in the engine bay. Use a multimeter set to 20V DC to verify voltage at the fuse terminals supplying the central unit. Probe the input side of the fuse while the ignition is off; expect 0V. Turn the key to the ON position and recheck–readings should match battery voltage (12.6–13.2V). If inconsistent, trace the feed wire back to its source: battery, ignition switch, or relay.
Check ground connections immediately after confirming power. Identify the central unit’s grounding points, often listed in schematics as G101, G203, etc. Clean corrosion from the chassis studs using a wire brush, then securely reattach the eyelet. Measure voltage drop between the unit’s ground terminal and the negative battery post–ideally under 0.1V. Exceeding 0.2V indicates resistance; reroute the strap or add a secondary grounding cable (minimum 8 AWG) to a clean metal surface.
For relay-controlled circuits, remove the relay and use a jumper wire to bridge terminals 30 and 87. Listen for clicks or observe component activation. If confirmed, test coil voltage (terminals 85/86) with the ignition ON–standard 12V should appear. Absent power suggests a faulty ignition feed or broken control wire; follow the path upstream, inspecting connectors (especially Weather-Pack sealed types) for bent pins or green oxidation. Replace terminals if compression damage is visible.
Advanced Diagnostics
When voltage persists after ignition OFF, suspect parasitic drain. Disconnect fuses one-by-one while monitoring current draw with a clamp meter (set to 20mA scale). A sudden drop pinpoints the culprit circuit. If draw remains, isolate the central unit by disconnecting its harness–if current drops significantly, the unit itself may be faulty. Always recheck connections with a torque wrench (spec: 8–10 lb-ft) to prevent intermittent high-resistance failures.
