For a GM vehicle, use the standard color-coded wiring scheme to avoid grounding faults or reverse polarity. The yellow wire handles the left turn signal and brake light, while the green wire controls the right side. The brown lead supplies tail lights, and the white cable serves as the ground–always secure it to a clean, unpainted metal surface.
Connect the blue conductor to the electric brake circuit, ensuring the controller matches the trailer’s requirements. For a 7-pin setup, the black lead delivers 12V auxiliary power–fuse it with a 20-amp breaker to prevent overloads. The red wire is reserved for backup lights or reverse signals; verify its function with a multimeter before finalizing connections.
Test each connection with a voltage tester before securing the connector. Use heat-shrink tubing or dielectric grease to seal exposed terminals against moisture. For GM platforms like Silverado or Sierra, cross-reference the vehicle’s manual–some models (e.g., 2015+) may require a relay for the auxiliary circuit.
Avoid twisting wires together; instead, use crimp connectors or solder joints for durability. If LED lights are involved, confirm the voltage drop doesn’t exceed 0.5V across the circuit. Incorrect wiring risks damaging the module–follow the GM-approved diagram meticulously.

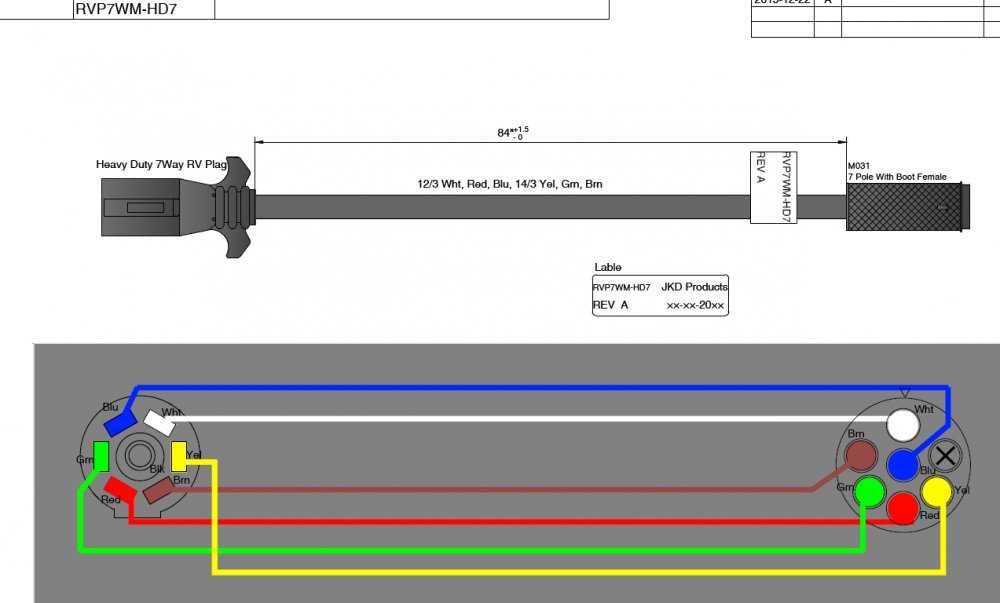

GM 7-Pin Connector Color Coding and Terminal Functions
Start by verifying the pin assignments on your vehicle’s harness against the standard GM layout. The central post (pin 1) carries the ground signal–ensure it’s securely fastened to a clean, corrosion-free chassis point. A weak or oxidized connection here causes intermittent brake or lighting failures.
For towing setups under 3,500 lbs (1,588 kg), use only the essential circuits: brown (running lights), yellow (left turn/brake), green (right turn/brake), and white (ground). Larger rigs requiring auxiliary functions must include blue (electric brakes) and purple (reverse lights). Red (12V auxiliary power) is optional unless powering a cargo liftgate or interior fixtures.
| Pin | Color | Function | Max Current (A) | Wire Gauge (AWG) |
|---|---|---|---|---|
| 1 | White | Ground | 20 | 10 |
| 2 | Blue | Electric brakes | 25 | 12 |
| 3 | Brown | Marker lights | 5 | 16 |
| 4 | Yellow | Left turn/stop signal | 12 | 14 |
| 5 | Green | Right turn/stop signal | 12 | 14 |
| 6 | Red | Auxiliary power | 15 | 14 |
| 7 | Purple | Reverse lights | 4 | 18 |
Strip 5/16″ (8 mm) of insulation from each conductor before inserting into the socket. Crimp terminals using weatherproof connectors rated for SAE J1662. Tin the strands if soldering; heat shrink tube provides strain relief and moisture resistance. Avoid twisting wires inside the coupler–this creates stress points that fail under vibration.
Test each circuit with a digital multimeter set to DC voltage before connecting the rig. Probe between the ground (white) and target pin: 12V ±0.5V indicates a healthy circuit, while readings below 11.8V suggest resistance from corroded connectors or undersized wiring. Replace any wire showing brittleness or frayed strands; GM specifies Type GPT or TWP insulation for flexibility and abrasion resistance.
Install a circuit breaker or fuse inline with the red auxiliary line if exceeding 10A continuous draw. Mount the breaker within 7″ (18 cm) of the battery to protect the entire harness. For brake controllers, calibrate gain settings using a smooth, gradual stop from 25 mph (40 km/h)–adjust until wheels just begin to drag without locking. GM brake modules default to a 0.5-second delay for smooth activation.
Seal the connection block with dielectric grease after assembly. Route wires away from hot exhaust components and suspension travel zones. Secure with 4″ (10 cm) nylon ties spaced at 12″ (30 cm) intervals–steel ties chafe insulation over time. Verify all functions with the rig fully loaded; payload shifts often reveal marginal connections unnoticed during light testing.
Decoding GM 7-Pin Connector Color Standards
Always verify the pinout against GM’s official service manual before splicing wires; factory color schemes can vary across model years (2000–2023). White leads carry ground, but some late-model SUVs use a black-striped white conductor for chassis return–swap only if confirmed with a multimeter.
- Brown: Running lights (clearance/side markers). Test with a 12V probe; corrosion here dims rear visibility.
- Yellow: Left turn/stop. If flashing syncs with brake pedal, splice directly–aftermarket adapters often reverse this circuit.
- Green: Right turn/stop. Separate from auxiliary circuits (e.g., camper brakes) using a relocatable harness.
- Blue: Electric brake output. Requires a controller; bypass isolates surge protectors–irreversible without a new module.
- Red: 12V auxiliary power. Fuse at 20A; heavier gauge prevents voltage drop under winch loads.
- Black: Battery charge. Dedicated 6-gauge cable avoids parasitic drain; heat-shrink terminals mandatory.
For hybrid pickups (Silverado 2500HD), orange 10-gauge wires replace red–trace back to the fusebox using a continuity tester. Dodge any “universal” adapters mismatching these colors; splices degrade within 18 months under vibration.
Label each harness segment with shrink-wrap tags after soldering. Avoid twist-and-tape: use waterproof butt connectors rated for -40°C to 105°C. For lifted trucks, extend ground cables to frame rails–bed-mounted ports corrode first.
Replace any discolored pins immediately; purple oxidation (usually from aftermarket lighting) spreads to adjacent circuits within weeks. For fifth-wheel setups, isolate the black circuit with a 30A breaker–direct battery connection voids OEM warranty.

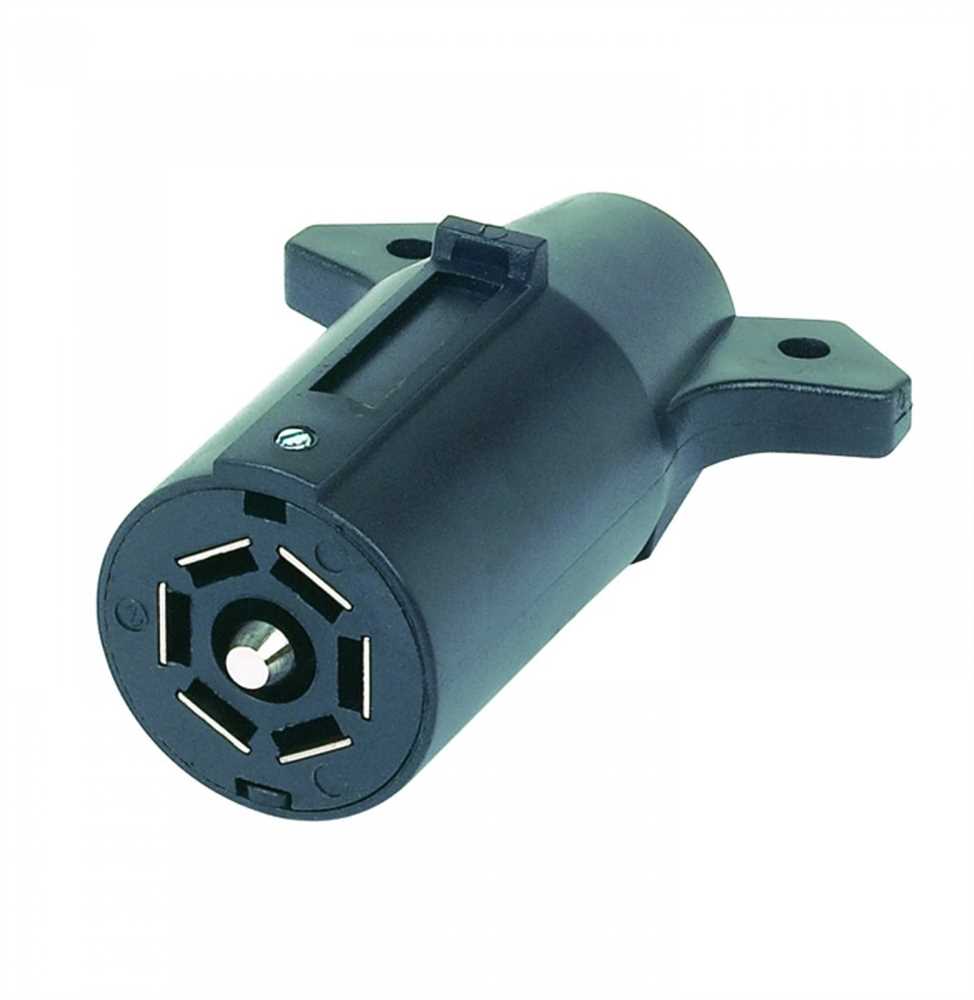

Step-by-Step Guide to Connecting a GM 7-Pin Vehicle Outlet
Begin with verifying the vehicle’s existing harness matches the standard GM pinout: white (ground), black (12V power), brown (marker/running lights), yellow (left turn/brake), green (right turn/brake), blue (electric brakes), and red (auxiliary/back-up). Strip ¼ inch of insulation from each wire end, ensuring no bare copper strands touch adjacent terminals. Use a multimeter set to continuity mode to confirm the correct pin assignments against the vehicle’s fuse box–mismatched connections risk damaging the brake controller or lighting circuits. Secure each connection with crimp connectors rated for at least 16 AWG wire, then solder the joints for durability before covering with heat-shrink tubing.

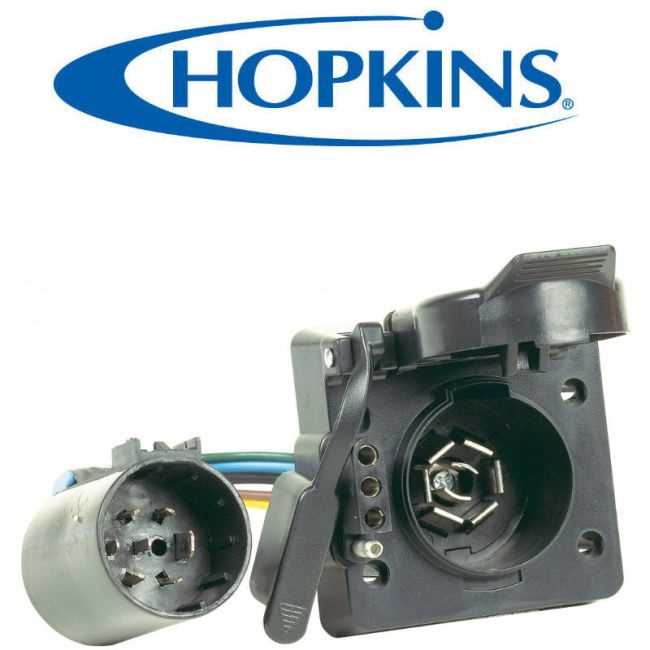

Mount the socket bracket to a rigid frame member near the hitch, avoiding areas prone to water pooling or road debris. Route the harness through a protective conduit if exposed sections exceed 12 inches–GM recommends split loom tubing for lengths over 6 inches. Test each circuit with a 12V test light: activate the turn signals, brakes, and running lights independently to confirm proper voltage (12.6–13.8V under load). For electric brake systems, pair the blue wire to a compatible controller adjuster, setting gain between 3.5–6.0 ohms for trailers under 5,000 lbs. Recheck all connections after 50 miles of towing to detect loosened terminals.
Common Faults and Diagnostics in GM 7-Pin Vehicle-Connector Systems
Check for corrosion first–especially on contact points exposed to road salt or moisture. Clean terminals with a brass brush or fine-grit sandpaper, then apply dielectric grease to prevent future oxidation. Corrosion is the most frequent cause of intermittent power loss or flickering lights, even if the harness appears intact.
Verify voltage at each terminal using a multimeter set to DC 12V. Test between the ground pin (typically pin C) and each active terminal. A reading below 11V indicates either a weak battery, faulty fuse, or a break in the circuit. Replace blown fuses immediately; they often fail due to short circuits in damaged wires.
Grounding Failures
Poor grounding is a common culprit for erratic behavior in auxiliary systems. Ensure the ground wire is securely fastened to bare metal, free of paint or rust. A weak ground can cause dim lights, non-responsive brakes, or even parasitic battery drain. Use a continuity tester to confirm a solid ground path from the connector to the chassis.
Inspect the cable bundle for chafing, especially where it bends near the tow hitch or vehicle frame. Exposed copper strands create shorts, leading to fuse blows or dead circuits. Repair with heat-shrink tubing or electrical tape, but replace the entire harness if damage is extensive.
Test reverse lights by engaging the vehicle’s backup mode. If they remain off, check the associated relay or switch inside the fuse box. GM models often use a dedicated reverse light relay, which can fail silently. Swap with a known-good relay from another circuit to diagnose.
For brake controller malfunctions, confirm the blue wire (brake output) carries voltage only when the controller is activated. A constant 12V signal indicates a short, likely due to improperly routed wires near the suspension or exhaust. Trace the brake wire from the connector to the controller, ensuring no contact with moving parts.
Intermittent Auxiliary Power Loss
If auxiliary circuits (like 12V power or charging lines) drop out under load, suspect a weak alternator or voltage drop across connections. Measure voltage at the auxiliary pin under both idle and high RPM conditions. A drop greater than 0.5V suggests loose terminals or undersized wiring. Upgrade the power wire gauge if consistent voltage issues persist.
For non-functional turn signals, test the flasher relay and switch first. GM vehicles often integrate the flasher into the body control module, so a scan tool may be needed to pull trouble codes. Replace bulbs only after confirming continuous power at the socket; LED bulbs require a load resistor if the vehicle’s computer triggers false bulb-out warnings.
