Connect the brown circuit to running lights on the rear assembly–position 7 on the plug. Verify voltage at 12V when headlights activate; a drop below 10.5V signals corrosion in terminals or harness. Skip solderless connectors–they loosen under vibration. Use heat-shrink crimps rated for 20A minimum. Replace factory wiring if insulation shows cracking; GM harnesses degrade after 8 years, even unused.
Ground termination must be direct to the chassis, not through painted surfaces or bolts shared with other components. Scrape off undercoating and phosphate primer at the contact point; a star washer improves conductivity. Test with a multimeter: 0.2Ω or lower between pin 1 and any bare metal point confirms reliable grounding. Higher resistance causes intermittent lighting failures, especially in brake circuits.
Yellow circuit controls left turn/brake signals, green handles the right side–crossing these wires results in erratic flash patterns or non-functional stop lights. Use a digital probe to trace signals back to the vehicle fuse block: yellow should align with terminal A, green with B. Fuse ratings differ: 15A for lighting, 20A for charging circuits. Replace blown fuses immediately; repeated failures indicate a short in the auxiliary harness.
For auxiliary power (blue circuit), limit draw to 30W continuous. Exceeding this trips the 120Ω relay in GM’s current limiter. Wire directly to the battery if drawing more than 5A; factory harnesses use 18AWG wire, insufficient for winches or compressors. Install a relay with 40A contacts; sidestep the factory switch if controlling high-load devices.
Test circuits with a load simulator–a 55W bulb replicating lamp resistance prevents false positives during multimeter checks. Voltage should hold steady at 13.8–14.4V while the engine runs; lower readings identify alternator issues or corroded connection points. Clean terminals with a brass brush; dielectric grease prevents re-corrosion. Replace harness sections showing green oxidation–common at connector backs.
Align the plug housing precisely before inserting contacts. Misaligned shells force pins apart, causing intermittent disconnects. Use GM’s OEM 13058585 connector for replacements–aftermarket versions lack proper pin retention. Crimp terminals with a ratcheting tool; tug test each wire at 25 lbs. Loose connections generate heat, melting plastic around contacts within 1,000 miles.

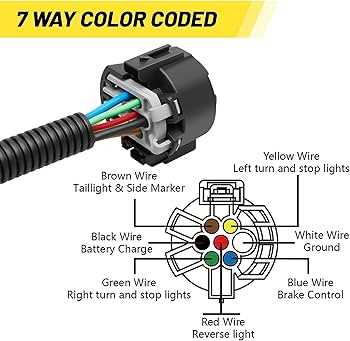

Understanding GM’s 7-Point Connector Layout for Towing
Always verify the connector’s color-coded cables match GM’s factory standard: brown for running lights, yellow for left turn/brake, green for right turn/brake, white for ground, blue for auxiliary power, red for brake control, and black for 12V+ charge line. Cross-check these against the vehicle’s service manual–specifically the wiring harness section under “tow package”–to confirm any model-year variations, as some 2016+ Silverado/Sierra trucks reroute the brake signal through the red cable instead of blue.
Test each circuit with a multimeter before hitching; set to 12V DC and probe the corresponding terminal while activating vehicle lights or brakes. A missing or weak signal on the brake controller circuit (typically the red lead in factory setups) indicates a faulty relay or corrosion in the under-hood fuse box, requiring replacement of the “Trailer Brake” fuse or a relay swap. Avoid splicing into existing wires–GM’s OEM harness uses 16-gauge wire for lighting and 12-gauge for power, and any modifications should match these gauges to prevent voltage drop over 15-foot extensions.
Secure connections using military-grade heat-shrink terminals rated for 20A, not standard butt connectors, which fail under vibration. For auxiliary circuits (e.g., reverse lights on fifth wheels), locate the empty slot in the connector shell–usually slot 7–and tap into the vehicle’s reverse light wire at the tail light assembly, using a T-tap crimp or soldered splice. Always wrap splices in high-temp loom tubing and route away from moving parts; GM’s wiring bundles are clipped along the frame rail, and improper routing risks chafing against the spare tire or suspension components.
How to Identify the Correct GM 7-Connection Towing Harness Color Codes
Begin by locating the vehicle’s connector plug–typically mounted near the rear bumper or integrated into the factory assembly. GM’s standard color scheme for these leads follows a consistent pattern: brown for running lights, yellow for left turn and brake, green for right turn and brake, white for ground, blue for electric brake output, red for auxiliary power, and black (or purple in some models) for reverse illumination. Cross-reference the wires with a multimeter set to DC voltage–each circuit should register 12V when activated, confirming the correct mapping. Discrepancies often arise in vehicles produced before 2010, where purple may replace black for reverse lights; always verify with the owner’s manual or a GM-specific wiring reference guide.
For aftermarket or replacement harnesses, match the colors precisely–even a single misalignment can disrupt lighting or braking functions. Avoid relying on universal adapters unless they explicitly list GM compatibility; third-party connectors may deviate from the brand’s color standards, leading to shorts or failed circuit protection. If wires appear faded or indistinguishable, strip small sections to expose fresh metal, then test continuity or voltage again. Some installations include a separate gray lead for charge line power; ensure this isn’t confused with the auxiliary red wire, as improper connections risk damaging the vehicle’s electrical system or the towed unit’s components.
Step-by-Step Guide to Diagnosing Faults in a GM 7-Way Vehicle Socket
Start by gathering a multimeter with voltage and continuity testing modes, a test light or probe, and the factory connector layout reference for your vehicle model. Ensure the ignition is off and the tow vehicle is parked safely before proceeding. Locate the socket–typically mounted near the rear bumper–and inspect it for physical damage, corrosion, or debris obstructing contact points.
Set the multimeter to DC voltage (20V range) and connect the black lead to a clean chassis ground, such as an unpainted bolt or the tow hitch frame. With the ignition on (engine off), use the red probe to check each terminal while an assistant activates the corresponding function–brake lights, turn signals, or auxiliary power. Expected readings should match the table below:
| Terminal Position | Function | Expected Voltage (Ignition On) | Expected Voltage (Function Active) |
|---|---|---|---|
| Top center (12 o’clock) | Reverse lamps | 0V | 12V |
| Upper right (3 o’clock) | Right turn/brake | 0V | 12V (flashing) |
| Lower right (5 o’clock) | Electric brakes/12V supply | Varies by setup | 12V (constant or on signal) |
| Bottom center (6 o’clock) | Ground | 0V | 0V (continuity to chassis) |
| Lower left (7 o’clock) | Tail/marker lamps | 0V | 12V |
| Upper left (9 o’clock) | Left turn/brake | 0V | 12V (flashing) |
| Center (optional) | Auxiliary power | 0V or 12V | 12V (if equipped) |
If voltage is absent or inconsistent, switch the multimeter to continuity mode. Disconnect the socket from the vehicle’s harness by releasing the retaining clip. Probe the harness-side terminals while grounding the multimeter’s black lead–each circuit should emit a tone or show near-zero resistance. Silence or high resistance indicates a break in the cable or fuse failure upstream.
For circuits tied to relays–like the brake controller–verify relay operation by swapping it with a known-good unit of the same type. Check the fuse box for blown elements; common amperage ratings include 10A for lighting and 20-30A for auxiliary feeds. Corrosion on terminals can mimic fails–clean contacts with a wire brush and dielectric grease before reassembly.
Test auxiliary feeds (center terminal) under load by connecting a small device–like a 12V bulb–to confirm sustained output. If voltage drops below 11V during activation, inspect the alternator and battery health. For intermittent faults, wiggle the harness gently while monitoring; loose connections often reveal themselves through voltage spikes or drops.
If all in-vehicle checks pass but the issue persists, focus on the tow module (TBCM) or body control module (BCM). Retrieve diagnostic trouble codes (DTCs) using an OBD-II scanner–codes like B1499 or C0750 often point to module-specific output failures. Some GM models require a scan tool to enable trailer lighting cycles; consult service manuals for reset procedures.
Reassemble the connector only after confirming all circuits function as specified. Secure the socket’s dust cap when not in use to prevent moisture ingress. Re-test after 10 minutes of driving to ensure no heat-related failures emerge under prolonged operation.
Tools Required for Installing or Repairing a GM 7-Way Connector System
Start with a digital multimeter rated for 20V DC minimum–Fluke 17B or Klein Tools MM400 are reliable choices. Verify voltage at each contact point before connecting any harness to prevent short circuits or signal loss. Test the vehicle’s output at the connector socket first, then probe the corresponding leads on the adapter. Ground issues are the most common failure; measure resistance between the ground terminal and bare chassis metal–values above 0.5 ohms indicate corrosion or loose connections.
A crimping tool with ratcheting mechanism (like the Wirefy HT-225) ensures secure, gas-tight splices. Use 14-12 AWG heat-shrink butt connectors for all primary feeds; tin-plated copper resists oxidation better than bare steel. For auxiliary circuits (brake controllers or reverse lights), switch to 16-14 AWG depending on load–check the OEM spec sheet for amperage ratings on each circuit. Avoid solder-only joints; vibration loosens them over time. Strip wire insulation to the exact length of the connector’s barrel–excess exposes strands, increasing failure risk.
Specialized Equipment for Diagnosis
Add a load tester (such as the Cen-Tech 7-function model) to simulate trailer demands. Attach it directly to the socket and run each circuit under load–brake outputs should hold steady at 12V under 15A draw. For intermittent faults, use a current probe (Fluke i400) clamped around the feed wire; signal drop under load confirms poor contact or undersized wire. Isolate the issue by back-probing the socket with a breakout harness adapter (TE Connectivity 1481200-1)–this lets you access each lead without cutting the main harness.
For corrosion protection, apply dielectric grease (Permatex 22058) to all contacts after cleaning with a wire brush and electrical contact cleaner (CRC 05103). Cover the socket with a weatherproof boot (Bargman 58-97-001) if exposed to moisture, and secure the harness with zip ties rated for outdoor UV resistance (Panduit PLT-2S-CL). Store spare components in anti-static bags to prevent degradation before installation.
