For a direct replacement in GM vehicles, pin A (typically gray or yellow) connects to the 5V reference output from the ECM, while pin B (usually black or tan) grounds to the chassis. Verify voltage between pins with a multimeter–expect 2.5V at idle, fluctuating to 4.5V at 60 mph. Deviations outside ±0.3V indicate a faulty component or corroded link.
Critical connections: Splice loopback circuits using 18-gauge twisted pair with heat-shrink insulation–never solder alone. Shielded cable reduces RF interference on 1996-2002 Vortec engines. Ignore “universal” aftermarket schematics claiming 12V input; factory GM modules operate on half that voltage.
For 4L60-E transmissions, probe the TCC solenoid side of the harness–terminal C should pulse at 30Hz during lockup. If readings drop below 20Hz, inspect the VSS pickup ring for worn teeth. Replace the entire assembly if missing teeth exceed three, as partial repairs fail within 8,000 miles.
Color codes reverse between powertrain and ABS modules; cross-reference service manuals for your exact build year. ABS harnesses often use a twisted green-red pair, while powertrain variants stick to solid tan-black. Mixing them voids diagnostic clarity.
Test continuity with engine off–resistance should measure 800-1200 ohms across both pins. Values below 600 ohms signal internal shorting; values above 1500 ohms indicate an open loop, usually from a fractured core. Replace the entire pickup unit if anomalies persist after harness inspection.
GM Two-Pin Vehicle Pace Detector Connection Guide
Locate the signal transmitter on the transmission output shaft–typically near the driveshaft flange–for GM vehicles using a dual-lead pace detector. Identify the leads: the signal return (ground) is usually black or striped, while the pulse output matches the powertrain control module (PCM) voltage (5V for most Gen III/IV engines, 12V for older platforms like the 4L60-E). Use a multimeter to verify: probe the pulse lead with the ignition on (engine off)–readings should fluctuate between 0.5V and 4.5V as the reluctor wheel rotates. If static, the device has failed or the reluctor teeth are damaged.
- 1996–2006 LT1/LS1: Pair the pulse output to PCM terminal 55 (gray connector, pin B) for 5V reference. Ground loops through chassis–avoid splicing into fuel pump or injector returns to prevent interference.
- 2007+ FlexFuel (E85) variants: Pulse lead connects to pin 63 (black PCM connector). Confirm grounds via ECM grounds (G101) if drivability issues arise–resistance should not exceed 0.2 ohms.
- Diesel applications (Duramax): Dedicated 12V excitation; splice into orange/black lead (C1 connector, pin 32) with a 22-gauge twisted pair to minimize EMI.
For swapped transmissions (e.g., T56 behind an LS3), fabricate a custom harness using TXL-specified cable (minimum 18AWG for runs over 6 feet). Terminate with Deutsch DT04-2P connectors–crimp using an M22520 crimp tool, then verify pull strength (>10 lbs). If the PCM logs false codes (P0500 series), bypass the IVDS module (if present) by linking the detector output directly to the PCM. Test by logging vehicle pace via OBD-II PID 0x0D (VSS) at 20 MPH–values should sync within ±3% of GPS-derived speed.
Pinpointing Connections on a GM Two-Lead Vehicle Pace Indicator

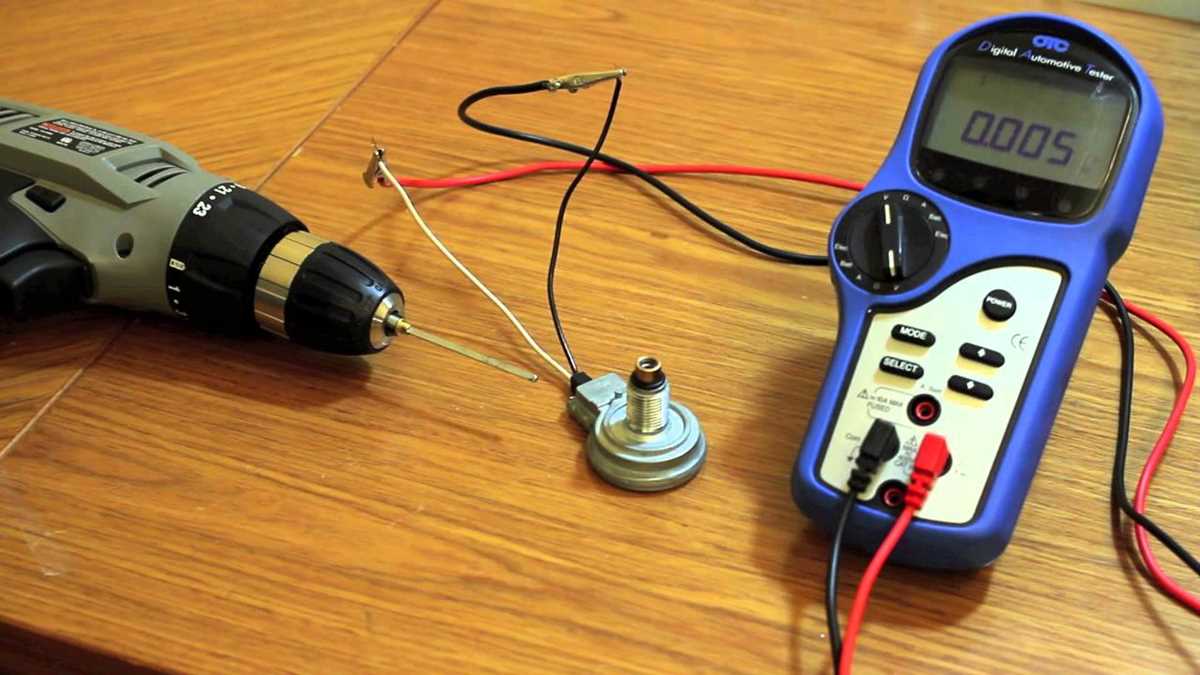

Locate the signal lead first–it typically carries a voltage that fluctuates between 0V and 5V as the transmission shaft rotates. Probe both conductors with a multimeter set to DC voltage while manually spinning the gearbox output shaft; the active line will show pulsing readings, while the reference line remains steady at 0V or ground potential. GM designs often color-code this pair–black for ground, white or gray for the signal–though variations exist across models like the 4L60-E or Tremec T56, so verify with service manuals if colors deviate.

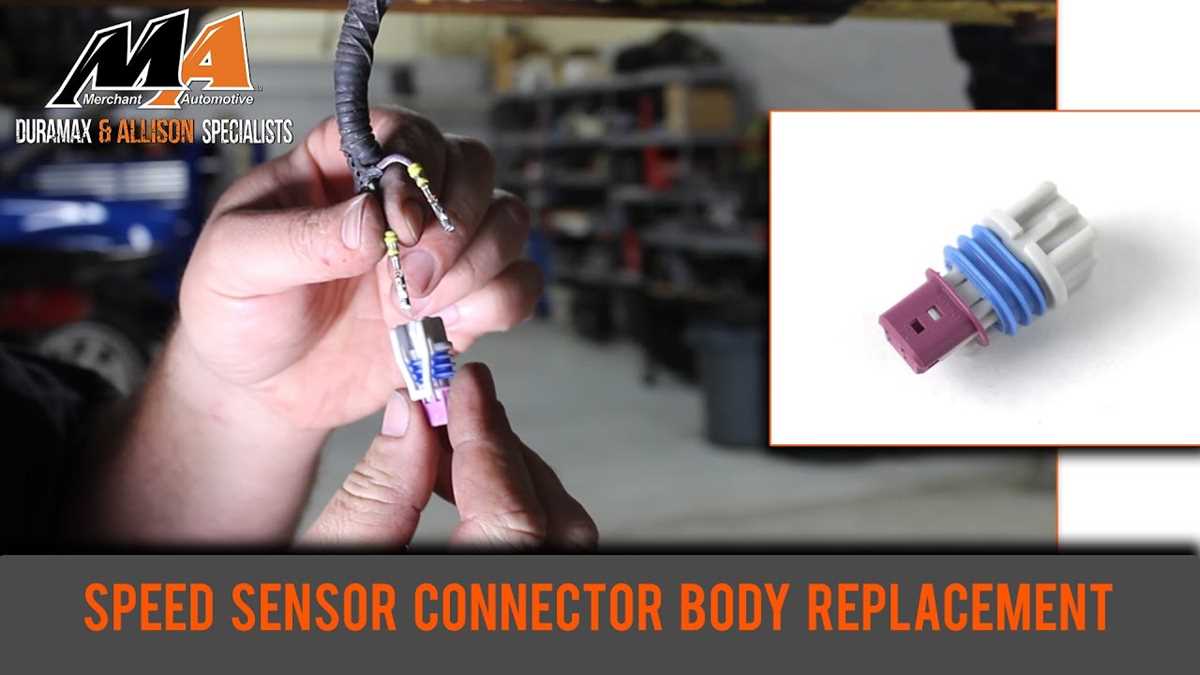

Examine the connector housing for molded markings or stamped numbers like “A” and “B” beside each terminal. If absent, note the pin spacing: the ground contact is usually larger or offset slightly to prevent misinstallation. On some ECM interfaces (e.g., PCM or VCM), Pin A aligns with terminal 58 on the harness, while Pin B connects to terminal 60–cross-reference this with the vehicle’s electrical schematic to avoid transposing polarity.

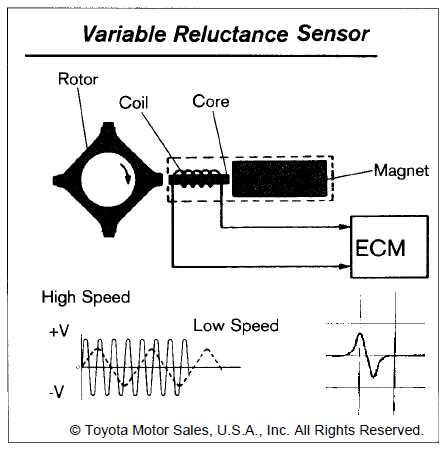

Test continuity by disconnecting the harness and touching one multimeter probe to the bare metal of the transmission case, the other to each lead. A reading near 0 ohms confirms the ground conductor; the remaining lead is the signal path. GM’s reluctance-type units may exhibit intermittent signals if corroded–clean contacts with dielectric grease and confirm 400-1200 ohm resistance between leads before reassembly. Avoid jumper cables, as improper voltage can fry the ECM inputs.
Never assume harness routing. Some models route the ground through the transmission case to the chassis, while others splice it directly to the PCM. In Gen III/IV LS engines, the circuit may integrate with the Vehicle Speed Output (VSO) buffer, requiring a separate 12V ignition feed–trace the loom back to the fuse box if voltage drops below 4.8V under load. For diesel applications (Duramax), an additional shield may surround the pair; strip this cautiously to avoid shorting the shielding to the signal lead.
Document each step with photos or sketches, noting connector orientation, pin depth, and any auxiliary splices. GM’s service bulletins often list revisions–for example, 2004-2006 Silverado 1500s had a batch with reversed polarity due to supplier error. If retrofitting, ensure the new unit’s pulse-per-mile ratio matches the old one (typically 4,000 or 8,000 ppm) to prevent speedometer errors or ABS faults. For confirmation, log live data via OBD-II while driving: the expected signal should mirror wheel rotation at 1:1 ratio within 2% tolerance.
Step-by-Step Connection Guide for GM Two-Terminal Signal Pickup
Connect the transmission output terminal directly to the input pin on the vehicle’s powertrain control module (PCM) marked for signal reception–typically labeled “VSS In” or “Signal+” on a 2000-2007 Chevrolet Silverado 1500. Use a 0.5 mm² stranded copper conductor with a temperature rating of at least 105°C to prevent heat-induced resistance fluctuations.
Ground the second terminal to a clean, unpainted chassis point within 30 cm of the transmission housing. Ensure the connection point is free of corrosion and coated with dielectric grease to maintain consistent impedance below 0.5 ohms. Avoid grounding near high-current sources like starter motors or alternators to prevent signal noise.
For vehicles with manual transmissions, verify the signal polarity before securing connections. Attach a voltmeter to the leads: if the voltage reads 0 V at idle but fluctuates between 1.5–12 V at 60 km/h, the polarity is correct. Reverse leads if the signal remains flat or inverted, as incorrect polarity causes erratic gear-shift patterns or cruise control failures.
Route conductors away from high-voltage ignition components and ABS modules using split loom tubing with a minimum inner diameter of 6 mm. Secure the conduit every 20 cm with nylon zip ties to prevent vibration-induced chafing, which degrades signal integrity over time. Maintain a minimum 5 cm clearance from spark plug wires to avoid electromagnetic interference.
After securing all connections, apply a 5-amp fuse inline with the signal lead–positioned no farther than 15 cm from the PCM–to protect against short circuits. Test the circuit with a scan tool: monitor PID 0x0D (Vehicle Measured Velocity) while driving at steady speeds. Values should match speedometer readings within ±2% tolerance; discrepancies indicate poor grounding or conductor damage.
For aftermarket installations (e.g., standalone ECUs or data loggers), splice into the existing circuit using crimp connectors rated for 20 AWG or thicker. Avoid solder-only joints, as vibration can cause cold solder fractures. Use heat-shrink tubing with adhesive lining to seal splices against moisture ingress.
In systems using a reluctor ring (e.g., GM’s 4L60-E transmission), confirm the ring’s tooth count matches the calibration file in the PCM. A 40-tooth ring requires a different scaling factor than a 32-tooth ring; mismatches cause speedometer errors of 20% or more. Reprogram the PCM if necessary using OEM software like GM Tech2Win or equivalent.
Final validation involves a road test: accelerate to 80 km/h and decelerate abruptly while observing the tachometer and speedometer. Any lag, oscillation, or freezing indicates a weak ground, incorrect polarity, or conductor gauge too thin for the current draw. Repeat the grounding step if anomalies persist.
Common Mistakes When Connecting a GM Two-Lead Vehicle Pace Detector and How to Prevent Them
Reversing polarity on a two-lead pace detector can destroy the component instantly. GM units typically mark the positive lead with a stripe, but color codes vary between models–always verify against the service manual for your specific vehicle. Installing a 1N4007 diode inline with the positive lead adds reverse-voltage protection, though this may introduce a minor voltage drop of 0.7V. Test continuity with a multimeter set to the 200Ω range before finalizing connections to confirm no internal opens exist.
Omitting a pull-up resistor forces the system to rely solely on the ECM’s weak internal bias, leading to erratic signal behavior at highway velocities. A 1 kΩ ¼W resistor between the output lead and +5V stabilizes the pulse train without exceeding the detector’s maximum sink current of 15 mA. Location matters; mount the resistor within 10 cm of the connector to minimize EMI-induced noise from nearby ignition coils or alternator ripple.
Routing the leads parallel to high-current harnesses invites interference that manifests as false speed readings. Separate signal pairs by at least 15 cm from power cables and use twisted-shielded cable with a minimum twist rate of 10 turns per meter. Ground the shield only at the ECM end to prevent ground loops; grounding both ends creates a parasitic current path that can corrupt the signal.
Overlooking connector sealing exposes terminals to moisture, which corrodes contacts within weeks. Apply dielectric grease sparingly–too much can impede conductivity. Crimp terminals using a ratcheting crimper designed for 0.5 mm² conductors; manual tools often compress unevenly, causing intermittent faults under vibration. Verify crimp integrity by tugging with 5 kg of force–any slippage indicates a faulty joint.
A single poorly soldered joint acts like a thermal fuse, failing under temperature cycles. Use 60/40 rosin-core solder and a temperature-controlled iron set to 350 °C–exceeding 400 °C risks damaging the internal PCB traces. Solder duration should not exceed 3 seconds per joint; prolonged heat dissolves the copper plating, increasing resistance. After soldering, clean flux residue with isopropyl alcohol greater than 90% purity to prevent conductive pathways forming over time.
