Install a double-pole breaker rated for 30–50 amps, depending on the model’s output capacity. Use 10 AWG copper wire for most residential units under 12 kW; upsize to 6 AWG for higher loads. Route cables through non-flexible conduit–either EMT or schedule 40 PVC–secured at 4-foot intervals to prevent sagging. Label every conductor at both ends: neutral (white), hot (black or red), and ground (green or bare).
Avoid using back-fed breakers in a subpanel if the main service panel lacks interlocking capability. Instead, install a separate transfer switch rated for the unit’s amperage. Mount the switch within 10 feet of the system to minimize voltage drop. Connect the neutral bond to the ground bar only at the service disconnect, never at both ends.
Test continuity before energizing. Use a multimeter to confirm less than 0.1 ohms across the ground path. Verify that the phase conductors measure 220–240V AC between each other. If readings deviate, recheck connections at the terminal block–loose lugs cause overheating. Never splice wires inside conduit; all joins must occur in accessible junction boxes.
For units with electric start, run a dedicated 12V circuit from a deep-cycle battery. Use 12 AWG fused link to prevent shorts. Ground the frame to the house ground rod with a #6 solid copper wire, bonded at both ends. Document each step in a diagram kept near the installation–include breaker positions, wire gauges, and conduit routing for future reference.
If the system includes load shedding, prioritize circuits: hardwire critical appliances (freezer, furnace) to dedicated breakers, while non-essentials (water heater, AC) share a single line. Use time-delay relays to avoid overloading during startup. Check local codes–some jurisdictions require licensed electricians for installations over 12 kW.
Understanding Your Automatic Backup Power System Electrical Layout
Always disconnect the main utility supply before inspecting connections. Locate the transfer switch–typically installed near the service panel–and verify its compatibility with your unit’s amperage rating. Mismatched ratings can trip breakers or damage components. Check the marking on the switch: 100-amp models work with 12-16kW units, while 200-amp switches pair with 20kW and larger.
Install a dedicated grounding rod for the standby system, separate from the home’s grounding electrode. Drive the rod at least 8 feet into soil with resistivity below 25 ohms. Connect it to the system’s ground bus using 6 AWG copper wire, protected by conduit outdoors. Avoid shared grounding paths to prevent feedback currents during surges or faults.
Key Connection Points
- Battery terminals: Use 4 AWG cables for 22-24kW units, 2 AWG for sizes below 18kW. Corrosion on terminals causes voltage drops–clean monthly with a wire brush and apply dielectric grease.
- Neutral bond: In portable sub-panel configurations, remove the bond from the transfer switch and relocate it to the main panel. This prevents parallel paths during grid operation.
- Control board: Digital controllers require stable 12VDC–test voltage at the board with a multimeter (range: 12.6-13.8V). Below 12V triggers low-voltage alarms; above 14V damages circuitry.
Route power cables through liquid-tight conduit between the unit and transfer switch. Use 90°C-rated, sunlight-resistant wire for outdoor segments. Secure cables every 18 inches with UV-stable straps, avoiding sharp edges that can chafe insulation. For overhead runs, maintain 12-inch clearance from roofs and 3 feet from doors/windows. Underground installations require Schedule 40 PVC and burial depth of 18 inches.
Label every conductor at both ends per NEC 408.4:
- Line 1 (L1), Line 2 (L2) – black/red
- Neutral (N) – white or gray
- Ground (G) – green or bare
- Control wires – blue, yellow, or purple (mark with function, e.g., “Exercise Signal” or “Remote Start”)
Verify torque specs on terminal screws: 15-18 in-lbs for stranded wire, 20-25 in-lbs for solid copper. Loose connections create hotspots, leading to melted terminals or intermittent faults.

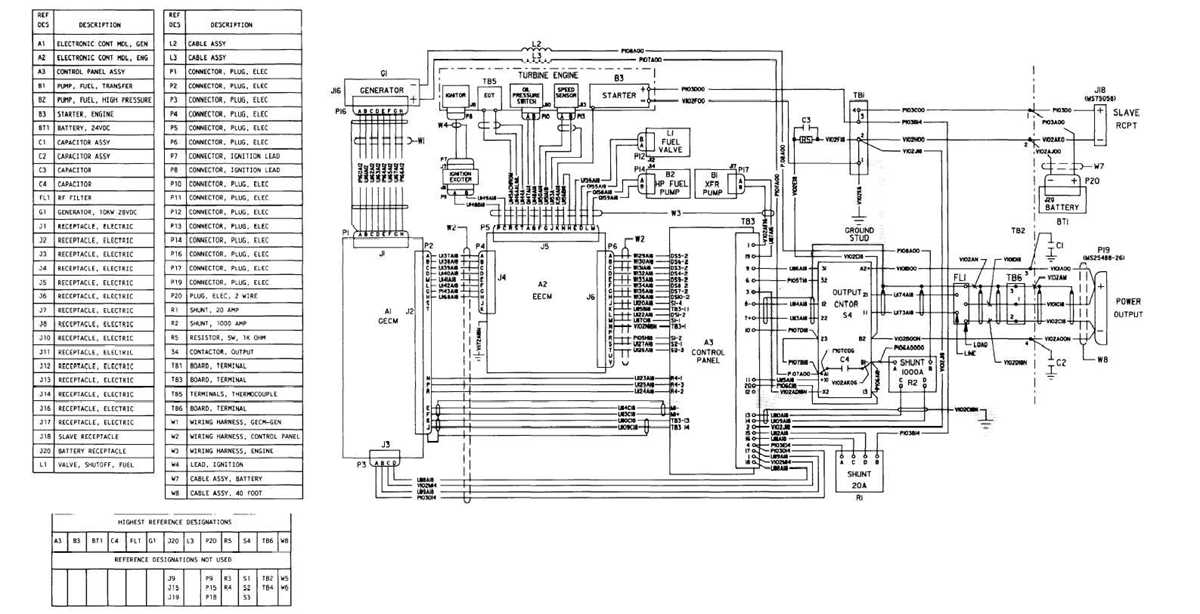

Identifying the Right Electrical Schematic for Your Backup Power Unit
Check the product’s data plate–usually riveted on the frame or beneath the control panel–for the exact unit number. Match this alphanumeric string to the official service manuals listed on the manufacturer’s support portal; these documents are segmented by serial prefixes (e.g., 0E8500–0E9999 corresponds to the 20 kW air-cooled series). Avoid third-party uploads lacking revision codes or watermarks, as mislabeled schematics frequently omit firmware-specific connectors.
For units manufactured after 2018, embedded QR stickers adjacent to the data plate link directly to an online depository; scan with any mobile device to bypass manual searches. If the sticker is missing or illegible, cross-reference the model’s production year with the serial decode matrix available in the “Service Bulletin” section–each yearly update includes a distinct color-coded branch map that isolates harness pinouts unique to cold-weather kits or transfer-switch compatibility modes.
Legacy units built before 2010 often require a physical service manual; order by calling the technical line with the unit’s full serial and requesting document #4244, which archives all pre-CAN-bus variants. Print copies include a fold-out appendix labeled “Circuit Paths for Optional Accessories,” essential for retrofitting ATS controls or LP-to-natural-gas conversion kits.
Step-by-Step Power Transition Panel Hookup for Manual Switch Integration
Locate the main service panel and shut off the primary breaker to cut grid supply. Verify voltage absence with a multimeter–readings must show 0V between all conductors and ground. Mark each circuit on the backup interface with its corresponding load label using permanent adhesive tags for clarity.
Mount the transfer device near the distribution box, ensuring a 36-inch clearance for NEC compliance. Use 1/2-inch conduit for cable runs between the panel and switch, securing with insulated clamps every 4 feet. Ground the enclosure with a #6 AWG copper conductor bonded to the service ground rod, torqued to 25 lb-ft.
Critical Conductor Pairing Sequence
| Step | Source Terminal | Destination Terminal | Wire Gauge | Torque (lb-ft) |
|---|---|---|---|---|
| 1 | Main Breaker Output | Utility Input (L1) | #2 AWG | 35 |
| 2 | Backup Output | Generator Input (L2) | #2 AWG | 35 |
| 3 | Neutral Busbar | Switch Neutral Lug | #4 AWG | 25 |
| 4 | Ground Busbar | Switch Ground Lug | #6 AWG | 25 |
Route the backup feed cable from the alternate power source through the conduit, stripping 1-inch insulation at both ends. Crimp ring terminals with a hydraulic crimper rated for 200 amps minimum–verify compression depth matches the terminal manufacturer’s spec sheet. Apply anti-oxidant compound to aluminum conductors before securing connections.
Test each circuit under load by toggling the manual lever to the backup position. Measure voltage drop across each live terminal–acceptable variance is ±3V from nominal. For inductive loads, cycle the switch three times and confirm no arcing occurs between contacts. Document amperage readings for each circuit in standby mode.
Install a hold-down kit on the switch mechanism to prevent accidental toggling. Use a padlock with a 1/4-inch shackle to secure the lever when grid power is active. Replace the cover with tamper-evident screws, ensuring the warning label is legible: “CAUTION: Dual Power Sources – Verify Isolation Before Servicing.”
Validate the entire installation with a thermal scan after 24 hours of continuous operation–hotspots above 60°C indicate loose connections. Recheck all terminations annually or after any overload event, focusing on high-resistance points. Keep a torque wrench on-site for maintenance adjustments.
Common Electrical Setup Errors and Quick Fixes
Double-check neutral and ground connections before powering up. If the transfer switch fails to engage, neutral wires often cross or terminate incorrectly. Label each conductor with a multimeter first–measure continuity between the neutral bus and ground bus. A reading below 1 ohm indicates a direct connection that violates NEC code; isolate the neutral immediately. Replace any shared terminals with individual lugs rated for 60A minimum.
Misrouted control circuits trigger false alerts or prevent automatic start. Trace each signal wire from the ATS to its source board: purple for 24V, pink for remote start, blue for battery sense. Disconnect and strip ¼ inch of each wire, then test with a 5VDC probe. If voltage fluctuates or drops below 4.8V, inspect the entire path for tight bends (keep radius above 3x wire diameter) or crimps; re-terminate with tinned copper ferrules and heat-shrink tubing rated UL224.
Overloaded circuits cause breaker trips under 70% of rated load. Calculate total amperage by summing nameplate values of connected appliances, adding a 20% safety margin. If the sum exceeds the 30A circuit, split loads across two breakers or upgrade to #6 THHN copper conductors. Secure each splice inside a weatherproof junction box; seal knockouts with silicon dielectric grease and thread-locking compound to prevent moisture ingress.
Improper polarity reverses compressor motors and shortens equipment life. Use a plug-in polarity tester on every outlet before linking devices. If the tester shows “reverse polarity,” swap the black (hot) and white (neutral) wires at the socket–use needle-nose pliers to avoid damaging stranded copper. Verify correct orientation once more; voltage between hot and ground should read 115–125VAC stable, neutral-to-ground below 1VAC.
Loose terminal blocks create heat and oxidation points. Torque every lug screw with a calibrated screwdriver to 12 in-lbs for #14 wire, 20 in-lbs for #10 and #6. Inspect connections quarterly: apply a slight tug to each wire–any movement means retightening is needed. Prevent future issues by coating exposed threads with nickel anti-seize paste; this eliminates galling and maintains conductivity for decades.
