Start with the power supply: use a 12-24V dedicated marine battery, not the vessel’s starter battery. Connect the red (positive) wire directly to the battery terminal with a 10A inline fuse within 18 cm of the battery post. Ground the black (negative) wire to the engine block or a dedicated grounding plate–never to the hull’s paint or anodized surfaces. Failure to follow this disrupts signal stability and risks corrosion.
For transducer attachment, route the yellow connector cable away from engine wiring and bilge pumps. Secure it with adhesive-lined heat shrink every 30 cm to prevent chafing. Crimp connectors must be soldered and sealed with marine-grade heat shrink to block moisture. Avoid twist-on wire nuts–vibration loosens them within weeks. If using a thru-hull mount, apply a thin layer of marine sealant around the mounting hole before insertion to prevent water ingress.
Integrate networked units via a standardized NMEA 2000 backbone. Use micro-C connectors with termination resistors at both ends–omitting these causes intermittent dropouts. Label each cable segment with waterproof tags (e.g., “Power,” “Transducer,” “Network”) to streamline future troubleshooting. Test voltage at the device’s power pins before finalizing connections: accept 11.5V-28V; readings outside this indicate faulty wiring or battery depletion.
For auxiliary equipment (chartplotters, radar modules), split the network using a powered NMEA 2000 T-connector. Daisy-chain no more than three devices per segment to avoid signal degradation. Check the manufacturer’s load ratings–exceeding them fries internal circuits. After installation, run a self-diagnostic test: look for “Power OK,” “Transducer Detected,” and “Network Active” indicators. Absence of any confirms miswiring and requires immediate rectification.
Connecting Your Sonar Device: Power and Transducer Setup

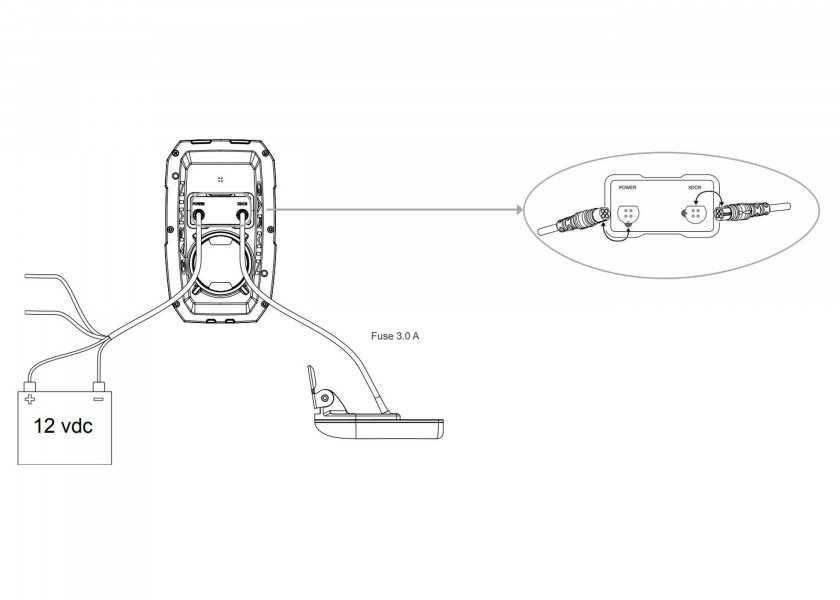

Start with a 12-volt marine battery as your primary power source–avoid vehicle batteries due to voltage fluctuations. Use tinned copper wire (minimum 16 AWG) for all connections to prevent corrosion in wet environments. Route power cables directly from the battery to the device’s power input, bypassing switches or fuse blocks during initial testing to isolate potential faults.
For transducer installation, locate the hull’s deadrise angle to determine optimal placement–flat surfaces require a 20° tilt, while V-hulls may need adjustable mounting brackets. Seal cable entries with marine-grade adhesive to prevent water ingress. If using a through-hull transducer, apply a thin layer of silicone grease to the rubber gasket before insertion to enhance sealing.
Grounding requirements vary by model: inboard motors demand a dedicated ground to the engine block, while trolling motors require connection to the negative terminal. Never rely on shared grounds with lighting or bilge pumps–interference from inductive loads can distort sonar readings.
Signal clarity depends on cable shielding. Use twisted-pair wiring for transducer leads (maximum 30 feet) and keep them separated from power cables by at least 6 inches to minimize electromagnetic interference. For installations exceeding 30 feet, upgrade to shielded coaxial cable (RG-8/U or equivalent) and verify signal strength with a multimeter before finalizing connections.
| Component | Wire Gauge | Max Length | Notes |
|---|---|---|---|
| Power Input (12V) | 16 AWG | 20 ft | Increase to 12 AWG if voltage drop exceeds 0.5V |
| Transducer (CHIRP) | Twisted Pair (22 AWG) | 30 ft | Use coaxial for longer runs |
| NMEA 2000 Network | 18 AWG (CAN Bus) | 50 ft | Terminate with 120Ω resistors |
For networked systems, connect the sonar unit to a NMEA 2000 backbone using drop cables (maximum 6 meters per drop). Terminate both ends of the backbone with 120Ω resistors to ensure signal integrity. Avoid daisy-chaining more than three devices on a single drop to prevent data collisions.
Testing connections? Verify voltage at the device’s power input (11.5–14.4V) before attaching the transducer. Use a lure simulator to confirm signal returns if water conditions prevent live testing. If noise persists in shallow water, relocate power cables away from VHF radios or fish locators–high-frequency emissions can cause false echoes.
Final checks include inspecting all inline fuses (usually 3–5A for power leads) and securing cable loops with zip ties every 12 inches. Exposed wiring near sharp edges or thru-hull fittings should be sheathed in spiral wrap for abrasion resistance. Store spare connectors (e.g., Deutsch DT or heat-shrink butt splices) onboard for quick repairs.
Step-by-Step Transducer Connection for Echo Sounder Units

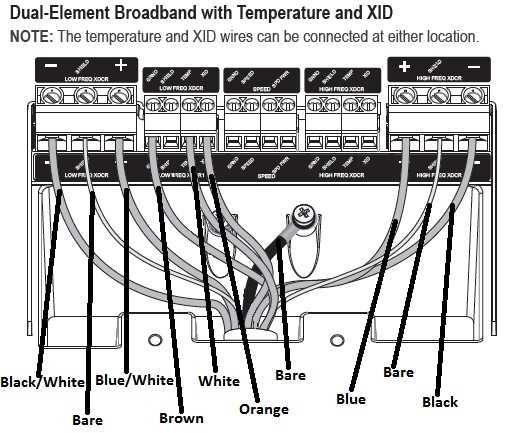

Locate the transducer cable outlet on your depth sensor’s control box–typically a round, 4-pin connector labeled “TRN” or “Xducer.” Verify the port’s condition: no corrosion, bent pins, or debris. If corrosion is present, clean contacts with a cotton swab lightly dampened in isopropyl alcohol, then dry thoroughly with compressed air.
Align the transducer’s plug with the matching socket on the device. Press firmly until a faint click confirms full insertion–do not twist or force the connection, as this risks damaging the pins. For inline connectors (e.g., inline temperature sensors or auxiliary Speed Through Water modules), attach these upstream of the main transducer link, ensuring the arrow on each connector points toward the control box.
Secure the cable every 18–24 inches using UV-resistant nylon clamps or adhesive cable mounts rated for marine environments. Keep wires clear of moving parts (propeller shafts, trim tabs) and high-heat zones (exhaust manifolds, engine blocks). Route cables above bilge pumps to prevent chafing against sharp hull edges or metallic protrusions. If splicing is unavoidable, use heat-shrink tubing with adhesive lining, not electrical tape.
Post-Connection Checks
Test impedance before powering on: with the device off, use a multimeter set to 200Ω. Probe the two outer pins (CH1 and CH2) of the transducer plug. A reading between 450Ω and 650Ω indicates a functional connection; readings below 200Ω or above 1.2kΩ signal a fault requiring cable inspection. Never bypass this step–direct power application to a shorted transducer risks permanent damage to the sonar processing board.
Power Cable Connection Guide for Sonar Devices
Use a 16-gauge marine-grade cable for connecting the transducer unit to the 12V battery. Thinner wires create voltage drops that distort signal strength, especially over runs exceeding 10 feet. Solder terminals at both ends to prevent corrosion, then seal with adhesive-lined heat shrink tubing.
Route cables away from ignition systems, alternators, and high-current circuits. Even minor electromagnetic interference can skew depth readings. Secure cables every 18 inches with non-metallic clamps to prevent chafing against hull fittings or sharp edges.
Match polarity precisely: red lead to positive (+) battery terminal, black lead to negative (-) ground. Reversing these causes immediate malfunction and may damage internal components. For vessels with separate engine blocks, attach ground to the engine rather than the battery to reduce electrical noise.
Troubleshooting Voltage Irregularities
- Measure voltage at the device terminal with a multimeter–expect 12.6V when disconnected, 13.2V–14.4V while charging.
- Voltage below 11.8V triggers low-power warnings; check alternator output and battery condition.
- Eliminate voltage spikes by installing a 5-amp fuse within 7 inches of the battery terminal.
- Twisted-pair shielding reduces interference on runs longer than 20 feet.
For units with external chartplotters, wire a dedicated 10-amp circuit. Shared circuits risk resets during engine starts. Use tinned copper cable resistant to saltwater oxidation–standard automotive wire corrodes within weeks.
Terminal and Connector Best Practices
- Crimp ring terminals with a ratcheting tool; avoid pliers that crush inconsistently.
- Apply dielectric grease to connections before assembly to repel moisture.
- Tape split loom tubing over exposed sections to prevent UV degradation.
- Label both ends of every cable with heat-shrink markers for future reference.
Before final connection, test continuity with a multimeter across each conductor. Even a 1-ohm resistance reading indicates potential failure points. Isolate power during storms–lightning strikes travel through wiring and destroy unprotected sonar modules.
NMEA 2000 Network Setup with Sonar Devices
Begin by connecting the backbone cable to a 12V power source via a dedicated NMEA 2000 drop cable. Use a 3A fuse between the power node and the battery terminal to prevent overcurrent. Position the power tee at the midpoint of the network for balanced signal distribution–ideal for vessels longer than 30 feet.
Ensure terminators are installed at both ends of the backbone. Omitting them causes signal reflection, degrading data integrity. Verify resistance between the network’s positive and negative leads reads 60Ω (±5Ω) with a multimeter before adding devices.
Attach echolocation modules using micro-C or DeviceNet T connectors. Space drop cables at least 2 meters apart to minimize interference. If integrating legacy gear, use an NMEA 0183 to NMEA 2000 gateway–baud rates must match (4800 or 38400).
Troubleshooting Signal Loss
If depth readings flicker or vanish, check for voltage drops below 10.5V–replace corroded connectors with tin-plated copper. For persistent issues, segment the network: isolate the sonar module on a separate tee to pinpoint faults. Avoid exceeding 50 devices per network; split large installations with a backbone coupler.
Update firmware via the brand’s software suite before configuring depth offsets or transducer frequency settings (50kHz for deep water, 200kHz for high-resolution). Align the system’s depth sounder settings with the vessel’s draft to eliminate false bottom readings.
Use shielded twisted pair cables for engine and fuel sensors to prevent EMI from ignition systems. Route cables away from alternators and bilge pumps; secure with nylon clamps every 18 inches. Test the network under load by running all devices simultaneously–latency should not exceed 100ms.
Log network diagnostics weekly via a compatible display unit. Monitor PGN 129029 (GNSS position) and PGN 130310 (water temperature) for anomalies–mismatched timestamps indicate clock drift in connected instruments.
