Start by disconnecting power at the breaker to eliminate shock risks. Use a multimeter set to voltage mode–probe the terminals on the control unit while an assistant triggers the remote. No reading means a faulty circuit; verify cable integrity from the motor assembly to the wall switch. Standard installations use 18-gauge solid copper wire for button-operated models and 22-gauge for sensor-equipped units. Check polarity: black to the terminal marked “COM”, white to “LIGHT/RELAY”–reversing these trips the internal safeguard.
Locate the emergency release cord first; it bypasses all low-voltage loops. Splice into the red and white leads only if the existing harness shows brittle insulation–replace the entire segment if wire gauge differs by more than two sizes. Secure connections with heat-shrink tubing, not electrical tape; tape degrades under temperature swings typical inside ceiling-mounted housings.
For add-on units, route the yellow and purple sensor wires at least 6 inches above the floor–lower positions collect dust and trigger false obstructions. Twist each pair ten turns per foot to reduce electromagnetic interference from nearby appliances. Label each cable run before disconnecting anything; most failures stem from mis-identified terminals.
Understanding the Electrical Configuration for Automatic Door Mechanisms
Begin by identifying the power source terminals on your unit–typically labeled as L (line) and N (neutral). Most residential installations operate on a 120V AC supply, but verify the voltage rating printed on the motor housing or in the manufacturer’s manual. Connecting an incorrect voltage risks damaging the circuitry or causing intermittent operation.
Trace the low-voltage control circuit, which usually consists of a transformer stepping down the voltage to 12V or 24V. This powers push-button controls, safety sensors, and wireless receivers. The transformer’s secondary winding should connect directly to the control board’s input terminals–swap polarity only if testing reveals incorrect sensor readings or erratic behavior.
Safety edge sensors require precise alignment and proper grounding to function. Mount the sensors at the door’s base so they activate within 2–5 mm of obstruction. Use 18-gauge or thicker solid-core wire for sensor connections to prevent signal loss. Twist the wires to minimize electromagnetic interference from nearby motors or fluorescent lighting.
- White wire: Neutral for power circuits
- Black or red wire: Hot lead for motors and high-load components
- Green or bare wire: Ground–always terminate to a metal chassis point
- Blue, brown, or yellow wires: Signal wires for sensors, relays, or auxiliary functions
Relays in these systems often handle the switching logic for lights and auxiliary outlets. Check the relay’s coil voltage–common options are 12V DC or 120V AC–and match it to the transformer’s output. A clicking sound during operation indicates normal relay function, but excessive buzzing suggests a faulty coil or loose connection.
For remote access integration, locate the receiver’s antenna terminal, usually a single solder point labeled “ANT” or “RF.” Avoid coiling excess antenna wire; stretch it linearly along the ceiling or mount near a non-metallic surface to maximize range. If signal reception is weak, replace the factory antenna with a 1/4-wave length (315 MHz: ~24 cm, 433 MHz: ~17 cm) of insulated hookup wire.
When testing, isolate sections of the circuit using a multimeter. Measure continuity for switches and sensors, voltage across transformer outputs, and current draw at the motor terminals (typically 1–5 amps during normal operation). Replace any component showing zero resistance on a closed switch or abnormal voltage drops under load.
Determining Electrical Supply Needs for Automatic Entry Systems
Use a multimeter to measure voltage at the power outlet where the motor unit will connect. Most residential automatic entry systems require a 120V AC supply with dedicated circuit protection. Verify the outlet delivers consistent current within ±5V of the rated value; fluctuations outside this range risk premature motor failure or intermittent operation. Check the circuit breaker’s amperage rating–15A is standard, but high-lift or heavy-duty models may need 20A.
Inspect the transformer specifications for low-voltage components if the system includes a backup battery or wireless controls. These typically demand 18–24V AC, stepped down via an internal or external transformer. Ensure the transformer’s wattage exceeds the combined load of all secondary devices by at least 20% to prevent overheating. Replace undersized transformers to avoid erratic performance.
For hardwired sensors or LED indicators, confirm the supply meets their specific needs. Motion detectors and safety beams usually operate on 5–12V DC, while some advanced lighting strips require 24V DC. Cross-reference the manufacturer’s datasheet for exact values–mismatches here can cause false triggers or irreversible damage to integrated circuits. Use a regulated power adapter if the main unit lacks built-in voltage conversion.
Assess the power cord’s gauge if the motor connects via a plug-in adapter rather than direct wiring. Standard 16–18 AWG cords suffice for distances under 10 feet, but longer runs demand 14 AWG or thicker to minimize voltage drop. Extension cords should never exceed 25 feet for 120V systems; beyond this, hardwiring becomes mandatory to comply with electrical codes and prevent fire hazards.
Test all connections under load before finalizing installation. Activate the motor, sensors, and accessories simultaneously to observe voltage stability. A drop below 110V under load indicates insufficient supply–either from a weak outlet, undersized wiring, or an overloaded circuit. In such cases, consult an electrician to upgrade the circuit or install a dedicated line.

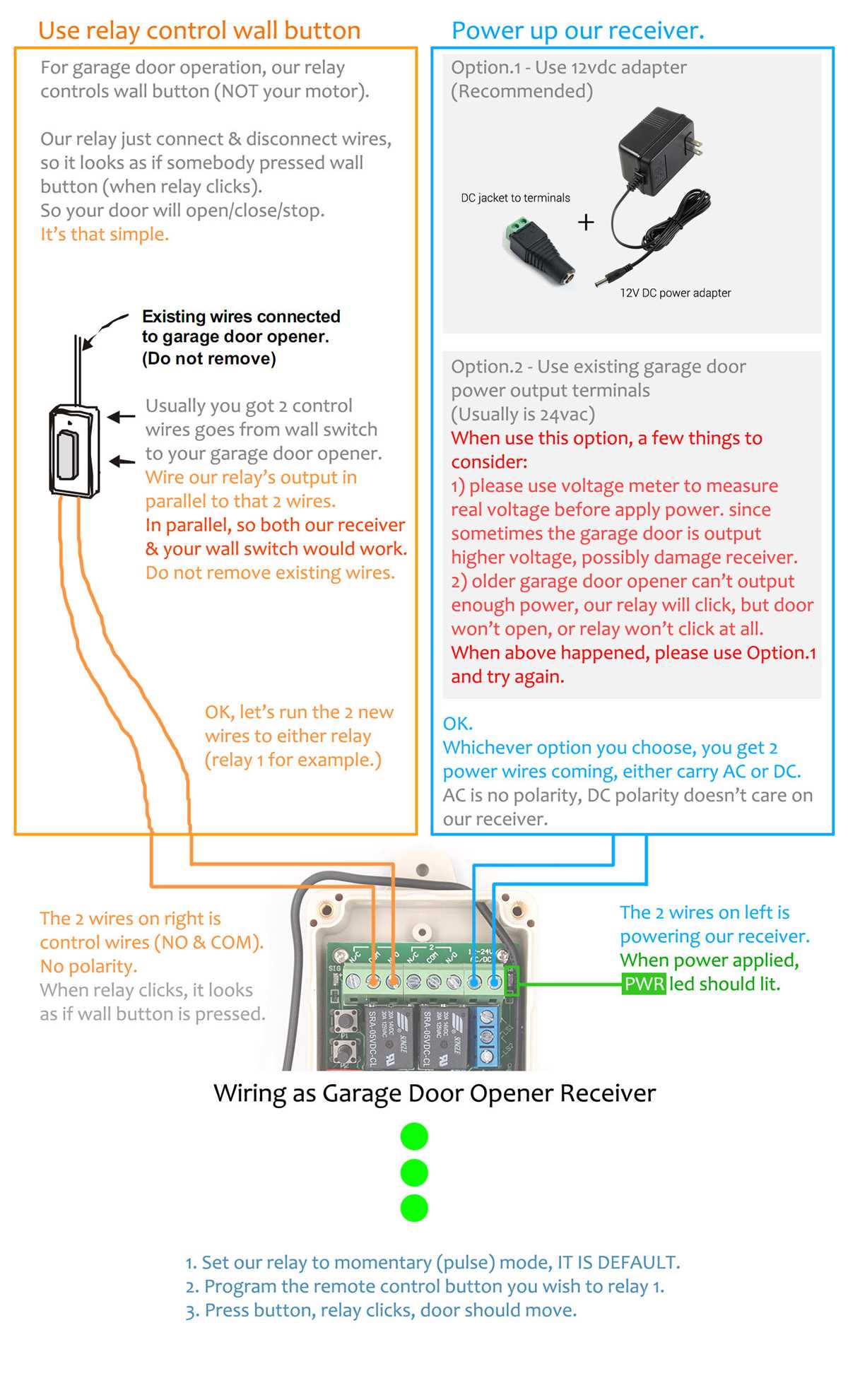

Connecting Wall-Mounted Switches: A Precise Installation Guide
Locate the control panel terminals marked COMM (common), NO (normally open), and NC (normally closed). Strip 6-8mm of insulation from the ends of a 22-gauge multi-strand copper conductor. Insert the stripped end into the COMM terminal and secure it with the terminal screw–firm pressure ensures a gas-tight connection. Repeat with a second conductor in the NO slot; this pair will carry the momentary closure signal to the actuator mechanism.
- Power down the main circuit breaker labeled LiftMaster or Chamberlain to prevent accidental activation.
- Use a non-contact voltage tester to confirm zero current at the terminals before handling any contacts.
- Route the cable through the junction box conduit knockout; a ½-inch knockout punch creates a clean entry hole.
- For dual-button configurations, connect a third conductor to the NC terminal–this enables the light activation feature.
- Secure the fixed end of the conductors to the wall panel mounting plate with ¼-inch plastic cable clamps spaced every 12 inches.
- Test each switch push before finalizing the cover plate; incorrect polarity can trigger erratic door behavior.
- Seal unused knockouts with UL-listed conduit plugs to maintain a NEMA 1 enclosure rating.
Safety Switch and Limit Sensor Installation Guide
Connect the emergency stop switch in series with the power feed to the actuator–black and red wires from the switch should splice directly into the main supply line before it reaches the controller. Use 18 AWG stranded copper wire for the run between the switch and the unit, ensuring a secure crimp or soldered joint covered with heat-shrink tubing. Position the switch no higher than 1.5 meters above the floor for OSHA compliance and within 0.3 meters of the entry point to allow immediate access during malfunctions.
Limit Sensor Configuration
| Sensor Type | Wire Color | Terminal Assignment | Recommended Gap |
|---|---|---|---|
| Infrared | White (signal), Blue (ground) | Labeled “IR” on the logic board | 2–4 mm |
| Mechanical | Brown (common), Green (normally closed) | Switch contacts rated 10A/250V | N/A (physical contact) |
| Magnetic Reed | Yellow (auxiliary), Black (return) | PCB ports marked “Reed” | 5–8 mm between magnet and sensor |
Align infrared sensors parallel to the track at a height matching the carriage’s reflective strip; misalignment beyond 2 degrees will cause false triggers. Mechanical limit switches must be mounted rigidly to the frame with M4 stainless steel screws and lock washers–avoid wood screws as thermal expansion can loosen them. After wiring, apply 12V DC to the sensor circuit and measure continuity with a multimeter; infinite resistance indicates an open circuit requiring recalibration of the actuator’s stroke limits via the control board’s potentiometers.
Integrating a Secondary Power Source for Reliability During Blackouts
Select a 12V sealed lead-acid battery with a capacity of at least 7Ah to ensure sufficient runtime–smaller units under 5Ah degrade quickly under repeated discharge cycles. Match the voltage precisely; even minor deviations can damage internal circuits. Connect the battery directly to the control unit’s dedicated backup terminals, typically marked with a battery icon or labeled “Aux Power.” Avoid splices; use crimped ring terminals and heat-shrink tubing to prevent corrosion and intermittent failures.
Key Installation Steps
Disconnect the primary power supply before wiring. Route the battery’s red wire to the positive terminal and black to negative, securing connections with a torque screwdriver (1.5–2.0 Nm) to prevent loosening. Test polarity with a multimeter–reverse polarity triggers immediate circuit protection but risks permanent damage if undetected. Install a fuse (3A for 7Ah, 5A for 12Ah) within 15cm of the battery’s positive terminal to interrupt short circuits. Mount the battery in a ventilated, upright position away from heat sources to extend lifespan.
For automatic switchover, verify the internal charger’s output–most systems supply 13.6V–13.8V under float charge. Overcharging (above 14.4V) boils electrolytes; undercharging (below 13.2V) sulfates plates. Measure voltage drop across terminals during operation–excessive resistance (>0.5V) indicates poor connections. Regularly cycle the battery every 3 months if unused; prolonged idle periods cause capacity loss. Replace after 3–5 years, or when runtime drops below 48 hours under minimal load.
For enhanced redundancy, pair the battery with a small solar panel (10W–20W) rated for 18V open-circuit voltage. Use a charge controller with low-voltage disconnect (11.5V) to prevent deep discharge. Avoid cheap PWM controllers; MPPT units improve efficiency by 15–30%. If integrating a UPS, ensure compatibility–some models backfeed AC, voiding warranties or frying low-voltage components. Always document connections with photos before modifications; troubleshooting miswires without reference costs hours.
