To ensure safe and reliable power delivery to industrial space warmers, use a dedicated 240V circuit with a double-pole breaker rated for at least 30 amps. Copper conductors sized 10 AWG or thicker are mandatory for most 5,000–10,000 BTU models to prevent overheating. Route cables through grounded metal conduits if installing in areas with moisture or combustible materials–PVC conduits are insufficient for these conditions.
Leverage a four-wire configuration: two hot leads (red and black), one neutral (white), and one ground (green or bare). Terminate the neutral wire only if the unit’s documentation explicitly requires it; many forced-air systems bypass neutral entirely. Secure all connections with crimp sleeves and heat-shrink tubing to eliminate corrosion risks, especially in uninsulated sheds or storage rooms.
Position the control box at least 18 inches above the floor to avoid snow, water, or debris accumulation. Avoid daisy-chaining climate equipment to existing circuits supplying power tools, compressors, or lighting–fluctuations in amperage can damage sensitive thermostats or ignition modules. A hardwired setup is superior to plug-in adapters for units exceeding 7,500 watts; NEMA 6-50 outlets are the minimum standard here.
For combustion-based systems, vent exhaust horizontally through exterior walls using Class B double-wall pipe. Keep the vent terminal at least 12 inches from windows, doors, or intake vents to prevent carbon monoxide re-entry. Use a carbon monoxide detector with a battery backup within 15 feet of the installation–mandatory for enclosed workspaces lacking natural airflow.
Test the circuit integrity with a multimeter before initial power-up. Confirm 120V between each hot wire and ground, and 240V between the two hot wires. Any deviation suggests a miswired breaker or damaged cable. Label the breaker panel clearly–”WORKSHOP UNIT–30A”–to prevent accidental disconnection during maintenance. Replace circuit breakers every 10 years, regardless of visible wear.
Electrical Setup for Space Warmers: Detailed Installation Walkthrough
Begin by confirming the power source voltage matches your unit’s requirements–typically 120V, 208V, or 240V. Check the nameplate on the appliance for exact figures; deviations risk damage or insufficient output. Locate the main service panel and switch off the dedicated circuit to prevent accidental energizing during setup.
Select cables rated for the current draw specified–commonly 10 AWG for 30A circuits, 8 AWG for 40A, or 6 AWG for 50A. Use copper conductors exclusively; aluminum can oxidize at connection points, increasing resistance and fire hazards. Route cables through conduits if exposed to physical damage or moisture, adhering to local electrical codes for conduit fill ratios.
| Unit Capacity (BTU) | Recommended Wire Gauge | Circuit Breaker Rating |
|---|---|---|
| 25,000–35,000 | 10 AWG | 30A |
| 36,000–50,000 | 8 AWG | 40A |
| 51,000–75,000 | 6 AWG | 50A |
Strip 0.5 inches of insulation from conductor ends, twist strands tightly, and crimp with ring terminals sized for the terminal screws (usually #8 or #10). Tin connections with solder if exposed to vibration or corrosive environments, but avoid excess solder that could interfere with terminal seating. Secure to the appliance’s input terminals with a torque wrench set to manufacturer specifications–typically 12–14 in-lbs for 10–12 AWG to prevent loosening.
Connect grounded conductors to the appliance’s chassis using a green grounding screw or terminal. If the unit lacks a dedicated ground, verify the metal housing is bonded to the conduit system with a listed grounding bushing. Never substitute the neutral for ground; this violates NEC 250.142 and creates shock hazards. Test continuity between the ground terminal and chassis with a multimeter to confirm zero resistance.
For hardwired units, install a junction box within 3 feet of the appliance, using strain relief connectors to secure cables where they enter. If cord-and-plug configuration is allowed, use a NEMA plug matching the circuit (e.g., L6-30P for 30A 240V twist-lock), ensuring the cord is rated for the amperage and includes a separate equipment grounding conductor. Avoid extension cords; they introduce voltage drop and risk overheating.
Label the circuit breaker clearly with the appliance’s location and rating. Restore power and use a non-contact voltage tester to confirm absence of current at the terminals before finalizing cover plates. Set the thermostat to a low setting initially, then incrementally increase while monitoring for unusual noises, smells, or temperatures–these indicate loose connections, undersized conductors, or motor overload.
For gas-fired units, ensure the electrical connection enables the combustion blower motor and ignition sequence. Verify the motor turns freely before energizing; stalled rotors draw excessive current and trip breakers. If equipped with a safety switch (e.g., high-temperature limit or pressure sensor), test by simulating fault conditions–failure to shut down confirms miswiring of the control circuit.
Document all connections with photos or a hand-drawn schematic, including circuit breaker location, conductor lengths, and terminal labels. Store records near the service panel; this accelerates troubleshooting and ensures compliance during inspections. Schedule annual maintenance to inspect terminals for corrosion, tighten connections to torque specs, and test safety switches for proper operation.
Selecting the Proper Conductor Size for Your Workshop Climate Unit
For a 15-amp climate control device, use 14 AWG copper conductors if the circuit length stays under 50 feet. Beyond this distance, voltage drop becomes a concern–switch to 12 AWG to maintain performance. Check local electrical codes, as some regions mandate 12 AWG for all 15-amp circuits regardless of length.
Larger units pulling 20 amps require 12 AWG copper wiring as a baseline. If the run exceeds 75 feet, upsize to 10 AWG to counteract voltage drop, which can reduce efficiency by 3-5% over extended distances. Aluminum conductors are an option but require one size larger gauge and specialized connectors (CO/ALR-rated) to prevent oxidation.
Matching Wire Size to Power Draw
For 30-amp units, code dictates 10 AWG copper as minimum. However, real-world installations often benefit from 8 AWG for runs over 100 feet, where voltage drop can become problematic. Avoid undersizing: a 30-amp breaker with 10 AWG wire may handle startup surges, but sustained loads risk overheating.
Larger commercial-grade systems (50+ amps) need 6 AWG copper or 4 AWG aluminum. These setups often include subpanels–ensure the feeder wire gauge matches or exceeds the branch circuit requirements. Use a voltage drop calculator for precise sizing, factoring in ambient temperature (derate conductors at 140°F+).
Additional Critical Factors
Always verify the climate unit’s nameplate amperage–some models list minimum circuit amps (MCA) and maximum overcurrent protection (MOP) separately. Wire size must meet or exceed the MOP value. Grounding conductors should match the current-carrying wire gauge (14 AWG for 14 AWG circuits, etc.). For flexible cords, use SOOW or SJTW types rated for the amperage and environment.
Enclosures matter: NM-B wire suits indoor dry locations, while THHN/THWN is mandatory for conduits exposed to moisture or temperature swings. Never combine solid and stranded wires in the same circuit–transition at a junction box with appropriate connectors for compatibility.

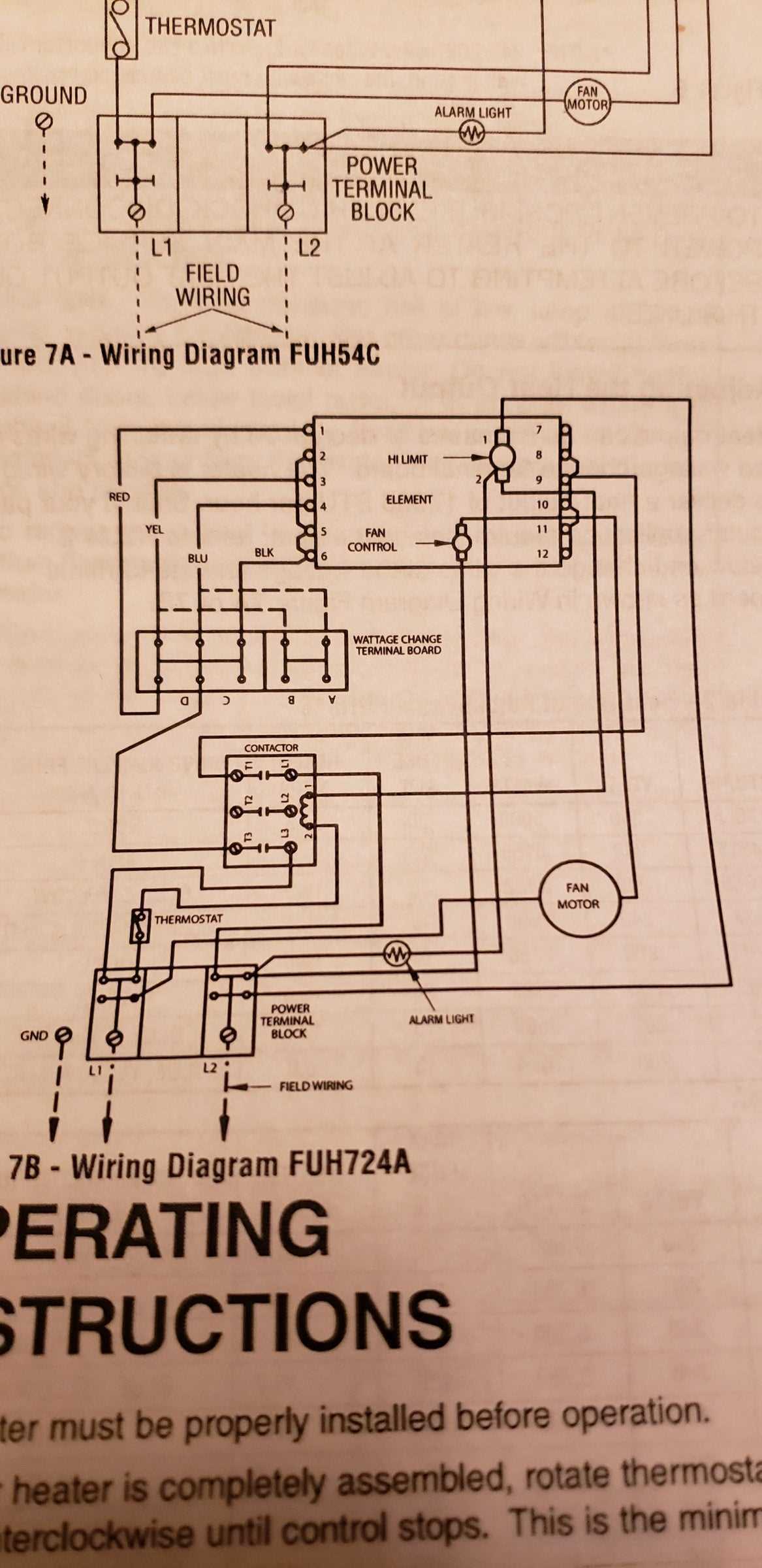

Key Elements in Climate Control Electrical Schematics
Start by identifying the power source connections–typically a dedicated circuit with clearly marked terminals for live, neutral, and ground. Most forced-air systems use a 240V supply for high-output models, while compact units may operate on 120V; verify voltage requirements against the technical specifications before making connections. Label each wire at both ends to prevent misalignment during assembly, as reversing polarity can cause immediate failure or create hazardous conditions.
Thermal cutoffs and safety relays form the first line of defense against overheating–locate these components upstream of motor windings and ensure they meet UL or ETL certification standards. Test continuity across each protective device with a multimeter before energizing; a failed fuse or tripped breaker often indicates a short rather than the device itself being faulty. Fan motors usually require separate low-voltage control wiring, so trace the path from the thermostat to confirm proper switching logic.
Capacitors–start and run types–dictate motor performance; a dual-capacitor setup is common in high-torque setups, where the start capacitor disengages after reaching operational speed while the run capacitor remains active. Match microfarad ratings precisely; deviations as small as 5% can reduce efficiency or damage windings over time. Color-coding remains inconsistent across manufacturers, so rely on schematic symbols instead of wire hues when cross-referencing components.
Installation Guide for 240V Climate Control Units in Workspace Enclosures
Disconnect power at the main breaker before handling any electrical components–this prevents accidental shocks and equipment damage. Use a digital multimeter set to voltage mode to verify the circuit reads 0V at the terminal block; test both hot legs individually against neutral and ground. For a standard 5000W unit, dedicate a 30A double-pole breaker and run 10 AWG copper conductors (minimum) from the panel to the mounting location, ensuring the conduit path avoids high-temperature zones near exhaust vents or direct sunlight.
Key Connectivity Stages
- Termination Preparation: Strip 0.75″ of insulation from each conductor using wire strippers calibrated for 10 AWG. Twist stranded copper strands clockwise to prevent fraying, then crimp a ring terminal sized for the unit’s terminal screws (typically #8 or #10). Apply antioxidant paste to aluminum conductors if present to inhibit corrosion.
- Junction Box Assembly: Mount a NEMA 1-rated junction box within 12″ of the unit’s housing; secure with 1/4″ lag screws into studs. Route conductors through a 1/2″ knockout using a cable clamp to prevent chafing. Connect hot legs (black/red) to L1/L2 terminals, neutral (white) to N, and ground (green/bare) to the chassis grounding screw–torque to 15 lb-in with a calibrated screwdriver.
- Functional Validation: Restore power and verify a 240V reading across L1/L2 at the unit’s input terminals. Activate the thermal regulator; confirm the blower engages within 30 seconds. Use a non-contact thermometer to check output temperature 18″ from the discharge grille–target 120°F (±5°F) for 5000W models.
Label all breakers and junction boxes with permanent markers: “Enclosure Climate Unit – Do Not Disable.” Install an insulated cover plate over exposed terminals and seal conduit entries with silicone caulk rated for outdoor use to block moisture ingress.
