Begin by verifying the primary coil’s voltage rating against the power source–standard industrial units typically accept 480V, 400V, or 208V inputs. Mismatched connections risk overheating or equipment failure within seconds. Locate the terminal block near the core assembly; it’ll label inputs H1/H2 (high voltage) and outputs X1/X2 (low voltage, usually 24V or 120V).
For three-phase setups, shunt the L1/L2/L3 lines directly to their respective H terminals, ensuring phase rotation matches the heating element’s requirements. Single-phase applications require bridging L1 and L2 across H1 and H2, with a neutral or ground tied to the chassis per NEC 250.20(B) codes. Use minimum 10 AWG copper wiring for runs under 30A; upsize to 8 AWG if ambient temperatures exceed 40°C.
Isolate secondary circuits from control boards using a double-pole, single-throw switch rated for the full load current. Bypass capacitors should sit within 10cm of the secondary terminals, sized at 0.1µF per volt of output to suppress transients. Test resistance between X1 and X2–readings below 10Ω indicate a shorted winding; readings above 50Ω suggest an open circuit needing immediate replacement.
Grounding follows IEC 60364 guidelines: star-point connections must terminate to a copper busbar no thinner than 6mm, bolted to the housing. If using external cooling systems, separate 8 AWG wires must run unshielded alongside power feeds, bonded at both ends to avoid induced noise. For variable-frequency drives, add a line reactor between the input and primary coils to limit dv/dt spikes to <500V/µs.
Electrical Layout for Heating Unit Power Supply
Begin by locating the primary and secondary coil terminals on the auxiliary power device. Most industrial heating systems use a step-down configuration where high-voltage input reduces to safer operational levels–typically 480V to 24V or 120V. Verify terminal markings; H denotes high-voltage connections, while X indicates low-voltage outputs.
Ensure proper phase alignment when connecting to three-phase power sources. Mismatched phases create imbalanced loads, leading to excessive heat or premature failure. Use a multimeter to confirm consistent voltage levels across all input terminals before finalizing connections.
Install dedicated circuit protection for both primary and secondary sides. Overcurrent devices, such as fuses or breakers rated within 125% of maximum load, prevent short circuits. Place these immediately downstream from the power source to minimize exposed wiring risks.
Ground all conductive components to a common point. Exposed metal housings and low-voltage circuits require bonding to the facility’s grounding system. Resistance should not exceed 0.1 ohms; test with a ground resistance meter before energizing.
For single-phase auxiliary devices, use colored conductors per NEC standards: black for line, white for neutral, and green or bare copper for grounding. Twist wires firmly but avoid excessive tightening–stress fractures weaken connections over time.
Label every wire with heat-resistant tags specifying voltage and function. Ambiguity during maintenance increases hazards; clear identification speeds troubleshooting. Store digital photographs of the setup in facility documentation for reference.
Test continuity before applying power. Verify that secondary circuits deliver the correct output voltage under load–such devices often regulate inconsistently at no load. Audible hum or vibration suggests loose components; halt testing and re-secure all terminals.
Lock out the main power source during any adjustments. Secondary circuits can retain dangerous voltage levels even when primary power is disconnected due to residual capacitance. Use insulated tools and wear arc-rated PPE to prevent accidental contact.
Critical Elements and Connection Point Labeling in Industrial Heating Power Sources
Begin by locating the primary side terminal block–typically marked with H1 and H2 for high-voltage inputs. Verify the phase-to-phase voltage rating matches the facility’s supply (e.g., 480V, 600V, or 1000V) before energizing. Incorrect pairing risks coil saturation or insulation breakdown, leading to permanent damage. Use a multimeter to confirm no residual voltage lingers after disconnecting the main breaker.
Secondary outputs often split into multiple taps, labeled X1–X3 (low-voltage) and X0 (neutral or ground). Measure resistance between taps–expect near-zero ohms across adjacent X terminals and open circuits across non-adjacent ones. Discrepancies signal shorted windings or faulty taps. For three-phase configurations, ensure symmetry: unbalanced loads accelerate core heating and reduce efficiency by up to 18%.
Core Assembly and Auxiliary Protection
- Core laminations: Stack thickness determines flux capacity; deviations above ±0.5mm from design specs increase eddy current losses by 12–15%. Check for rust or gaps–both indicate moisture ingress or physical compromise.
- Bushing terminals: Porcelain or polymer housings must remain intact. Cracks expose internal conductors, risking arcing; replace if resistance to ground exceeds 500 MΩ at 1000V DC test voltage.
- Thermal cutouts: Mounted near windings, these trip at 130–150°C. Bypass temporarily (max 2 hours) only if replacing; prolonged override causes irreversible insulation degradation.
Control circuits demand precise tap selection. A common error involves connecting 120V auxiliary outputs to 240V taps, instantly frying relays and PLC interfaces. Cross-reference the nameplate: taps marked C1/C2 usually serve instrumentation, while L1/L2 handle motor loads. Label wires at both ends–mismatched terminations during maintenance are the leading cause of “ghost” tripping in arc-resistant systems. Use heat-shrink tubing instead of tape for outdoor connections; UV degradation reduces tape adhesion by 60% within 18 months.
Diagnostic Checks Before Commissioning
- Insulation resistance: Apply 2500V megger for 60 seconds–values below 100 MΩ indicate contamination or moisture. Purge with dry nitrogen (3–5 psi) for 48 hours if humidity exceeds 50%.
- Polarity test: Use a DC source (e.g., 9V battery) and voltmeter. Momentary current through H1-X1 should show positive deflection on the meter. Reverse polarity risks circulating currents 3–5× rated load when paired with external reactors.
- Impedance verification: Inject low voltage (e.g., 10% of rated) and record current. Calculate %Z = (V_injected / I_measured) × (rated_V / rated_I). Deviations over ±2% suggest shorted turns–disassemble core to inspect windings.

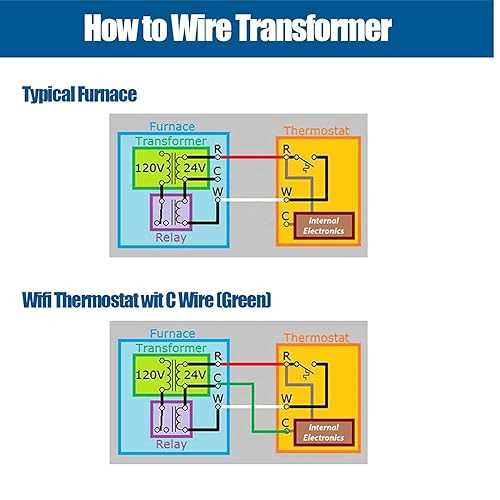

Step-by-Step Guide to Reading Low-Voltage and Line-Voltage Connection Blueprints
Begin by isolating the power sources on the schematic. Line-voltage circuits–typically 120V, 240V, or 480V–are drawn with thicker lines and labeled clearly (e.g., L1, L2, L3). Low-voltage paths, usually 24V, appear as thinner lines often marked with R, C, or W terminals. Confirm voltage ratings next to symbols: a circle with “120V” inside represents a single-phase supply, while a rectangle stacked vertically indicates split-phase or three-phase configurations. Cross-reference terminal blocks with the legend–most residential setups use standardized color-coding (e.g., red for R, white for C, green for ground). If colors are absent, rely on alphanumeric tags.
| Symbol Shape | Typical Voltage | Common Labels | Key Characteristics |
|---|---|---|---|
| Thick solid line | 240V/480V | L1, L2, L3 | Heavy-duty insulation, wider trace spacing |
| Dashed line | 24V | R, C, W, Y | Control signal paths, often daisy-chained |
| Double circle | 120V | Neutral + Hot | Single-phase load, fused separately |
Trace each conduit path methodically. Start from the incoming feed–locate the main disconnect switch on the diagram, typically a rectangular box with a lever symbol. Follow the lines downstream to distribution points: bus bars, relays, or terminal strips. For low-voltage loops, identify the control module (rectangle with multiple small squares inside) and map connections to devices like contactors, thermostats, or solenoid valves. Verify each splice point by matching pin numbers on both sides of junctions. If a path terminates without reconnecting, check for labeled jumpers or omitted components in the legend–some schematics omit redundant links for clarity but include notes like “internal bridge” near the component outline.
Critical Installation Errors and Prevention Strategies
Incorrect polarity reversal during hookup causes immediate component failure. Always verify terminal markings against the schematic before securing connections. Use a multimeter set to continuity mode to confirm proper alignment–never assume factory defaults. Misaligned polarity in high-power circuits leads to arcing, thermal stress, and irreversible damage to core components within minutes of activation.
Undersized conductors create excessive resistance, generating dangerous heat levels. Refer to the equipment manual for exact gauge requirements based on current load. Copper wire should never exceed 30°C temperature rise under full load; aluminum requires an additional 2 sizes larger than copper for equivalent performance. Oversights here void safety certifications and accelerate insulation degradation.
Loose terminal screws compromise conductivity, forming hotspots that melt insulating materials. Tighten all connections to manufacturer-specified torque values–typically 12-15 Nm for copper lugs. Apply anti-seize compound to aluminum connections to prevent thread galling, but avoid overapplication, which can interfere with conductive contact.
Bypassing protective relays during testing skips critical safety interlocks. Verify each relay operates within tolerance using a secondary source before energizing the main circuit. Common failures include:
- Overvoltage relays failing to trip at 110% of rated input
- Overcurrent protection not engaging within 1.5x nominal amperage
- Thermal cutoffs triggering prematurely due to improper heat sink attachment
Grounding Misconfigurations
A single-point grounding system reduces circulating currents that induce electromagnetic interference. Never daisy-chain ground paths or use the enclosure as a current return. Measure ground resistance–it must read below 1 ohm under all operating conditions. Corroded or undersized ground rods create voltage potentials dangerous to both equipment and personnel.
Isolation breaches lead to stray voltages appearing on control circuits. Use properly rated isolators between primary and secondary sides, and test with a megohmmeter after installation. Resistance should exceed 1 megaohm at 500V DC for safe operation. Failure here allows line transients to propagate into low-voltage components, causing erratic behavior or catastrophic failure.
Ambient temperature neglect voids performance guarantees. Forced-air cooling must maintain inlet temperatures below 40°C; natural convection installations require 20% derating for every 10°C above 30°C ambient. Install thermal sensors on enclosures and critical components to monitor real-time deviations. Overlooking this adjustment reduces operational lifespan by up to 60%.
Final Verification Protocol
Before full energization:
- Perform insulation resistance test–minimum 50MΩ at 1kV
- Check phase rotation using a sequence indicator–incorrect rotation damages motorized components
- Verify surge arrestors clamp voltage below 2.5x peak line voltage
- Confirm all control signals respond to 4-20mA inputs within ±0.5% accuracy
Skip none of these steps, and document each measurement. Deviations caught here prevent 90% of premature field failures.
