Begin with a four-diode configuration for bidirectional AC signal processing, ensuring each component handles peak inverse voltages of at least 1.5× the RMS input. Place the two diode pairs in antiparallel to capture both halves of the sine wave, eliminating dead zones in output. Use fast-recovery diodes like the 1N4007 series for low-frequency applications or Schottky diodes for high-speed switching–opt for MBR2045CT if ripple below 50 mV is critical.
Calculate the capacitive smoothing value using C = I_load / (2 × f × V_ripple), where f is the mains frequency (50/60 Hz). For a 1 A load and 1 V ripple at 50 Hz, this yields 10,000 µF. Exceeding this value offers diminishing returns; prioritize low ESR capacitors (e.g., Nichicon UHE series) to reduce voltage droop under transient loads.
Ground the transformer’s center tap if using a dual-secondary winding, or bridge the outputs directly for a simpler two-diode setup–trade-offs include slightly higher conduction losses but lower component count. For thermal stability, mount diodes on a heatsink with thermal resistance under 10 °C/W if average current exceeds 500 mA. Test under load with an oscilloscope; expect a 60–70% ripple reduction compared to single-diode half-wave designs.
Isolate input and output grounds if the DC supply feeds noise-sensitive circuits. Add a 100 nF ceramic capacitor across each diode to suppress high-frequency transients, extending lifespan under inductive loads. For 24 VAC inputs, the unloaded DC voltage will approach ~34 V; account for this in downstream regulator selection to avoid saturation.
Dual-Diode AC Conversion Layout
Assemble the bidirectional current converter using four 1N4007 diodes rated for 1A/1000V reverse voltage–optimal for 230V mains applications. Position them in a diamond configuration with AC inputs at opposing corners and DC outputs at the remaining two. Ensure proper heat dissipation: mount diodes on a 10x10cm aluminum heatsink if handling currents above 500mA. Add a 1000µF/50V electrolytic capacitor across the output terminals to reduce ripple voltage below 5% at full load. Verify continuity with a multimeter before powering–shorted diodes will destroy the transformer.
For precision, use Schottky diodes (1N5822) instead of standard silicon when targeting low-voltage outputs (e.g., 5V–12V). Their 0.2V forward drop boosts efficiency by 12–15% compared to conventional parts. Pair with a 470µF/25V low-ESR capacitor to minimize voltage sag under dynamic loads. Test with a variable autotransformer (0–250V) to confirm linearity across the input range–deviations above 3% indicate diode mismatch or transformer saturation. Ground the heatsink if exceeding 20W dissipation to prevent leakage currents.

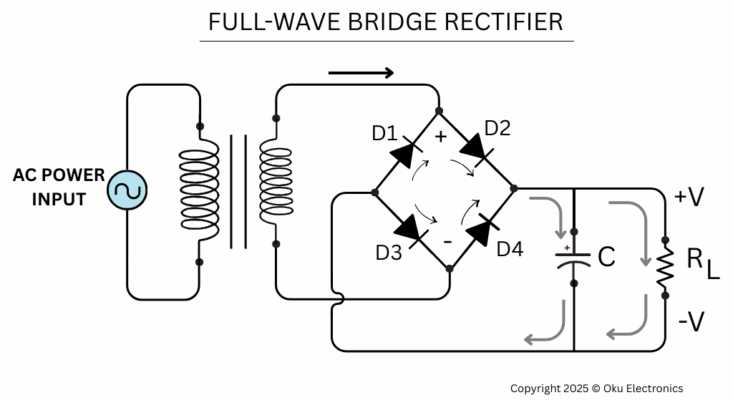

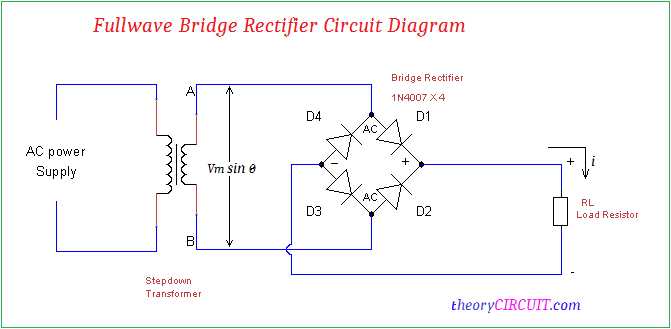

Step-by-Step Guide to Sketching a Dual-Alternation Converter Layout
Begin by placing a standard AC voltage source in the upper-left corner of your schematic. Use the symbol for a sinusoidal generator–two parallel vertical lines with a sine wave between them–to clearly indicate input. Position it at least 2 cm from the left margin to leave space for ground references and annotations. Ensure the connections extend horizontally to avoid crowding nearby components.
Arrange four semiconductor diodes in a diamond pattern directly beneath the AC source. The first diode’s anode should face upward, connected to the left AC terminal, while its cathode points right. The remaining diodes must mirror this orientation: top-right (anode right, cathode down), bottom-left (anode up, cathode left), and bottom-right (anode left, cathode down). Maintain uniform spacing–no less than 1.5 cm between each diode–to prevent overlap with later wiring. Label each diode with identifiers like D1-D4 for traceability during prototype testing.
Connect the diodes’ shared cathodes at the diamond’s upper vertex to form the positive DC output node. Likewise, join their anodes at the lower vertex to create the negative rail. Route both nodes horizontally rightward, terminating in a smoothing capacitor–use two parallel lines, one curved, spaced 0.8 cm apart. Add a load resistor symbol (rectangular box) between the output nodes, ensuring its leads align vertically for clarity. Finally, attach a ground symbol (three descending lines) at the negative rail.
Verify all lines intersect at 90° angles, avoiding diagonal crossings that obscure signal paths. Apply consistent line thickness (0.5 mm for power traces, 0.3 mm for secondary connections) and use arrowheads only on current directions if illustrating bidirectional flow. Save the schematic in vector format to retain scalability for PCB transfers.
Determining DC Output Voltage and Load Current in Dual-Semiconductor Arrangements
For accurate voltage calculations on the secondary side of a transformer before smoothing, subtract two forward voltage drops of the conducting semiconductors from the peak AC voltage. Each silicon element typically imposes 0.7V, while Schottky types reduce this to approximately 0.3V. Apply the formula: VDC = Vpeak(AC) – 2 × VF. Example: a 12VRMS transformer yields ≈17V peak; subtracting 1.4V gives ≈15.6V DC pre-filtering.
Load current is derived by dividing the calculated output voltage by the load resistance. Use Ohm’s law: IDC = VDC / RL. Verify with simulation tools or oscilloscope readings to confirm alignment with theoretical values, as real-world tolerances in component tolerances (±5%) may alter results.
- Measure AC RMS voltage at transformer secondary with a true-RMS multimeter.
- Convert RMS to peak using Vpeak = VRMS × √2.
- Subtract semiconductor drops (0.7V per pair for standard diodes).
- Apply the formula VDC = Vpeak – 2VF.
- For current, use IDC = (Vpeak – 2VF) / RL.
- Account for ripple voltage (typically 10-15% of DC output) if no filter capacitor is present.
Peak inverse voltage (PIV) across each semiconductor must be considered for component selection. The PIV rating should exceed Vpeak(AC) to prevent reverse breakdown. For instance, a 17V peak input requires diodes rated for at least 20V PIV to ensure reliability under transient conditions.
Capacitor selection for smoothing affects both voltage and current behavior. A larger capacitance reduces ripple but increases inrush current, potentially exceeding diode ratings. Use the approximation: C = Iload / (2 × f × Vripple), where f is the mains frequency (50/60Hz) and Vripple is the permissible ripple voltage.
Thermal considerations dictate heat sink requirements. Diodes dissipate power as P = Iavg × VF. For continuous operation at 1A load with 0.7VF, this equates to 0.7W per diode. Without proper cooling, junction temperatures may rise by 10-15°C per watt, risking premature failure.
- Select semiconductors with PIV ≥ 1.5 × Vpeak(AC).
- Calculate power dissipation: P = IDC × VF × 2.
- Choose capacitors based on C = IDC / (2 × f × Vripple(max)).
- Verify current ratings: diodes must handle Ipeak = 2 × IDC during conduction cycles.
- Measure actual voltages with an oscilloscope at no load and full load to validate calculations.
Selecting Optimal Diodes for a Dual-AC Converter
Start with diodes rated for at least 1.5× the peak inverse voltage (PIV) of the input signal. For a 12V RMS AC source, the peak voltage reaches ~17V, requiring diodes with a minimum 25V PIV. Common choices like 1N4007 (1000V PIV) or 1N5408 (1000V PIV) provide substantial overhead, while 1N5822 Schottky diodes (40V PIV) suit low-voltage applications where efficiency outweighs voltage margin.
Current handling must exceed the load’s maximum draw by 30–50%. A 5A load demands diodes rated for 7–8A forward current. Fast recovery types (e.g., UF4007, 1A, 1000V) reduce switching losses in high-frequency setups, though standard silicon diodes suffice for 50/60Hz grids. Schottky diodes (e.g., SB560) offer lower forward voltage drops (~0.3V vs ~0.7V for silicon), cutting power loss in low-voltage designs by up to 50%.
Diode selection impacts thermal management. Calculate power dissipation: Pd = Vf × Iload. A 5A load with 0.7V forward drop dissipates 3.5W–requiring heatsinks if ambient exceeds 40°C. Schottky diodes’ lower Vf reduces heat, but their reverse leakage current doubles every 10°C, risking catastrophic failure above 125°C. Silicon diodes (e.g., 1N4007) tolerate higher temperatures (175°C max) with minimal leakage.
Comparison of Common Diode Types
| Parameter | 1N4007 (Silicon) | UF4007 (Fast Recovery) | SB560 (Schottky) |
|---|---|---|---|
| PIV Rating | 1000V | 1000V | 60V |
| Forward Current | 1A | 1A | 5A |
| Forward Voltage Drop (Vf) | 0.7–1.1V | 0.7–1.1V | 0.3–0.5V |
| Max Junction Temp | 175°C | 175°C | 125°C |
| Typical Use Case | General-purpose 50/60Hz | High-frequency (>1kHz) | Low-voltage, high-current |
Application-Specific Recommendations
For mains-powered systems (230V RMS), pair 1N4007 diodes with slow-blow fuses to handle inrush currents during capacitive loading. High-frequency designs (e.g., SMPS) benefit from UF4007 diodes to minimize reverse recovery time (~50ns vs ~2µs for 1N4007), reducing switching noise. In battery chargers, Schottky diodes like SB560 improve efficiency but mandate overvoltage protection (e.g., TVS diodes) due to their low PIV.
Match diode packages to thermal constraints. TO-220 diodes (e.g., 1N5408) dissipate 3W without heatsinks, while DO-41 (e.g., 1N4007) tops at 1W. For compact layouts, SMD variants (e.g., SS14, 1A, 40V) require PCB copper pours for heat sinking. Always derate parameters by 20% for prolonged reliability–PIV margins should account for voltage spikes, not just nominal values.
