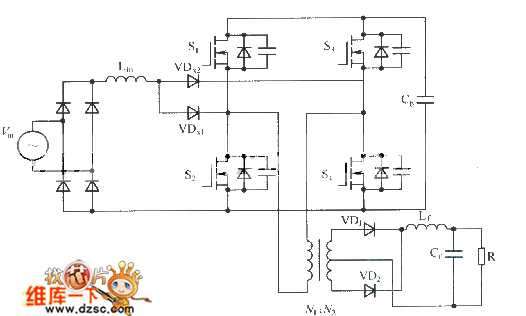

For a 400V DC input with a 12V/20A output, use a phase-shifted configuration with synchronous rectification. Implement dead-time control between Q1-Q4 and Q2-Q3 pairs to prevent shoot-through–target 50-200ns depending on MOSFET switching speed (e.g., IPP60R180P6 for 650V/180mΩ). Primary-side switches should handle ≥2× the input voltage (800V rating) to account for parasitic ringing; add snubbers (RC, 10Ω/2.2nF) across each transistor if overshoot exceeds 20%.
On the secondary, center-tapped or current-doubler topologies reduce conduction losses. For 20A output, parallel SIR872DP (30V/1.1mΩ) MOSFETs in pairs; each device should carry ≤10A to stay below 125°C junction temperature. Gate drivers (UCC27211) must deliver ≥4A peak current for clean transitions. Calculate transformer turns ratio as Vin(min) / (Vout + Vdiode)–for 360V minimum input, a 15:1 ratio balances efficiency and saturation margin.
Isolation requires reinforced barriers: keep primary/secondary clearance ≥6mm (IEC 60950-1) and use a PC40 core (e.g., PQ40/40) with ≤1.5T flux density to avoid saturation. Feedback loops must compensate for transformer delay (typically 1-2µs); a type-3 compensator (TL431 + optocoupler) ensures stable regulation. Test load transients (0-20A step) with ≤120mV overshoot, or revisit output capacitance (typical: 4×47µF/25V ceramic + 470µF/16V electrolytic).
Dual-Section Power Stage Layout
Select MOSFETs with a breakdown voltage at least 20% higher than the maximum input voltage to prevent avalanche failures under transient spikes. For a 48V input, use components rated for 60V or above. Place decoupling capacitors (10µF ceramic) within 2mm of each semiconductor’s drain-source path to suppress high-frequency noise. Opt for a phase-shifted PWM controller like UCC28950 for dead-time optimization–set 50ns dead-time to avoid cross-conduction while minimizing switching losses. Trace inductance in the power loop should not exceed 5nH; use wide, parallel traces on the top and bottom layers (70µm copper thickness) to reduce parasitic effects.
Thermal and Grounding Strategies
Mount MOSFETs on a single copper plane with thermal vias (0.3mm diameter, 1mm pitch) connecting to an internal ground layer. This plane should cover at least 80% of the PCB area beneath the semiconductors. Separate analog and power grounds with a star-point connection at the output capacitor’s negative terminal. For heatsinks, use materials with thermal conductivity above 150 W/m·K–aluminum nitride (AlN) outperforms copper for high-power densities. Use a snubber network (10Ω resistor + 1nF capacitor) across each switch to damp ringing at resonant frequencies above 5MHz. Keep high-current traces short; a 10mm trace length increases inductance by ~2nH.
Step-by-Step Assembly of a Dual-Switch Power Stage on a Printed Board
Begin by securing the MOSFET drivers–UCC27211 or similar–on the PCB’s copper pour with thermal adhesive. Position them equidistant (≤5 mm) from the switching transistors to minimize trace inductance. Use a 2 oz copper layer for heat dissipation; any thinner risks thermal throttling under 20 A loads. Apply flux to the pad before soldering to prevent cold joints, verified with a multimeter in diode mode (VF ≈ 0.4–0.6 V for intact joints).
Align the power transistors next. Opt for TO-220 or TO-247 packages (e.g., IRFP4668) with RDS(on) ≤ 3 mΩ. Mount them flat against the board’s heatsink area using M3 screws with Belleville washers to ensure even pressure. Pre-tin the drain pads with 1 mm solder to fill vias; incomplete filling introduces parasitic inductance. For gate traces, route 20 mil widths with a ground plane beneath to reduce ringing–confirmed via oscilloscope (overshoot
Install the high-side bootstrap capacitors (100 nF/X7R, 50 V) directly atop the driver IC pins (≤2 mm lead length). Any deviation risks insufficient charge supply during switching, causing gate voltage collapse. For the isolation transformer, wind primary and secondary on a PQ26/20 core with 0.5 mm air gap to prevent saturation at 100 kHz; confirm inductance with an LCR meter (target ±5% of calculated value). Use AWG 22 Litz wire for windings to mitigate skin effect losses.
Final Checks Before Power-Up
Verify all feedback paths–optocoupler (e.g., PC817) must bridge primary/secondary sides with
Key Component Ratings and Selection Criteria for Dual-Switch Power Stage
Select MOSFETs with a voltage rating at least 1.5× the maximum DC link voltage to accommodate transient spikes. For a 400 V bus, opt for 600 V devices (e.g., Infineon IPA60R160P7) to ensure margin against avalanche breakdown during turn-off.
Calculate the required current rating by multiplying the RMS switch current by 2.0 for heat dissipation headroom. In a 5 kW stage drawing 12.5 A RMS, choose 30 A MOSFETs (e.g., STW38N65M5) to prevent thermal runaway under 100 kHz operation.
| Component | Parameter | Design Margin | Example Part |
|---|---|---|---|
| Switching transistor | Voltage (VDS) | 1.5× bus max | IPA60R160P7 |
| Switching transistor | Current (ID) | 2.0× RMS | STW38N65M5 |
| Isolation capacitor | Voltage (VDC) | 2.0× bus max | B32678G4406K000 |
| Gate driver | Propagation delay | < 50 ns | UCC21520 |
Gate drivers must handle peak gate currents of 2 A minimum to ensure fast turn-on/off; UCC21520 achieves 4 A with 6 Ω gate resistors. Verify the driver’s common-mode transient immunity exceeds 50 kV/µs to prevent false triggering during high dv/dt events.
DC-link capacitors must withstand 2× the bus voltage and ripple current of 1.2× the nominal stage current. For a 400 V, 12.5 A setup, use 4× 47 µF, 850 V polypropylene capacitors (e.g., Vishay MKP1848) in parallel to distribute ripple current and extend lifetime to > 100,000 hours at 80 °C.
Transformer cores are selected based on flux density swing ΔB
Snubber networks across switches limit overshoot to
Optimal Gate Drive Topologies for Synchronous Rectifier Switches in H-Bridge Arrangements
Isolate gate drivers with dedicated high-side channels for upper transistors. Use isolated DC-DC converters (e.g., Murata NMJ series) or bootstrap ICs (IR2110, UCC21520) to supply floating gate voltages. Maintain a 10-15V gate-source margin for reliable turn-on while avoiding excessive Vgs that degrades long-term oxide integrity. Include a low-ohmic (
Dead-Time Insertion Strategies
Implement adaptive dead-time circuits (TI DRV8350) or digital controllers (STM32G4) to prevent cross-conduction during switching transitions. Fixed dead-time values–typically 50-200 ns–must account for MOSFET body diode reverse recovery (trr) characteristics; faster diodes (e.g., SiC) allow tighter margins. Monitor gate waveforms with differential probes to detect Miller plateau shifts indicating excessive dv/dt stress.
Leverage negative gate bias (e.g., -4V) during off-states to suppress false turn-ons from high dv/dt transients. Dedicated gate driver ICs like IXYS IXDN609 integrate negative bias generation, eliminating need for auxiliary supplies. For discrete implementations, use a zener diode (BZX84C4V7) across pull-down resistor to clamp negative voltage without destabilizing drive strength.
Parasitic Mitigation Techniques
Route gate traces as tightly coupled pairs (≤0.5mm spacing) to upper/lower switch control pins, minimizing loop inductance. Place 100nF bypass capacitors within 2mm of driver ICs–X7R dielectric for stable voltage under temperature swings. Shield high-current paths from gate circuitry using ground planes or ferrite beads between noisy/clean zones on the PCB.
Select gate driver ICs with slew-rate control (ADuM4223) to limit di/dt and dv/dt–adjust rise/fall times to 20-50 ns to balance switching losses and EMI. For low-side transistors, prioritize common-source inductance reduction by merging Kelvin connections with thick copper pours (≥70μm) directly under the MOSFET pad. Avoid vias in gate loops–use surface traces exclusively.
Validate configurations under worst-case conditions: 80% load at maximum input voltage with ambient temperature ≥60°C. Scope gate waveforms with bandwidth ≥100MHz, verifying absence of overshoot (>10% of Vgs) and ringing amplitude (>5V). Replace generic pull-down resistors with active clamp circuits (e.g., PNP transistor + diode network) for systems where gate leakage exceeds 1μA.
Voltage and Current Sensing Techniques in Dual-Switch Power Stages
For accurate phase-node voltage detection in half-bridge topologies, use a differential amplifier with a Common-Mode Rejection Ratio (CMRR) of at least 80 dB. The AD8221 or LTC6090 offer sufficient performance, but ensure their input voltage range matches the maximum swing–typically ±50 V for SiC MOSFET stages. Place the sensing resistors directly at the switching node to avoid parasitic inductance, which introduces phase delays of 5–10 ns per cm of trace length. For high-frequency applications above 200 kHz, replace resistive dividers with a capacitive divider (10 pF/100 nF) and an active buffer to maintain signal integrity while reducing power dissipation by up to 40%.
Current sensing should prioritize low-side measurements in dual-switch configurations to avoid common-mode noise from floating nodes. A 1 mΩ shunt resistor with a 0.1% tolerance provides a 100 mV signal at 100 A, but thermal drift becomes critical above 50 A. Compensate with an Isolated Delta-Sigma Modulator like the AD7403, sampling at 20 MHz to capture transient events with 12-bit resolution. For isolated gate drivers, integrate a Hall-effect sensor (e.g., ACS730) adjacent to the DC bus; position it 5 mm from the primary current path to minimize magnetic interference while maintaining ±1.5% accuracy across –40°C to 125°C.
To reject switching noise in voltage sensing, apply a two-pole Sallen-Key filter with a cutoff frequency 10× lower than the switching frequency. For a 500 kHz stage, use 10 kΩ resistors and 10 nF capacitors (fc ≈ 1.6 kHz) to attenuate high-frequency harmonics by 40 dB. Avoid RC networks alone–they introduce group delay, distorting transient response. Instead, pair the filter with a sample-and-hold circuit (LF398) triggered synchronously with the PWM signal to capture the measurement at the valley of the switching waveform, where noise is minimal.
- For high-power stages (>10 kW), employ Rogowski coils (e.g., PEM CWT Ultra Mini) for current sensing. Their advantages:
- No saturation at high currents (linear up to 10 kA)
- Isolation up to 10 kV without additional components
- Bandwidth >10 MHz, capturing sub-μs transients
- Drawback: Requires external integrator (time constant τ = L/R ~ 100 μs) to convert di/dt to a proportional voltage
When galvanic isolation is mandatory, opt for isolated measurements with digital output. The Si8920 from Skyworks provides a 12-bit ADC with 750 V RMS isolation and a 1 Msps sampling rate–sufficient for most motor drives and battery chargers. For analog isolation, use the IL300 optocoupler in linear mode; its 0.01% non-linearity suits precision applications, but compensation for LED aging (~-0.5%/1000 hours) is required via firmware updates every 5000 hours.
- Validate sensing accuracy under dynamic loads:
- Apply a 0–100 A, 10 kHz sine-wave load (e.g., electronic load in active mode)
- Compare sensed waveform to a reference shunt or coaxial current probe (e.g., Tektronix TCP0030A)
- Measure phase error; it should not exceed 2° at the switching frequency
- For systems with multiple phases, cross-validate sensors by enabling only one leg at a time
- Document drift over temperature; typical specifications: ±0.2% from 25°C to 85°C, ±0.5% from –40°C to 125°C
