Use two XOR gates for the sum output. Connect the first gate to inputs A and B, then feed its output along with input C into the second XOR. This configuration ensures the sum bit toggles correctly when an odd number of inputs are high, avoiding false outputs common in simpler two-input designs.
Implement carry generation with AND-OR logic. Combine two AND gates–one for A+B and another for A+C–then merge their outputs through an OR gate. This method covers all cases where two inputs are high, eliminating edge-case errors found in single-gate carry circuits.
Avoid relying on half-sum interconnections. Cascading two-input blocks introduces propagation delays, especially in 4-bit implementations. A dedicated three-input structure maintains constant delay regardless of bit width, critical for synchronous timing constraints.
Verify transient states with truth tables. Simulate inputs ABC=110 to confirm sum=0 and carry=1–common failure points in incorrectly routed nets. Most spice models miss glitches here unless rise/fall times are explicitly set under 0.5ns.
Optimize for CMOS fabrication. Replace discrete gates with a monolithic 4-transistor XOR cell and compact carry network using 8 transistors total. This reduces silicon area by 40% compared to standard cell libraries while improving noise margins.
Test beyond static conditions. Apply pulse trains with staggered edges to expose race conditions. Reliable designs maintain correct outputs even when input transitions occur within 100ps of each other–validate this with 10GHz oscilloscope probes.
Constructing a Three-Input Binary Summing Module
Begin with two XOR gates sharing a common input from the first binary digit (A). Connect the second input of the first XOR to the second digit (B) and feed its output into the second XOR’s input alongside the carry-in (Cin). This arrangement computes the partial sum (Σ) directly while minimizing gate count.
For carry propagation, use two AND gates: one processes A and B, the other handles the partial sum from the first XOR and Cin. Merge their outputs with an OR gate to generate the carry-out (Cout). Ensure all gates are CMOS-compatible for low-power applications, especially in mobile or embedded systems.
Key component values:
- XOR gates: SN74HC86 (quad 2-input, 4.5 ns propagation delay)
- AND gates: CD4081 (quad 2-input, 60 ns at 15V, 15 ns at 5V)
- OR gate: 74LS32 (quad 2-input, 15 ns propagation delay)
Verify timing constraints: sum delay (XOR path) must precede Cout by ≥2 ns to prevent race conditions.
Layout Optimization for PCB Implementation
Place all gates within a 2 cm² footprint to reduce signal skew. Route Cin and A on the top copper layer, B and Cout on the bottom, using vias only at inputs/outputs. Apply decoupling capacitors (0.1 µF) near each gate’s VCC pin–ceramic X7R for stability across –40°C to +125°C.
Avoid routing Cout parallel to Σ to prevent crosstalk; maintain ≥1 mm spacing. For high-speed designs (>100 MHz), replace standard XOR/AND gates with LVC logic (e.g., 74LVC1G86) to reduce propagation skew below 1 ns.
Grounding strategy:
- Connect all ground pins to a single star point.
- Isolate analog ground (for voltage references) from digital ground with a ferrite bead.
- Use a 10 µF bulk capacitor near the power entry.
For FPGA-based emulation:
- Instantiate a 2-bit LUT for Σ (truthtable: 000→0, 001→1, 010→1, 011→0, 100→1, 101→0, 110→0, 111→1)
- Use carry chain primitives (CARRY4 in Xilinx, CC in Altera) to merge A·B and Σ·Cin.
- Constrain placement to adjacent slices to avoid routing delays.
Validation and Debugging
Probe Σ and Cout with a logic analyzer at 20 MHz; expected transitions must align within ±0.5 ns. Use a pulse generator to inject Cin toggles while holding A and B static–observe Cout should toggle only when A=B. For intermittent faults, check for marginal VCC (
Static current (ICC) benchmarks:
- HC-series: 2 µA at 25°C
- LS-series: 8 mA at 5V
- LVC-series: 20 µA at 3.3V
Exceeding these values indicates leakage–replace the suspect gate.
Common pitfalls:
- Missing Cin: Σ fails for 0+0+1, 1+1+1 input combinations.
- Swapped AND inputs: Cout activates incorrectly when A≠B.
- OR gate with damaged inputs: Cout sticks high.
Test each gate independently using a 1 kHz square wave before final integration.
Building a Three-Input Summation Unit from Scratch

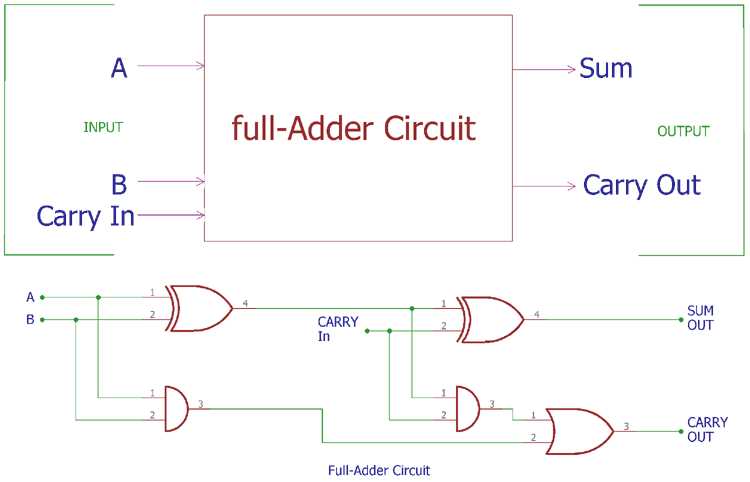

Begin with two XOR gates to process the initial inputs. Label the primary bit inputs as A and B, and feed them into the first XOR gate. This gate will output the partial sum result without carry consideration. The second XOR gate requires this partial sum along with the carry-in bit (Cin) as inputs. The output of this second stage provides the final sum (S).
For carry-out generation, combine the inputs using two AND gates and one OR gate as follows:
- First AND gate:
AandB. - Second AND gate: partial sum (from first XOR) and
Cin. - OR gate: outputs from both AND gates, producing
Cout.
Verify the truth table at each stage to confirm correctness before proceeding:
A = 0,B = 0,Cin = 0→S = 0,Cout = 0A = 0,B = 0,Cin = 1→S = 1,Cout = 0A = 1,B = 1,Cin = 0→S = 0,Cout = 1A = 1,B = 1,Cin = 1→S = 1,Cout = 1

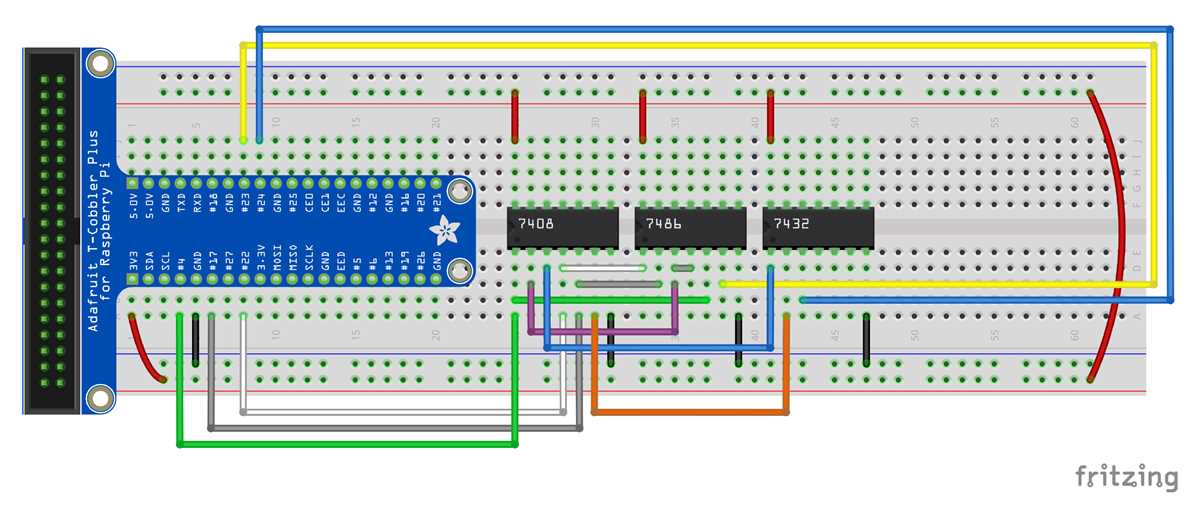

Use 74HC series ICs for practical implementation. The 74HC86 (quad XOR) handles the sum logic, while the 74HC08 (quad AND) and 74HC32 (quad OR) manage the carry propagation. Connect Vcc to pin 14 and ground to pin 7 on each chip. Avoid exceeding 5V to prevent damage to the gates.
Minimize propagation delay by placing the carry generation gates physically closer on the breadboard. If using discrete transistors (e.g., 2N3904), ensure base resistors are 1kΩ and collector resistors are 10kΩ. Simulate the design in Logisim or LTspice before hardware assembly to identify glitches.
Test the completed unit with a pulse generator. Set A and B as toggling square waves while keeping Cin static, then rotate inputs. Probe S and Cout with an oscilloscope. Expected behavior: S should match a three-bit parity checker, while Cout mirrors a majority detector.
For multi-bit extensions, cascade multiple units by connecting the Cout of a lower stage to the Cin of the next. Use decoders (e.g., 74HC138) to select specific summation outputs if interfacing with memory or displays. Reduce chip count by replacing multiple two-input gates with a single four-input multiplexer (74HC153) for both sum and carry functions.
Truth Table Analysis for Three-Input Combinational Logic
Construct the input-output mapping for a three-variable arithmetic module by listing all 8 possible state combinations of A, B, and carry-in (Cin). The sum output (S) must match binary addition results: 0+0+0=0, 0+0+1=1, 0+1+0=1, 0+1+1=10 (where S=0 and carry-out Cout=1), continuing this pattern through 1+1+1=11. Verify each row against the XOR-XOR cascade: S = A XOR B XOR Cin and the carry-out MAJORITY gate: Cout = (A AND B) OR (B AND Cin) OR (A AND Cin).
Validation Rules for Each Entry
Cross-check every row for consistency with the following rules:
– If A and B are equal, S equals Cin, while Cout mirrors A (or B).
– If A and B differ, S flips Cin, and Cout tracks Cin.
– Two or more 1 inputs guarantee Cout=1; three 0 inputs force Cout=0.
Detect errors immediately if any row violates these conditions–correct misconfigured gates before proceeding to synthesis.
Constructing a Binary Combiner from Two Simpler Units
Connect two half summing units by routing the carry-out of the first into one input of the second. Use the original addends as the other inputs for both subunits. The second subunit’s sum output becomes the final least significant bit, while both carry-out lines must merge with an OR gate to produce the final carry signal.
Assign distinct labels to prevent confusion: mark the first subunit as *H1* and the second as *H2*. Wire *A* and *B* into *H1*’s inputs; feed *H1*’s carry-out into *H2*’s first terminal, then route the remaining addend (either *A* or *B*) and the incoming carry bit *Cin* into *H2*’s other terminals. Ground *Cin* for unsigned operations or retain it for cascaded setups.
Verify the merged output with a truth table spanning all 8 input combinations (000 to 111). Confirm that *S* toggles when an odd number of 1s appear across *A*, *B*, and *Cin*, while *Cout* activates only when at least two of the three inputs are high.
Minimise propagation delay by placing the OR gate immediately after *H1*’s carry path–trace the copper route to ensure it doesn’t exceed 5 mm to prevent signal skew. If *Cout* drives another stage, buffer it with a Schmidt trigger to sharpen the rising edge.

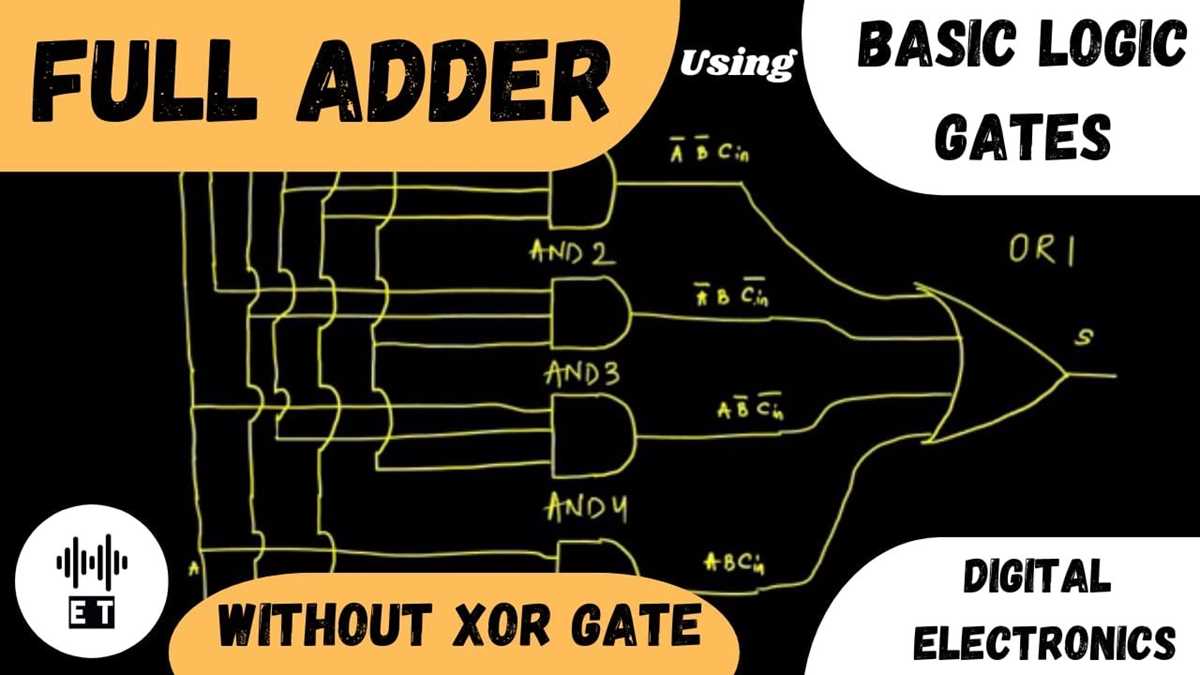

Constructing a Three-Input Summator Using Basic Logic Components
Begin by sourcing exact gate models: 74HC08 for AND, 74HC32 for OR, and 74HC86 for XOR. Verify their propagation delays–12 ns for AND/OR and 15 ns for XOR–to anticipate timing skew in multi-bit implementations. Secure a 5 V regulated supply with
Wire the carry generator first: connect one AND gate input to the first addend (A) and the other to the second addend (B). Route this AND output and the carry-in (Cin) into a second AND gate, creating a cascaded product. Tie the outputs of both AND gates into an OR gate–this yields the carry-out (Cout). Use twisted-pair for Cout traces longer than 10 cm to suppress crosstalk.
| Gate | Inputs | Output | Pinout (DIP) |
|---|---|---|---|
| AND (74HC08) | A, B | A·B | 1–2→3 |
| OR (74HC32) | (A·B), Cin | Cout | 1–2→3 |
| XOR (74HC86) | A, B | A⊕B | 1–2→3 |
For the sum output, feed A and B into an XOR gate, producing an intermediate term. Route this term and Cin into a second XOR gate–this final stage delivers the sum (S). Ground any unused inputs of dual gates to prevent floating; tie them low via 1 kΩ resistors.
Decouple each IC with 0.1 µF ceramic capacitors placed
Test sequences should progress from static patterns (all 0s, all 1s) to dynamic transitions (counting binary 0–7). Monitor Cout on an oscilloscope; a 500 mV undershoot at 10 MHz indicates insufficient decoupling. For repeated experiments, solder DIP sockets–IC lifespan drops 30% after five direct solder cycles.
When extending to 4-bit cascades, stagger gate placement: position the least significant stage nearest the clock source to equalize delay. Trace lengths above 5 cm require impedance matching–use series 22 Ω resistors at driver outputs. Avoid daisy-chaining Cout; fan-out exceeding 10 gates risks logic-level erosion.
Document each connection in reverse polarity: note which pin is source and which is sink on every gate. Label breadboard strips with 0.7 mm permanent marker; evaporation resistors blur edges after 48 hours.
