Begin by locating the float gauge harness beneath the fuel reservoir access panel. Most modern systems use a three-wire configuration: a power feed (12V), a ground return, and a variable resistance output. Verify the voltage between the power and ground leads with a multimeter before proceeding–readings below 11V indicate a weak supply or corroded connections, while erratic values suggest an intermittent fault in the harness.
Trace the resistance output wire to the instrument cluster. Here, the circuit typically incorporates a 100-ohm to 150-ohm resistor in series, depending on the tank’s full-to-empty calibration. Older models may require bridging through a 200-ohm resistor if the gauge reading is inverted. Check the service manual for exact specs–some European systems use a 50-ohm resistance curve, which complicates direct replacements without recalibration.
Inspect the connector pins for oxidation. A common failure point is the floating contact where the harness meets the level sensor–clean with electrical-grade grease or a contact enhancer rated for automotive environments. Avoid silicone-based products; polyphenyl ether formulations provide superior corrosion resistance without compromising conductivity.
For aftermarket installations, measure the empty and full resistance values at the sender unit. A typical range spans 20 ohms (empty) to 240 ohms (full), but variations exist: diesel applications often exceed 300 ohms, while compact tanks may drop below 180 ohms. Use a potentiometer to simulate values during testing–fluctuations beyond ±5 ohms indicate a failing unit or wiring shorts.
When splicing into existing circuits, use heat-shrink butt connectors with built-in adhesive lining. Standard crimp connectors fail under vibration; military-grade terminals (MIL-T-7928) endure prolonged exposure to hydrocarbons and temperature cycling. Route all wiring away from heat sources like exhaust manifolds and secure with adhesive-backed clamps–plastic zip ties degrade within 12-18 months when exposed to UV light.
For digital dash conversions, interface the analog signal through a voltage divider circuit before feeding it into an ADC. A 1:3 ratio (e.g., 3.3V reference) prevents signal clipping in 5V systems. Verify linear response across the entire range–nonlinear senders require lookup tables or interpolation algorithms for accurate readings.

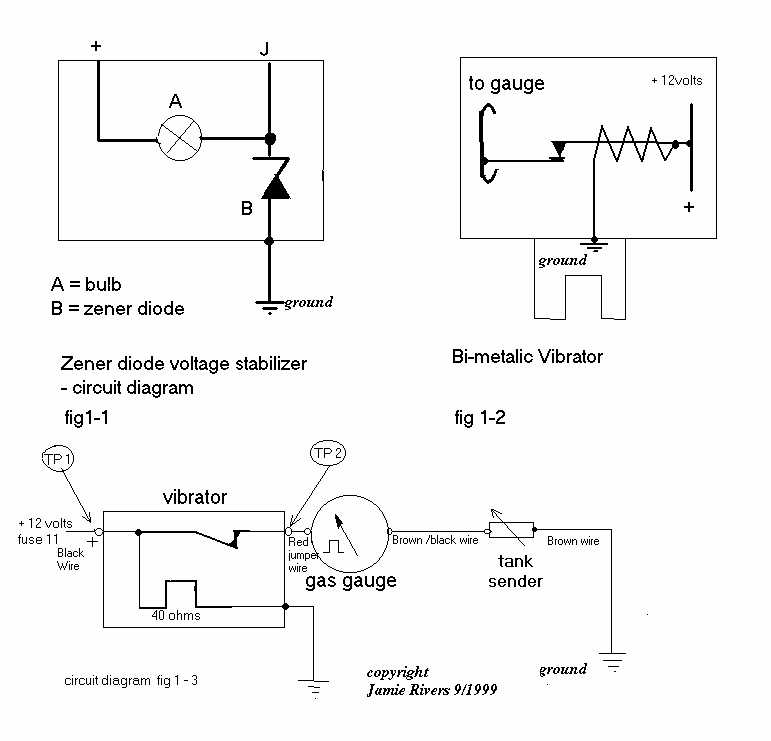

Understanding Gauge Circuit Schematics for Liquid Level Sensors
Begin by identifying the three critical connection points: the gauge unit, the sensing probe, and the voltage supply. Most automotive and marine applications operate on a 12V system, where the sensing probe acts as a variable resistor–typically ranging from 0-30 ohms (empty) to 180-240 ohms (full). Verify these resistance values against the manufacturer’s specifications before proceeding, as mismatches will result in inaccurate readings. Connect the probe’s signal wire directly to the gauge’s input terminal, ensuring no intermediate components interfere with the resistance feedback.
The ground reference plays a pivotal role in signal stability. Attach the probe’s grounding terminal to the vehicle’s chassis or a dedicated ground bus, avoiding daisy-chain connections that introduce voltage drops. For aftermarket installations, use 18-gauge or thicker stranded copper wire to minimize resistance loss over distance. Test the ground continuity with a multimeter; an ideal reading should show less than 0.1 ohms between the probe’s ground and the battery’s negative terminal. Poor grounding manifests as erratic gauge behavior or baseline drift.
Always isolate the sensing circuit from inductive loads like pumps, relays, or solenoids. Inductive spikes disrupt the resistive feedback, causing gauge flickering or false empty/full readings. Insert a 1N4007 diode across the probe’s power terminals (cathode to +12V, anode to ground) to absorb transients. Alternatively, a 10μF electrolytic capacitor between the signal wire and ground filters high-frequency noise. For diesel applications, where fuel agitation generates micro-volt fluctuations, a 100nF ceramic capacitor further stabilizes the gauge’s response.
Troubleshooting Common Wiring Faults
If the indicator pegs at full or empty regardless of liquid level, first disconnect the probe and measure its resistance across the float’s travel range. A shorted probe reads 0 ohms, while an open circuit shows infinite resistance. Replace the probe if values deviate beyond ±5% of the expected range. Next, check for voltage at the gauge’s power terminal–missing supply voltage suggests a blown fuse, loose connection, or switched ignition feed failure. For mechanical issues, tap the gauge housing lightly; persistent incorrect readings denote internal pot wear requiring gauge replacement.

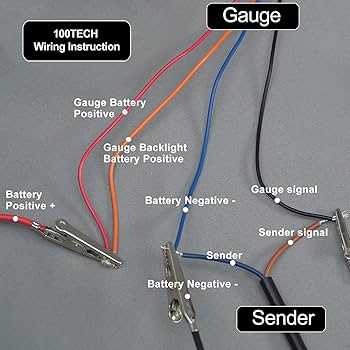

In dual-tank systems, each probe’s signal wire must connect to a separate gauge or a selector switch with a three-position center-off configuration. Avoid paralleling probes, as this averages readings and masks individual tank discrepancies. For OEM integration, consult the vehicle’s service manual to identify wire color codes–typically, black (ground), white (signal), and red (+12V). Retain original connectors when possible; splicing introduces corrosion risks, especially in marine environments where moisture accelerates oxidation. Apply dielectric grease to all terminals during assembly.
Matching Gauge Circuit Conductors to Level Indicators
Begin by locating the manufacturer’s service manual for the exact vehicle model–color codes for resistance-based indicators vary even between trims of the same generation. Standard configurations for many Asian and European vehicles follow:
| Connector Position | Primary Color (Most Common) | Secondary Color (Pin-Stripe) | Expected Function |
|---|---|---|---|
| Pin 1 | Black | None | Ground return |
| Pin 2 | Yellow | Brown | Variable resistance output |
| Pin 3 | Pink | Blue | Power supply (12V or 5V reference) |
| Pin 4 | White | Black | Instrument cluster signal input |
Verify the resistance range of the tank unit before connecting–most OEM units span 0–190 ohms empty-to-full; aftermarket units may use 10–180 ohms. Use a multimeter set to 200-ohm scale and measure between the ground conductor and the output conductor while manually sweeping the float arm through its arc; record readings at ⅛, ¼, ½, ¾, and full positions. Discrepancies exceeding ±5 ohms signal a faulty unit or incorrect pin assignment.
Trace the loom from the tank unit to the dash cluster–intermediate connectors (commonly behind the rear seat or under the trunk liner) often introduce additional color shifts. Label each connector terminal with heat-shrink sleeves after confirming continuity; avoid relying solely on connector diagrams, as aftermarket wiring harnesses frequently repurpose conductors for trailer lighting or auxiliary pumps.
Handling Vehicle-Specific Exceptions
German luxury vehicles typically use grey (pin 1) for ground and violet-red (pin 2) for the signal; American pickups reverse the signal and power conductors, assigning purple (pin 2) for output and grey (pin 3) for ignition-switched 12V. Japanese kei-cars often omit the secondary pin-stripe, relying on a solid-color scheme: red (power), green (signal), black (ground). Always cross-reference with the cluster pinout–the signal conductor for the gauge may terminate at a microprocessor that expects 0–5V; in this instance, the tank sensor must feed through a voltage-divider resistor network.
Aftermarket gauge kits (e.g., AutoMeter, VDO) frequently include their own sender unit calibrated to 240–33 ohms. If retaining the OEM gauge, recalibrate by shunting the correct resistance across the output and ground conductors–locate the calibration screw on the gauge’s rear face or consult the kit’s adjustment procedure. Never splice into the existing loom without isolating the new circuit; use a relay if 12V switched power is required to prevent back-feeding voltage into dormant systems sharing the same fuse.
Test for stray voltage at the tank unit connector with the ignition key in the ON position–readings above 0.5V between the ground conductor and chassis indicate a corroded ground strap or improperly bonded engine-to-chassis connection. Clean mounting surfaces with a stainless-steel brush and apply dielectric grease to the mating surfaces before reassembly; galvanic corrosion accelerates when dissimilar metals contact in a conductive medium such as fuel condensation.
Step-by-Step Guide to Testing Gauge Float Circuit Continuity
Disconnect the tank unit’s electrical connector first–locate it near the assembly’s mounting flange, typically secured by a single bolt or locking tab. Probe the connector terminals with a multimeter set to ohms (200Ω range). Expected readings vary: 10–15Ω for low-resistance models, 70–120Ω for high-resistance types. If the meter displays OL (open line), trace the path backward to identify breaks.
Identify the two key wires: one grounds to the chassis (often black or green), the other carries voltage to the dashboard indicator (yellow, pink, or purple, depending on make). Probe each wire individually from the connector to its termination–reservoir-side first, then instrument cluster. A continuous signal should register 0.5Ω or less per meter; discrepancies above 1Ω hint at corrosion, fraying, or loose connections.
Inspect the float arm sweep. With the tank unit removed, manually pivot the arm from empty to full positions while monitoring resistance. A linear rise (e.g., 20Ω to 150Ω) confirms proper operation; erratic jumps or sudden drops indicate a failing rheostat strip or worn contact points. Replace the unit if readings plateau or invert.
Common Failure Points to Check
- Terminal corrosion: Clean with electrical contact cleaner; apply dielectric grease afterward.
- Wire chafing: Focus on bends near the sender bracket or along the frame rail.
- Float binding: Ensure the arm moves freely without obstructing debris.
- Gauge cluster back-probing: Use a fine T-pin to avoid damaging solder joints.
Reconnect the electrical plug and retest the entire loop. Power the ignition (engine off) and observe the dashboard needle. If it pegs wildly, a short exists–isolate segments by disconnecting the instrument cluster harness. If the needle sits below empty, verify the ground wire path from the tank flange to chassis ground.
For variable-resistance modules, a secondary test involves measuring voltage drop across the signal wire while cycling the float. At ignition-on, engine-off, expect 2.5–4.5V (empty) climbing smoothly to 8–10.5V (full). Voltages outside this band suggest a miscalibrated tank unit or voltage regulator fault in the cluster.
Quick Bench Test Without Removal
- Shift the transmission to neutral (manual) or park (automatic).
- Lift the vehicle securely–access the harness from underneath.
- Back-probe the signal wire with the multimeter in DC volts mode.
- Have an assistant slowly tilt the float arm by hand while you record readings.
- Compare data to manufacturer specs (e.g., Ford: 0.4V–4.8V; GM: 0.25V–4.4V).
- Reattach all connections once satisfied.
Document all findings. If continuity checks pass but the indicator remains inaccurate, focus on the dashboard gauge or its power supply next–many failures mimic circuit faults but originate in the meter’s stepper motor or PCB.
