Begin by isolating high-current paths from low-level signal traces. Ground planes must follow a star configuration–central point near the main filter capacitor, branching outward to individual loads. Separate analog and digital grounds with a ferrite bead (e.g., Murata BLM18PG121SN1) at the junction. Keep switching regulator outputs at least 1.5mm from sensitive analog inputs to prevent crosstalk.
Use solid-fill copper pours for power rails, minimizing inductance. Route +12V rail traces at 100mil width for currents up to 1.5A, with vias double-stitched every 0.5 inches. Place input capacitors (10µF X7R ceramic) within 2mm of switching IC pins to suppress high-frequency noise. Avoid acute angles in trace corners–replace with 45° chamfers to reduce EMI.
Thermal vias under MOSFET pads require 0.3mm diameter, spaced 1mm apart, filled with solder. Ensure heatsink contact area exceeds 400mm² for 15W dissipation. Decoupling capacitors (100nF) must sit adjacent to IC power pins, connected via direct via-in-pad if using BGAs. Use differential pairs for I²C lines, maintaining 50Ω impedance–route them 0.15mm apart with ground shields on both sides.
Increment ground plane clearance around switching nodes to 3mm–this reduces capacitive coupling to surrounding traces. Test points should accommodate needle probes (0.5mm diameter) and include a ground reference within 5mm. For dual-layer boards, prioritize critical traces on the top layer, flooding unused bottom layer with ground pour. Panelize Gerbers with 2mm breakaway tabs for automated assembly.

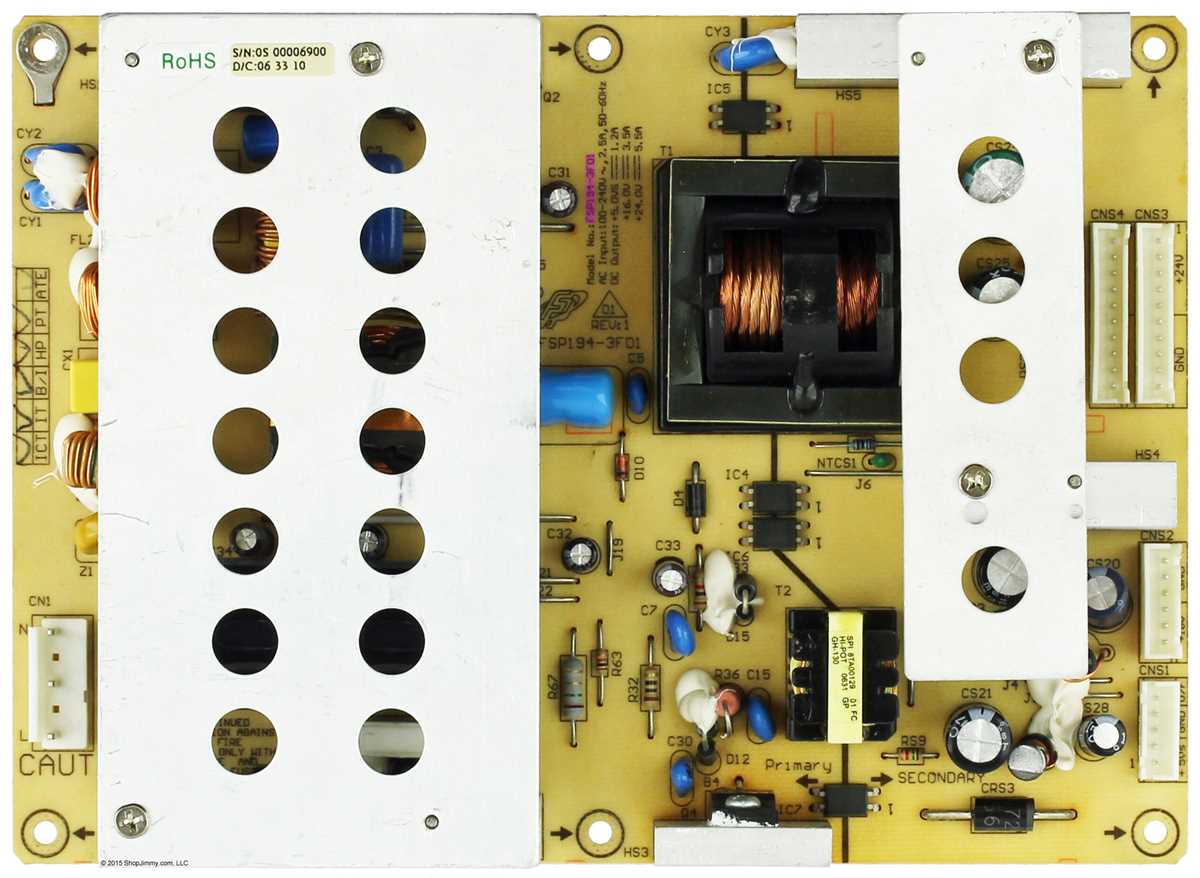

Practical Guide to Analyzing the FSP194-3F01 Circuit Layout
Trace key power rails first: Prioritize the +3.3V, +5V, and +12V lines before touching signal paths. Measure impedance across each rail at the smoothing capacitors (e.g., C8, C12, C15) using a multimeter set to 200kΩ range. Expected readings should stabilize between 1.2–3.5Ω; deviations above 5Ω indicate failed capacitors or cold solder joints. Replace any bulk caps showing >0.5V ripple under load with components rated for 20% higher ripple current to prevent premature failure.
Check the PFC stage by probing the gate of Q1 against ground–waveform should show a clean 100kHz sawtooth, not clipped or noisy. If distortion exceeds 15%, desolder R3 and verify its 47kΩ 1% tolerance; deviations corrupt switching efficiency. For the PWM controller (U5), confirm EN pin sits above 2.5V–failure here locks the unit in standby. Use an ESR meter on the output inductors (L2/L3): values over 2Ω demand replacement with cores matching the original AL±5% specification to avoid output sag.
Locating Service Manuals for FSP190-Series Power Supplies
Begin with the manufacturer’s official support portal. FSP Group’s website (www.fspgroupusa.com) hosts downloadable technical blueprints under the “Product Support” or “Downloads” section. Search by model number–identify the exact variant (e.g., 194-3F01 suffix) to avoid mismatched files. If the portal lacks direct links, submit a request via their contact form specifying the need for circuit reference material.
Check third-party repair repositories like BadCaps.net or Electro-Tech-Online, where engineers often upload reverse-engineered layouts. Use forum search filters with keywords like “190-series PCB layout” or “3F01 repair guides.” Community threads may include annotated photographs of component placements or voltage test points, which supplement official documents.
AliExpress and eBay sellers occasionally bundle service manuals with replacement parts. Filter listings by “repair kit” or “schematic included” tags. Prioritize vendors with high ratings; some sellers archive rare PDFs not indexed elsewhere. Verify file previews to confirm diagrams include power stage details, transformer specs, and protection circuit paths.
Specialized electronics archives such as Electronics Repair FAQ (repairfaq.org) or VintageComputer Federation (www.vcfed.org) host curated collections of power supply internals. Narrow searches using board identifiers (e.g., “FSP190 primary side IC”) to locate cross-references. These platforms often preserve legacy documentation for discontinued models.
University research labs or technical colleges sometimes publish repair workflows as part of curriculum. Search academic databases (IEEE Xplore, ResearchGate) for papers on “switching power supply teardowns.” While not always directed at this model, general principles (e.g., active PFC circuits, standby rails) apply. Download any cited supplementary files for potential hidden schematics.
Contact former OEM clients. Companies that integrated this unit into server racks or industrial equipment (e.g., Dell, HP enterprise divisions) may retain proprietary adaptation guides. Email their technical support with the module’s serial number–request “service bulletins” or “modification notes.” Some clients redact sensitive details but leave core circuit flows intact.
Use PCB footprint analysis. If no documentation exists, visually trace the board using a magnifying lamp. Key clues include:
- MOSFET/rectifier part numbers (e.g., Fairchild FDP18N50) to infer voltage rails.
- Controller IC markings (e.g., Infineon ICE series) for datasheets with block diagrams.
- Capacitor voltage ratings (printed on the casing) to map primary vs. secondary sides.
Cross-reference components with datasheets to reconstruct the layout. Online tools like EasyEDA allow drafting reverse-engineered layouts from photos.
When all else fails, probe the board with an oscilloscope. Connect it to known test points (e.g., +5VSB rail, PFC output) to record waveform shapes. Compare readings with typical power supply behavior (e.g., PWM signals on the controller IC) to infer circuit design. Document findings in a personal repair log–this ad-hoc reference guide may prove more reliable than scattered third-party sources.
Key Components and Their Functions in the Power Supply Board Layout
Begin with capacitive filtering at the primary stage–C1 and C2 (typically 220µF–470µF, 400V) must be placed adjacent to the bridge rectifier (D1–D4) to minimize high-frequency noise propagation. Their ESR and ripple current ratings should exceed calculated input transients by at least 30% to prevent premature failure. Snubber networks (R1/C3, 10Ω/1nF) across switching transistors (Q1, Q2) suppress voltage spikes from parasitic inductance; position these within 2mm of transistor leads to ensure efficacy.
PWM controller (IC1, often an LD7535 or equivalent) demands a dedicated analog ground plane, isolated from power traces to avoid duty-cycle jitter. Feedback resistors (R5–R7) must use 1% tolerance or better, with trace lengths under 15mm to maintain regulation stability. The optocoupler (U1, e.g., PC817) bridges primary and secondary sides–its input resistor (R8) should match LED forward current specs (typically 3–5mA); exceeding this risks nonlinear response or latch-up. Secondary-side capacitors (C8–C10) should balance low ESR with adequate headroom for load transients; derate voltage by ≥30% to account for thermal stress.
Gate resistors (R2, R3) for MOSFETs (Q3, Q4) must limit drive current to avoid shoot-through–values between 5Ω and 20Ω are typical, with higher resistance increasing switching losses. Auxiliary winding feedback (T1 pin 5) requires phase alignment; miswiring introduces instability or overvoltage. Always verify transformer core saturation margins (Bmax) against worst-case input voltage using an LCR meter–gap adjustments (e.g., 0.1–0.3mm) fine-tune energy storage. Output inductors (L1, L2) should use ferrite materials with low core loss (e.g., 3C90) to minimize temperature rise at 100kHz+ switching frequencies.
Decoding the Power Supply Circuit Blueprint: A Practical Walkthrough
Locate the input filtering stage first–it’s typically near the AC inlet, marked by components like thermistors (NTC), fuse holders, and EMI suppression capacitors. Measure the capacitance values on the X-capacitors (between L and N) and Y-capacitors (between L/N and ground); they should align with the silkscreen labels: 0.1 µF (X) and 2.2 nF (Y). If values deviate by more than 10%, suspect degradation or substitution.
- Verify the bridge rectifier configuration: four diodes arranged in a diamond pattern. Check forward voltage drop–should be ~0.7 V across each diode under load.
- Trace the high-voltage DC rail–follow the thick traces from the rectifier to the first bulk capacitor. Note the polarity: positive rail typically runs along the top edge, ground plane below.
- Count the bulk capacitors: usually two parallel 220 µF/400 V units. Confirm their ESR ratings (should be <1 Ω at 100 kHz).
The primary switching MOSFET (often a 600 V/20 A device) sits adjacent to the PWM controller IC, identifiable by an 8-pin SOIC footprint. Cross-reference the IC’s datasheet (e.g., SG6848 or OB2263) against the pinout labels on the board: pin 1 (GND), pin 2 (FB), pin 5 (DRAIN). Probe the FB pin voltage–it should hover around 1.5 V during operation.
Examine the secondary side: the output rectifiers (Schottky diodes for 5 V rail, ultrafast for 12 V) feed into LC filters. Check the inductors’ markings: toroidal cores for 5 V (yellow, ~3.3 µH), cylindrical for 12 V (white, ~10 µH). Output capacitors should be low-ESR types (e.g., polymer tantalum or POSCAP), specified for ripple current ratings >3 A RMS.
- Test the feedback loop: inject a 1 kHz sine wave (~0.5 Vpp) into the optocoupler’s cathode (pin 3) while monitoring the PWM IC’s FB pin. The output rails should remain stable (±5% tolerance); instability indicates degraded optocoupler (CTR <50%) or cracked solder joints.
- Inspect the snubber networks–RC pairs across MOSFET/DRAIN and diode cathodes. Values typically range: R=47 Ω/2 W, C=1 nF/1 kV. Deviations cause ringing (>2 MHz) visible on an oscilloscope.
- Cross-check the protection circuits: OVP/IC comparator thresholds (via pull-up resistors on the FB pin), UVP lockout, and OTP (NTC on heatsink). Trigger each by simulating faults–e.g., shorting a secondary rail or warming the NTC to 70°C.
