For immediate implementation, prioritize the LM2907N or LM2917N integrated stage in your design–these chips deliver a linear 0–5V response for pulse rates up to 10 kHz with minimal external components. Connect the pulse train to pin 1 (via a 10 kΩ current-limiting resistor) and tie pin 2 to ground through a 0.1 µF bypass capacitor to suppress noise spikes. The output stage (pin 4) requires a 10 µF smoothing capacitor to a +5V rail, ensuring

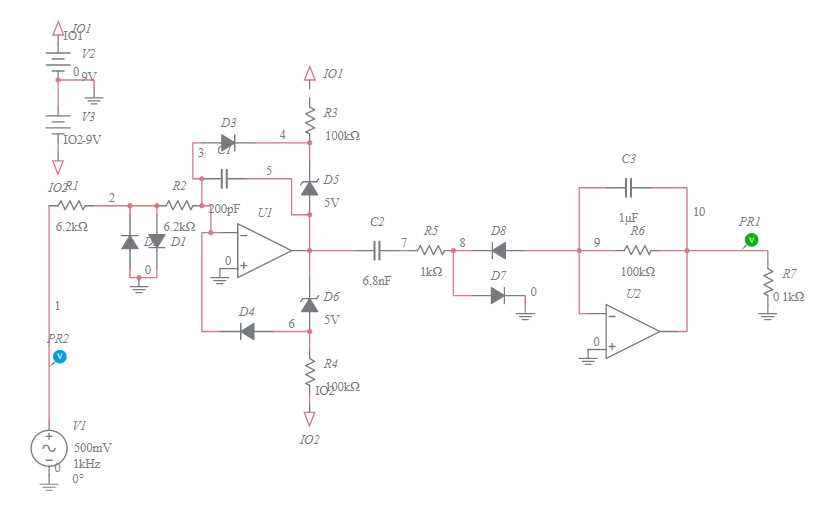

If your application exceeds 10 kHz, switch to a dual-op-amp topology: the first stage (e.g., TL072) acts as a comparator, converting incoming oscillations into clean square waves, while the second stage integrates these pulses via a 1 kΩ precision resistor and 0.1 µF polyester capacitor. Scale the output by adjusting the RC time constant–target a 1 ms rise time for 500 Hz input, shortening it to 10 µs for 50 kHz signals. Avoid ceramic capacitors in the integrator path; leakage currents distort linearity beyond 2%.
For high-impedance sensors (e.g., piezoelectric), insert a JFET-input buffer (e.g., AD820) before the comparator stage to prevent loading. Use a 1 MΩ feedback resistor for unity gain, but bypass with a 10 pF capacitor to stabilize high-frequency response. Ground the non-inverting input through a 100 kΩ resistor to establish a noise-immune reference. Test all configurations with a 1 kHz, 50% duty-cycle square wave first–deviations above ±1% indicate layout issues (proximity of digital traces to analog pins).
Power supply decoupling is non-negotiable: place a 10 µF tantalum capacitor across the IC’s VCC and ground pins, within 2 mm of the package. For 12V rails, add a 1 µH ferrite bead in series to block switching transients from nearby relays or SMPS. Calibration requires a known pulse source (e.g., 4 kHz from a crystal oscillator) and a 4½-digit DMM; adjust the integrating resistor in 1% increments until the output matches 800 mV ±2 mV. Log the resistor value–thermal drift above 50 ppm/°C necessitates a wirewound or bulk-metal foil type.

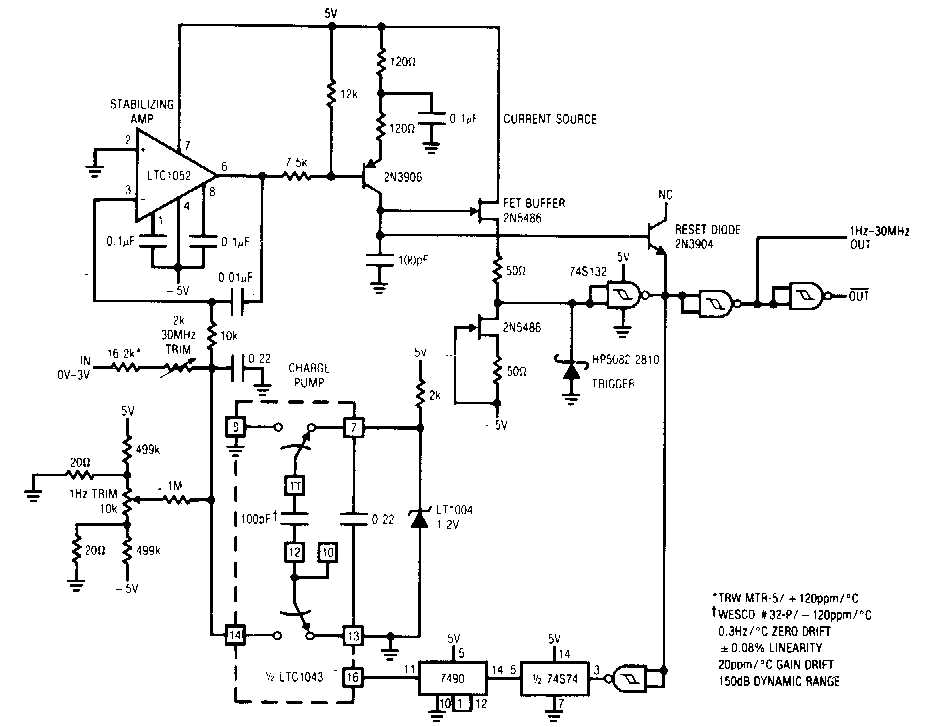

Signal Transducer Schematic: Pulse Rate to Analog Level
Begin with a precision op-amp like the LM358 configured as a pulse integrator. Feed the incoming pulses into the non-inverting input via a 100nF coupling capacitor to block DC offsets. A feedback network of 1MΩ resistor and 10nF capacitor sets the integration time constant–adjust these values proportionally to the anticipated pulse rate range (e.g., 1kHz–10kHz pulses require τ ≤ 100μs). Ensure the op-amp’s supply rails span at least ±5V beyond the desired output swing to avoid clipping during rapid transients.
Add a fast Schottky diode (1N5817) in series with a 47kΩ resistor between the pulse source and the integrator input. This clamping network prevents reverse-charge leakage through the coupling capacitor, which would skew linearity at low duty cycles. For pulse rates above 50kHz, substitute the diode with a CMOS transmission gate (CD4016) gated synchronously to the input pulses to eliminate forward-voltage drop errors.
Scaling and Calibration Adjustments
Terminate the integrator output with a buffered unity-gain amplifier using a TL072 op-amp to drive resistive loads without sag. Insert a 10-turn trimpot (Bourns 3296W) in series with a 47kΩ resistor from the buffer’s output to ground–this span control trims the full-scale analog level to match ADC input ranges (e.g., 0–3.3V for 12-bit converters). Calibrate by injecting a known pulse train (e.g., 1kHz from a crystal-stabilized generator) and adjusting the trimpot until the output sits at 1.000V ±0.5mV.
Avoid RC networks with temperature-sensitive capacitors; use C0G/NP0 ceramic or polypropylene film caps for the integration stage to maintain stability across −20°C to +85°C. For wide-dynamic applications (e.g., 10Hz–200kHz pulses), cascade two integrators: the first handles coarse accumulation, the second refines resolution via a shorter time constant (τ = 10μs). Decouple each stage with 100nF X7R caps placed
Validate performance by plotting input pulse rate versus analog output across the operating band. A well-tuned transducer will exhibit 5pF) or excessive integration time–recheck PCB trace geometry and re-calibrate. Log critical nodes (op-amp outputs, coupling capacitor terminals) with a 10MHz bandwidth oscilloscope to confirm clean transitions; ring exceeding 2% of pulse period mandates ferrite bead placement in series with the pulse source.

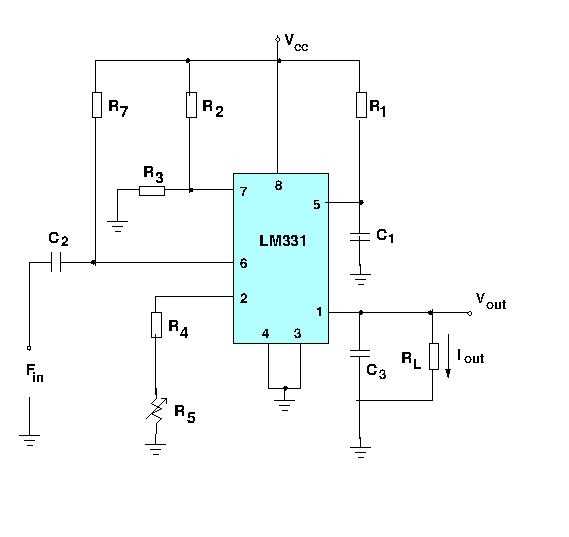

Key Components and Their Functional Roles in Signal Translation
Select a precision timing element–typically a monostable multivibrator like the 74HC4538–to define output pulse width. This stage determines linearity; errors here scale non-linearly with input rate. Ensure the timing capacitor’s tolerance is ≤1% and choose a low-leakage dielectric (C0G/NP0) to prevent drift ≥0.05%/°C. Pair it with a resistor network offering tempco ≤25 ppm/°C; mismatch here introduces offset exceeding 20 mV at 10 kHz input.
- Comparator IC (e.g., LM311) benchmarks incoming pulses against a fixed threshold. Use hysteresis ≥2 mV to reject noise margins below 50 mV PP, common in switch-mode interference.
- Low-pass filter (2nd-order Sallen-Key) averages pulses; cutoff must sit ≤0.1× input rate max (e.g., 1 kHz for 10 kHz max). Fc misalignment introduces ripple ≥1% FS.
- Amplifier stage (OPA2333) scales the output; unity gain bandwidth ≥1 MHz prevents slew-induced distortions ≥0.1% at 20 kHz.
Isolate each stage with decoupling caps (0.1 µF X7R) directly at IC power pins–omission causes spurious responses ≥50 mV PP. Ground critical nodes star-topology; daisy-chained returns risk offset ≥10 mV due to shared impedance. Calibrate zero-scale by trimming the reference divider (≤10-turn pot) to ±1 LSB across temperature extremes (-20°C to +70°C).

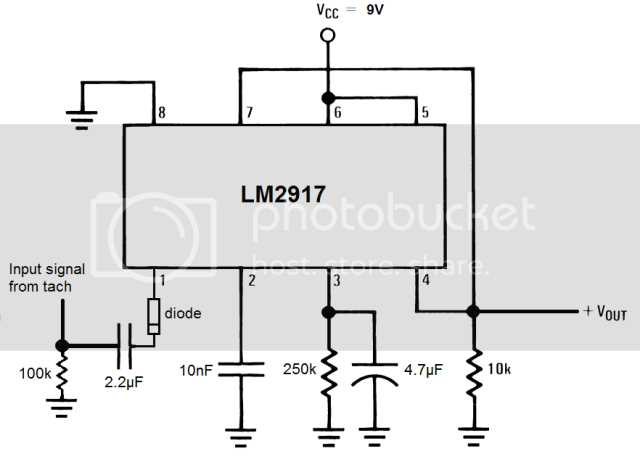

Step-by-Step Assembly of the LM2907/LM2917 IC-Based Signal Processor
Select a clean, static-free workspace with proper lighting and a soldering station set to 350°C for lead-based solder or 375°C for lead-free variants. Ensure the IC’s pin 1 aligns with the silkscreen mark on the PCB before securing it–misalignment risks shorting adjacent traces.
Gather components precisely as specified:
- LM2907/LM2917 IC (verify package: DIP-8 for prototyping, SOIC-8 for compact layouts)
- Resistors: 10 kΩ (1%), 47 kΩ (1%), 100 kΩ (trimmer, multi-turn preferred)
- Capacitors: 10 nF (ceramic, X7R), 100 nF (ceramic, bypass), 1 µF (tantalum or electrolytic)
- Optional: 1N4148 diode (protection), 10-turn pot (fine adjustment)
Begin with the charge pump stage. Connect a 10 nF capacitor between the IC’s pin 6 and ground–this component defines input sensitivity; deviations beyond ±5% alter response linearity. Follow with a 10 kΩ resistor linking pin 6 to the incoming pulsed stream’s source, ensuring the node handles voltages exceeding the IC’s supply by ≤0.3 V to prevent latch-up.
Install the timing network next. Place the 1 µF capacitor between pin 2 and ground, and bridge pin 2 to pin 3 with the 47 kΩ resistor. This pairing sets the output slew rate–doubling the resistor halves the slope, useful for damping high-speed transients. Verify polarities on polarised caps; reversed connections swell and vent within 30 seconds under test conditions.
Attach the feedback loop critical for stability. Wire the 100 kΩ trimmer between pin 4 (output) and pin 3 (timing junction). Adjust mid-band: apply a 1 kHz square wave at 5 Vp-p amplitude, then turn the trimmer until the output stabilizes at 2.5 V ±50 mV. Excess resistance induces overshoot, insufficient causes premature roll-off below 50 Hz.
For transient suppression, solder a 100 nF bypass capacitor directly across the IC’s VCC (pin 8) and ground (pin 5). Place it within 3 mm of the pins–longer traces inject ringing equivalent to 40 mV/V of input surges. Add the 1N4148 diode anode to pin 1, cathode to a 12 V rail if input excursions exceed supply levels, clamping spikes to a 1.2 V margin.
Test stepwise:
- Power on: 8–28 VDC to pin 8, return to pin 5. Leakage current
- Apply pulsed input: 1–10 kHz, 0–5 V amplitude. Observe pin 4 with an oscilloscope; flat regions indicate improper trimmer setting.
- Vary amplitude: output should track linearly ±2%. Nonlinearity > 0.5% suggests stray capacitance on pin 6.
- Temperature drift test: heat IC with a 60°C gun. Output shift must remain
Finalize the build by encasing high-impedance nodes (pins 6, 2, 3) in a grounded copper pour. Exposed traces act as antennas–capture up to 120 mV of 60 Hz hum at 10 cm distance. For automotive applications, twist supply leads tightly and clamp with ferrite beads to suppress 1 MHz–30 MHz noise emitted by alternators.
Determining Component Values for Target Signal Transformation
For a pulse-rate to potential shift with a linear response, the timing component values hinge on the input pulse width and the desired scaling factor. Begin by defining the output span needed; for example, 0–5V across 10Hz to 1kHz requires a scaling of 5mV/Hz. The resistance (R) in the timing network sets the charge rate: R = (Vref × tpulse) / (Icharge × ∆Vout). A 10kΩ resistor paired with a 100nF capacitor yields a time constant of 1ms, aligning with a 1kHz upper bound when Vref is 5V and ∆Vout is 5V. Adjust R inversely with the target span–halving R doubles the output swing.
Capacitor selection dictates response fidelity. A 10nF film capacitor reduces ripple to under 10mV at 1kHz, while a 1nF unit pushes ripple to 100mV but reacts 10× faster to transients. For mid-band applications (100Hz–10kHz), 47nF strikes a balance between noise immunity and settling time under 50µs. Electrolytic types introduce leakage currents that skew linearity above 50°C; polycarbonate or polypropylene tolerances (±1%) avoid drift beyond 50ppm/°C.
To minimize non-linearity at extremes, the storage capacitor’s value must satisfy C = (Icharge × tmin) / ∆Vout, where tmin is the shortest pulse duration. With a 100µs pulse and 1mA charge current, C ≤ 2.2µF ensures the output voltage swings fully within one cycle. Below this threshold, partial charging clips the signal; exceeding it slows response without improving accuracy. Test stability by observing overshoot at the upper limit–3% overshoot mandates a 5% reduction in C or a 10% increase in R.
The bleed resistor across the capacitor governs discharge speed and output droop. A 1MΩ resistor on a 1µF capacitor yields a 1s time constant, holding state between pulses but causing a 1V/sec droop. For time-sensitive applications, drop this to 470kΩ to halve droop at the cost of higher quiescent current (≈10µA). Below 100kΩ, average output sags due to incomplete discharge between cycles, manifesting as a DC offset proportional to the rate. Validate with a 1Hz input–offset should not exceed 2% of full scale.
Practical tolerance stack-up demands iterative tuning. Start with R/C values from calculations, then trim R in 5% increments while monitoring output at 10%, 50%, and 90% of the target span. A 100-point calibration sweep reveals nonlinearity peaks; these often align with capacitor self-resonance (≈1MHz for X7R ceramics), requiring shielding or a series ferrite bead (
Temperature drift mitigation begins with matched component coefficients. Pair an NPO capacitor (+30ppm/°C) with a thick-film resistor (±50ppm/°C) to cancel first-order drift. For operation beyond 70°C, substitute the capacitor with a glass dielectric unit (±10ppm/°C) and the resistor with a precision metal film (±10ppm/°C). Drift curves diverge beyond ±0.3%/°C unless compensated; a thermistor network (-4%/°C) shunted across R trims residual drift to ±0.1% across -20°C to 85°C.
Final verification requires a dual-slope test: inject a 1kHz reference rate and adjust R until the output stabilizes at 5V, then switch to 10Hz–output must settle at 50mV within 20ms. Deviations exceeding 1% indicate parasitic capacitance on the timing node; relocate the capacitor closer to the active device or reduce trace lengths below 5mm. For isolated designs, optocoupler speed grades (>10Mbps) prevent phase lag from distorting the scaling; bypass the LED with 1kΩ and 1nF to clamp rise times under 50ns.
