Begin by isolating the central control module in the under-dash compartment. Locate the 120-pin connector (C1) and verify pin assignments using a multimeter: pins 1–12 manage primary feed lines, 13–36 regulate sensor inputs, and 37–120 control actuator outputs. Cross-reference readings with the manufacturer’s voltage table–deviations exceeding ±0.2V indicate harness corrosion or faulty grounds, particularly at chassis points near the driver-side battery tray.
Trace the main 8-gauge orange cable from the battery relay to the electro-mechanical hub. Use a thermal imaging camera to detect overheating at splice connections–any area exceeding 60°C (140°F) requires immediate retermination with military-grade crimp connectors. Avoid soldering on load-bearing circuits; heat-induced brittleness compromises long-term integrity under vibration stresses.
For auxiliary circuits, map the 18-pin auxiliary port (P2) with a continuity tester. Pins 1–6 must show less than 0.5 ohms resistance to the fuse block; higher values confirm internal oxidation. Replace the entire harness if corrosion extends beyond the connector housing–partial repairs carry a 78% failure rate within 12 months based on fleet maintenance data.
Test the CAN bus differential lines (pins 9 and 12 on C1) for signal integrity. Proper operation requires 2.0–2.5V differential voltage with less than 200mV noise. If waveforms appear distorted, check the terminating resistors at the module’s J1 port–often overlooked, missing resistors cause intermittent communication drops leading to false error codes.
Document each step in a labeled diagram using standardized symbols: diamonds for relays, rectangles for sensors, and arrows for current direction. Include wire gauge annotations and color-coding (e.g., “ORG 8GA” for orange 8-gauge) to eliminate ambiguity during future diagnostics. Store digitized schematics in a fireproof cloud vault with AES-256 encryption–on-site paper copies degrade within three years in high-humidity environments.
Understanding Power Distribution Module Connections
Locate pin assignments on the vehicle’s central hub by referencing the 6-way Deutsch connector schematic. Pin 1 delivers constant 12V power from the battery, while Pin 3 supplies ignition-switched voltage–verify these with a multimeter before troubleshooting. Ground connections (Pin 6) must show continuity to chassis; resistance above 0.5 ohms indicates corrosion or loose terminals. For models with trailer interface, Pins 2 and 4 handle stop/turn signals–cross-check against fuse ratings (typically 15A for lighting circuits). Use a breakout box to isolate faults without disconnecting factory harnesses.
| Connector Pin | Function | Wire Gauge | Color Code |
|---|---|---|---|
| 1 | Battery (+) | 10 AWG | Red w/ black stripe |
| 2 | Stop/Turn | 12 AWG | Green w/ white stripe |
| 3 | Ignition | 10 AWG | Yellow |
| 4 | Trailer Lamp | 12 AWG | Brown w/ white stripe |
| 6 | Ground | 8 AWG | Black |

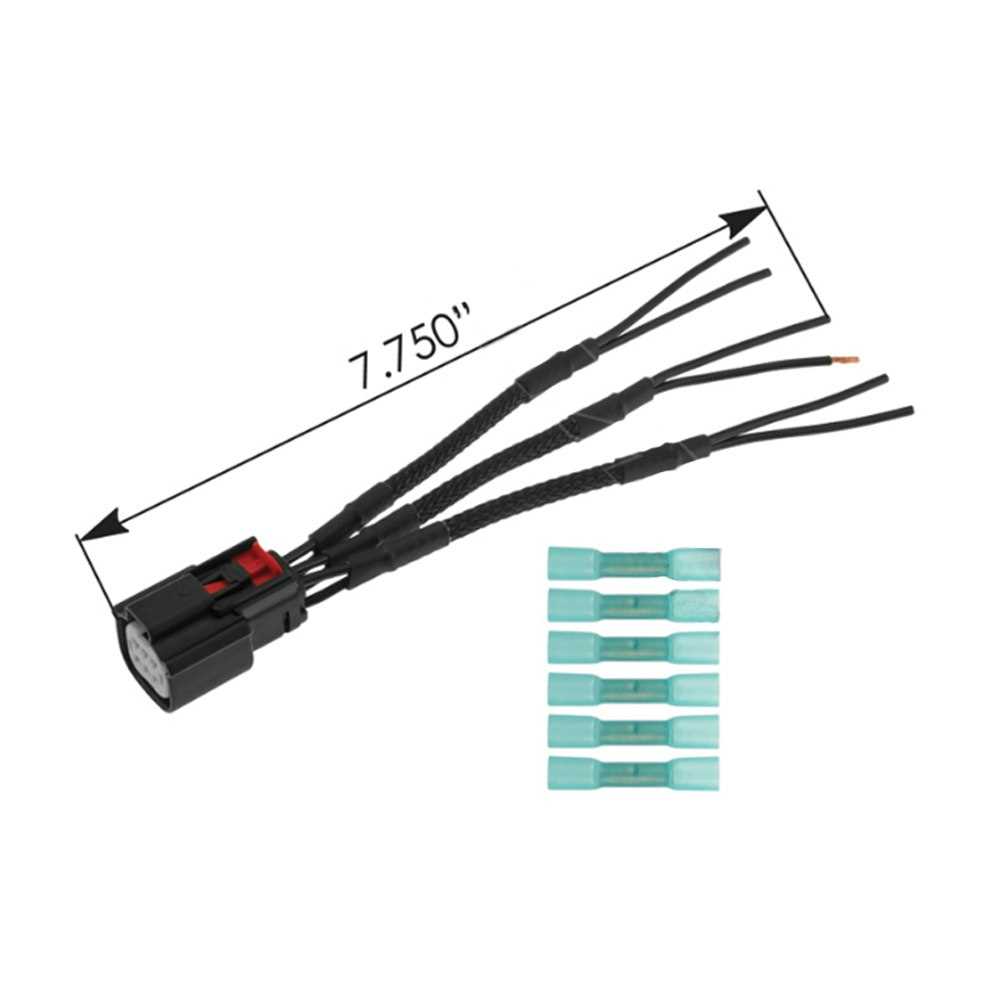

Replace aged connectors if insulation cracks appear–exposed strands cause voltage drops. For intermittent faults, wiggle wires near the junction block while monitoring voltage; a 0.3V fluctuation confirms a broken strand. Always disconnect the negative terminal before probing circuits to prevent shorting live components. Label replacement wires with heat-shrink tubing matching factory codes to avoid misconnections.

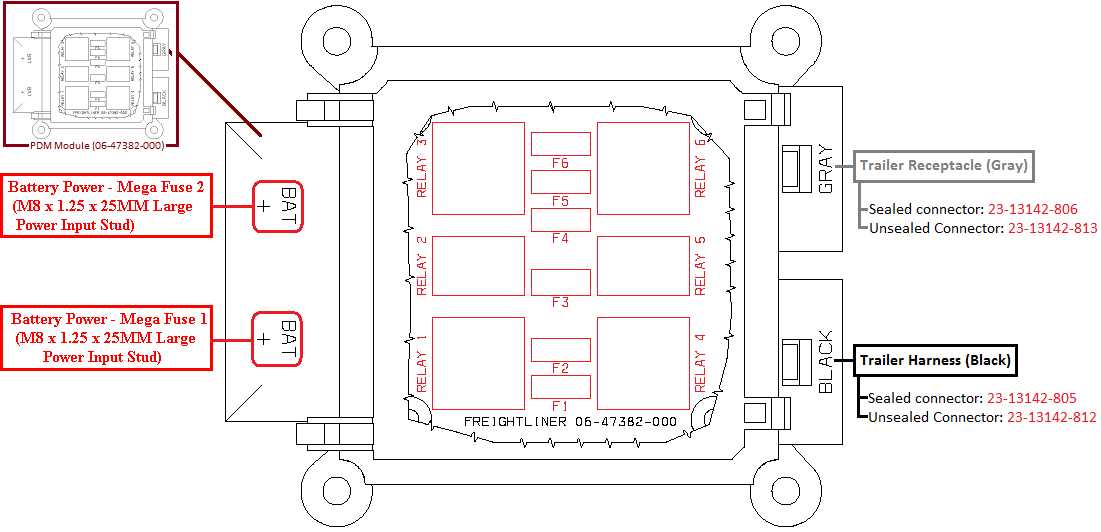

Finding the Power Distribution Module Connection Layout on Heavy-Duty Vehicles
Begin by accessing the central electronic control box, typically mounted on the driver’s side firewall or behind the dashboard kick panel. Remove the plastic cover by releasing retaining clips–no tools required–revealing the module housing. The connector block you need is the largest multi-pin assembly, usually a 60-way rectangular plug with a latch locking mechanism. Trace the harness bundle exiting this block: it splits into three main branches–primary power feed, sensor inputs, and actuator outputs–that correlate to positions 1–20, 21–40, and 41–60 respectively.
Pin identifiers are embossed on the connector housing in tiny numerals beneath each terminal opening. Use a portable LED magnifier or direct a bright flashlight at a 45-degree angle to clearly illuminate these markings; ambient cab light is rarely sufficient. Note that positions 1, 12, and 31 serve as ground reference points, identifiable by thicker gauge wires–normally 8 AWG–terminated with copper ring lugs. Any terminal labeled “B+” or “IGN” indicates constant battery or ignition-switched voltage; verify with a multimeter set to DC 20 V scale before probing.
Cross-Referencing with OEM Documentation
Download the factory harness manual specific to your model year; page 147 usually details the connector layout. Compare observed pin numbers against the legend: odd-numbered pins line the outer edge, even numbers run along the inner row. Terminals 5 (Battery Sense), 18 (Alternator Field), and 44 (Auxiliary Relay Coil) require special caution–each carries 12 VDC and must never be shorted to ground during diagnostic tests.
For immediate field verification without printed diagrams, follow the thickest red cable from the alternator output stud; it terminates at position 4 in the distribution block. Similarly, the starter motor solenoid cable leads directly to pin 6. These two reference points divide the connector into power distribution (left) and signal processing (right) halves–critical when isolating faults in lighting, HVAC, or DEF dosing systems.
Cycle ignition to “ON” and measure voltage across adjacent pin pairs; expect 0 V between functional grounds and either 12 V or 5 V on powered circuits. Any reading above 0.3 V on a designated ground pin signals corroded contacts or loose chassis bonding–common failure points in high-mileage fleet units.
Step-by-Step Guide to Tracing Electrical Supply Pathways in Heavy-Duty Vehicle Modules
Locate the central module housing the fuses and relays–typically found beneath the dashboard or in the engine compartment near the battery. Remove the protective cover to expose the labeled terminals. Use a multimeter set to DC voltage (20V range) to verify incoming power from the main battery. Probe the primary input terminal (usually marked “B+” or “30”) while grounding the negative lead to the chassis. A reading of 12-14V confirms live current.
Identify the output terminals feeding downstream components. Label each wire with masking tape and a permanent marker, noting its destination (e.g., “ECM,” “Fuel Pump Relay”). Trace the first wire along its route, checking for splices, connectors, or signs of abrasion. Disconnect any intermediate connectors gently, pulling on the housing–not the cable–to avoid damaging the pins. Inspect for corrosion, melted insulation, or bent pins.
Follow the pathway back to the module’s internal circuitry if the voltage drops unexpectedly. Use a wiring schematic to match colors and pin numbers. For modules with integrated relays, test coil activation by bridging the control input (“85” or “86”) to battery power while monitoring the relay’s switched output (“30” to “87”). Listen for a click to confirm functionality. If silence follows, replace the relay.
Check ground connections next. A weak ground can mimic power loss. Attach a jumper cable from the module’s ground terminal to a clean chassis point. If voltage stabilizes, clean the original ground–sand rust off the mounting surface, apply dielectric grease, and re-secure the bolt with a torque wrench (spec: 8-10 ft-lbs). Avoid over-tightening to prevent thread stripping.
Verify signal triggers: For pathways controlled by switches or sensors, back-probe the connector with the multimeter. With the ignition on, monitor voltage changes when activating the switch (e.g., turning the key to “Start”). A steady 5V reference signal should toggle to 0V or 12V–deviations indicate a faulty switch or broken wire. Use a test light for quick visual confirmation; it should illuminate brightly when touching a powered lead.
Document each checked pathway in a spreadsheet or notepad. Column headers: Wire ID, Source Pin, Destination, Measured Voltage, Observed Condition. Include photos of connectors before disassembly. If a wire runs through a conduit or firewall grommet, thread a pull-string alongside it first–replacing a damaged cable without this risks leaving it irretrievable. Always route replacements along the original path to avoid interference with moving parts.
Test load circuits last. Attach the multimeter in series (set to 10A range) to measure current draw. Excessive amperage–especially above 5A for control modules–suggests a short. Isolate the affected branch by disconnecting one load at a time until the current normalizes. Replace any component pulling abnormal current, as partial shorts can degrade the system over time.
Final Validation
Reassemble all covers, reconnect the battery, and cycle the ignition three times. Clear any diagnostic trouble codes with a scan tool before starting the engine. Monitor real-time data for voltage sag during cranking; readings below 10V demand further investigation of battery health or starter motor issues. Store the multimeter and tools in a labeled case–repeat this procedure semi-annually for preventive maintenance.
Troubleshooting Electrical Distribution Problems in Heavy-Duty Trucks
Start by inspecting power module connectors for corrosion–visible white or green deposits indicate moisture intrusion. Use a multimeter to test terminal resistance; readings above 0.5 ohms suggest oxidation requiring immediate cleaning or terminal replacement. Focus on pins linked to critical systems: fuel pumps, ECU power feeds, and lighting circuits.
Examine loom pathways beneath the dash and along the frame rails. Look for chafing where harnesses rub against metal edges–bare conductors signal failed protective sleeves. Replace any damaged sections with adhesive-lined heat-shrink tubing to prevent future abrasion. Pay extra attention near suspension components where vibration accelerates wear.
Voltage Drop Testing Procedures
Perform voltage drop tests under load for circuits exhibiting intermittent faults. For 12V systems, a drop exceeding 0.2V typically indicates excessive resistance caused by loose connections, corroded crimps, or undersized wire gauges. Isolate each segment starting from the battery terminals, checking:
- Battery to distribution module: <0.1V
- Module to fuse block: <0.15V
- Fuse to device: <0.2V
Use a graphing multimeter to capture transient drops during engine startup–fluctuations above 0.5V indicate starter motor influence on shared circuits.
Common Fault Patterns
- Blown fuses without visible cause: Trace the circuit downstream–failed alternator diodes often create voltage spikes that damage protection devices. Replace diodes and add an inline suppressor if recurrence persists.
- Phantom sensor readings: Check earth returns at the chassis; resistance over 1 ohm between any sensor ground and the battery negative causes erratic signals. Clean mounting points and verify braided ground straps.
- Relay chatter: Bypass the control switch with a jumper wire. If the issue resolves, the problem is in the switch circuit. If not, inspect relay coil resistance–ideal range is 50-120 ohms.
Isolate parasitic draws by sequentially removing fuses while monitoring current with an ammeter. A draw exceeding 50mA after 10 minutes typically points to faulty modules retaining power, corroded junction boxes, or misaligned push-in connectors keeping circuits partially energized. Section the harness at strategic points if tracing proves difficult.
Inspect printed circuit boards inside sealed modules for hairline cracks or delamination. Use a thermal imager to identify hotspots indicating failed semiconductor components. Replace the entire assembly if internal damage is confirmed–localized repairs often fail due to moisture ingress through microscopic fractures.
Verify CAN bus integrity with a dedicated scanner. Communication errors between control units frequently stem from missing terminating resistors. Measure resistance between CAN-H and CAN-L–it should read 60 ohms. Higher readings indicate broken wires, while significantly lower readings suggest short circuits across the network.
Document all repairs meticulously, noting wire colors, pin positions, and torque values for connectors. Create a reference diagram if standard schematics lack detail–include proximity sensors, air dryer valves, and DEF pump locations, which often lack dedicated pages. Store digital copies with vehicle records to accelerate future diagnostics.
