Start by isolating the live (L), neutral (N), ground (GND), and auxiliary (AUX) conductors. Label each wire at both ends with heat-shrink tubing or color-coded tape to prevent misconnections. Use a multimeter to verify continuity–resistance below 0.5Ω confirms a proper bond.
For 24V DC systems, route the auxiliary wire through a 5A fuse before connecting to sensors or relays. Avoid running signal wires parallel to power cables–maintain a minimum 50mm separation or use shielded cables to reduce electromagnetic interference. Ground the shield at one end only to prevent ground loops.
When terminating, strip 6-8mm of insulation and crimp with ferrule connectors for solid-core wires. For stranded wires, tin the ends with solder or use butt splices rated for 10A+. Secure connections with IP67-rated junction boxes if exposed to moisture–avoid exposed terminals in corroded environments like marine or industrial setups.
Test the circuit under load. Measure voltage drops: ≤0.2V across connections indicates minimal loss. For AC applications, verify phase alignment with a non-contact voltage tester before energizing. If integrating with automation systems, use PLC-rated cables with 22AWG or thicker for noise immunity.
Document the layout with a clear schematic. Note wire gauges, fuse ratings, and termination points. Store a copy near the control panel for troubleshooting. Replace any wire showing 10%+ voltage sag or visible damage–degraded insulation risks short circuits.
Quad-Level Electrical Schematic Manual
Begin by labeling every conductor with its designated circuit number using heat-shrink tubing or adhesive tags no wider than 3 mm. Mislabeling a single lead risks shorting adjacent 12 V lines, each carrying 8–10 A under normal load. Keep the color scheme consistent: red for power, black for ground, yellow for signal in, blue for signal out. Pre-cut each wire to the exact length listed in the trim chart below, accounting for 15 mm of insulation strip-back at both ends.
| Circuit | Gauge (mm²) | Max Current (A) | Terminal Type |
|---|---|---|---|
| Primary Power | 4.0 | 30 | Ring, M6 |
| Secondary Input | 2.5 | 20 | Spade, 6.3 mm |
| Sensor Feed | 1.0 | 8 | Butt, 3 mm |
| Ground Return | 5.0 | 40 | Ring, M8 |
Route all high-amperage conductors first, bundling them away from low-voltage lines using spiral wrap or loom tape every 10 cm. Ensure no 90° bends sharper than 5 mm radius; tighter turns create hotspots that degrade insulation over time. Use a torque screwdriver to fasten ring terminals at 4 Nm–over-tightening strips threads, under-tightening causes arcing. Verify continuity with a 2 MΩ impedance meter before sealing connections with dielectric grease.
Group signal wires in twisted pairs, maintaining a 2 cm lay length to cancel interference. Shield the entire harness with tinned copper braid, grounding the shield only at the control module’s designated point to prevent ground loops. Test each branch under full load for voltage drop; anything exceeding 0.2 V between battery and load warrants thicker copper or shorter runs.
How to Pinpoint the Right Leads in Your Trailer Plug Setup
Start by locating the vehicle-side connector’s ground lead–it will always be either white or bare copper. Use a multimeter set to continuity mode and probe each pin against the trailer frame; the ground wire will register zero ohms or a tone. Never assume color codes alone–some manufacturers deviate from the standard brown (tail/running lights), yellow (left turn/brake), green (right turn/brake), and white (ground) scheme. Verify each function with a test light or voltage meter while activating the corresponding vehicle signal.
Inspect the connector for corrosion or bent pins before testing–oxidized contacts can simulate open circuits or cross-talk between signals. Clean terminals with electrical contact spray or a wire brush, then recheck functionality. If the trailer has a separate brake controller circuit (often blue), isolate it by toggling the brake gain setting while monitoring voltage at the pin; a properly functioning lead will show 12V when the manual brake lever is engaged.
Trace each lead from the connector to its termination point on the trailer–loose or spliced wires often reveal themselves here. Pay special attention to aftermarket harnesses; splices or non-OEM colors (like purple for reverse lights) are common. Label each wire with masking tape and a permanent marker as you confirm its function to avoid confusion during future troubleshooting or upgrades.
For trailers with auxiliary circuits (e.g., reverse lights, 12V power), consult the owner’s manual to identify the pin assignment–some use a 7-way round connector even if the tow vehicle has a 4-pin plug. Cross-reference the trailer’s lighting schematic with the vehicle’s fuse box diagram; mismatched amp ratings between leads can fry bulbs or cause intermittent failures. Replace any undersized wiring with 16-gauge or thicker copper-strand cable to handle inrush current from LED or halogen loads.
If the plug lacks a clear manufacturer label, compare the pinout to the SAE J560 standard–ground (center), marker lights (outer), and turn/brake signals (adjacent pairs). When in doubt, disconnect the tow vehicle’s battery and use a circuit tracer to follow each lead back to its source fuse or relay. Always secure stray wires with loom tubing or zip ties to prevent chafing against suspension components or sharp edges on the trailer frame.
Connecting a 4-Pin Trailer Connector: A Practical Guide

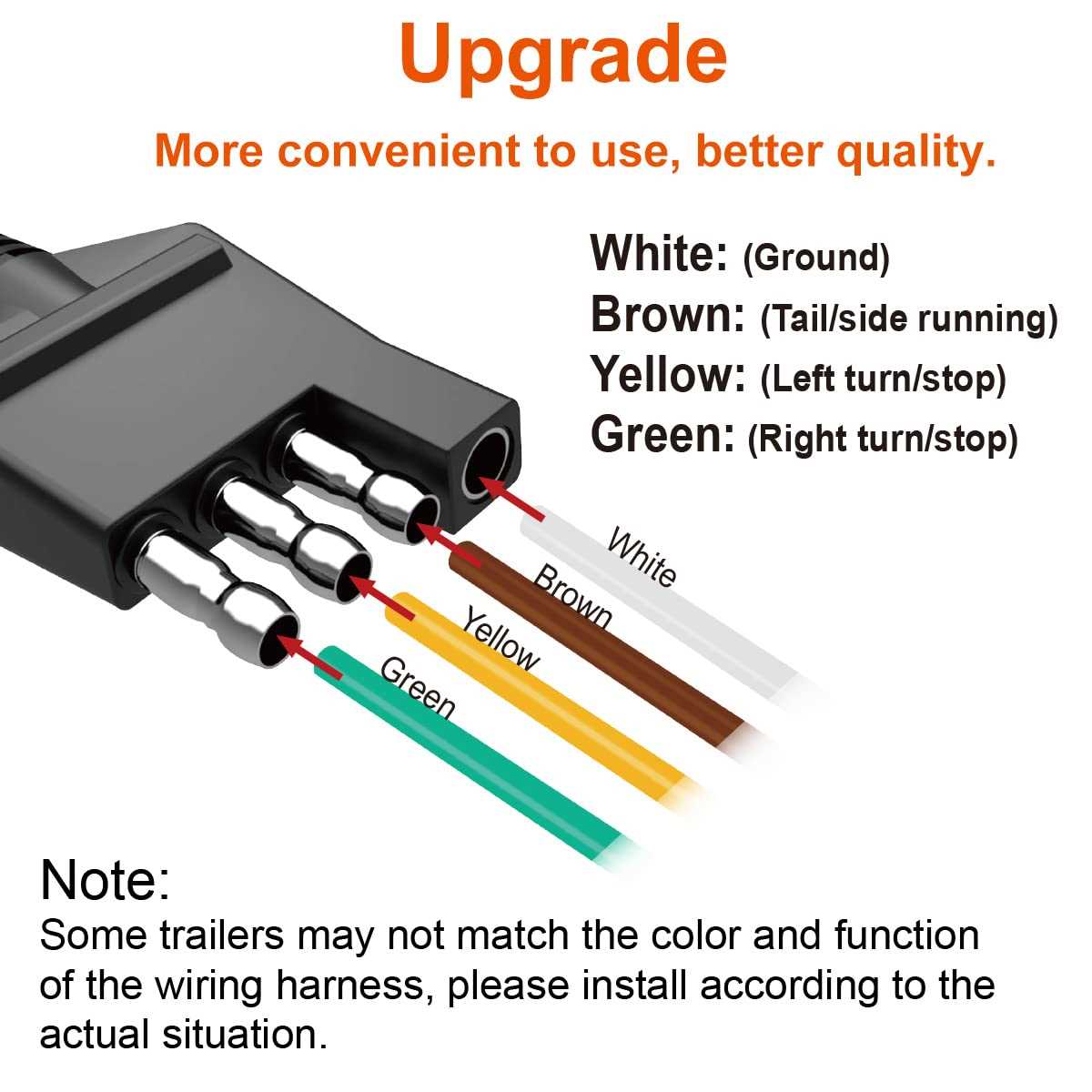

Begin by stripping the insulation from the end of each wire in the harness–no more than 5mm–to prevent shorts. Use a multimeter to verify the function of each circuit before making permanent connections: ground (white), tail/running lights (brown), left turn/brake (yellow), and right turn/brake (green). Confirm polarity if the trailer uses an LED system, as reverse voltage can damage bulbs.
- Ground (white): Secure this wire to a clean, unpainted metal surface on the vehicle’s frame using a ring terminal and self-tapping screw. Avoid attaching near moving parts or exhaust components.
- Running lights (brown): Connect this to the vehicle’s tail light circuit at the rear lamp assembly or dedicated connector. Check voltage–12V should register when headlights are on.
- Left turn/brake (yellow): Join this to the corresponding wire on the vehicle’s turn signal harness. Test by activating the left signal–both the vehicle and trailer lights should flash in sync.
- Right turn/brake (green): Follow the same method as the left circuit but for the right side. Ensure the brake light function activates properly when the pedal is pressed.
Finalizing the Setup
After making all connections, seal each joint with heat-shrink tubing or electrical tape to prevent corrosion. Apply dielectric grease to the plug’s contacts before reattaching the cover. Test the trailer’s lighting functions again–running lights, turn signals, and brake lamps must operate simultaneously without flicker or dimming. If issues arise, recheck grounds and wire continuity with a probe tester.
Use a circuit tester to verify no stray voltage exists on any pin when the vehicle is off. For trailers exceeding 10 feet, consider a relay kit to handle increased current draw–standard connectors may overheat under prolonged use with multiple lamps.
Key Errors in Trailer Cable Installation
Incorrect polarity reversal ranks as the most frequent blunder during harness assembly. Connecting the yellow lead to the right-side bulb and the green to the left disrupts turn signal synchronization. Verify pin assignments using a multimeter before securing terminals–factory color codes often mismatch aftermarket fixtures.
Overlooking ground integrity creates intermittent failures. Corrosion-developing mounting bolts or painted surfaces block current flow, causing flickering lights. Clean all grounding points with a wire brush and attach directly to bare metal, not rubberized or coated areas.
Mixing 5-way and 7-way connector schemes confuses circuits. A 7-way unit includes auxiliary power and reverse lights absent in 5-way designs. Cross-wiring these variants risks burning out trailer-side components or tripping vehicle fuses. Validate both connector types before joining.
Transposing brake and running light circuits leads to brighter-than-intended rear illumination. Running lights wired into the brake circuit draw double voltage, potentially melting lens housings. Test individual circuits separately–press brakes while monitoring running lights to spot dual activation.
Ignoring harness length restrictions strains connections. Excessively taut cables snap at stress points or unplug during sharp turns. Measure trailer swing radius, then add 10% slack beyond the maximum stretched position before fastening.
Wire Gauge Neglect
Undersized cables overheat when pulling trailers weighing above manufacturer limits. Standard 16-gauge wires suit 2,000 lbs, but 12-gauge is mandatory for 5,000+ lb loads. Replace undersized segments with correctly rated wire to prevent insulation meltdown.
Loose crimp connections provoke voltage drops. Factory pre-crimped terminals often loosen under road vibration. Solder every joint reinforced with heat-shrink tubing, ensuring 100% encapsulation to repel moisture ingress.
Skipping circuit protection invites fire hazards. Install a 20-amp inline fuse within 7 inches of the battery connection–never insert fuses meant for lower amperage ratings. Verify fuseholder resistance with a test light if accessories misbehave post-install.
