Connect the brown wire to the running lights circuit–this ensures side markers, tail lights, and license plate illumination activate simultaneously. Verify the connection with a multimeter: 12V DC should register when the vehicle’s lights are engaged. Failure here often traces to corroded terminals; clean contacts with a wire brush and apply dielectric grease to prevent oxidation in future setups.
Route the yellow wire to the left turn signal and brake light cluster. Test by activating the turn signal–left lights should flash at 60–120 pulses per minute. If the signal cancels prematurely, inspect the vehicle’s flasher relay; most late-model trucks use a solid-state unit sensitive to load fluctuations. Replace with a compatible 21W/27W equivalent if flickering persists.
The green wire handles the right-side signals identically to the yellow. Cross-wiring these strands is a common mistake–label wires during disassembly. For vehicles with separate brake and turn signals (e.g., older Ford models), install a three-terminal converter to merge circuits without overloading the flasher unit’s 3.9Ω resistance threshold.
Ground the white wire directly to the chassis near the mount, avoiding paint or undercoating. Use an 8-gauge crimp terminal and star washer to bite through surface corrosion. Poor grounding causes intermittent failures–a 0.5Ω resistance measurement confirms adequacy. If voltage drop exceeds 0.3V across the ground, relocate the connection point 18 inches closer to the battery’s negative terminal.
For LED retrofits, bypass the standard 7-way adapter’s load resistors; LEDs draw less than 0.1A per bulb compared to incandescent 2A. Install a 68Ω resistor in parallel with each LED array or upgrade the flasher relay to a Tung-Sol 552 or Optronics HLF-12–both support 0.5A–3A loads without hyper-flashing.
Guide to Connecting Your Vehicle’s Electrical Coupling System
Begin by verifying the pin configuration on your tow hitch connector. Most modern setups use a 7-pin arrangement (SAE J2863), but older models may feature a 4-pin or 5-pin variant. Check the vehicle’s manual for exact specifications–misalignment here causes faulty signals or complete system failure. If adapting between different pin counts, use a conversion adapter rated for the amperage of your lighting system (typically 5-20 amps per circuit).
Ground the connection properly by attaching the white wire to a clean, bare metal surface on the chassis. Corrosion or paint layers will disrupt conductivity–scrape the contact point with a wire brush until shiny metal is exposed. Secure with a rust-resistant screw or bolt, ensuring it’s tight enough to prevent vibration loosening. A poor ground is the leading cause of intermittent lighting issues, so prioritize this step.
Test each circuit with a multimeter before finalizing the connection. Set the meter to continuity mode and probe between the pin and ground–expect a reading below 1 ohm for properly functioning circuits. For voltage testing, activate the relevant vehicle function (e.g., turn signals) and confirm 12V at the corresponding pin. Any deviation suggests a break in the harness or a faulty bulb, requiring further inspection.
| Wire Color | Standard Function | Voltage (Engine On) | Typical Issues |
|---|---|---|---|
| Yellow | Left Turn/Brake | 12-14V | Flickering, high resistance |
| Green | Right Turn/Brake | 12-14V | Short to ground, corrosion |
| Brown | Tail/Marker Lights | 11-13V | Dim output, intermittent failure |
| White | Ground | 0V | Voltage drop, poor contact |
Route wires away from moving parts and sharp edges by securing them with plastic clamps every 18 inches. Avoid zip ties–they compress over time and chafe insulation. Use split loom tubing to protect against abrasion, especially near suspension components or exhaust manifolds where temperatures exceed 200°F. Heat-shrink tubing over soldered joints adds durability, preventing moisture ingress that causes oxidation.

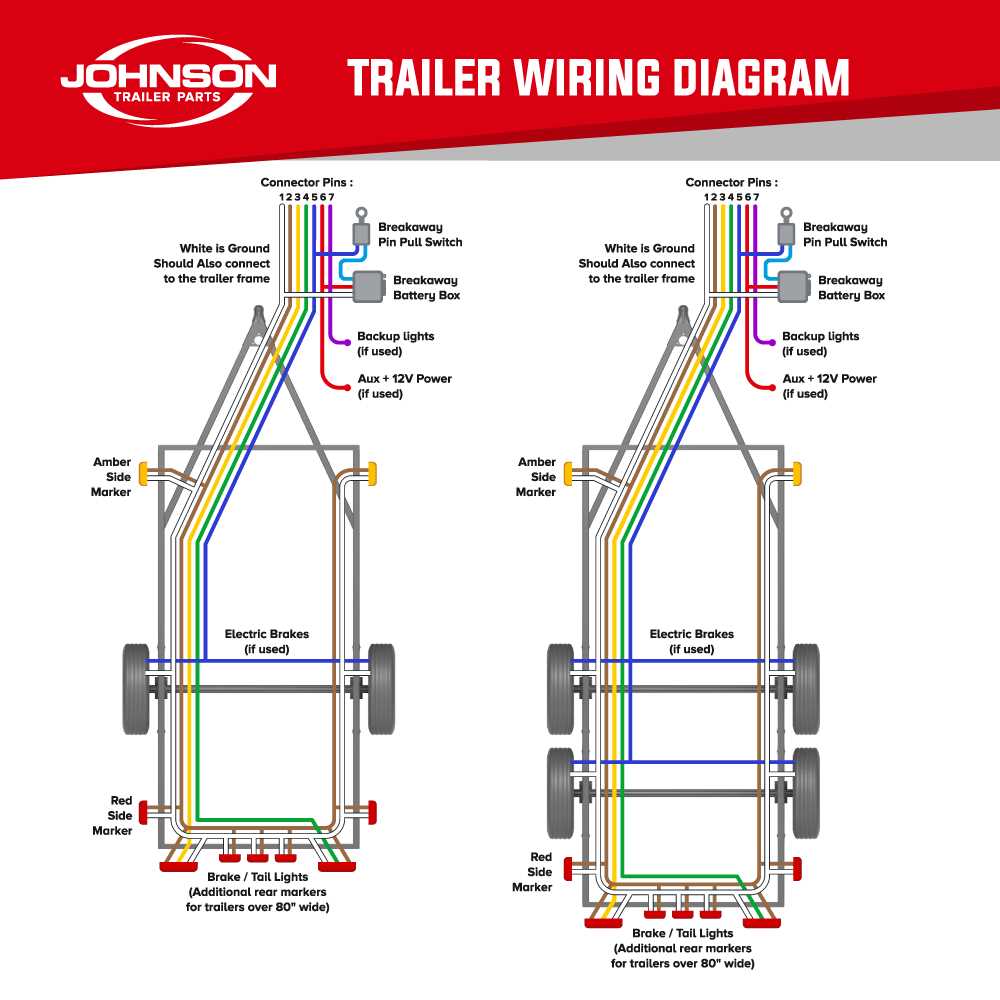

For heavy-duty applications (e.g., RV or boat towing), upgrade to a 7-way connector with dedicated circuits for auxiliary power (blue wire) and reverse lights (purple). The auxiliary circuit often powers electric brakes, requiring a brake controller mounted within 18 inches of the driver’s seat for proper modulation. Calibrate the controller according to your load’s weight–most units default to 10-12% braking force but need adjustment for loads over 3,000 lbs.
Store unused connectors in a sealed bag with silica gel packets to prevent corrosion during off-seasons. Before each use, apply dielectric grease to all contact points to displace moisture and improve conductivity. For long-term reliability, consider replacing molded connectors every 5 years–the plastics degrade under UV exposure, leading to brittle connections that fail without warning.

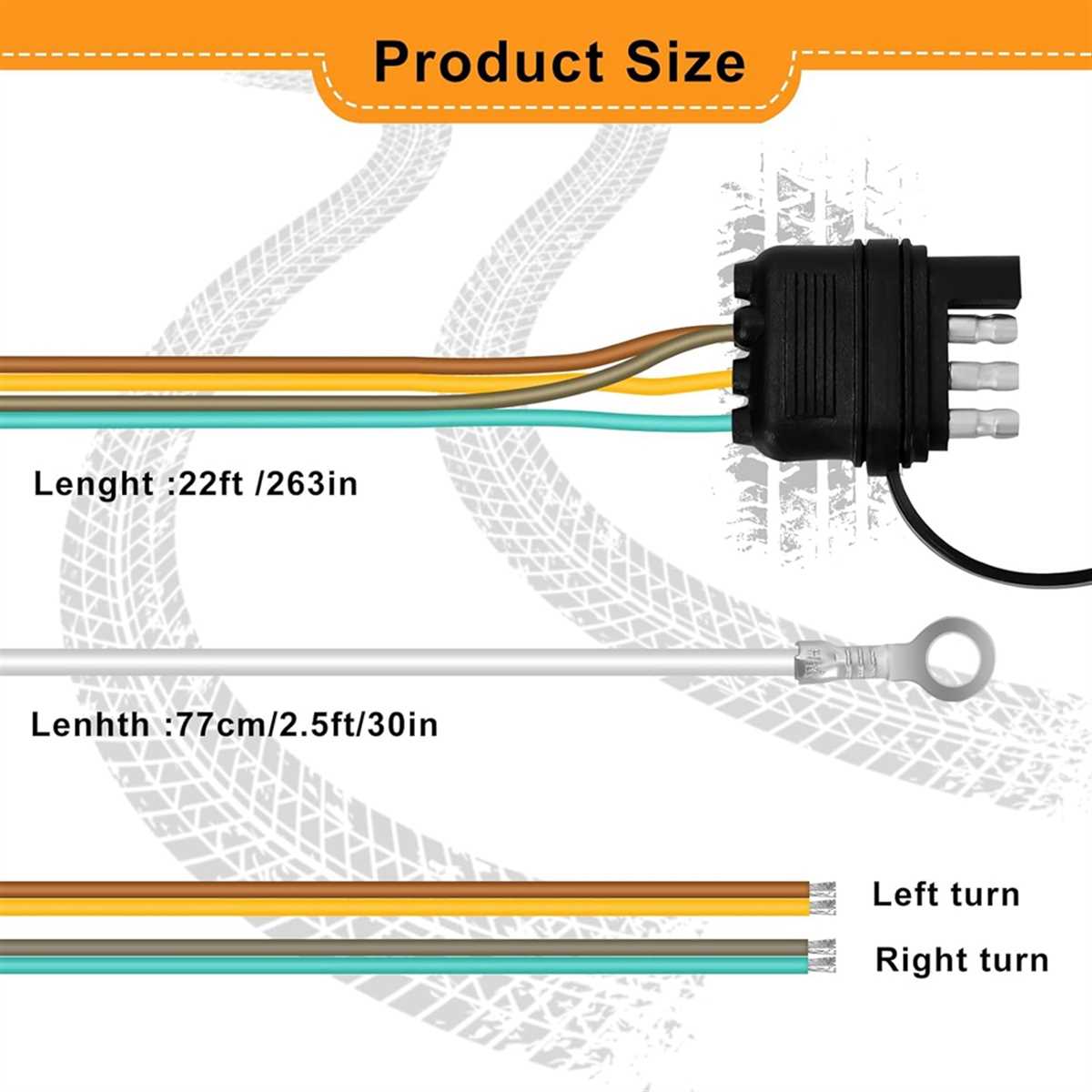

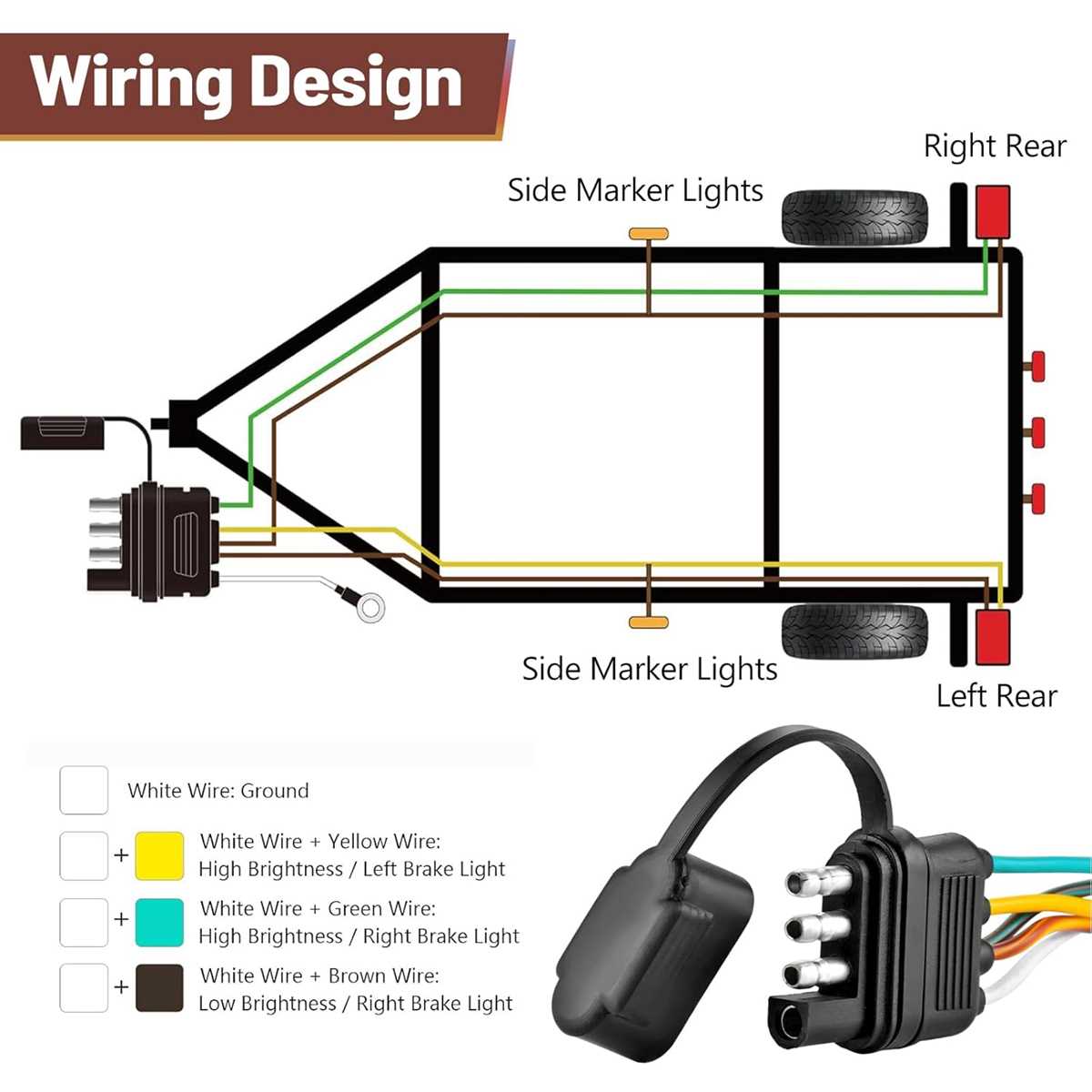

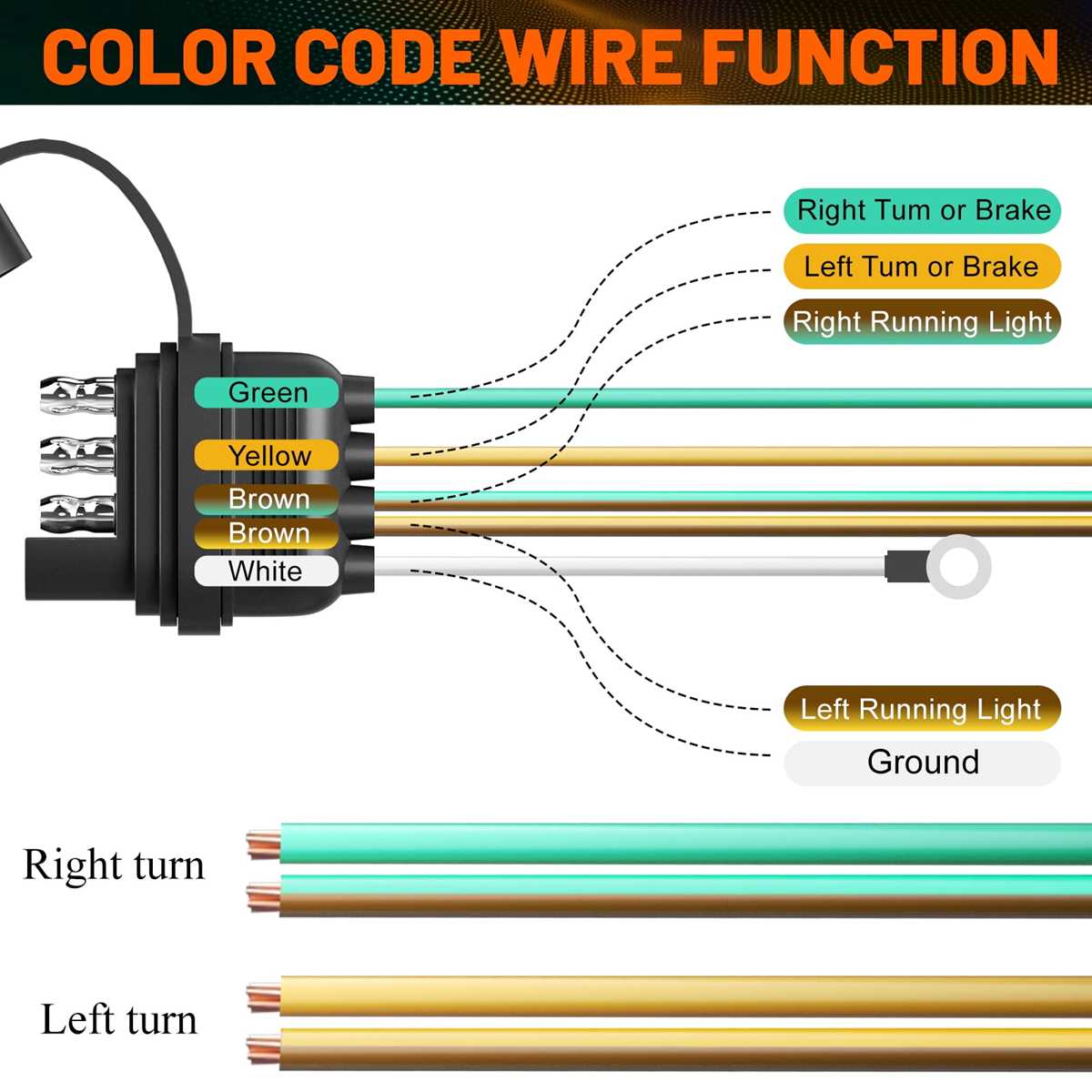

Standard Wire Color Codes for 4-Way Blade Connectors
Always verify the connector’s pinout using a multimeter before splicing or replacing wires–manufacturers occasionally deviate from the norm, especially in aftermarket harnesses.
- White (Ground): Attach this to the tow vehicle’s chassis or a dedicated ground terminal. A corroded or loose connection here causes intermittent lighting failures.
- Brown (Tail/Marker Lamps): Connects to all parking and side marker bulbs. Use 16-gauge wire for lengths under 15 feet; switch to 14-gauge for longer runs to prevent voltage drop.
- Yellow (Left Turn/Brake): Energizes the left brake lamp and turn signal. If the trailer uses separate diodes for brakes and turns, confirm polarity–reverse polarity damages LED modules.
- Green (Right Turn/Brake): Identical function to yellow but on the opposite side. Always route this away from high-current wires like auxiliary feeders to avoid induced noise.
Test the harness with the tow vehicle’s ignition off–some trucks power brake lamps directly from the battery, bypassing the ignition circuit.
If retrofitting an older rig, avoid soldering splices–crimped butt connectors with heat-shrink tubing outlast soldered joints in vibration-prone applications. Apply dielectric grease inside each connector housing to block moisture ingress.
For modular adapters that convert 7-way plugs to 4-way, the color sequence remains unchanged, but the adapter’s wire gauge must match the original harness–undersized wires overheat under continuous brake lamp load.
After installation, cycle all functions (tail, brake, both turn signals) for 30 seconds each. Feel each wire near the lamp sockets–excessive warmth signals a short or undersized conductor.
How to Connect a Vehicle Connector: A Practical Walkthrough
Begin by positioning the towing harness near the rear of the vehicle. Identify the seven-pin or five-pin socket–most modern setups use a standardized 7-way round plug for heavy-duty applications. If working with a lighter load, a 4-pin or 5-pin connector may suffice. Use a multimeter to verify the voltage on each terminal before attaching any cables; ground (white) should read 0V, while power (black or yellow) and brake/turn signal lines (green, brown, red) must show 12V when activated. Failure to confirm voltage risks damaging the electrical system.
Strip the insulation from each wire ¼ inch from the end. Crimp a ring or spade connector onto each lead–avoid soldering unless working in a controlled environment, as corrosion can degrade the connection over time. Match the wires to their designated pins: ground to the chassis, power to the auxiliary circuit, and signal wires to their corresponding functions (right turn/brake: green; left turn/brake: yellow; taillights: brown). Secure the connectors tightly; loose fits cause intermittent failures, especially on rough terrain.
Safety Checks Before Finalizing
Apply dielectric grease to each terminal before inserting into the plug housing. This prevents moisture intrusion, a common cause of short circuits. Test every function individually: activate turn signals, brakes, and running lights while observing the attached carriage. If any function fails, recheck the voltage at the socket–corrosion or a blown fuse could be the culprit. For trailers with reverse lights, the blue wire must be connected to a dedicated circuit on the towing vehicle.
Route excess cabling through a split loom to protect against chafing. Secure the loom to the vehicle’s frame using zip ties or metal clips, ensuring no part sags below the axle. Loose wires can snag on debris or overheat if pinched. For added reliability, install a circuit breaker between the power wire and the battery–this protects against overloads without requiring frequent fuse replacements. Skip this step, and a short could drain the battery or start a fire.
Finally, use a load tester to simulate real-world conditions. Hook up a resistive load equal to the maximum wattage of the connected lights. If the voltage drops below 11V, upgrade the wiring gauge or add a relay–thin wires overheat, increasing resistance. Double-check all connections with a torque wrench if using heavy-duty terminals; over-tightening cracks the housing, while under-tightening invites vibration-induced failure. Document the setup for future reference, noting wire colors and pin assignments for troubleshooting.
Common Electrical Connection Errors and Solutions
Connecting reverse polarity in the vehicle’s plug often causes safety modules to malfunction. Check the pinout with a multimeter–ground should read 0V, while signal wires must show 12V when activated. Swap wires at the socket if readings are inverted, ensuring proper color-coding (white for ground, brown for tail lamps, yellow for left turn).
Loose or corroded terminals lead to intermittent failures, especially in damp conditions. Clean contacts with a wire brush and dielectric grease before reconnecting. Crimp new connectors if the existing ones show signs of oxidation or deformation–soldering alone isn’t sufficient for vibration resistance.
Mixing up brake and auxiliary circuits can damage controllers. Label each wire during disassembly and test brake engagement separately using a 12V test light. If the auxiliary circuit (often blue) triggers unintended functions, reassign it to a relay-based setup to isolate power sources.
Using undersized gauge conductors causes voltage drop, particularly over 5-meter cables. Upgrade to minimum 16 AWG for brake/turn signals and 14 AWG for power feeds. Measure voltage at the farthest end with a load applied–acceptable drop is under 0.5V; otherwise, shorten runs or add a secondary power junction near the rear.
Neglecting ground integrity invites flickering lights and erratic signals. Secure the ground directly to chassis metal, avoiding painted or coated surfaces. Drill a fresh hole if necessary, and use star washers to improve conductivity. Test by probing between ground and negative battery terminal–readings above 0.1V indicate resistance issues.
Overloading a single fuse by tapping multiple functions into one circuit trips protection devices. Assign dedicated 5A fuses for each function (running lights, brakes, turn signals) and use a relay for high-current accessories like winches. Replace blade-type fuses with slow-blow variants if frequent surges occur during engine starts.
