Begin by isolating the main power distribution panel. Locate the 12V and 120V circuits–commonly separated by color-coded wiring: red and black for direct current, white and black for alternating current. Verify connections against a factory-supplied schematic, as aftermarket modifications often deviate from standard configurations. Use a multimeter to test voltage drops across terminals; readings below 11.5V or 115V indicate faulty wiring, corroded connectors, or insufficient gauge thickness.
Identify the converter-charger unit–typically mounted near the battery bank. Confirm it outputs 13.6V to 14.4V to maintain battery health during shore power hookups. Reverse polarity protection is critical; install a 150A fuse between the battery and converter to prevent short circuits. For lithium batteries, replace the default converter with a compatible model, as stock chargers may overcharge or fail to balance cells.
Trace the 12V circuit paths to appliances: LED lights, water pump, and fridge. Most manufacturers use 14-gauge wire for lighting and 12-gauge for pumps–any thinner wire risks overheating under load. Replace damaged wires with marine-grade tinned copper to resist moisture. Label each circuit at the fuse box to simplify troubleshooting.
Examine the 120V system next. Ground-fault circuit interrupter (GFCI) outlets should be installed within 6 feet of wet areas, such as sinks or showers. Test GFCI functionality monthly by pressing the “test” button; if the outlet fails to trip, replace it immediately. Extension cords for exterior outlets must be at least 10-gauge to handle air conditioner startup surges (often 30–40A peak).
For solar integration, connect the charge controller directly to the battery bank, bypassing the converter. MPPT controllers yield up to 30% more efficiency than PWM models but require matching battery voltage (e.g., 24V for 200W panels). Use 6-gauge wire for solar runs longer than 10 feet to minimize power loss.
Grounding rods must penetrate at least 8 feet into soil for adequate conductivity. Bond all metal frames–including chassis, axles, and propane appliances–to a single ground busbar. Failure to do so can create stray voltage hazards or interfere with GPS and radio signals. Test ground resistance with a clamp meter; readings above 25 ohms indicate poor conductivity–improve it by adding additional rods or using ground plates in dry climates.
RV Electrical Layout Guide for Mobile Lodging Units
Start by locating the 12V fuse panel behind the front storage compartment on the left side; this houses critical protection devices for lighting, water pump, and vent fan circuits. Label each fuse holder with its corresponding system–use a permanent marker to avoid confusion during maintenance.
The seven-way connector interface near the hitch requires periodic inspection; corrosion on the brass contacts leads to intermittent brake light failures. Apply dielectric grease after cleaning with a wire brush to maintain signal integrity. Verify voltage at the pin terminals–yellow (left turn/brake), green (right turn/brake), and brown (tail lights)–should read 12.4V minimum when activated.
Battery disconnect switches, when installed, often use a 4/0 AWG cable routed directly to the auxiliary power source. Ensure tight connections at the T-fitting terminals; loose clamps generate heat build-up and voltage drops exceeding 0.3V under load indicate replacement necessity. Test with a multimeter set to DC 20V scale.
| Circuit | Wire Gauge | Max Amp Draw | Recommended Breaker |
|---|---|---|---|
| LED Interior Lights | 16 AWG | 2A | 3A |
| Water Pump | 14 AWG | 8A | 10A |
| Roof Vent Fan | 12 AWG | 15A | 20A |
| Refrigerator (12V) | 10 AWG | 25A | 30A |
Inverter installations beneath dinette seats mandate minimal wire length to reduce resistance; 2/0 AWG cables are standard for units exceeding 1500W capacity. Isolate inverter chassis from frame ground using polyethylene spacers to prevent galvanic corrosion. Confirm sine wave output waveform purity with an oscilloscope–distorted signals damage sensitive electronics.
Slide-out mechanisms frequently use 6-conductor cable terminated at a sealed junction box; inspect for pinch points near pivot arms where insulation wear occurs. Replace damaged sections with marine-grade tinned copper wire to resist moisture ingress. Test actuator motor current draw–excessive amperage signals gearbox failure or misalignment.
Auxiliary power ports often share circuits with USB chargers; split these using a sub-panel with individual 10A fuses. Install surge protectors rated for 1000J minimum on all AC input lines–transient voltage spikes degrade converter efficiency. Document the entire layout in a spiral notebook stored in the glove compartment, noting color codes and circuit functions for future reference.
Mapping Critical Power Elements in Your Mobile Living Space
Locate the converter-charger beneath the primary storage area–typically a metallic box with ventilation slots. Verify the amperage rating on its label; 45-, 55-, or 75-amp units dictate the maximum loads for lights, outlets, and pumps. Disconnect shore power before probing terminals–red wires feed 12VDC output, while yellow or brown leads link to the battery bank. Test voltage at these points with a multimeter: 13.2V to 14.4V confirms proper operation, anything below 12.8V signals a failing unit or weak battery.
Inspect the distribution panel–mounted on an interior wall near the entry or utility compartment. Each breaker corresponds to a specific circuit: water heater (15–20A), refrigerator (15A), roof AC (30A), and general outlets (15–20A). Label each switch using a fine-tip marker before conducting continuity tests. Replace any toggles that fail to hold voltage under load–symptoms include dimming lights or intermittent power drops. Primary feed wires (typically 6 AWG) enter the box through a protective conduit; ensure clamps secure them to prevent chafe against metal edges.

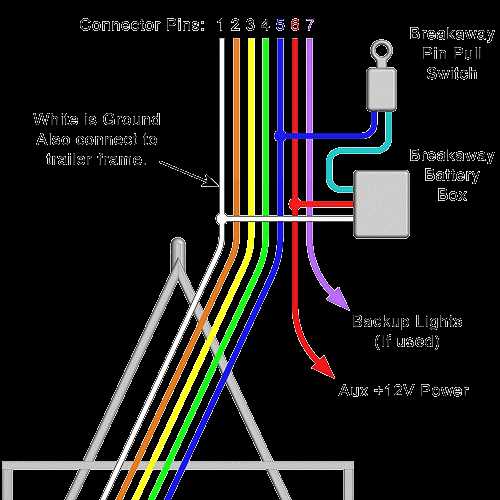

Trace the umbilical from the tow vehicle to the 7-way plug–focus on the blue (electric brakes), white (ground), and black (12V auxiliary) pins. Clean corrosion with dielectric grease and contact cleaner; even minor oxidation causes brake failures or parasitic loads. Test the circuit with a voltmeter while connected: 12V at the black pin verifies the charge line, 11.8V–12.2V at the white pin confirms ground integrity. Replace frayed or discolored wires immediately–resistance spikes degrade battery life and overheat the harness.
Step-by-Step Guide to Interpreting Electrical Blueprints
Start by locating the power source symbols. Identify the battery icon or “12V/120V” markers–these denote the origin points. Trace the primary lines outward to distribution blocks, fuses, or breakers. Note color codes: red typically signifies positive, black or white ground, while yellow or blue may indicate auxiliary circuits. Cross-reference the legend if symbols vary; manufacturers often customize shorthand for relays, switches, or connectors. Verify polarity with a multimeter before handling connections to prevent shorts.
Next, isolate each subsystem–lighting, appliances, or charging ports–by following branching paths. Highlight safety cutoffs like thermal fuses or circuit protectors (marked as squares with diagonal lines or “PTC”). Measure wire gauges using the schematic’s notation (e.g., “12 AWG”) to confirm compatibility with load requirements. If a component lacks a direct path, check for relays (coil-and-contact symbols) or junction boxes (dashed rectangles). Annotate discrepancies between the blueprint and physical layout; corrosion or modifications often disrupt expected routes.
Frequent Electrical Problems in Mobile Living Units and Solutions
Test connections with a multimeter set to continuity mode. Corrosion on terminals often mimics loose wires–scrub contacts with a wire brush and apply dielectric grease to prevent oxidation. For intermittent faults, flex cables gently while monitoring voltage to isolate breaks within sheathing. Replace entire harness lengths if insulation cracks expose conductors.
Fuses blowing repeatedly signal overloads. Compare device amp draws against circuit ratings listed on breaker panels. Upgrade wire gauge if current exceeds limits–for 12-gauge copper, stay below 20A continuous. Install an inline ammeter to track surges during appliance startup. Unplug all devices, then reconnect one by one to identify faulty components.
Dim lights or slow pumps indicate voltage drop. Measure across battery posts and at furthest outlets; drops exceeding 0.5V require thicker cables or shorter runs. Relocate batteries closer to high-demand appliances like inverters. Check alternator output–weak charging causes low system voltage. Clean battery terminals and retighten bolts to ensure solid connectivity.
Reverse polarity trips protectors but can damage sensitive electronics. Verify colors match diagrams: red to positive, black to negative, white to neutral. Swap miswired plugs immediately–polarity testers pinpoint errors instantly. For built-in systems, label all connectors to avoid accidental cross-connections during repairs.
Parasitic drains discharge batteries overnight. Disconnect the negative terminal and measure current between battery post and cable–readings above 50mA reveal phantom loads. Trace by pulling fuses one at a time until the reading drops. Common culprits include clock radios, safety monitors, and faulty relays. Replace components drawing excess standby power.
